Lightforce Replacement Switch Fascia for Ford Ranger 2015 - 2021

Details

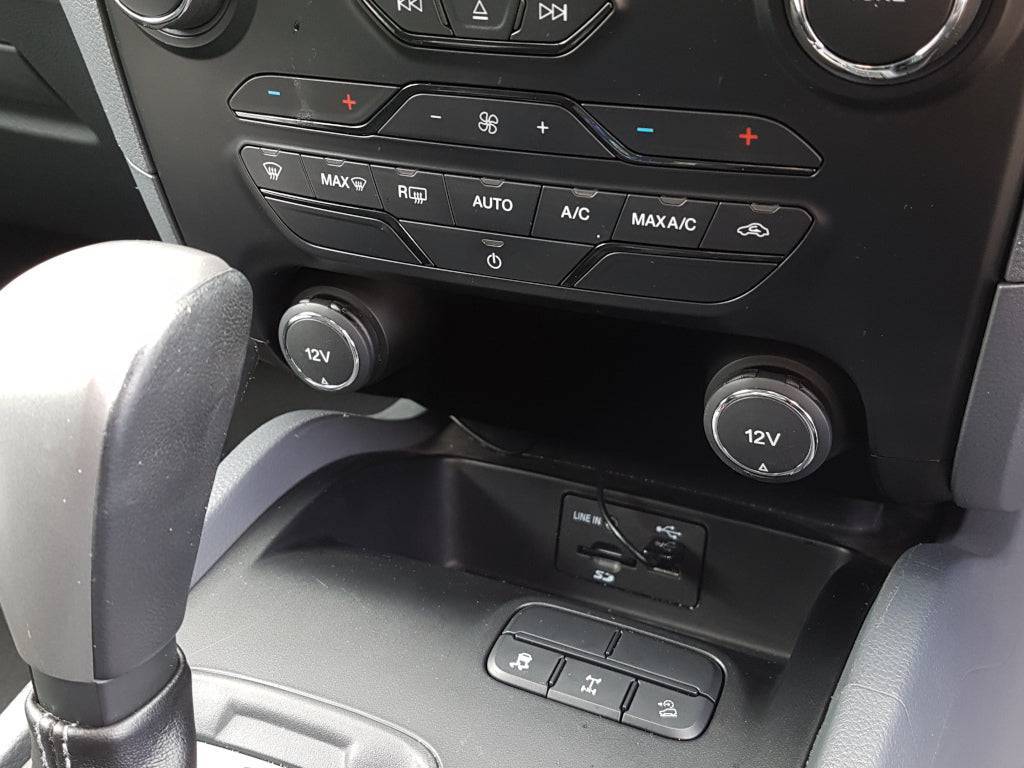

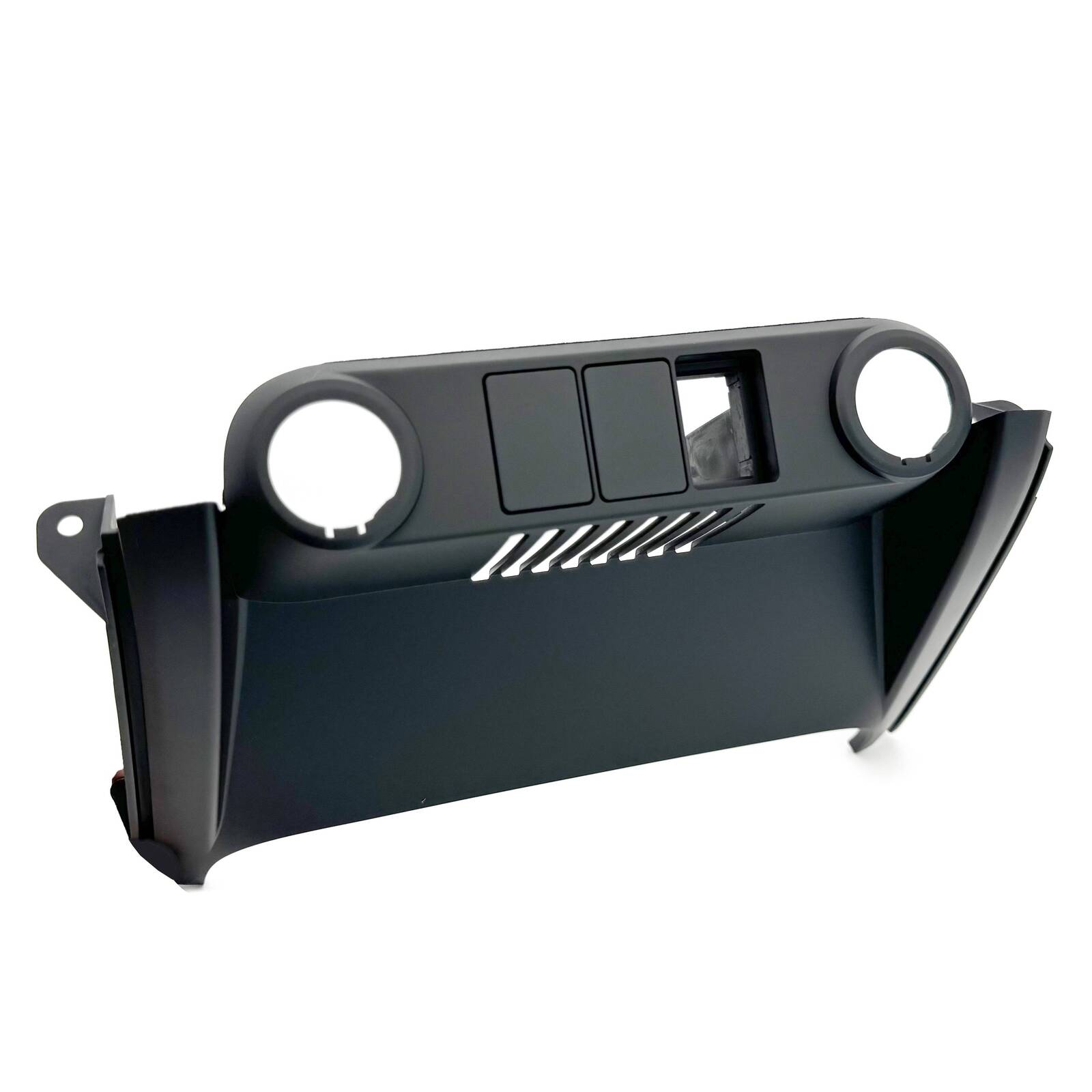

The Lightforce Switch Fascia is designed as a direct replacement for the factory panel located in the central lower dash (housing the dual 12V outlets) in Ford Ranger PX MK2, PX MK3, and Everest models. Engineered for a precise fit, it installs using the original mounting points with no modification required, maintaining a clean OEM appearance.

Manufactured from durable injected moulded ABS/PC with a matte black finish, the fascia integrates seamlessly into the vehicle’s interior. It retains the factory 12V outlets, which are transferred from the original panel, and includes two notches to correctly align the OEM USB charger.

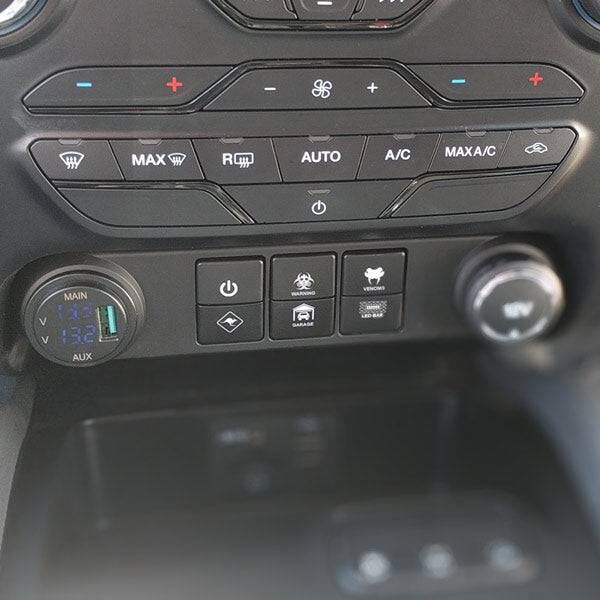

The fascia accommodates up to three standard OEM-style switches (18mm x 28mm), supporting both single and dual activation configurations—allowing control of up to six accessories from the driver’s seat.

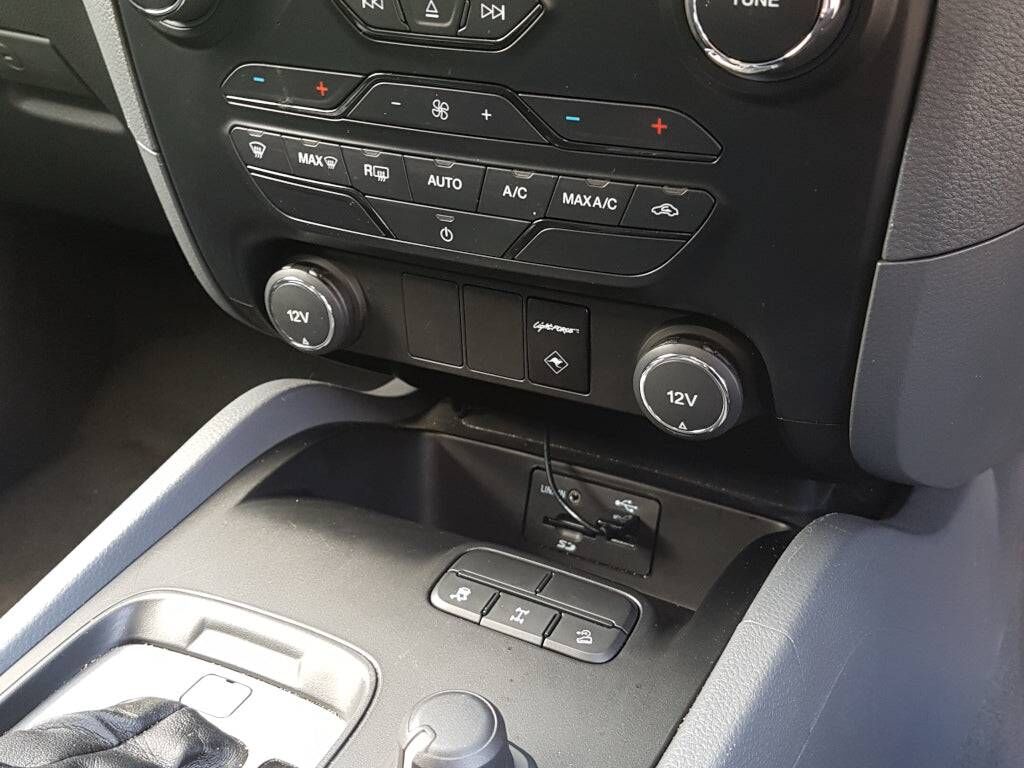

Included with the fascia is one switch and two blanking plates. The blanks are also designed to suit installation of the REDARC Tow-Pro remote brake controller (Elite V2 and Classic), with rear indents to guide drilling. Due to space limitations within the console, the optional REDARC network cable (CBRJ45) is recommended for this setup.

Installation is straightforward and typically takes around 30 minutes, requiring only a 7mm ring spanner and a medium screwdriver. Surrounding panels are removed via factory clips, and no additional hardware or adhesives are needed.
