Details

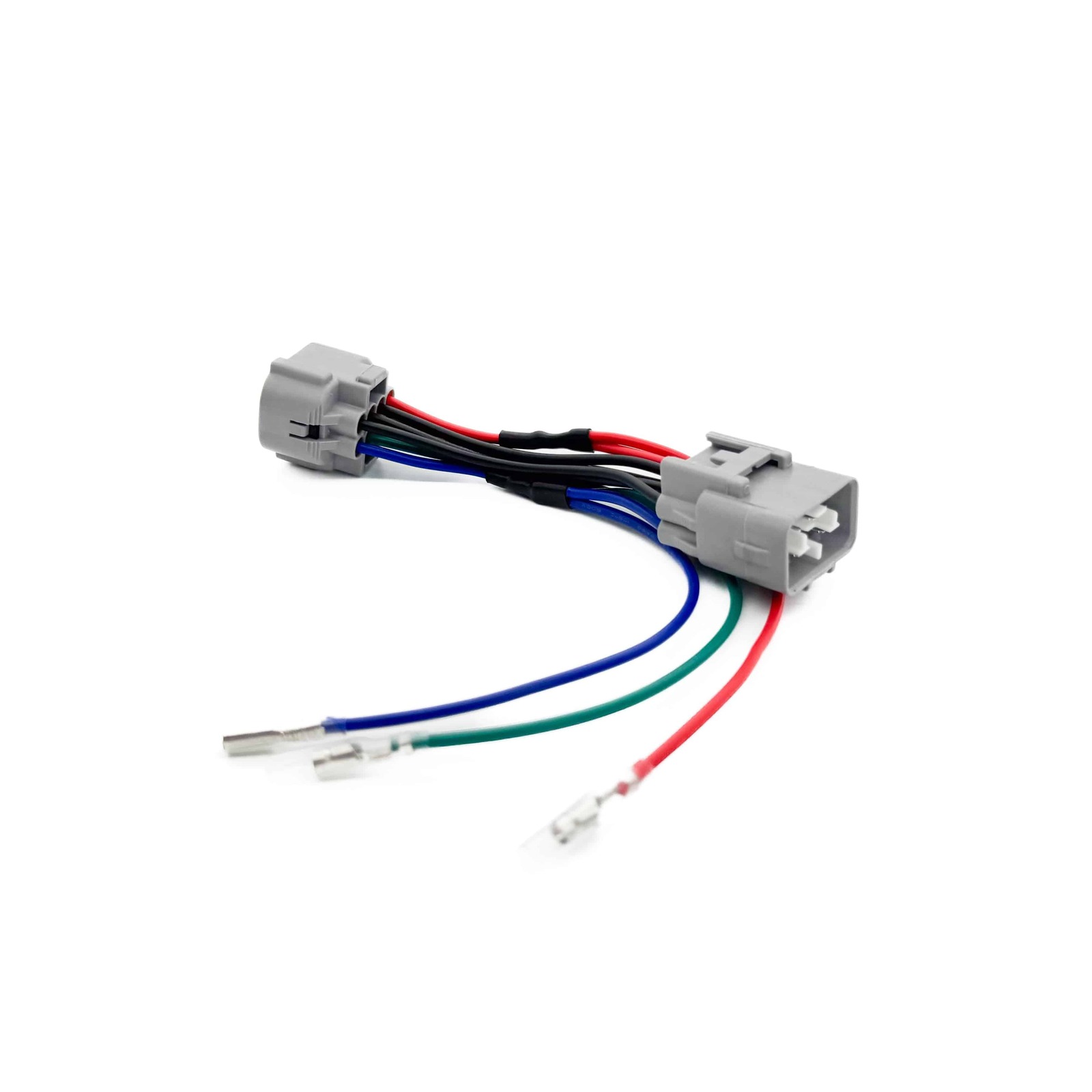

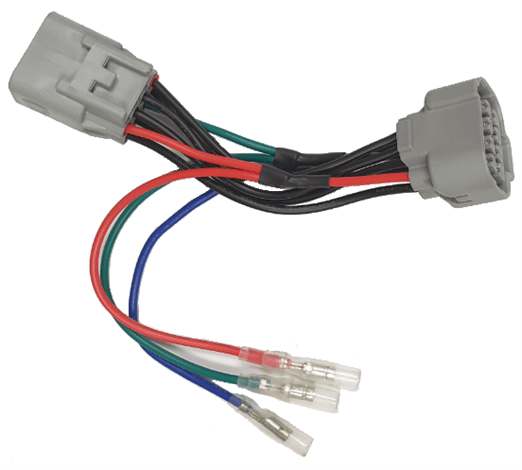

These connectors are suitable for use with the Toyota Hilux 2021 onwards models, fitted with factory Bi-LED headlights.

When used with a range of dedicated Lightforce Driving Light harnesses, they provide an easy plug and play integration into the existing factory headlight connectors, that are located behind the back of each side of the vehicle’s headlight assemblies.

The headlight patch harness utilizes the factory connection point on the lower back of the headlight assembly, you no longer need to splice a wire into the factory harness for auxiliary driving lights, simply:

• Remove the existing factory eight pin connector from the headlight (left or right side). Under the front wheel arch trim, there is a locking tab that must be depressed while removing the connector


• Fit the corresponding new connector to the factory connector that has just been removed


• Fit the remaining new connector to the original factory connector that is affixed to the headlight assembly


• Then connect the corresponding connectors from anyone of our listed compatible wiring harnesses.
