Lightforce Beast Driving Light Wiring Harness for Toyota Hilux N80 2015 - 2025 (Factory Bi-LED)

Details

Utilise the full potential of your BEAST Driving Lights by Lightforce, with this dedicated Plug & Play Wiring Harness. This harness is specifically designed to make BEAST’s 3-mode operation compatible with some Toyota Hilux vehicles.

This harness kit comes complete with dedicated Headlight adaptor for simple integration into your vehicle’s headlight circuit. See the below compatibility table for the correct headlight adaptor for your model Hilux.

A very small (8mm in diameter) single moulded 8 pin connector and ignition wire is required to pass through the vehicle’s firewall, and connect directly to the BEAST 3-Mode Smart Switch. The smart switch illumination has been colour matched to the factory backlight colour, to ensure an OEM look and feel.

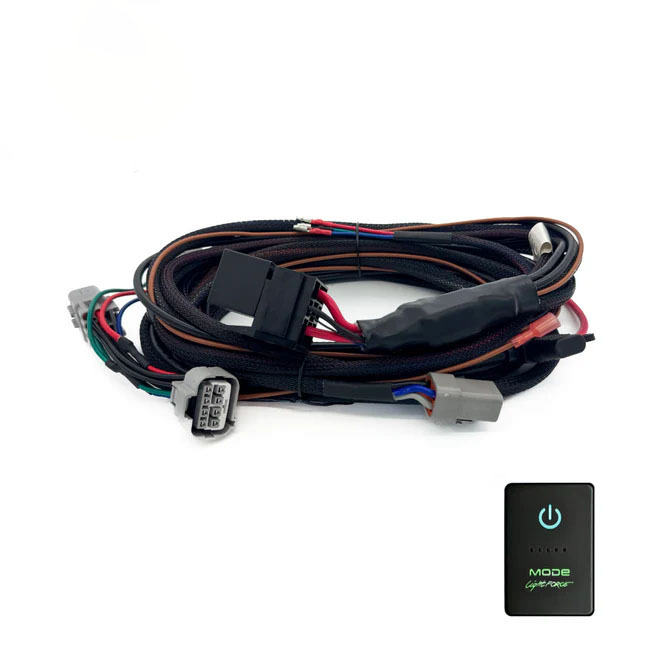

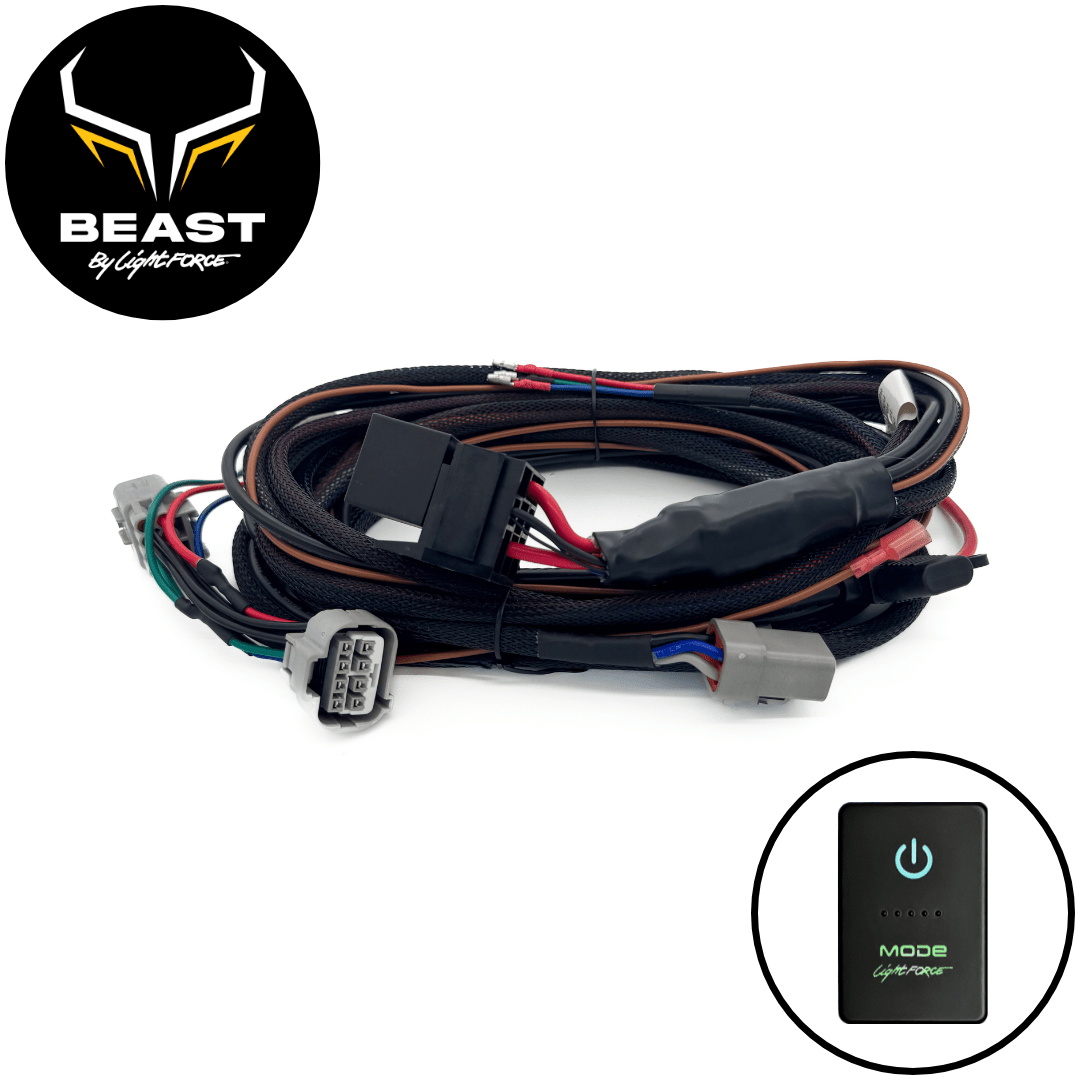

Kit contents

• 1x Beast driving light harness including relay.
• 1x 3-mode Smart Rocker Switch with Hilux adaptor
• 1x Dedicated Headlight Adaptor for Hilux
• 1x Ignition pickup for Hilux
• Cable ties and mounting hardware
• User instructions via QR code

Specifications

• 12V operation
• 40 Amp relay
• Positive or negative switching (controlled electronically)

Compatibility Table

*This harness is for traditional 12V electrical systems and is not compatible with Toyota HiLux models with 48-volt mild-hybrid systems known as "V-Active Technology".
