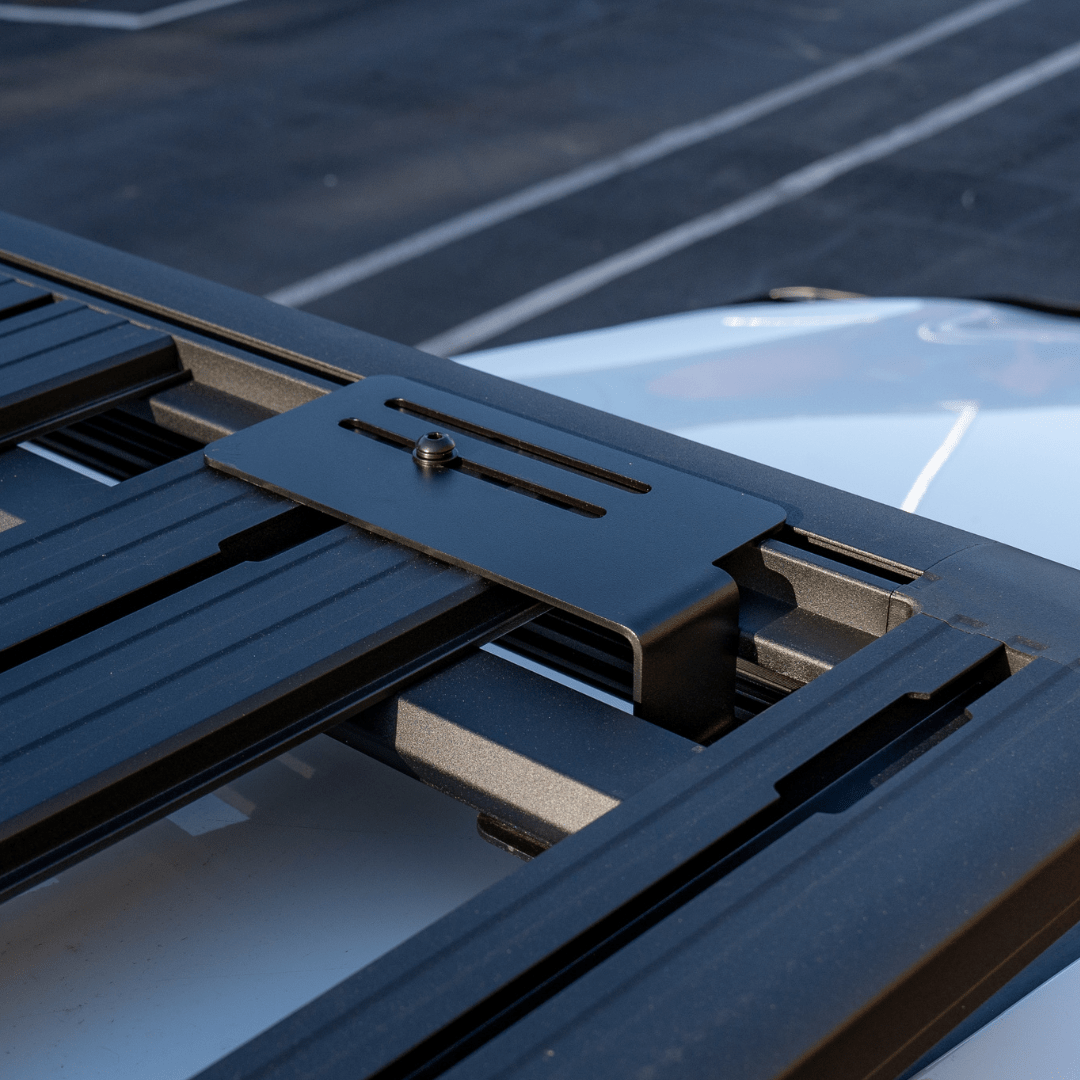

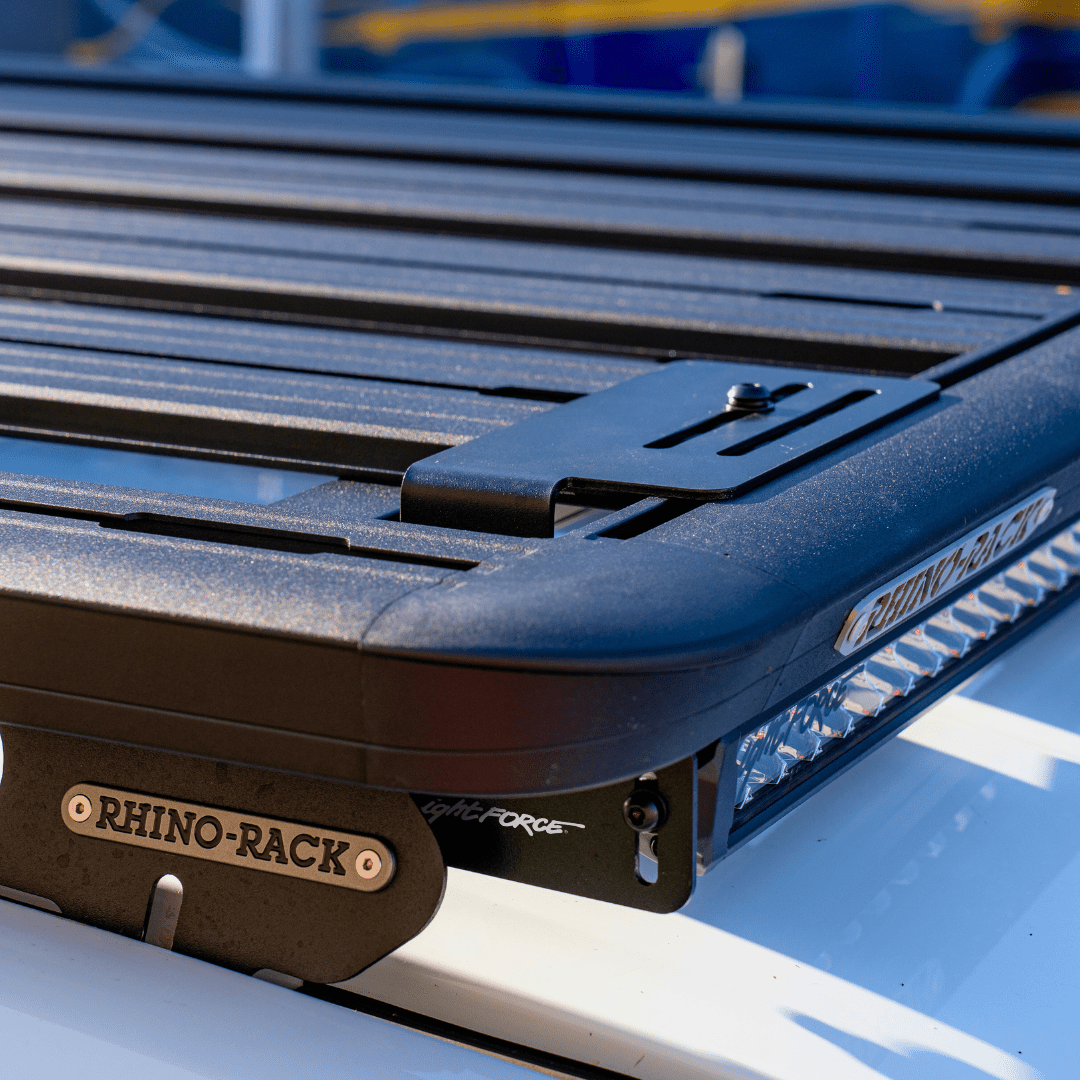

Engineered for a clean, secure and low-profile installation, the Lightforce Rhino Rack Light Bar Universal Mounting Bracket Kit is purpose-built to mount compatible light bars neatly beneath Rhino Rack Pioneer platforms. Designed specifically for Series 4 and 5 Pioneer platforms, this kit allows for a seamless, factory-style integration that keeps your lighting protected while maintaining a sleek roofline.

Constructed from durable 3mm stainless steel and finished with a UV-stable black powder coat, these brackets are made to handle the harsh conditions of the Australian outback. The single-piece design delivers strength and simplicity, while the slotted side mounting points provide precise height adjustment to suit a range of light bar sizes. With the ability to slide forward and backward within the platform channels, positioning your light bar exactly where you need it is straightforward and secure.

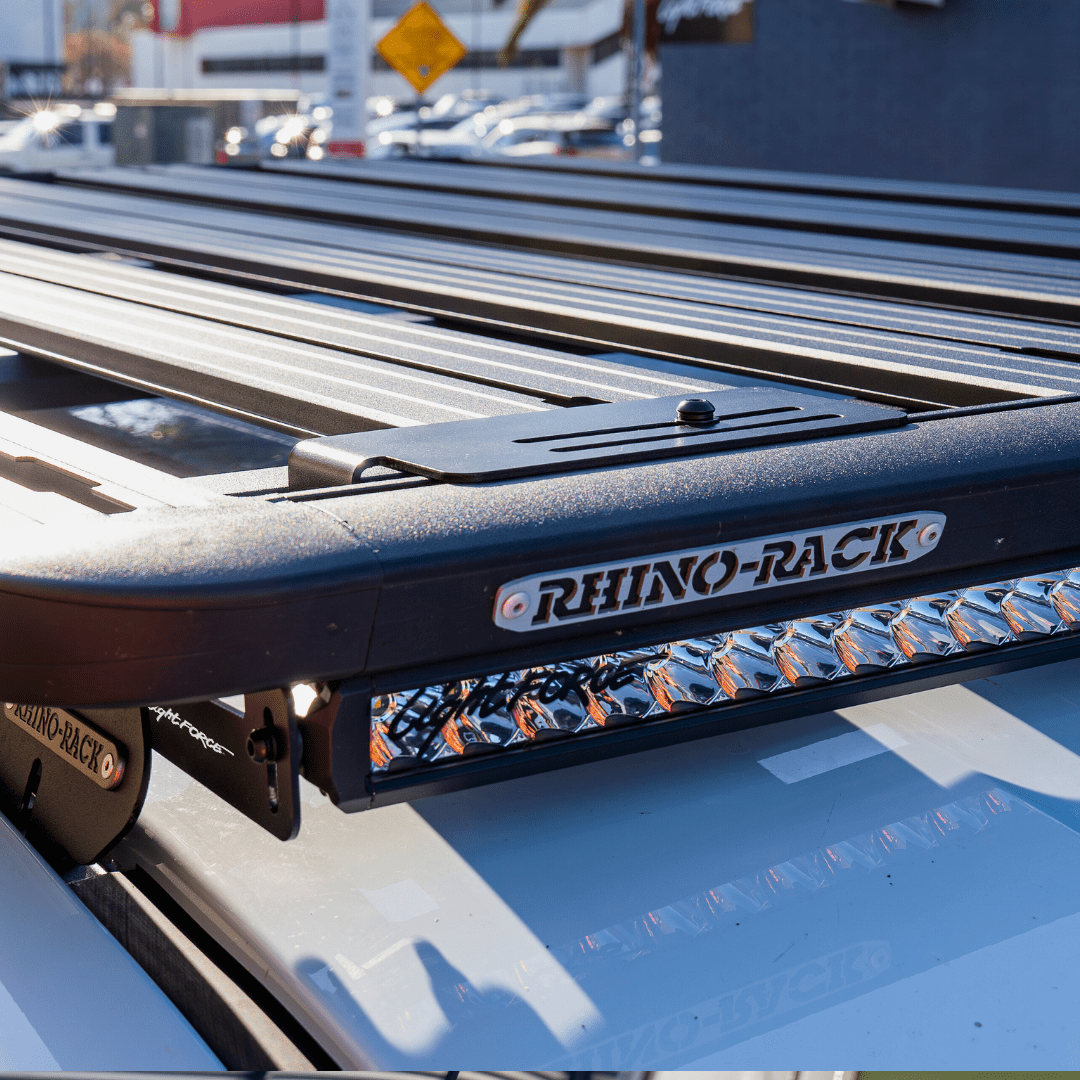

Mounting the light bar underneath the platform not only improves protection from road debris and environmental exposure, but also reduces wind resistance and glare. The finish is carefully matched to complement Rhino Rack platforms, ensuring a cohesive and professional look once installed.

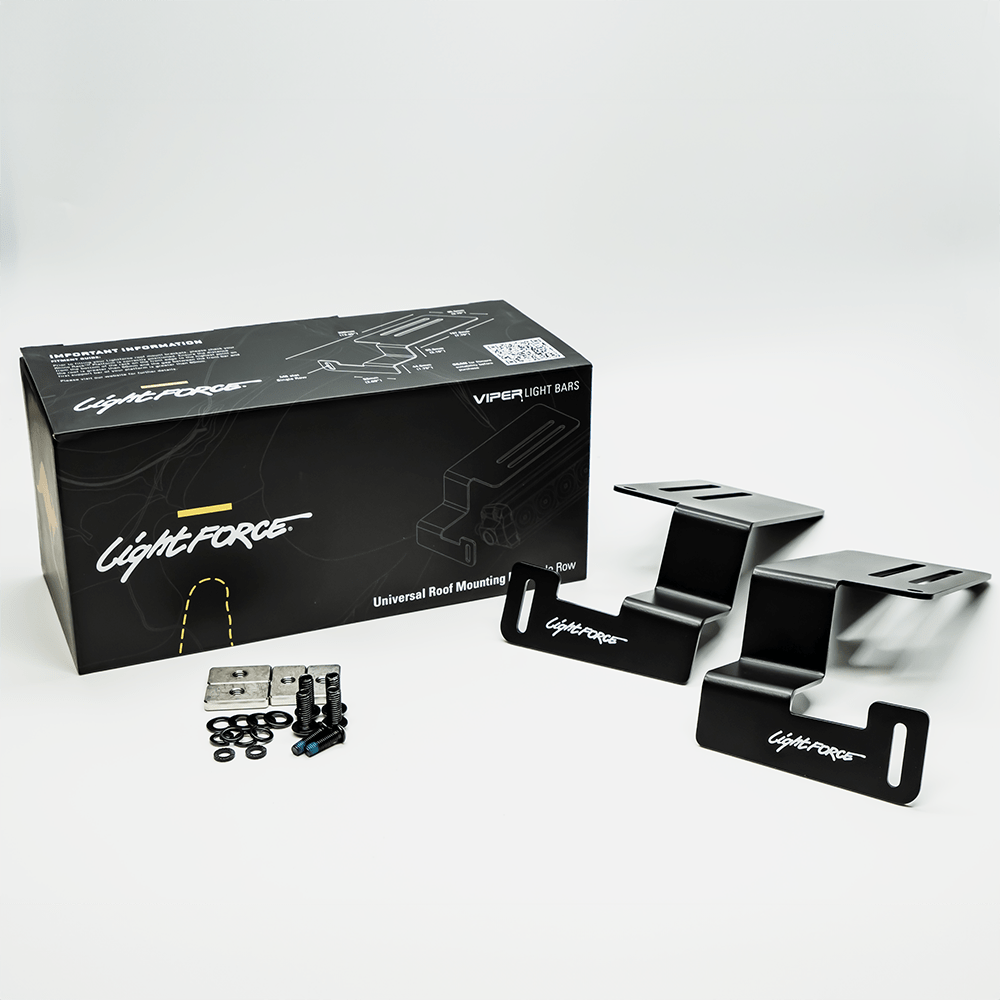

The kit includes all necessary fixings for installation, along with a detailed fitment guide to ensure a hassle-free setup.

Important Fitment Information

Prior to fitting your Lightforce roof mount brackets, please check your Rhino Rack Platform is correctly positioned. Ensure the distance from the bottom of the rack on the front edge to the highest point on the roof is greater than 60mm and the gap between the front bar and the first support bar of your Platform is greater than 60mm.

Fitment Suitability:

• Series 4 & 5 Rhino Rack Pioneer
• North/South style platforms
• Not suitable for Series 6 Rhino Rack platforms
• Not suitable for any east/west style platforms
• Not compatible with Lightforce 30" Light Bars
