Kuat TR02

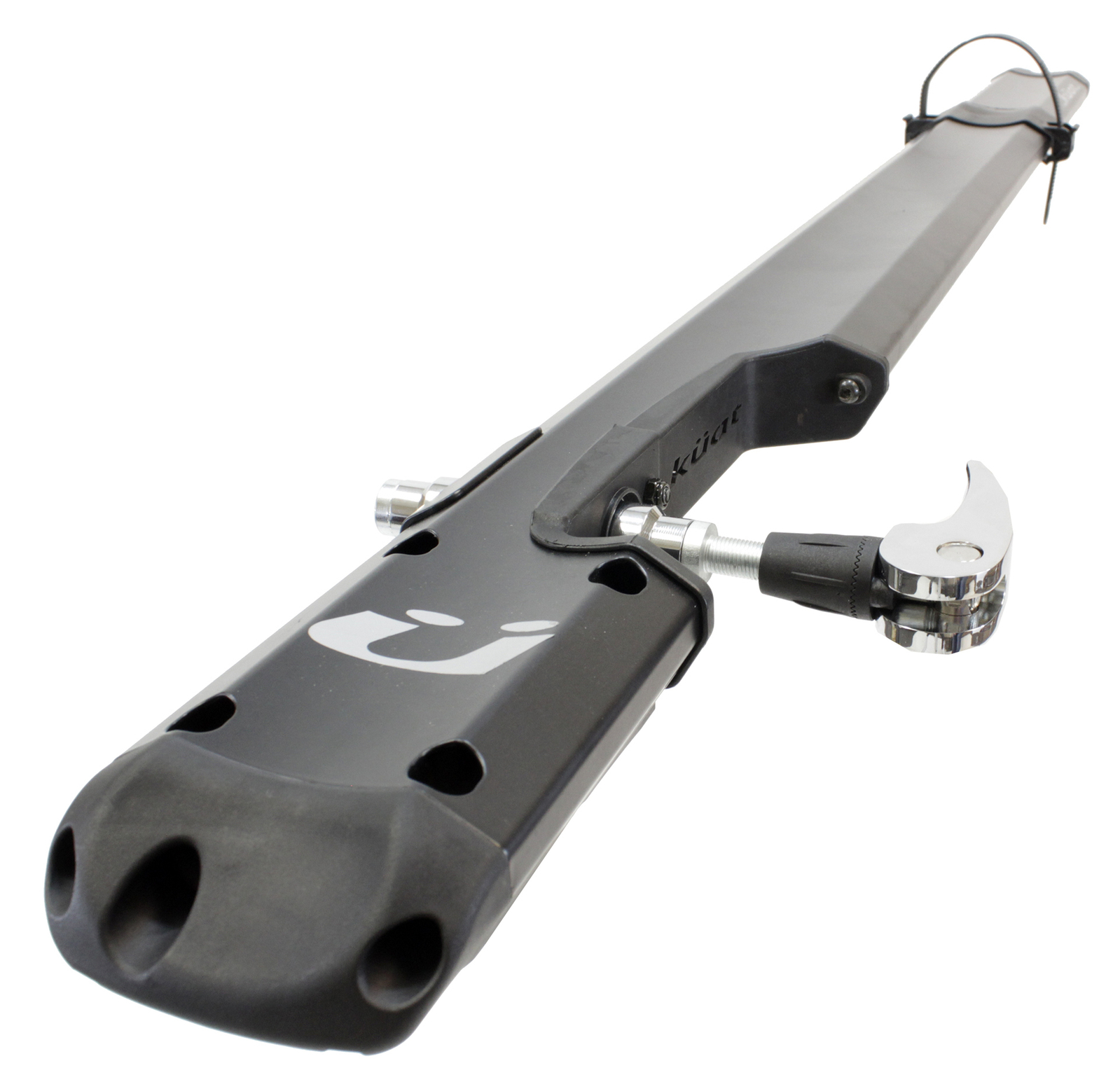

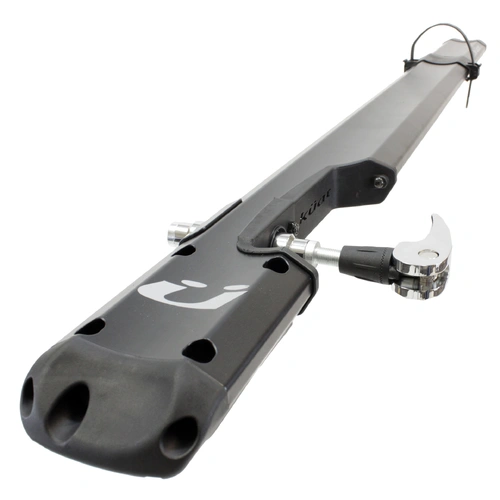

Kuat Trio 1-Bike Roof Bike Rack (Black & Silver)

Fork mount for 9, 12, 15 and 20mm axles
1 Bike · 20.4kgLockable

Combine style, functionality, and security with the Kuat Trio Fork Mounted Carrier, and experience the best in bike transportation. Whether you're heading to the trailhead or embarking on a cross-country adventure, the TRIO has got you covered.

Kuat Trio 1-Bike Roof Bike Rack (Black & Silver)
Description

1 Bike, Roof mounted

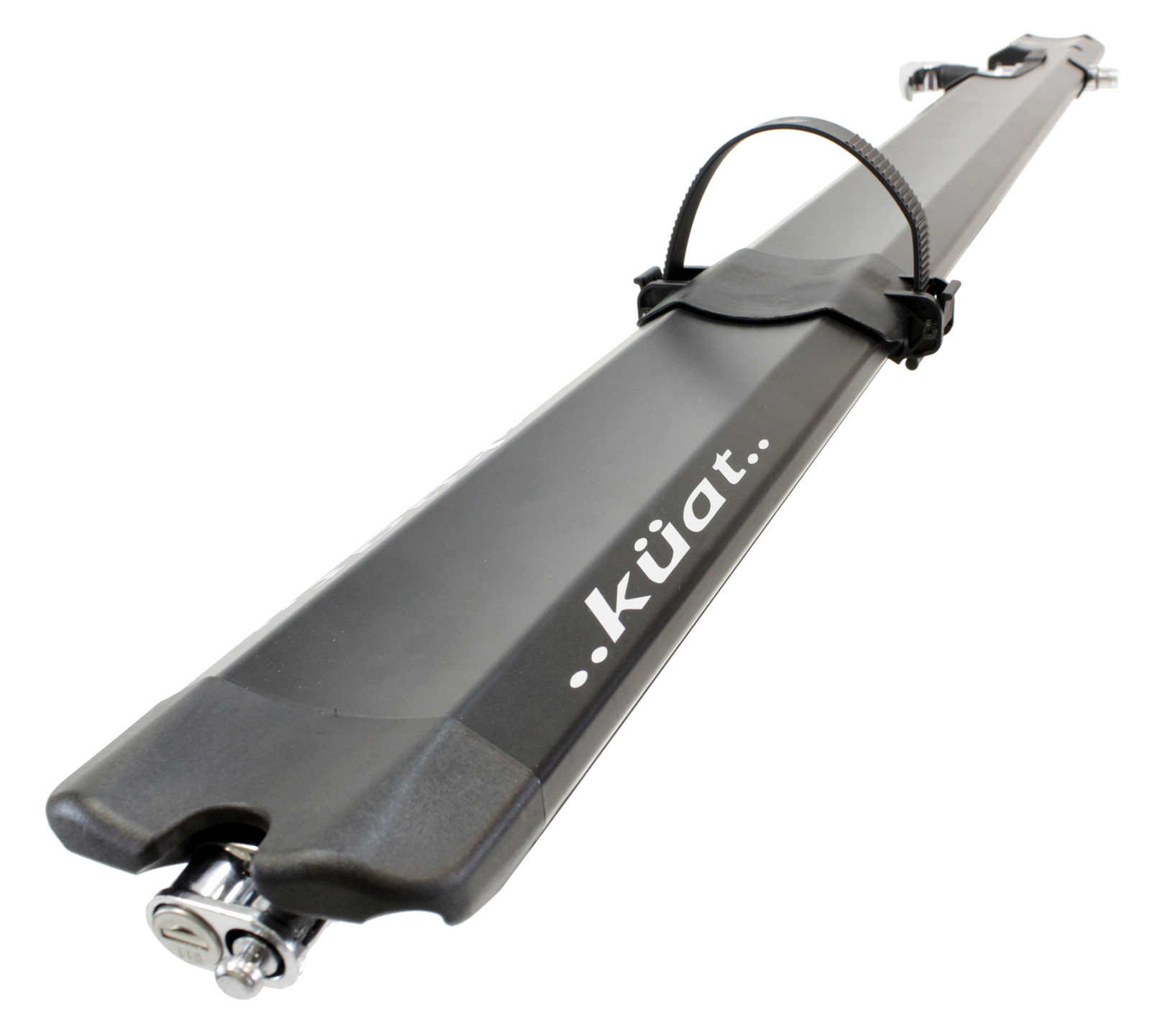

The Kuat Trio Fork Mounted Carrier is the most complete fork mount rack ever designed. With its innovative 3 Way fork mount system, the TRIO can handle almost any bike you own, ensuring versatility and convenience for every cycling enthusiast. Its sleek design, built-in security features, and rugged good looks make it a standout choice for bike transportation.

3 Way Mount System

Accommodates 9, 12, 15, and 20 mm forks, making it versatile enough for all your bikes.

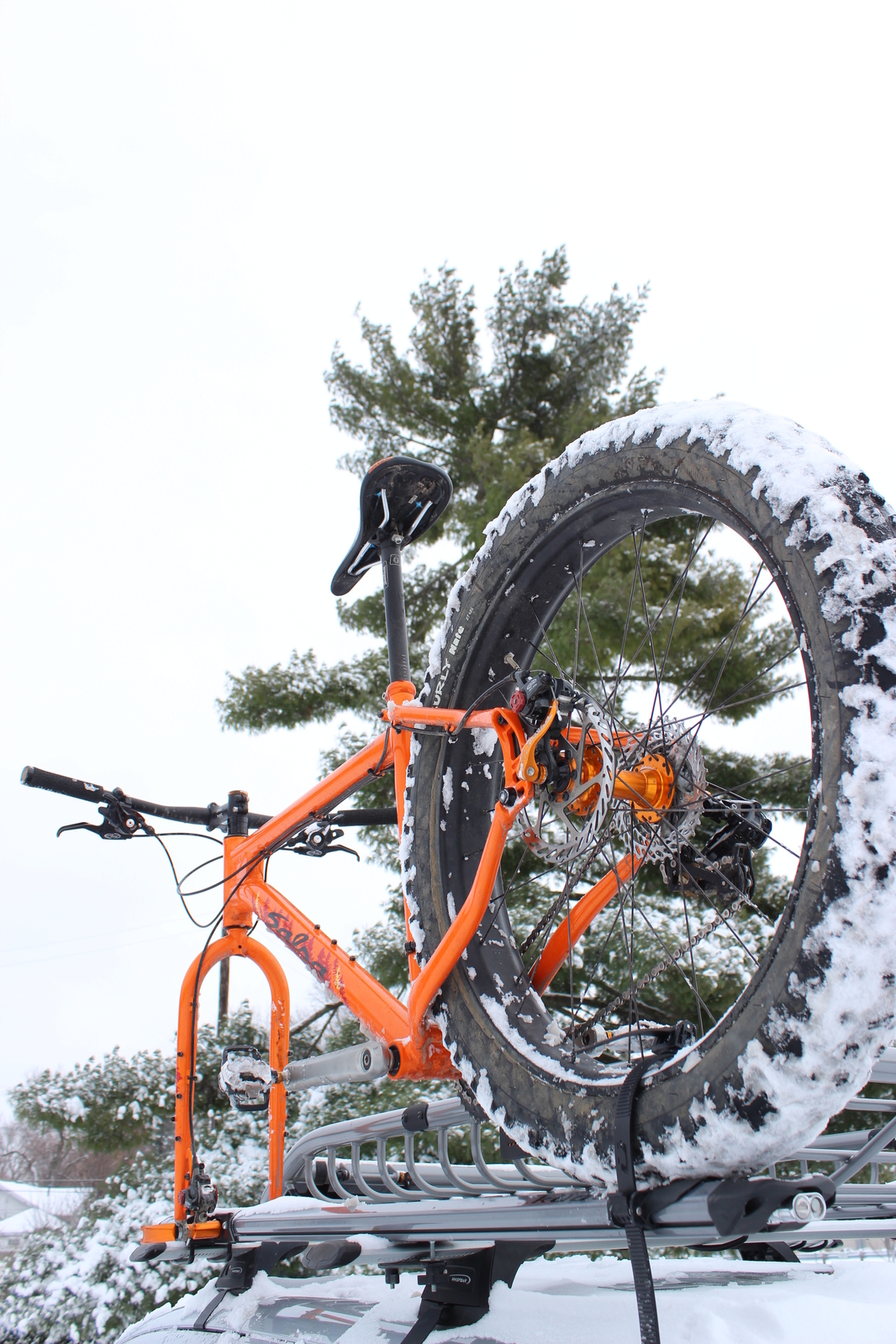

Optional Adapter Kit for Fat Bikes

Enhance compatibility with an optional adapter kit designed specifically for fat bikes.

Universal Mounting

Easily mounts to most factory and aftermarket crossbars, offering broad compatibility with various vehicle setups.

Integrated Cable Lock

Provides added security by locking both the frame and rear wheel, ensuring your bike stays safe during transport.

Sliding Rear Tire Strap

Secures the rear tire in place, preventing movement and ensuring a stable ride.

Included Adapters

Comes with adapters for 9x100mm, 15x100mm and 15x110mm forks. Adapters for 12x100mm, 15x142mm and 15x150mm thru-axles, and a 9x135mm fat bike skewer, are sold separately.

User Guide Fit Guide

Features

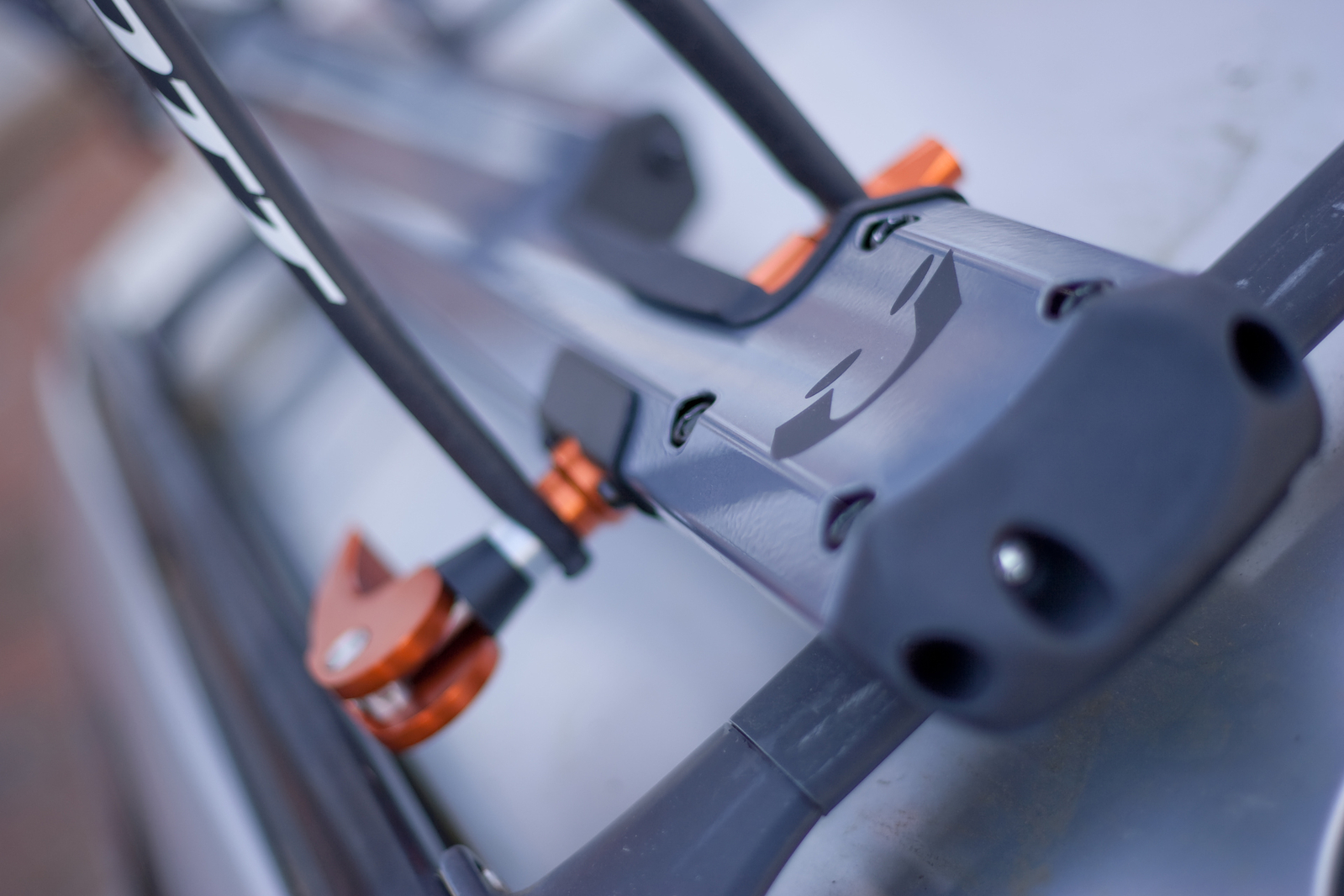

3 Way Fork Mount

3 Way Fork Mount

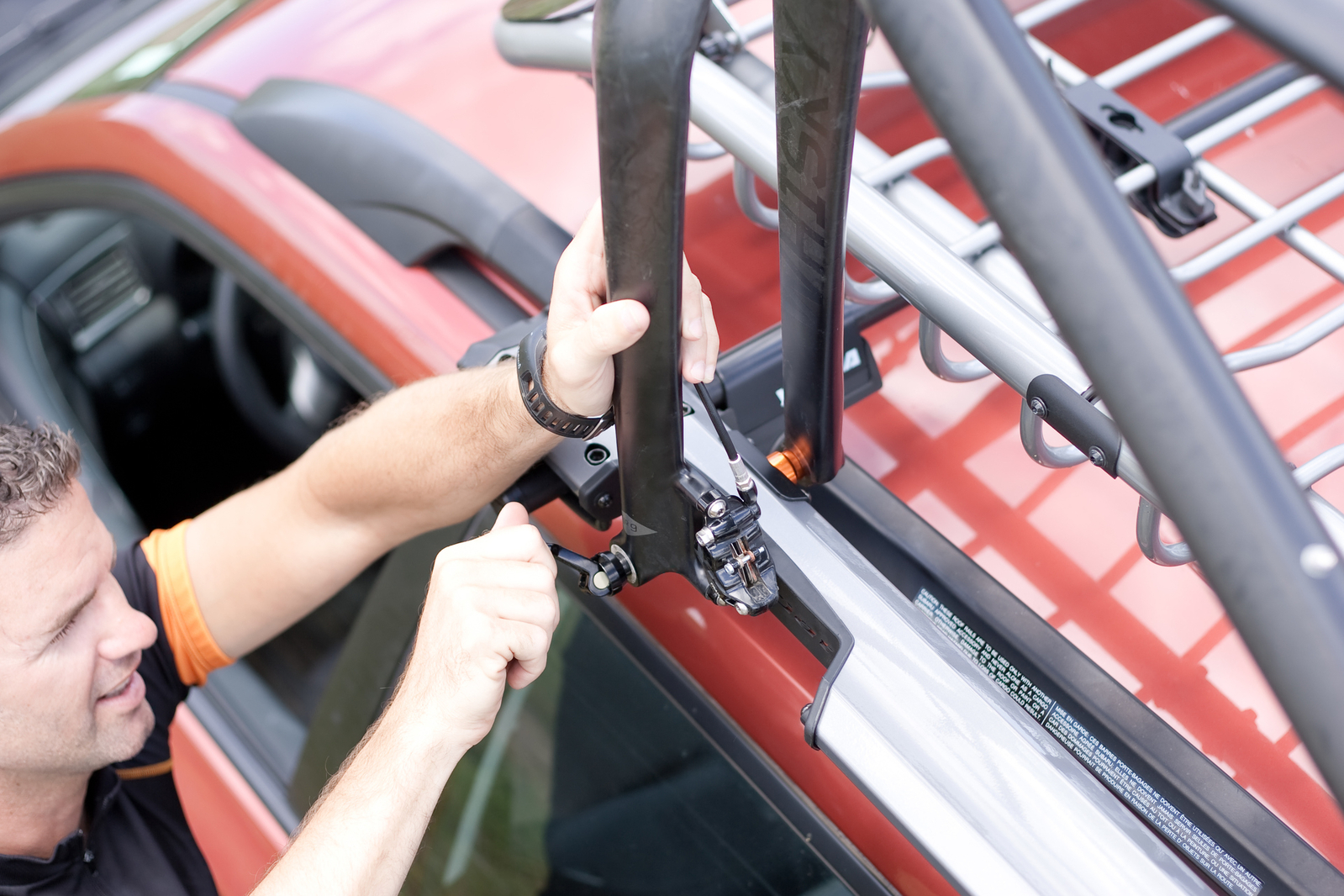

One mount takes 9, 12, 15 and 20mm forks with the right adapter. On a thru-axle fork, you clamp it in with the bike's own axle.
Easy Fit

Easy Fit

It arrives assembled and mounts to factory and aftermarket crossbars, round, square, oval or aero. Mounting hardware and tools are in the box.
Integrated Cable Lock

Integrated Cable Lock

The cable pulls out of the rack and loops through the rear wheel and the frame's rear triangle. It locks without the key; you need the key to open it.
  • 9x100, 15x100 and 15x110 fork adapters included, with the 15x100 fitted.
  • Adapters for 12x100, 15x142 and 15x150 thru-axles, and a 9x135 fat bike skewer, are sold separately.

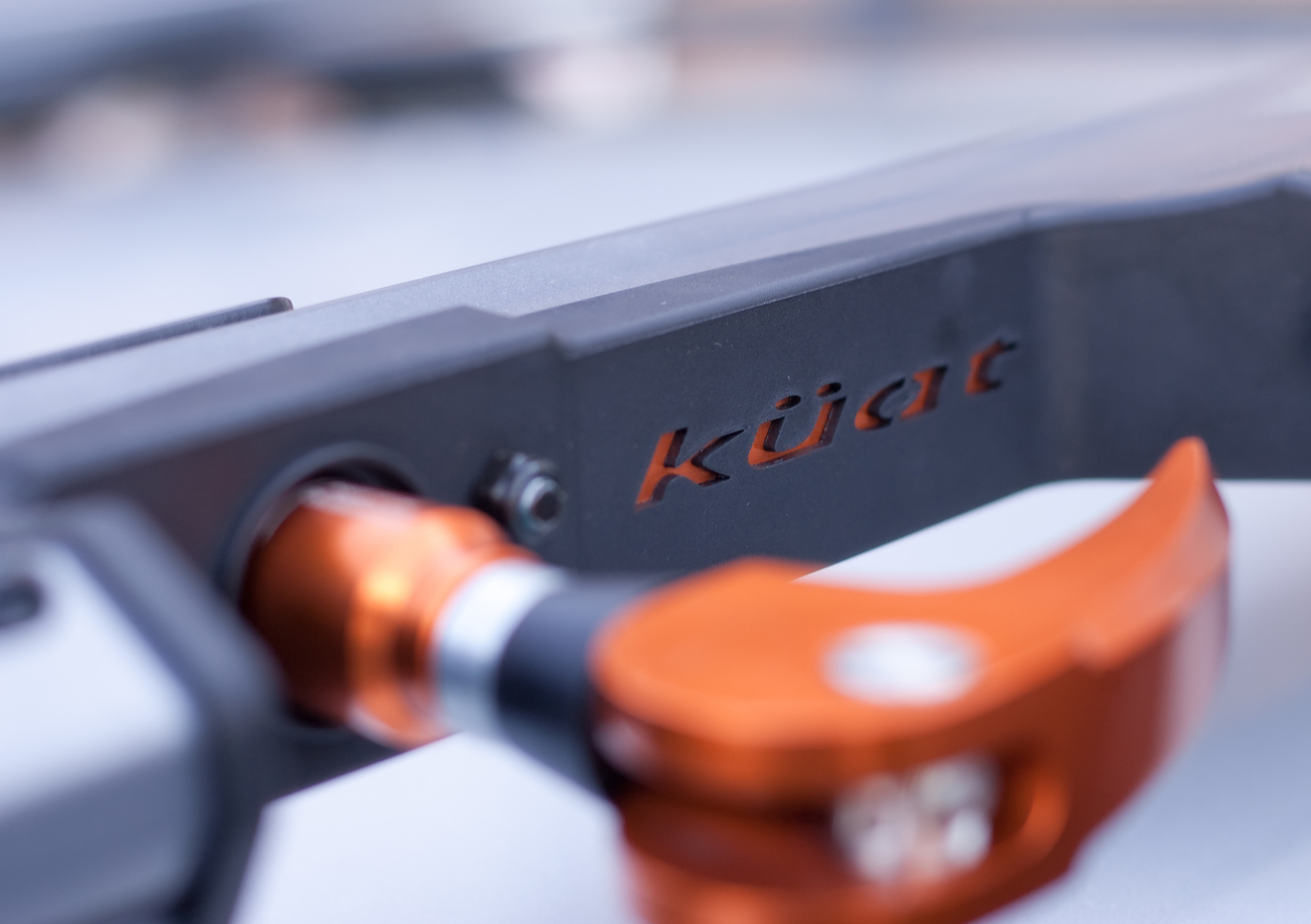

  • The 9mm quick-release skewer can go in from either side of the rack.
  • Sliding rear tyre strap, adjustable on both sides to keep it clear of the roof.
  • Takes bikes with wheelbases from 635mm to 1270mm.
  • Soft-touch outer coating, easy on the frame and components.

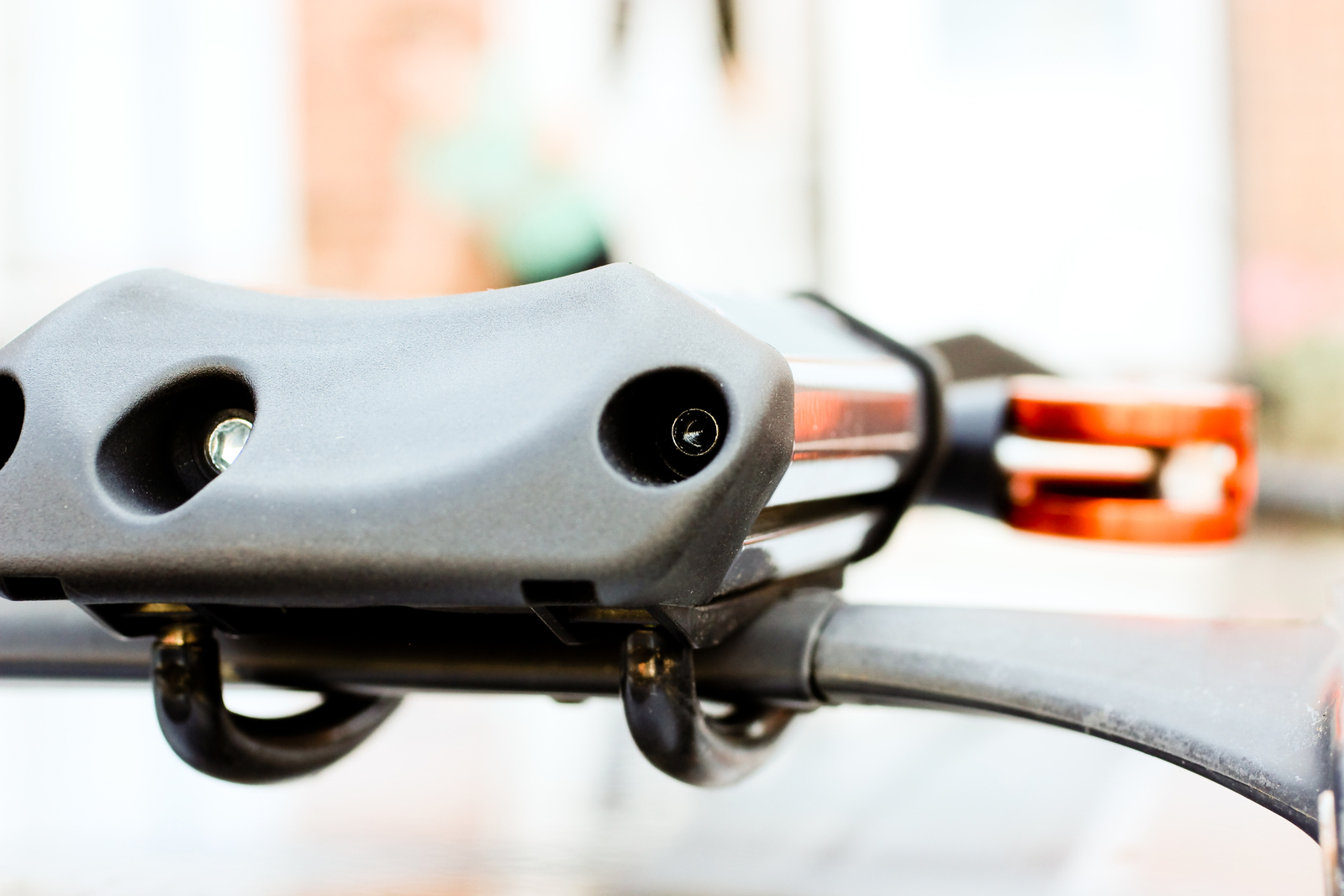

  • Front U-bolts use security barrel nuts, tightened with a five-sided security wrench.
  • The lock cores can't be changed. To key other Küat racks alike, change their cores to match the Trio.

Specifications

Fit & function

Vehicle mountRoof
Bike mountFork
Locks bike to rackYes
Locks rack to vehicleNo
Folds when not in useNo
Integrated lightsNo

Capacity

Bikes carried1 Bike
Max weight per bike20.4kg
Max combined bike weight20.4kg
Rather keep the front wheel on? The BrassKnuckles 1-Bike holds the bike by its wheels.
RockyMounts BrassKnuckles 1-Bike Roof Bike Rack

Product & shipping

BrandKuat
SKUTR02
Rack weight3.2kg
Assembled (L×W×H)0.102m × 0.254m × 1.487m

Other

Frame ContactNo
Axle Compatibility9, 12, 15 and 20mm forks, 9x100, 15x100 and 15x110 adapters included
Crossbar Spread500-1275mm
Fits Roof BarsRound, square or aero bars up to 90mm wide and 36mm thick
Max Wheelbase1270mm
E-Bike RatedYes
FinishBlack with Silver
