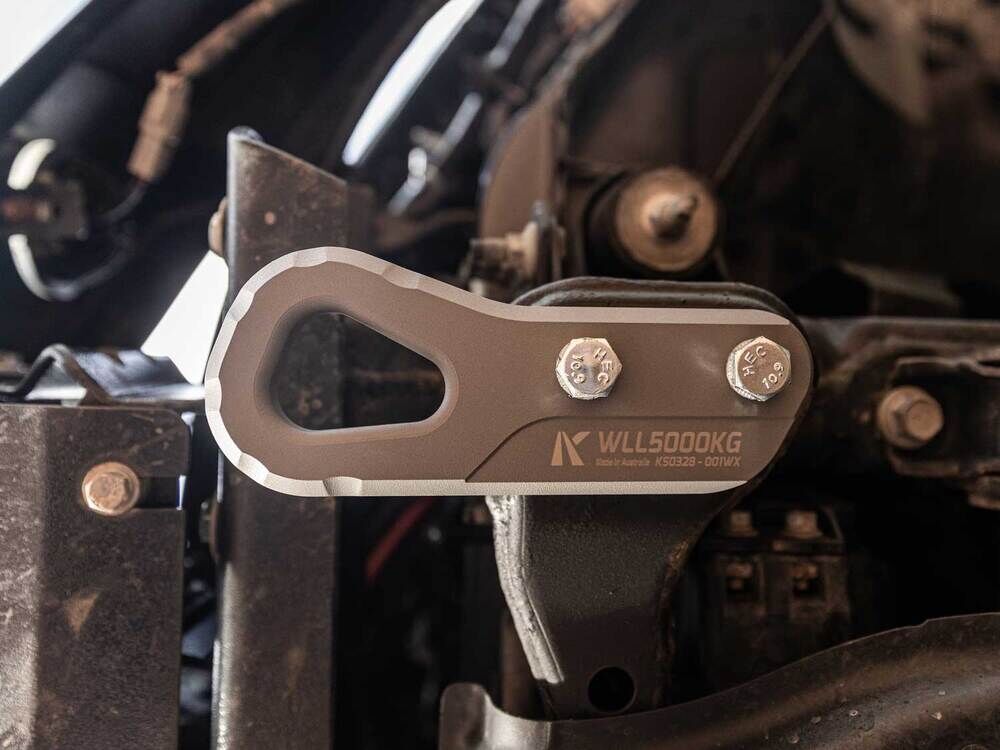

Recovery Tow Points to suit Toyota LandCruiser LC200 & LX 570

You often hear about ensuring you have an adequate recovery kit before heading off-road, but what many overlook is perhaps the most important part – the recovery point itself. Factory tow and tie-down points on your vehicle simply aren’t designed for safe off-road use. Upgrading to points designed specifically to handle the load stresses of recovery situations ensures that when the inevitable happens, you’re ready to go.

Features:

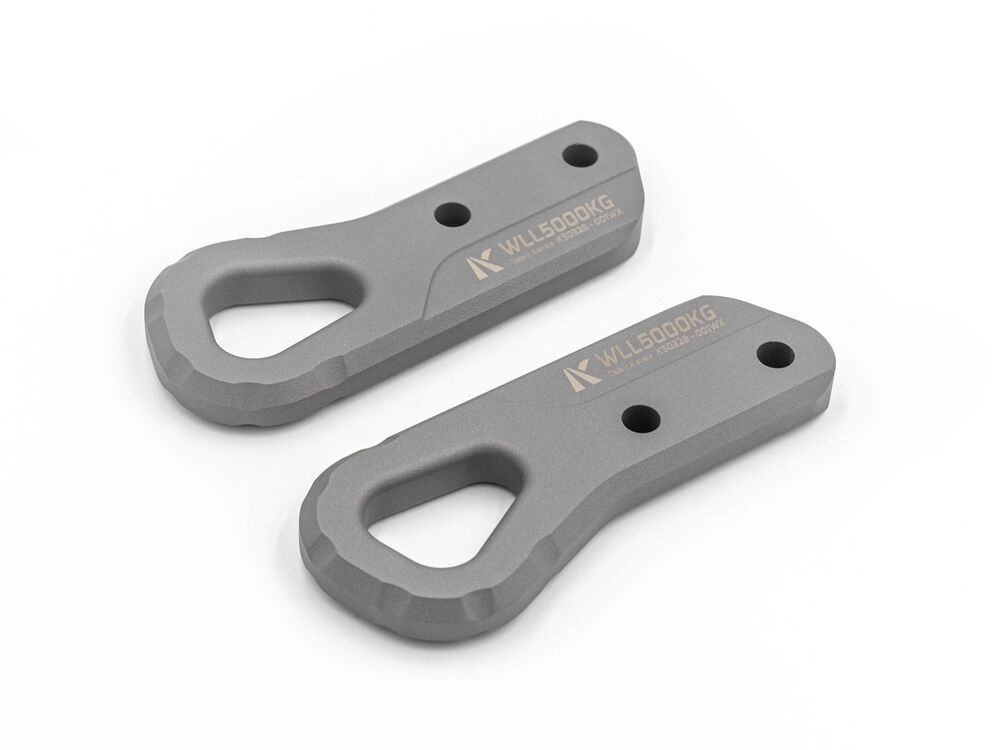

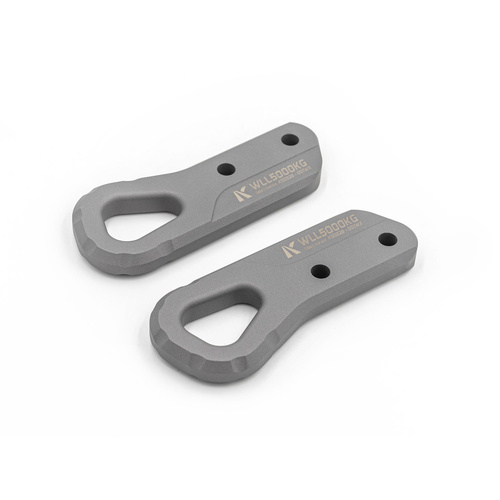

• 20mm thick Australian Made Steel, Billet CNC Machined.

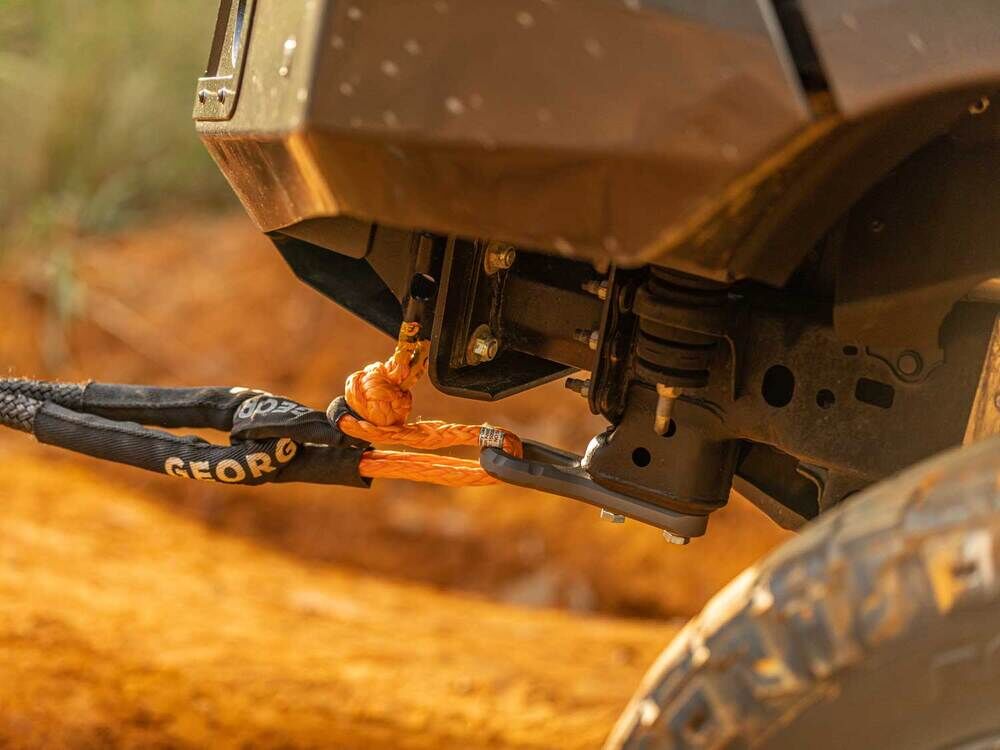

• Soft shackle friendly, with a large opening and rounded edges.
• Designed to safely manage stresses generated during an angled recovery.

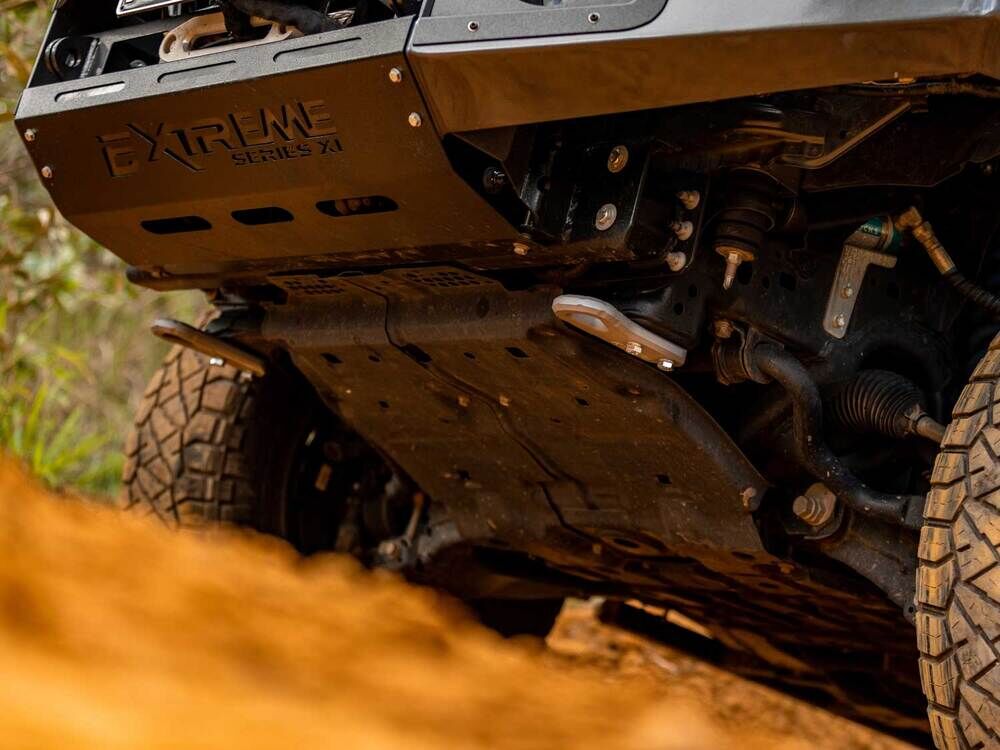

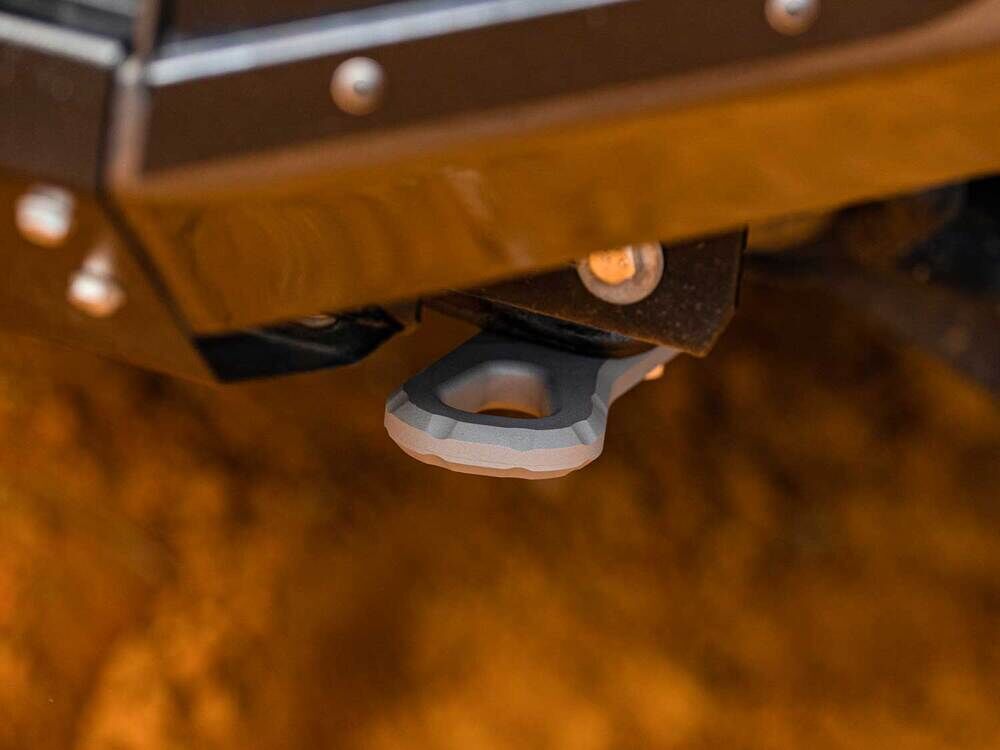

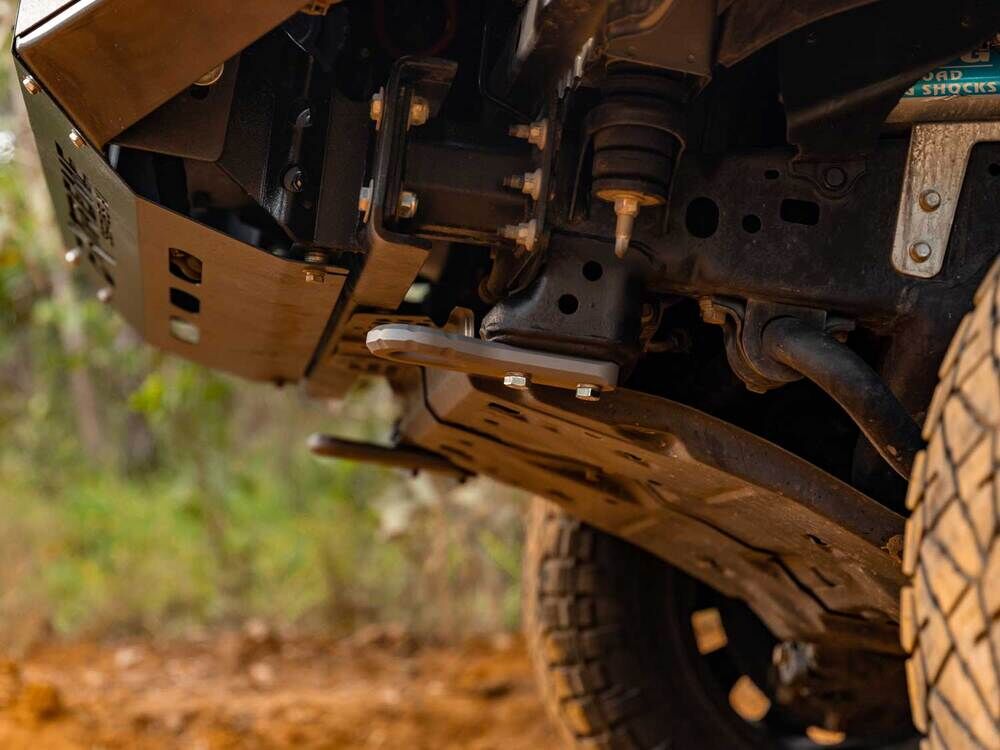

• Low profile and specifically designed for the LC200, for optimium approach/departure angles.
• Features a durable powder coat finish in either Aramac Grey or Tanami Red.
• A textured powder-coat finish in Tanami Desert Red or Aramac Desert Grey is both hardwearing and looks great.
• Tested and rated to a Working Load Limit (WLL) of 5000kg.
• Supplied with grade 10.9 high tensile bolts.

Compatibility:

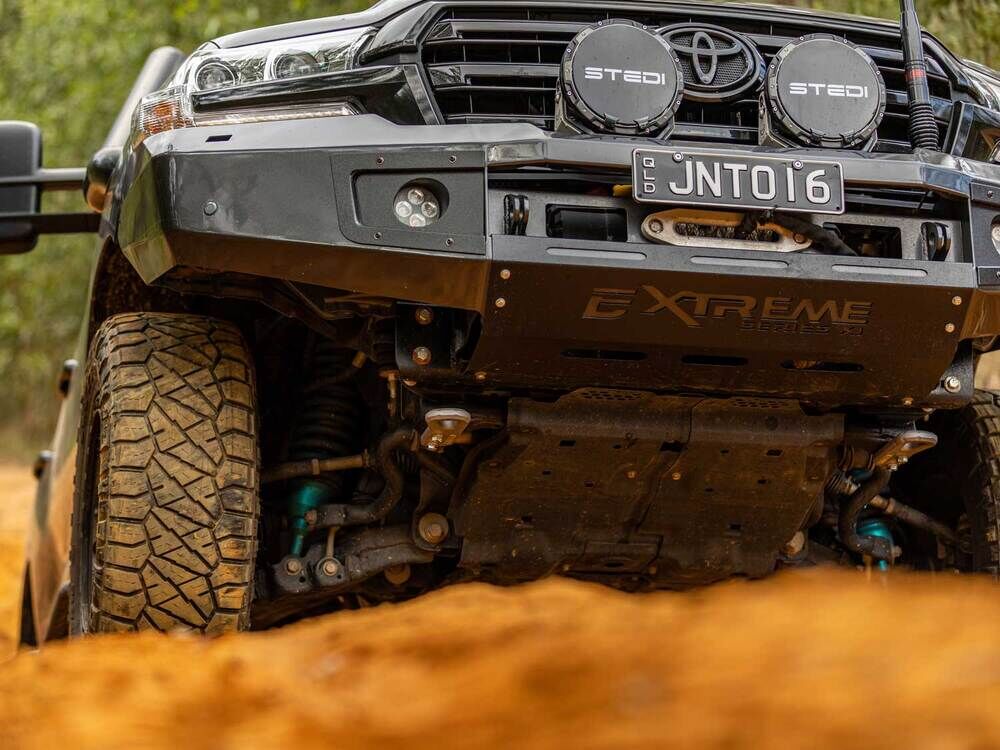

• Compatible with most bull bars, including ARB, TJM, Extreme Series and Genuine Toyota.
• Not compatible with the Rhino Evolution or Ironman Bullbars.
• For installation with ECB bars, longer bolts are required.

Includes:

To suit Toyota LandCruiser 200 / Lexus LX 570:

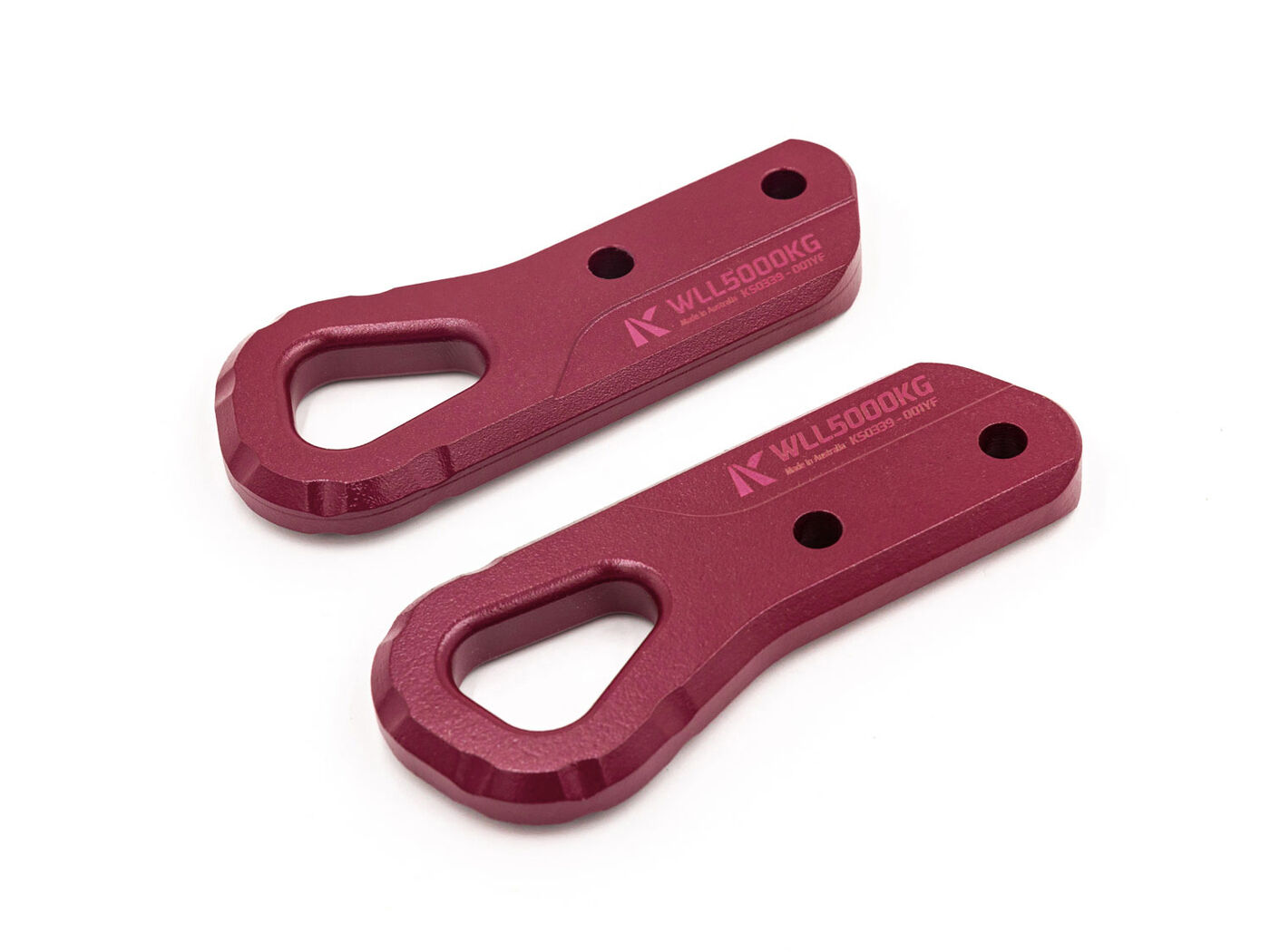

• 2 x Recovery Tow Points (1 Pair ) – Select either Aramac Grey or Tanami Red above.
• 4 x M12 G10.9 High Tensile Bolts
• 4 x M12 Nord-Lock Washers

Australian Designed, Made and Owned.

Can you Recover from just one point, or do you use a bridle between the two

The recovery points are rated to 5000kg per point and you can recover using one point, however, it is best practice to use a bridle as it spreads the load more evenly. It will depend on your judgment in a given recovery situation. By using both points with a bridle you will give yourself more of a safety margin, especially during a difficult recovery.

What tools are needed to complete installation?

They are very easy to fit and the only special tool you might need is a torque wrench to get the 126Nm for the high tensile bolts.
