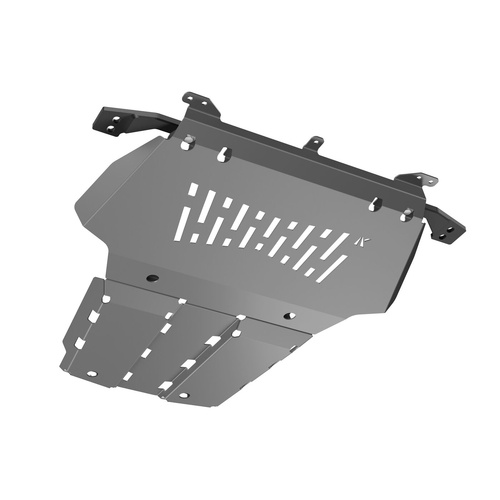

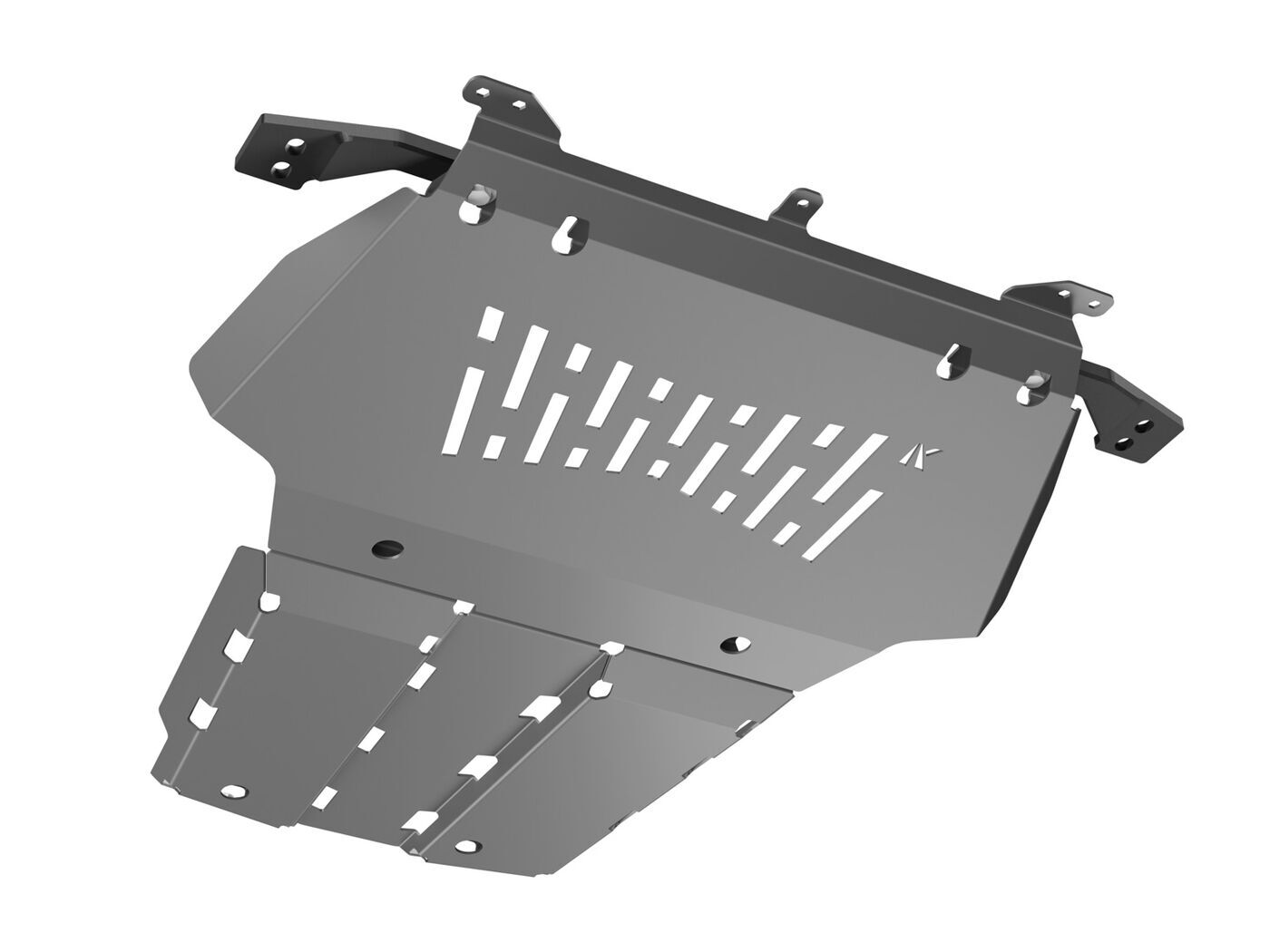

High Performance X700 UVP to suit Toyota Prado 250

Our High Performance X700„¢ Under Vehicle Protection is lighter, and yet stronger than conventional UVP plates.

With tight GVM margins for modern vehicles take peace of mind knowing that your UVP is stronger, protecting the most vulnerable parts of your 4x4 against damage, without excess weight.

TECH SPECS:

• Three-piece X700„¢ UVP weighs a total of 26.5kg, and the optional shock guards weigh 3.5kg
• With a high yield strength of 700 MPa, X700„¢ UVP outperforms common alternatives, such as 4mm Carbon Steel, 6mm Aluminium and 3/4mm Stainless Steel in permanent deformation tests.

FEATURES:

• X700„¢ UVP helps protect the vulnerable parts of your vehicle, and can take higher stresses with less material weight.
• Machined braces reinforce the vulnerable front cross-member on the 250, which is susceptible to impacts and damage when off-roading.
• Optional Front Shock Guards protect the 250's vulnerable lower front shock bolt and the approach edge of your lower control arms.
• Recessed mounting bolts and smooth transitions allow you to slide over obstacles found on the tracks with ease.
• Designed using 3D scanning for a better fit, with folds and flanges for added strength
• Designed for maximum clearance and optimum approach/departure angles.
• Strategically placed generous vents and drainage holes to keep everything running cool.
• Powder coated using a three-step process for increased durability, in an attractive Metallic Asteroid Grey.


COMPATIBILITY:

Compatible with:

• All Prado 250 Models Select KDSS Compatibility above
• Toyota Factory Bumper
• Toyota Factory Bull Bar (see FAQ for splash guard notes)
• ARB Bull Bar (See FAQ for partial compatibility notes with ARB Recovery Points)

For a full list of compatible, non-compatible, and partially compatible vehicle and accessory configurations, please see the FAQ.

INCLUDES:

Select the configuration to suit your Toyota Prado 250:

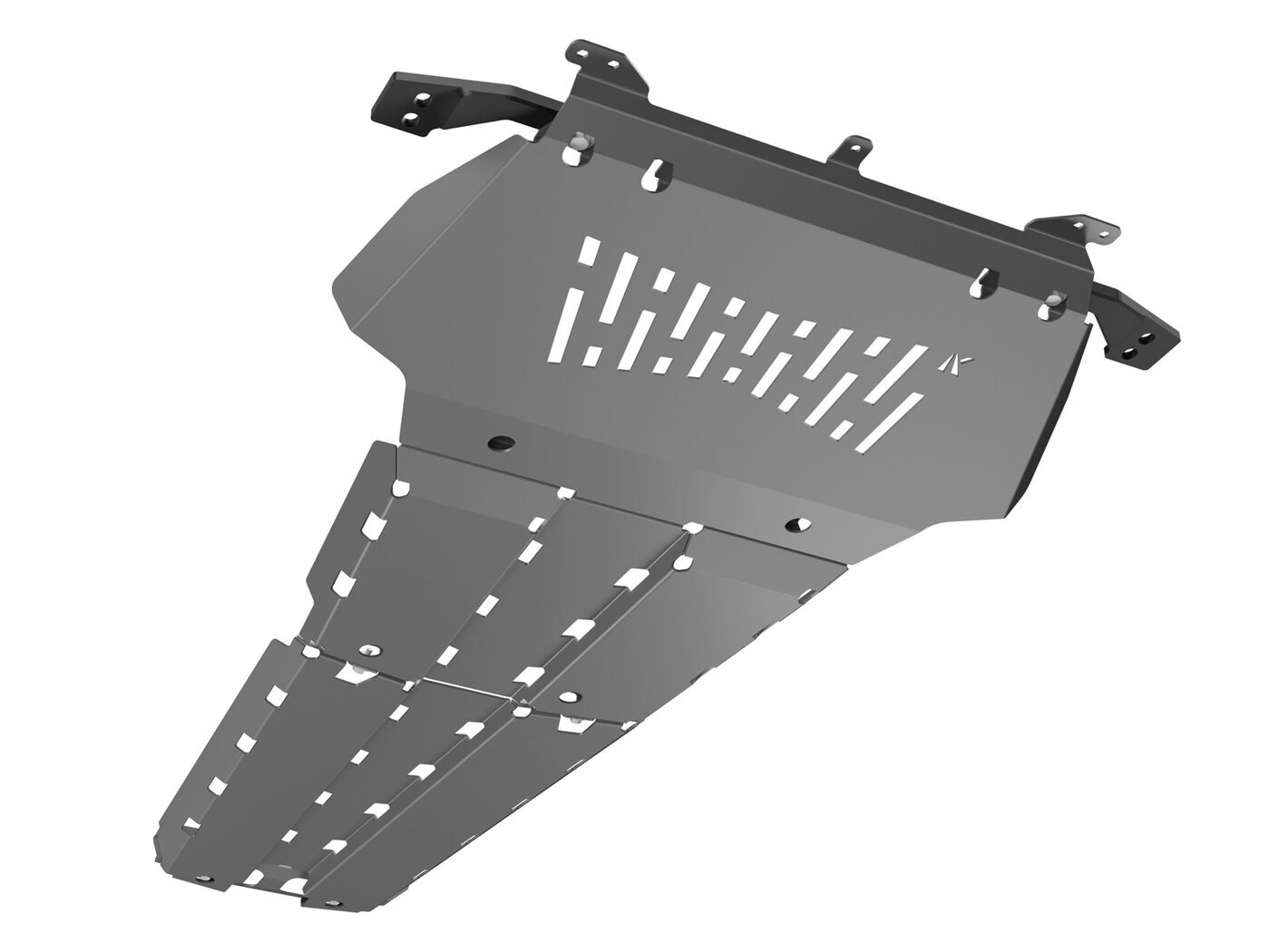

• 1 x High Performance X700„¢ UVP Options include Front & Sump / Trans / Front Shock Guards
• All hardware required to install is included
• Easy to follow instructions

Australian Designed, Made and Owned.

What vehicle models is this UVP compatible with?

X700 UVP is compatible with the Toyota Prado 250 (1GD-FTV).

It is not compatible with the Toyota LandCruiser 250 (USA) or Lexus GX 550 due to cross-member differences in relation to engine configuration variants.

What bull bars is this UVP compatible with?

X700 UVP is compatible with:

• Toyota Factory Bumper
• ARB Bull Bar (Not compatible with ARB Recovery Points)
• Toyota Factory Bull Bar
  • Needs spacing to fit with the factory splash. We make a spacer kit (KS1024, found here) to assist with this.

X700 UVP is not compatible with:

• PIAK Bull Bar
• Raxar Bull Bar
• Ironman Raid Bull Bar

Partial compatibility exists with:

The Machined subframe braces provided with our X700 UVP cannot be used with the following configurations. These components can be omitted, with the understanding that this may impact performance or protection.

• Offroad Animal Bull Bars
• TJM Bull Bars Note further significant modification is required, including grinding, bending, spacers and extended bolts.
• Cruiser Company Bull Bars

What recovery points is this UVP compatible with?

X700 UVP is not compatible with:

• Toyota Recovery Points

Partial compatibility exists with:

The Machined subframe braces provided with our X700 UVP cannot be used with the following configurations. These components can be omitted, with the understanding that this may impact performance or protection.

• ARB Recovery Points
