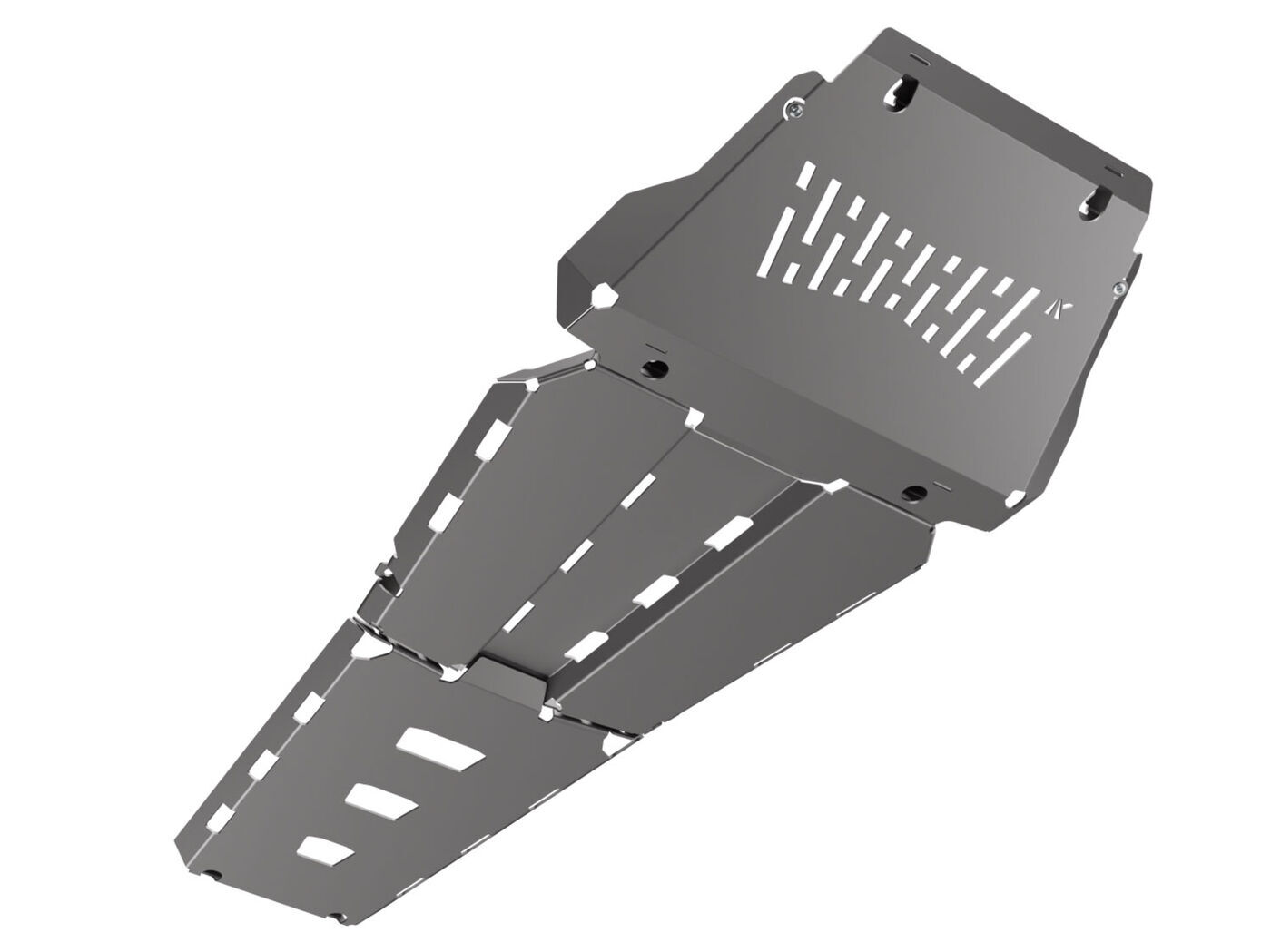

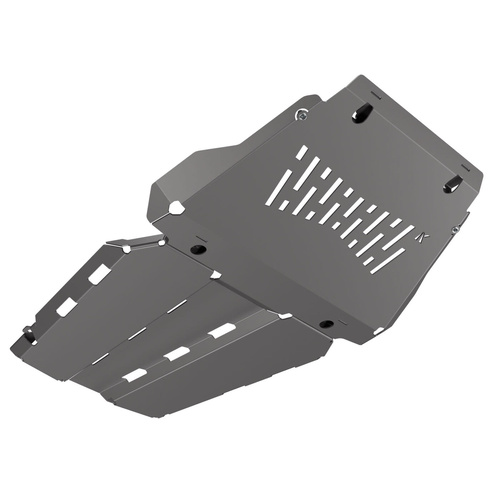

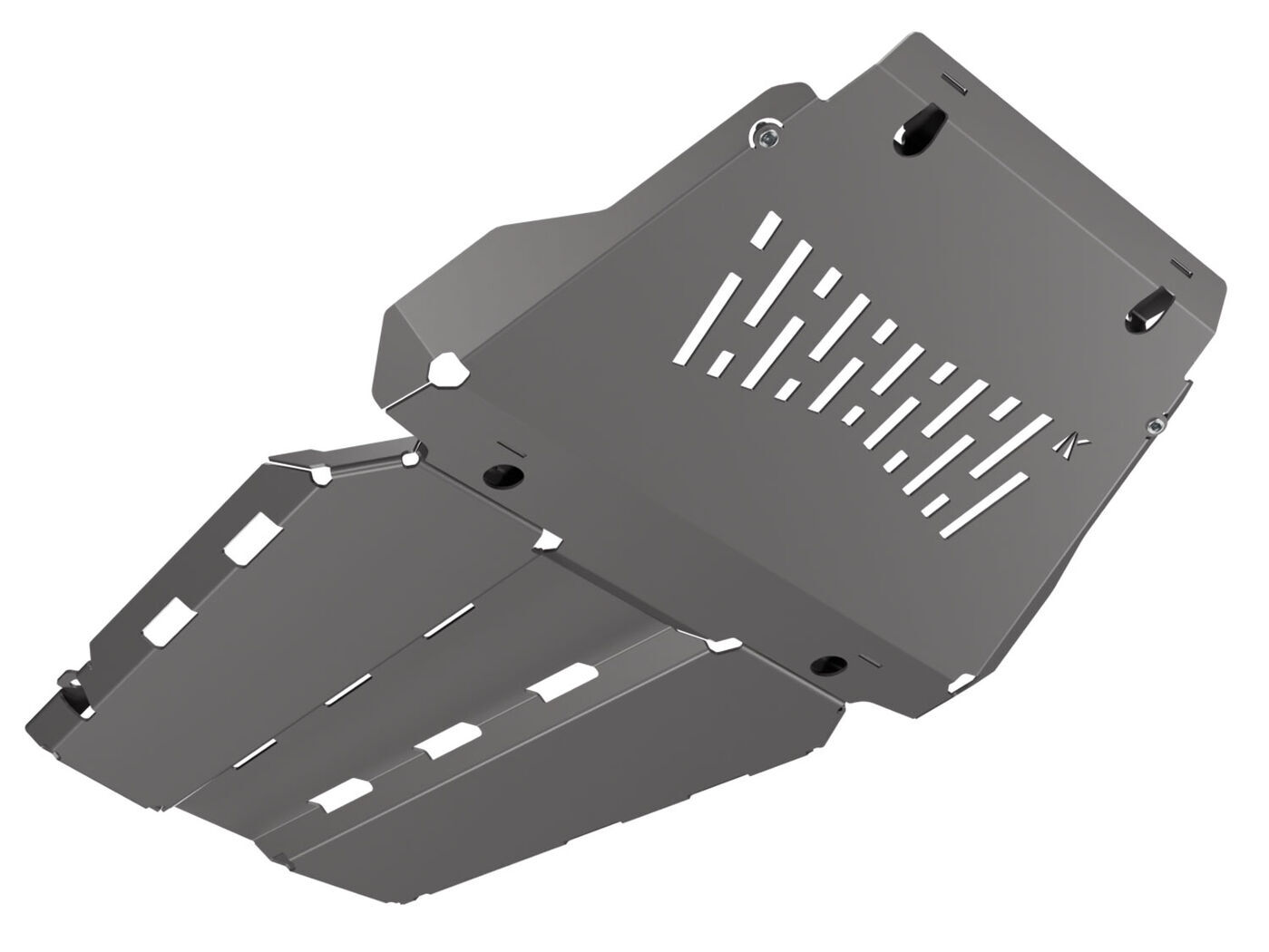

High Performance X700„¢ UVP to suit Toyota LandCruiser LC300 (Including GR Sport)

Our High Performance X700„¢ Under Vehicle Protection is lighter, and yet stronger than conventional UVP plates.
With tight GVM margins for modern vehicles take peace of mind knowing that your UVP is stronger, protecting the most vulnerable parts of your 4x4 against damage, without excess weight.


TECH SPECS:

• Three-piece X700„¢ UVP weighs a total of 19kg, just 11kg heavier than OEM guards, and 25% lighter than equivalent 4mm steel UVP.
• With a high yield strength of 700 MPa, X700„¢ UVP outperforms common alternatives, such as 4mm Carbon Steel, 6mm Aluminium and 3/4mm Stainless Steel in permanent deformation tests.


FEATURES:

• X700„¢ UVP can take higher stresses, with less material weight.
• Designed using 3D scanning for a better fit, with folds and flanges for added strength
• Designed for maximum clearance and optimum approach/departure angles.
• Recessed mounting bolts and smooth transitions allow you to slide over obstacles found out on the tracks with ease.
• Strategically placed generous vents and drainage holes to keep everything running cool.
• Individual options specifically designed to suit unique vehicle configurations, ensuring maximum clearance and a made-to-fit appearance.
• Allows for the factory splash guards to be reinstated, securing to nutserts in the front guard.
• Powder coated using a three-step process for increased durability, in an attractive Metallic Asteroid Grey.

COMPATIBILITY:

Compatible with:

• Toyota Factory Bumper
• ARB Bull Bar

For a full list of compatible, non-compatible, and partially compatible vehicle and accessory configurations, please see the FAQ.

INCLUDES:

Select either Front & Sump / Front, Sump & Trans configuration:

• 1 x High Performance X700„¢ UVP to suit Toyota LandCruiser LC300 (Including GR Sport)

Australian Designed, Made and Owned.

What vehicle models is this UVP compatible with?

X700 UVP is compatible with the Toyota LandCruiser 300.

Please note factory tubular DPF guard is compatible with the Front and Sump guards. It will need to be removed to install the Transmission guard.

The guards are not compatible with the Lexus LX.

What accessories is the UVP compatible with?

X700 UVP is compatible with:

• Toyota Factory Bumper
• ARB Bull Bar
• Toyota Factory Bull Bar
  • Needs spacing to fit with the factory splash. We make a spacer kit (KS1024, found here) to assist with this
• Just Autos Sump
  • Requires plates to be spaced down 10mm and the potential sourcing of new hardware.
• J-Max Diff Drop
  • Requires plates to be spaced down 20mm and the potential sourcing of new hardware.

X700 UVP is not compatible with:

• Not compatible with the Splash Guard on the Toyota Alloy Bull Bar. It can be installed with this splash guard removed.

Compatibility with modifications exists with:

• Offroad Animal Bullbar
  • Trimming of the front splash guard is needed. The leading 25mm of the Front KAON Guard will also need to be trimmed.
