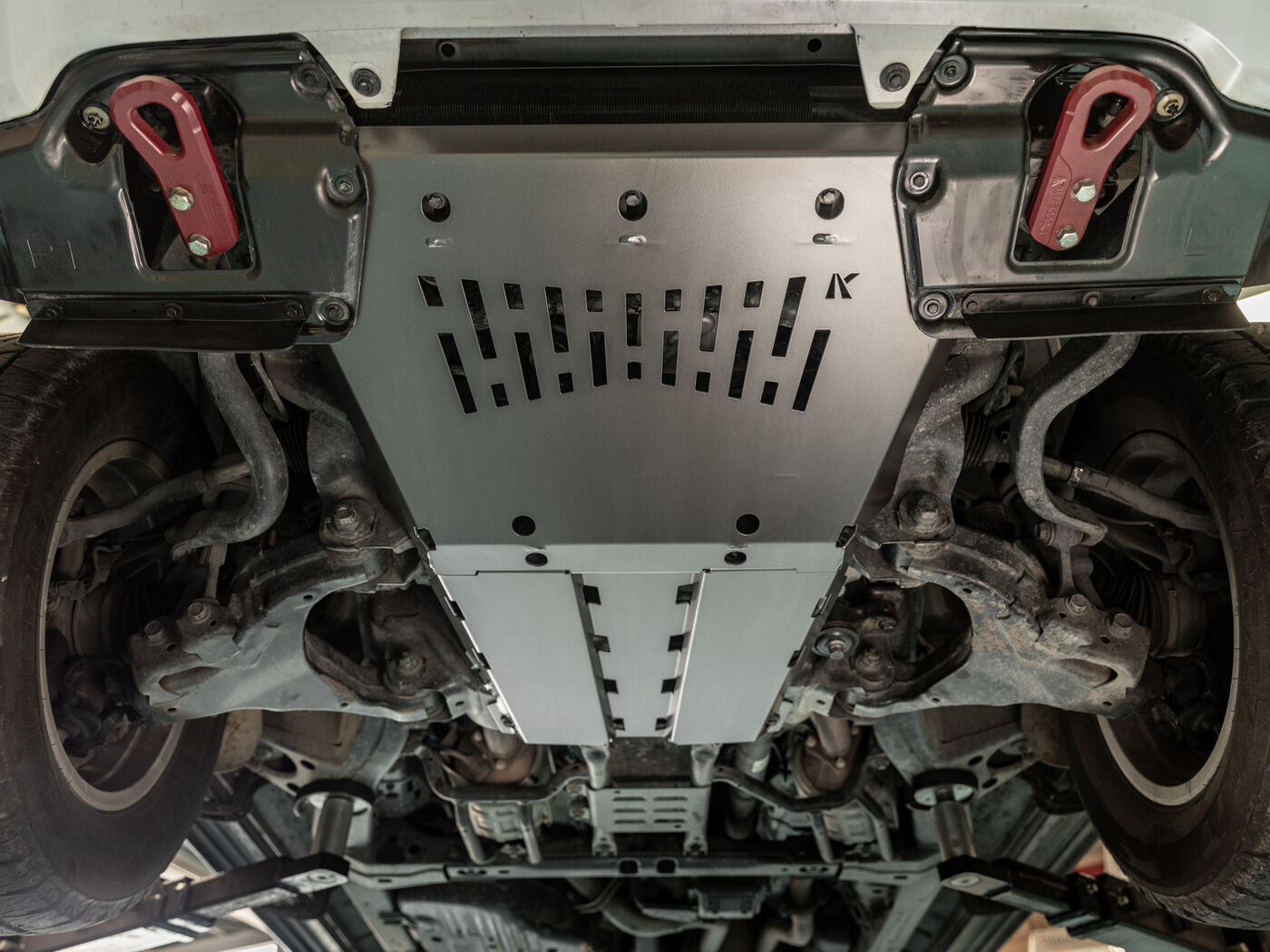

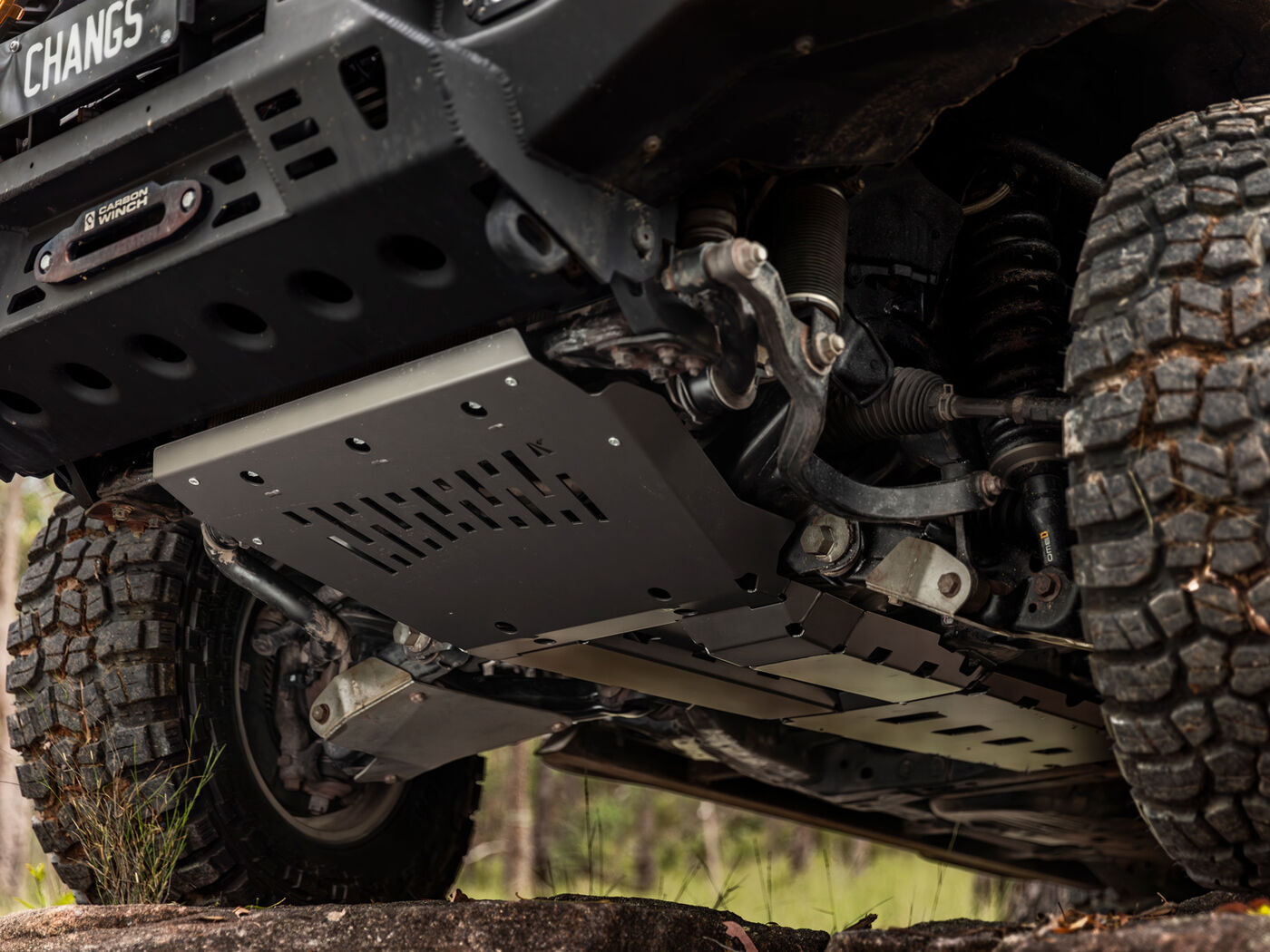

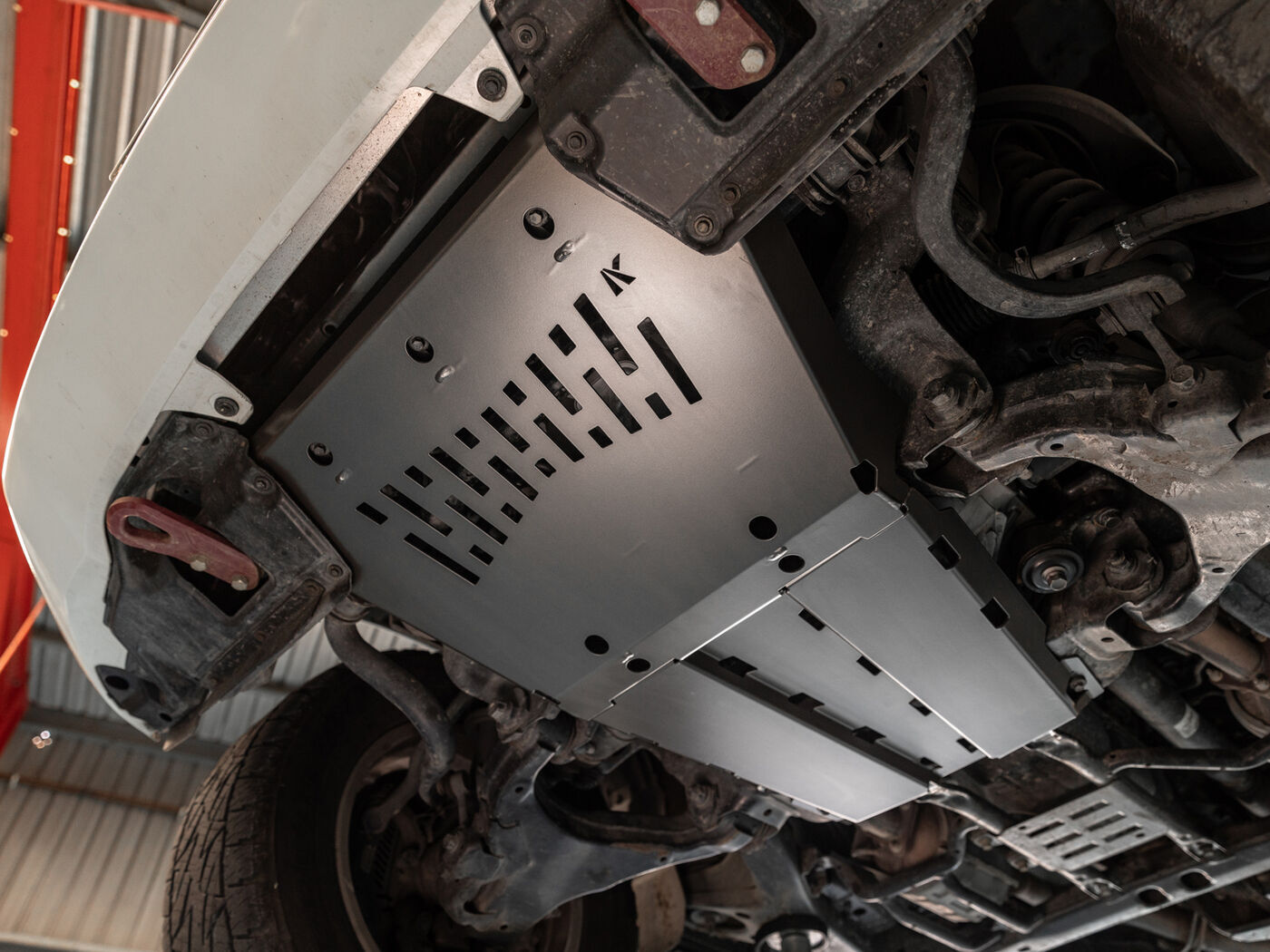

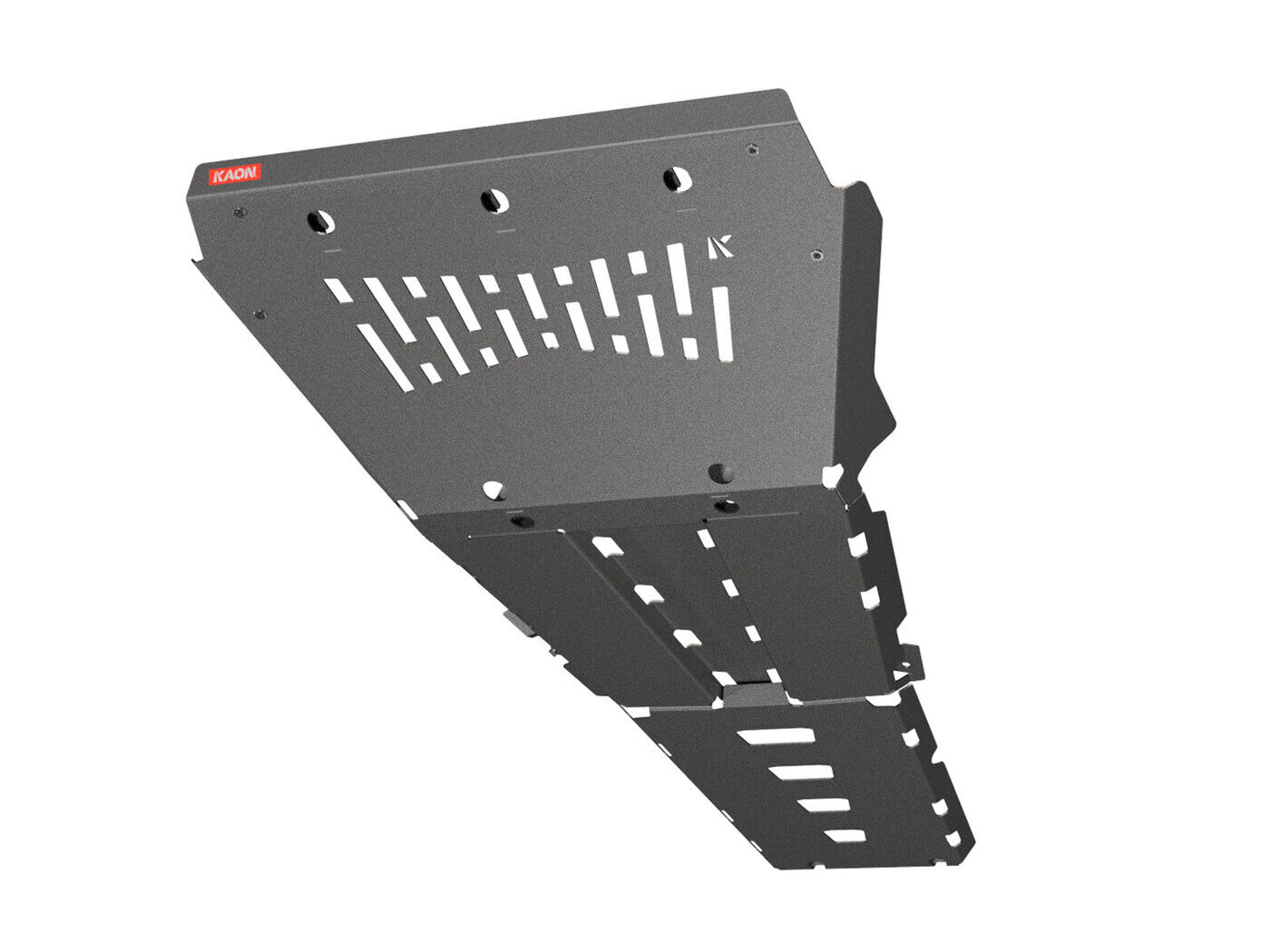

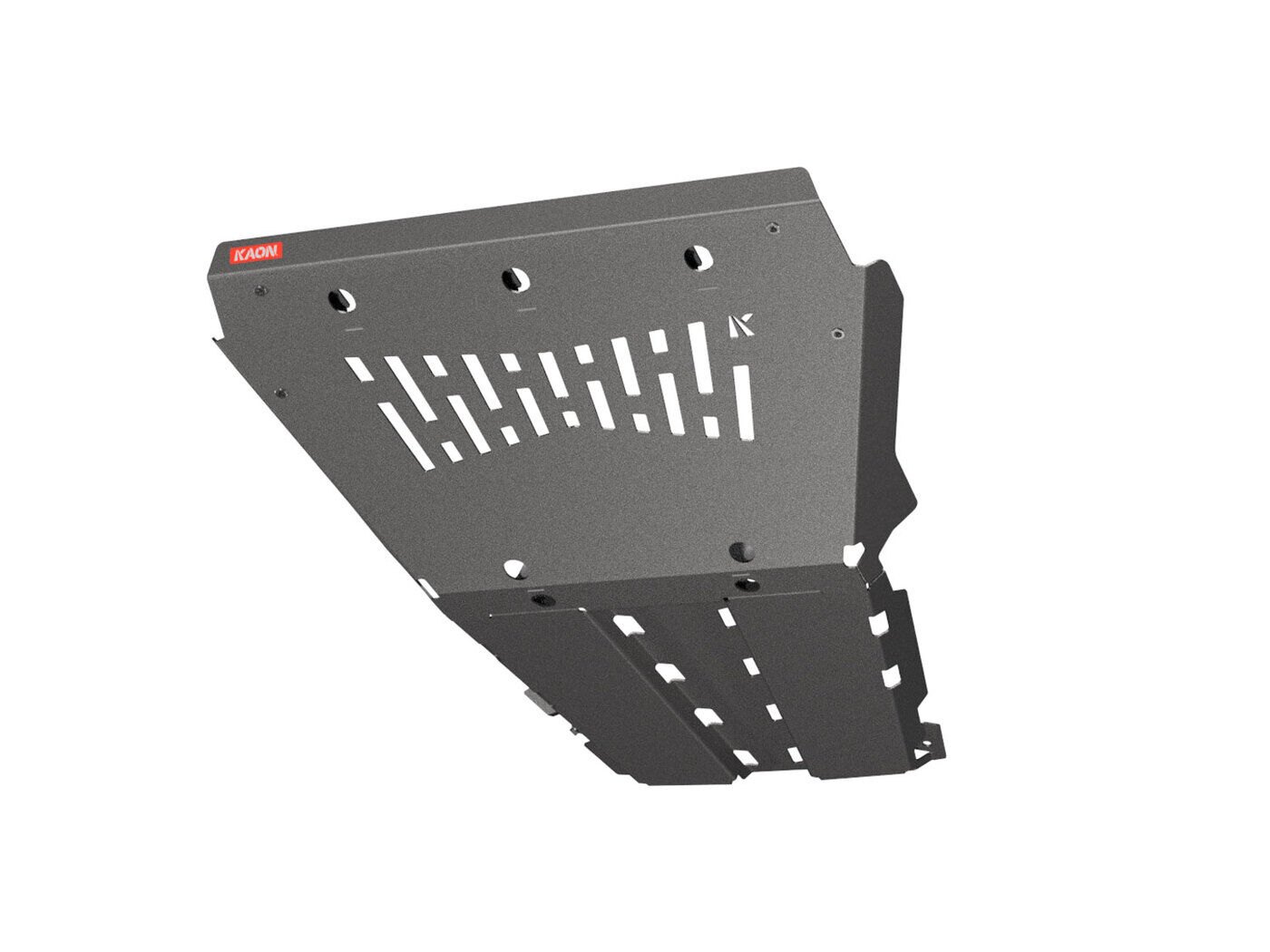

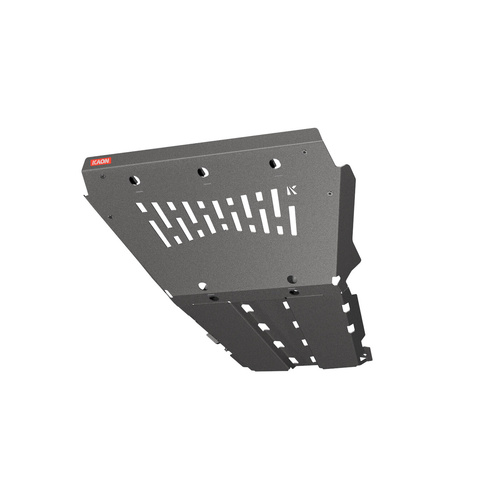

High Performance X700 UVP to suit Toyota LandCruiser LC200

Kaon's High Performance X700 Under Vehicle Protection is lighter, and yet stronger than conventional UVP plates.

With tight GVM margins for modern vehicles – take peace of mind knowing that your UVP is stronger, protecting the most vulnerable parts of your 4x4 against damage, without excess weight.

Tech Specs:

• Three-piece X700 UVP weighs a total of 22.5kg, just 11kg heavier than 2pce OEM guards, and up to 6kg lighter than 4mm steel UVP
• With a high yield strength of 700 MPa, X700 UVP outperforms common alternatives, such as 4mm Carbon Steel, 6mm Aluminium and 3/4mm Stainless Steel in permanent deformation tests.

Features:

• X700 UVP can take higher stresses, with less material weight.
• Designed using 3D scanning for a better fit, with folds and flanges for added strength
• Designed for maximum clearance and optimum approach/departure angles.
• Sump guard includes an additional stainless steel sump drain ramp, for easy drainage.
• Recessed mounting bolts and smooth transitions allow you to slide over obstacles found out on the tracks with ease.
• Strategically placed generous vents and drainage holes to keep everything running cool.
• Individual options specifically designed to suit unique vehicle configurations, ensuring maximum clearance and a made-to-fit appearance.
• Powder coated using a three-step process for increased durability, in an attractive Metallic Asteroid Grey.

Please note the Trans guard requires the factory DPF guards in order to be installed. For more information on product options, see the FAQ.

Includes:

Select either Front & Sump / Front, Sump & Trans configuration, with or without Diff Drop:

1 x High Performance X700 UVP to suit Toyota LandCruiser 200

What is the difference between the guards designed for a Diff Drop and No Diff Drop?

The Diff Drop guards are designed to accommodate the lowered diff housing while still maximising clearance, as opposed to installing standard plates with spacers, which some manufacturers opt for.

If you have no Diff Drop installed, select 'No Diff Drop'.

If you have a KAON Arm-style Diff Drop installed, select ' KAON Arm Style Diff Drop'. Not compatible with other brands of Arm-Style Diff Drop.

If you have another manufacturer's 30mm Spacer-Style Diff Drop, select 'No Diff Drop'. This can be made to work with Spacer-style diff drops, provided the kit you have sourced includes hardware to space down guards. You will need to further space 4 bolts on the main engine crossmember. This will require sourcing M10 washers to roughly 8mm thickness, to space these 4 bolts.
