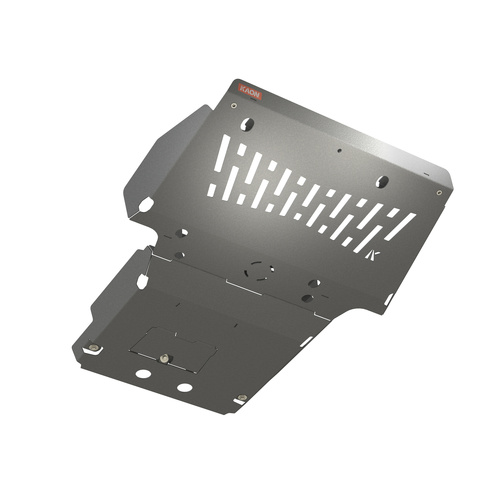

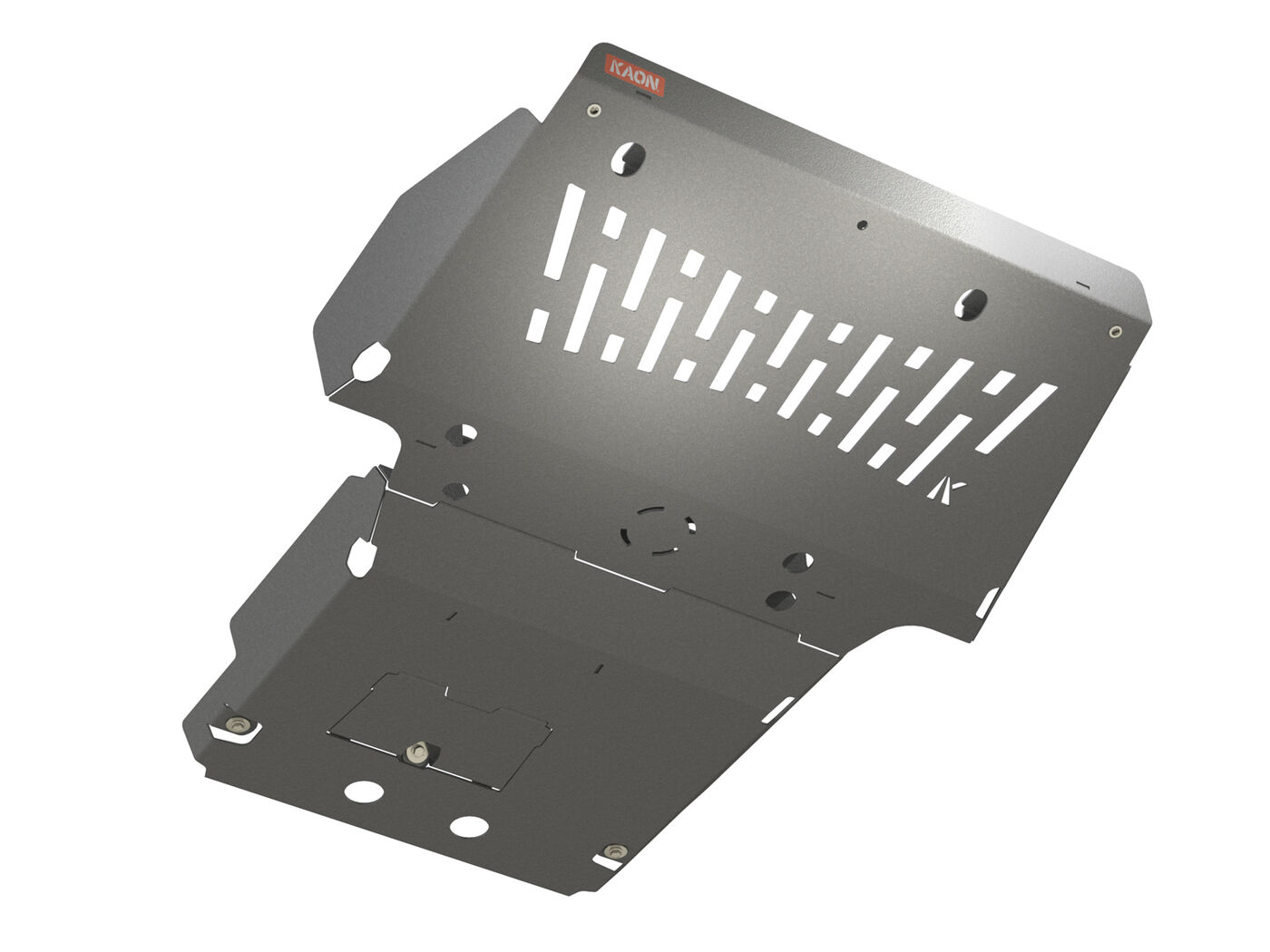

High Performance X700 UVP to suit Toyota Prado 150 & FJ Cruiser, Lexus GX 460

Our High Performance X700 Under Vehicle Protection is 25% lighter, and yet 60% stronger than conventional UVP plates.

With tight GVM margins for modern vehicles – take peace of mind knowing that your UVP is stronger, protecting the most vulnerable parts of your 4x4 against damage, without excess weight.

Tech Specs:

• Three-piece X700 UVP weighs a total of 23kg, just 10kg heavier than 2pce OEM guards, and up to 9kg lighter than 4mm steel UVP.
• With a high yield strength of 700 MPa, X700 UVP outperforms common alternatives, such as 4mm Carbon Steel, 6mm Aluminium and 3/4mm Stainless Steel in permanent deformation tests.

For the full details, see our video, below.

Features:

• X700 UVP can take higher stresses, with less material weight.
• Designed using 3D scanning for a better fit, with folds and flanges for added strength
• Designed for maximum clearance and optimum approach/departure angles.
• The sump guard includes a reinforced drain hatch for easy servicing and maintenance.
• Recessed mounting bolts and smooth transitions allow you to slide over obstacles found out on the tracks with ease.
• Strategically placed generous vents and drainage holes to keep everything running cool.
• Individual options specifically designed to suit unique vehicle configurations, ensuring maximum clearance and a made-to-fit appearance.
• Powder coated using a three-step process for increased durability, in an attractive Metallic Asteroid Grey.

Compatibility:

Please ensure to select guards to suit your vehicle's requirements – such as Diff Drop, KDSS Suspension, and Transmission.

For more information on product options, see the FAQ.

Includes:

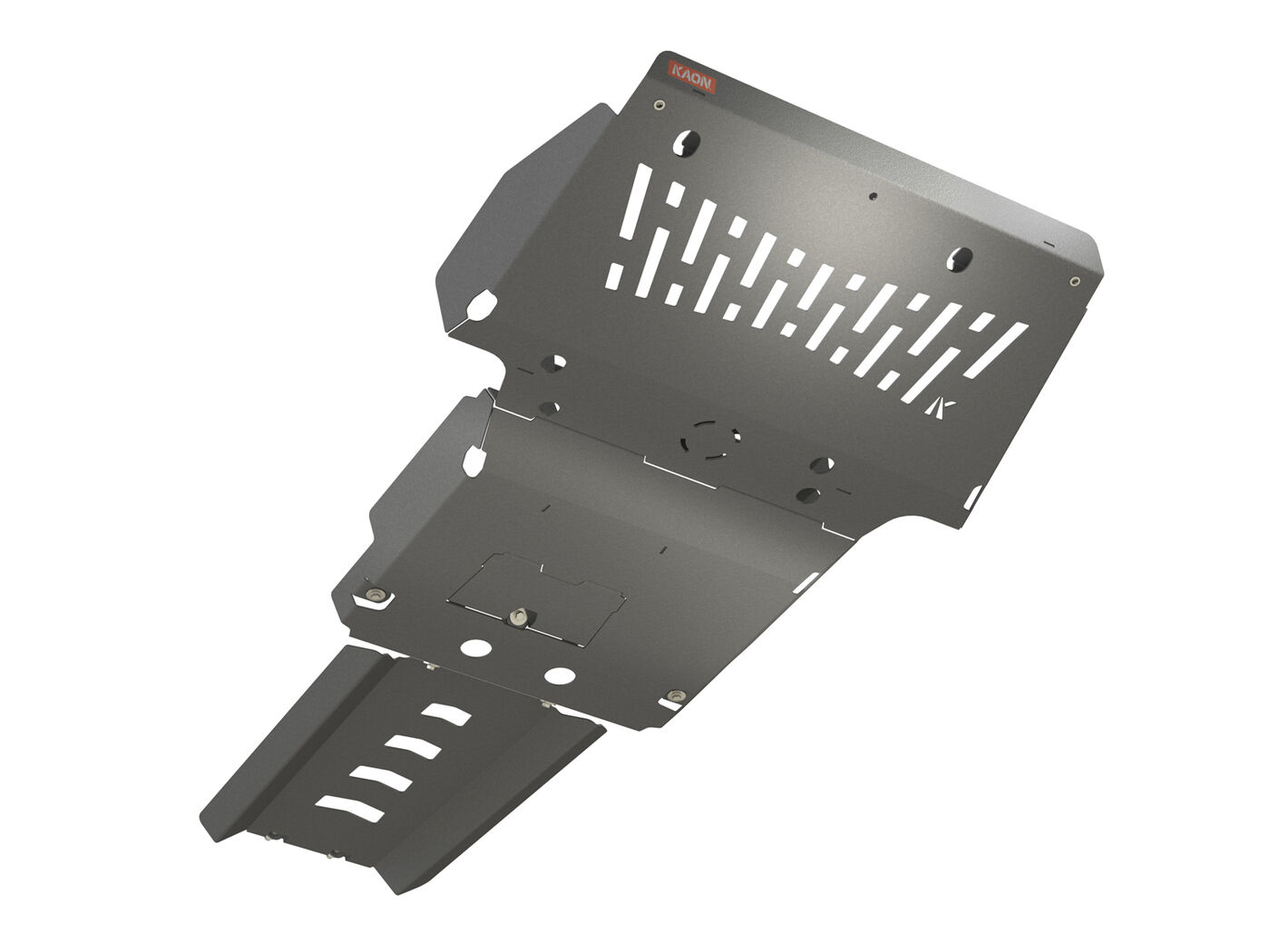

Select either Front & Sump / Front, Sump & Trans configuration:

1 x High Performance X700 UVP to suit Toyota Prado 150, FJ Cruiser & Lexus GX 460

What is the difference between the guards designed for a Diff Drop and No Diff Drop?

The Diff Drop guards are designed to accommodate the lowered diff housing while still maximising clearance, as opposed to installing standard plates with spacers, which some manufacturers opt for.

If you have no Diff Drop installed, select 'No Diff Drop'.

If you have a KAON Arm-style Diff Drop installed, select ' KAON Arm Style Diff Drop'. Not compatible with other brands of Arm-Style Diff Drop.

Kaon's Guards are not compatible with spacer-style Diff Drops.

What is the clearance of the X700 UVP when compared to the factory guards?

X700 UVP has 4mm more clearance than factory at the lowest point (it's hard up against the cross member, so it's as high as it'll go) but the front piece has 35mm more clearance at some points thanks to it's approach angle of 19°, vs factory 42°. For vehicles with a Diff Drop, the Cradle component of the guard sits down 25mm.
