Details

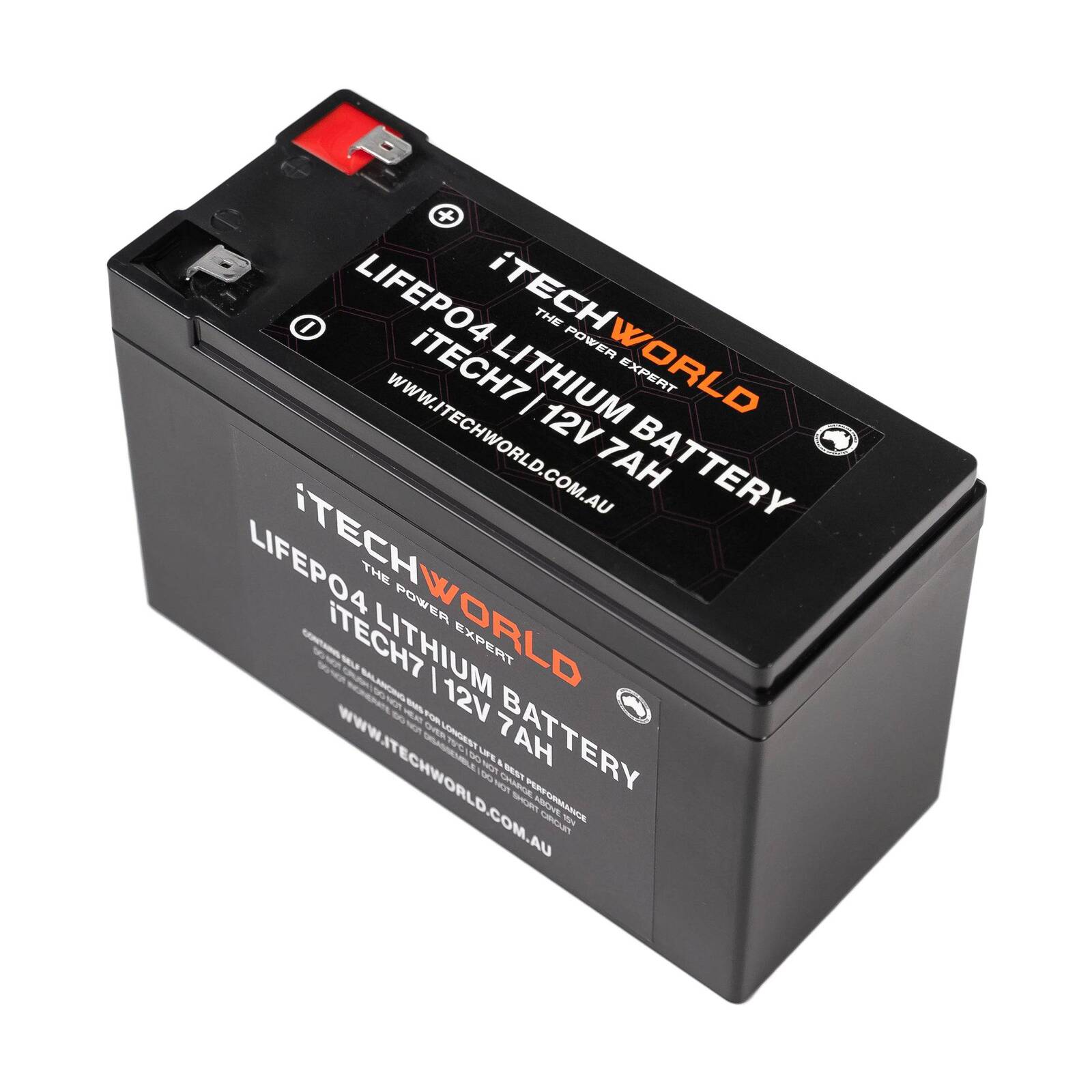

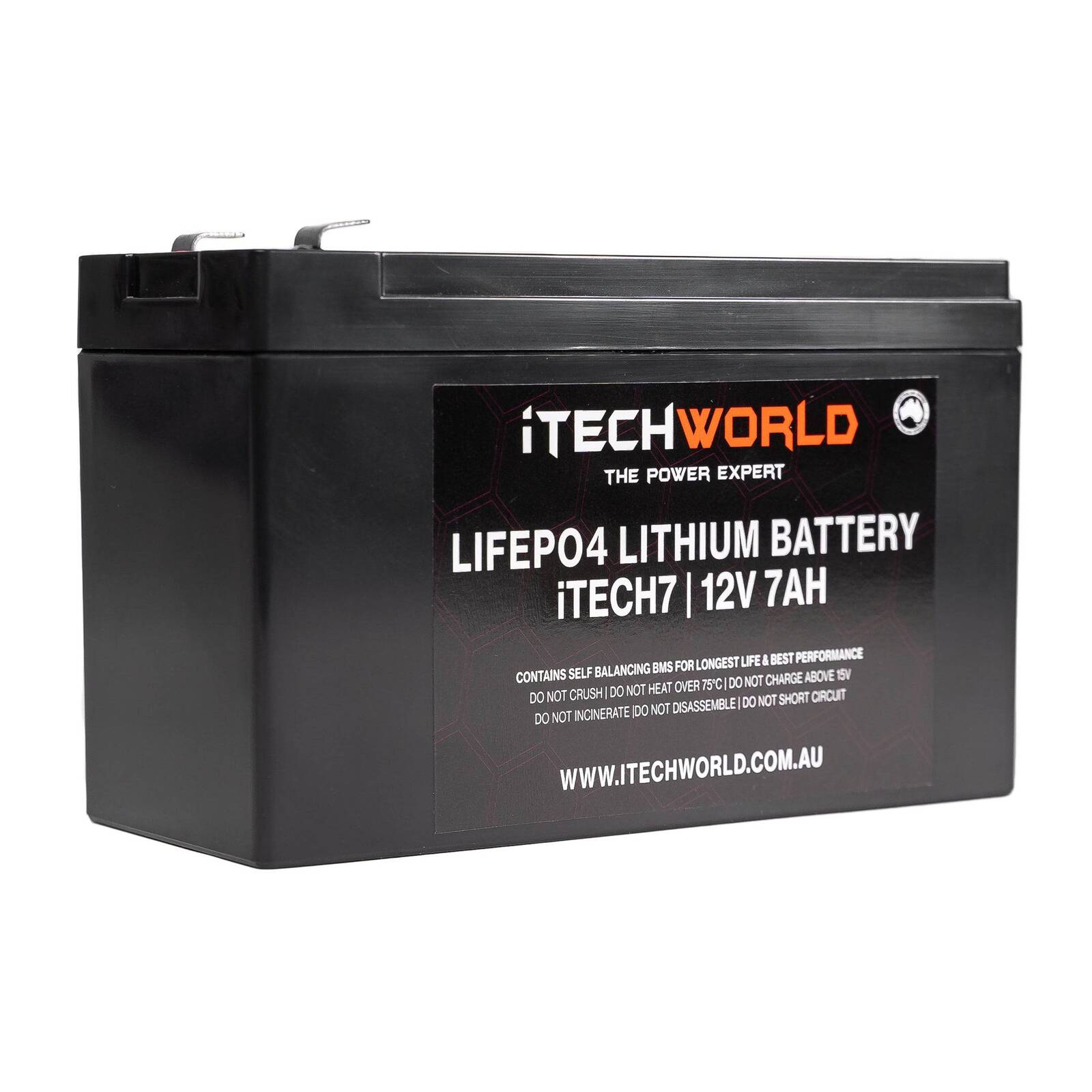

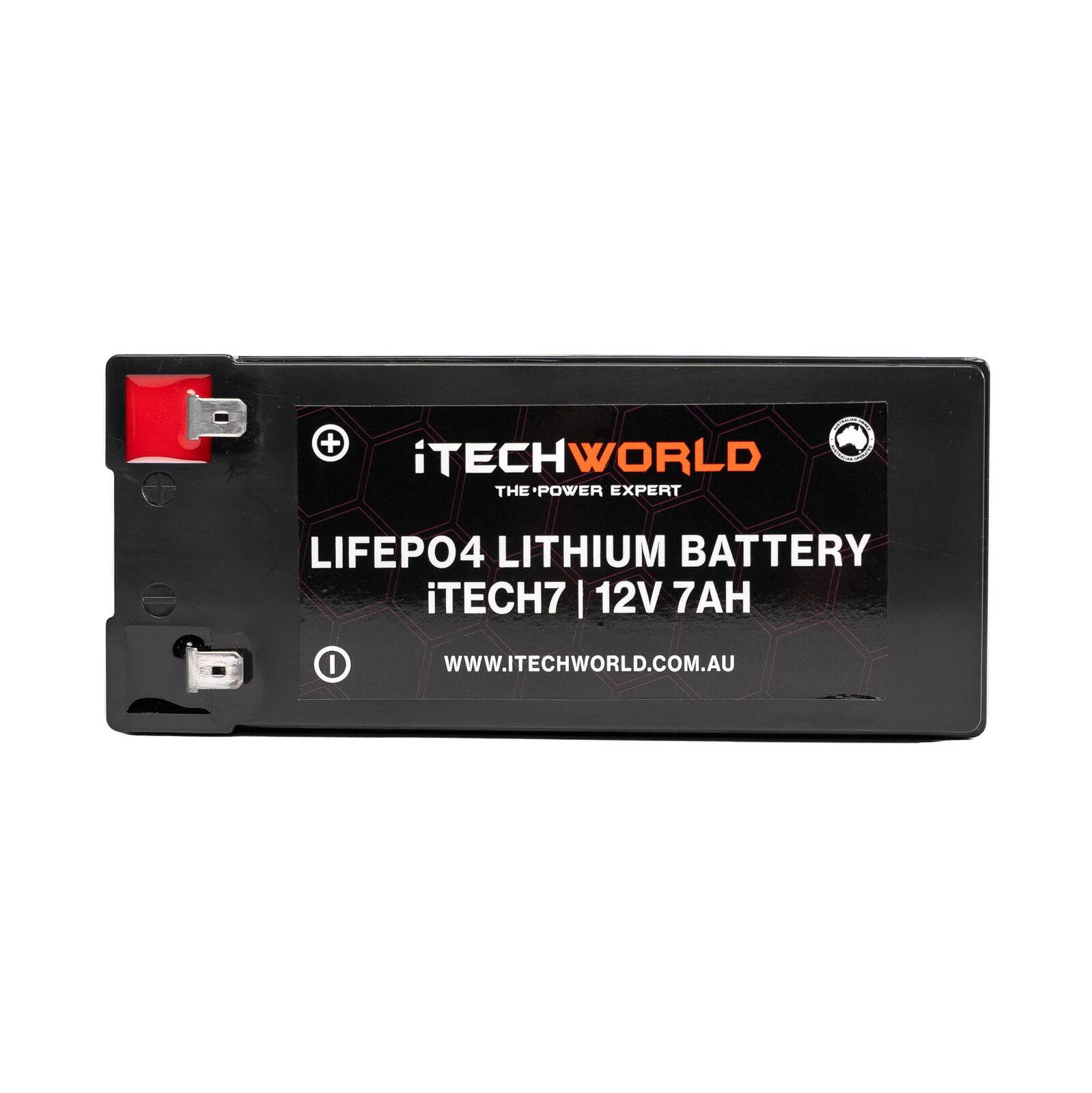

We are introducing our latest lithium battery, the iTECH07. The iTECH7 LiFePO4 lithium battery is the perfect drop-in replacement battery for alarm systems and NBN back up.

BMS/OPERATING SYSTEM

100% of the iTECH7's capacity is usable. The internal BMS allows 7A continuous discharge. The iTECH7's internal BMS controls cell balancing, over and under-voltage protection, short circuit protection, thermal protection, and has over-discharge protection (safe mode).

CAPACITY

The iTECH7 7Ah Lithium-ion is the equivalent to 14Ah in lead-acid batteries (based on the standard depth of discharge of the iTECH07 (100%) and lead-acid battery (50%).

WEIGHT

The iTECH7 weighs just 800g the equivalent lead-acid battery weighs 2+kg.

USE MOST CHARGERS

The iTECH7 will charge up to 5x faster than lead-acid batteries. The iTECH07 can charge from just about all existing chargers with no extensive modifications required to existing systems.

LIFE SPAN

The iTECH7 can cycle up to 5000 times at 50% depth of discharge. A lead-acid equivalent can cycle up to 500 times at a 50% depth of discharge. The iTECH7 has little to no self-discharge rate (≤2%), the battery can sit for long periods and will not go flat.

AUSTRALIAN MADE

Designed and developed in Australia for use with alarm systems, NBN back up and other low amperage applications. The iTECH07 will operate flawlessly in extreme heat and will handle heavy vibrations usually associated with corrugated roads.

FEATURES

• Heavy duty case
• Can be connected in parallel (up to 4)
• Can be connected in series (up to 4)
• High discharge current max 14A (5sec)
• Maintenance-free
• Lithium-ion LiFePO4
• Inbuilt battery management system
• Redback™? Lithium Operating System installed as standard.
• Built-in over-discharge protection.

SPECIFICATIONS

• Charging Voltage: 14.4 to 14.7v
• Standard discharge current: 7A
• Max discharge current: 14A (5sec)
• Standard charge current: 3.5A
• Maximum charge current: 14A

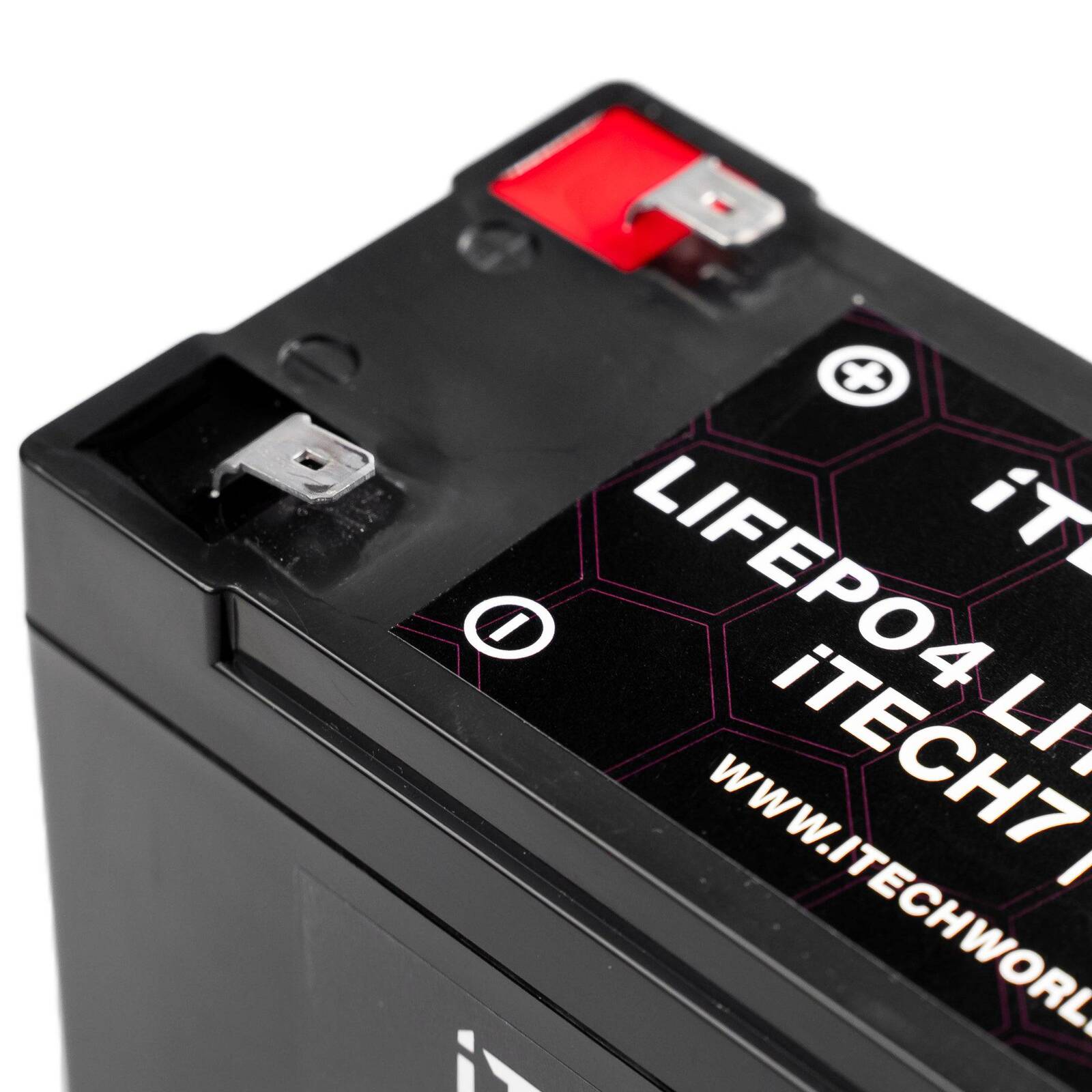

• Output connector: Tab
• Waterproof to IP65.

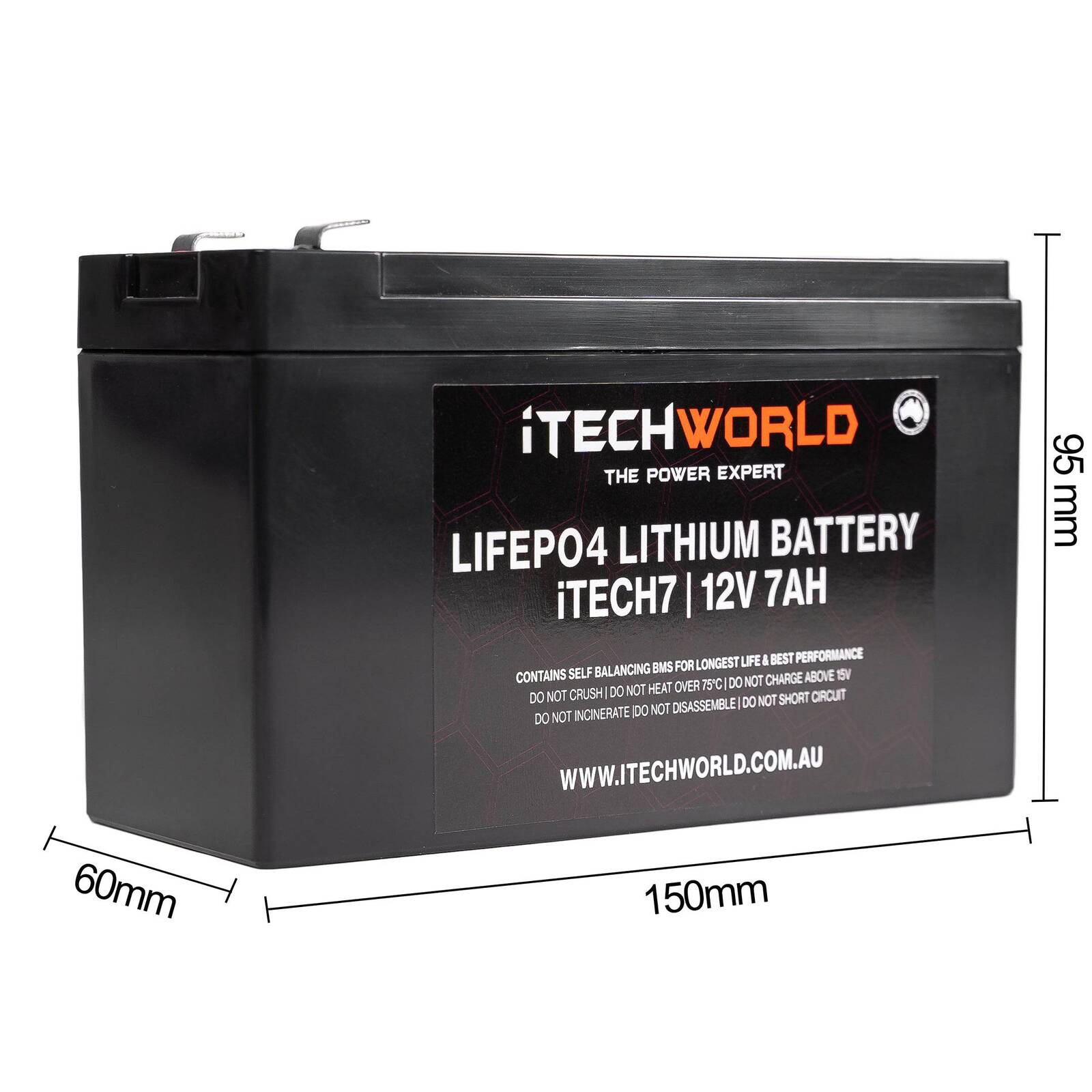

• Dimensions: 150x65x95mm (LxWxH)
• Optimal charge temp range: 0°c to + 45°c
• Optimal discharge temp range: -20°c to + 60°c
• Optimal storage temp: -10°c to + 45°c
• Weight: 800g each

Included in the Box

• 1x Lithium Battery iTECH7
• Pre-installed Redback™? Lithium Operating System
