Details

The iTECH24 LiFePO4 lithium battery is the perfect drop-in replacement battery for a motorised golf buggy. iTECH24 can operate at 12v, 24v, 36v and even 48v through series connection.

BMS/OPERATING SYSTEM

100% of the iTECH24's capacity is usable. The internal BMS allows 25A continuous discharge. The iTECH24's internal BMS controls cell balancing, over and under-voltage protection, short circuit protection, thermal protection, and has over-discharge protection (safe mode).

CAPACITY

The iTECH24 24Ah Lithium-ion is the equivalent to 48Ah in lead-acid batteries (based on the standard depth of discharge of the iTECH24 (100%) and lead-acid battery (50%).

WEIGHT

The iTECH24 weighs just 2.8kg the equivalent lead-acid battery weighs 13+kg.

USE MOST CHARGERS

The iTECH24 will charge up to 5x faster than lead-acid batteries. The iTECH24 can charge from just about all existing chargers with no extensive modifications required to existing systems.

LIFE SPAN

The iTECH24 can cycle up to 5000 times at 50% depth of discharge. A lead-acid equivalent can cycle up to 500 times at a 50% depth of discharge. The iTECH24 has little to no self-discharge rate (≤2%), the battery can sit for long periods and will not go flat.

AUSTRALIAN MADE

Designed and developed in Australia for use with caravans, camper trailers, motor homes, 4WD, boats, yachts, trucks, golf buggies and everything in-between. The iTECH24 will operate flawlessly in extreme heat and will handle heavy vibrations usually associated with corrugated roads.

FEATURES

• Heavy duty case
• Can be connected in parallel (up to 4)
• Can be connected in series (up to 4)
• High discharge current max 48A (5sec)

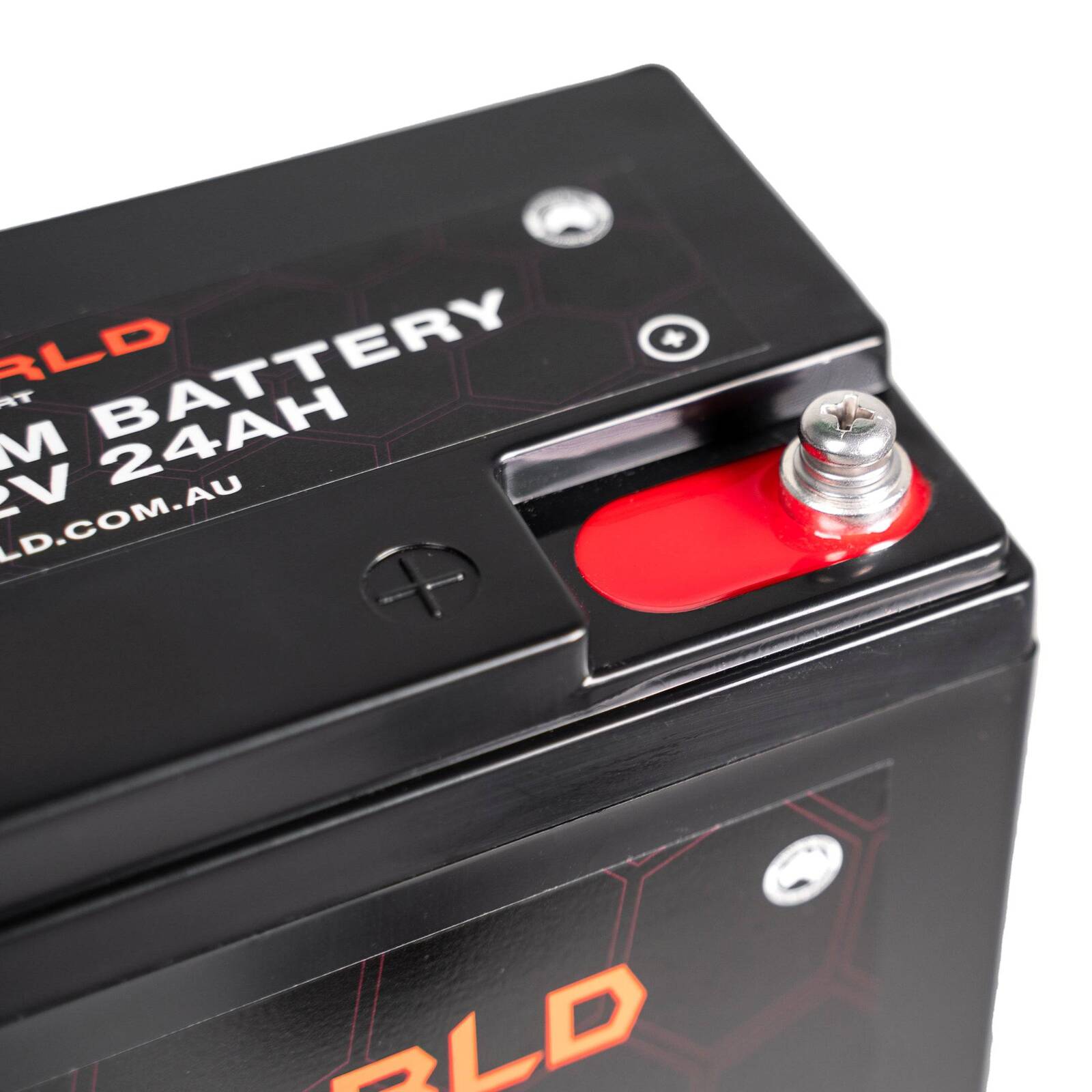

• Heavy-duty removable M5 Bolt Battery terminals
• Maintenance-free
• Lithium-ion LiFePO4
• Inbuilt battery management system
• Redback Lithium Operating System installed as standard.
• Built-in over-discharge protection.

SPECIFICATIONS

• Charging Voltage: 14.4 to 14.7v
• Standard discharge current: 24A
• Max discharge current: 48A (5sec)
• Standard charge current: 12A
• Maximum charge current: 24A
• Output connector: M5 Stud

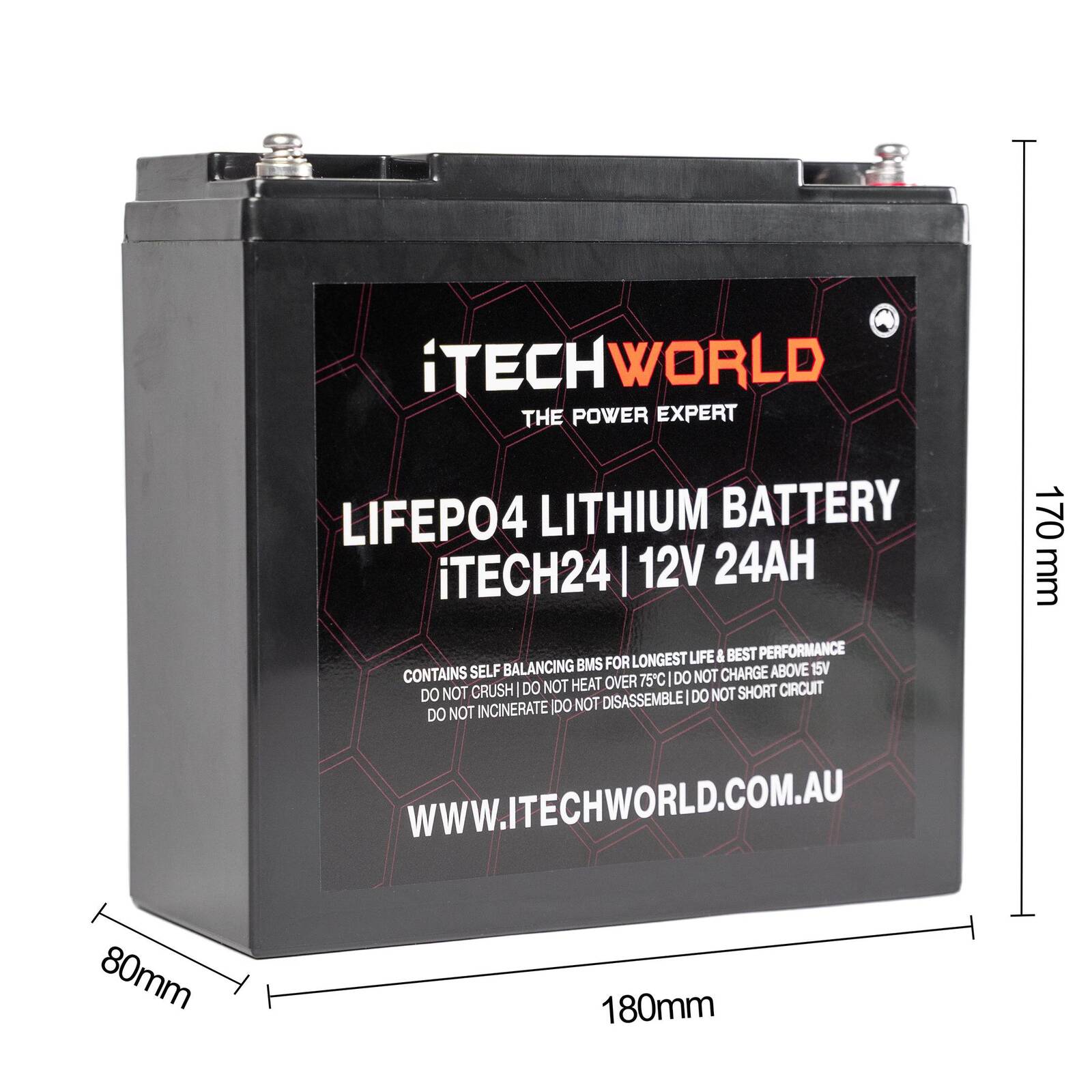

• Dimensions: 180x80x170mm (LxWxH)
• Optimal charge temp range: 0°c to + 45°c
• Optimal discharge temp range: -20°c to + 60°c
• Optimal storage temp: -10°c to + 45°c
• Weight: 2.8kg each

Included in the Box

• 1x Lithium Battery iTECH24
• Pre-installed Redback Lithium Operating System
