The all-new iTECH240X PRO 240Ah Lithium Battery is the result of years of design and development. Featuring a 100% useable capacity, the iTECH240X PRO is the ultimate power solution for all your energy needs.

With its sleek and compact design, the iTECH240X PRO is a true drop-in replacement for your existing system. No changing of systems, chargers, or equipment is required in most cases. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH240X PRO. It's that easy!

The iTECH240X PRO features a fully 100% useable capacity, allowing the full 240Ah to be drawn from the battery. The new iTECH240X PRO includes an all-new patent-pending prismatic cell type, as well as an all-new supercharged Battery Management System (BMS) allowing for less cell degradation and a longer lifespan with high current use.

Built for the tough Australian environment, the iTECH240X PRO is IP67 Waterproof rated, allowing for the battery to be submerged under 1 meter of water for up to 30 minutes - perfect for marine applications or outdoor storage boxes. The iTECH240X PRO utilizes the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology.

Upgrade to the iTECH240X PRO today and experience the ultimate in power and performance.

Features

• True drop-in replacement - no need to change chargers or equipment
• Rated for under-bonnet use
• IP67 Waterproof - perfect for external mounting
• Only weighs 23.6 kg (Equivalent AGM weighs approx. 140kg)
• 100% usable capacity
• 5-year Australian warranty
• Australian designed and developed
• Australian certified including IEC:62619

Specifications

• Nominal Voltage: 12.8V
• C20 Rating usable amps 10V: 240Ah
• Short Circuit Protection: Yes
• Optimum Temperature Range: +5 to +60°C
• BMS Operational Temperature Range: -5 to 80°C
• Safety Protection Isolator: 80°C
• Recommended Charge Current: 1 - 60A
• Maximum Charge Current: 200A
• Recommended Charge Voltage: 14.4V
• BMS Charge Cut Off Voltage: 15V
• BMS Low Voltage Cut Off: 8.5 - 9V
• Continuous Discharge: 250A
• Peak Discharge: 500A (5 secs)
• Series Connection: Up to 48V (4 x batteries)
• Parallel Connection: Unlimited
• Life Cycles 100%: 4000
• Life Cycles 50%: 8000+

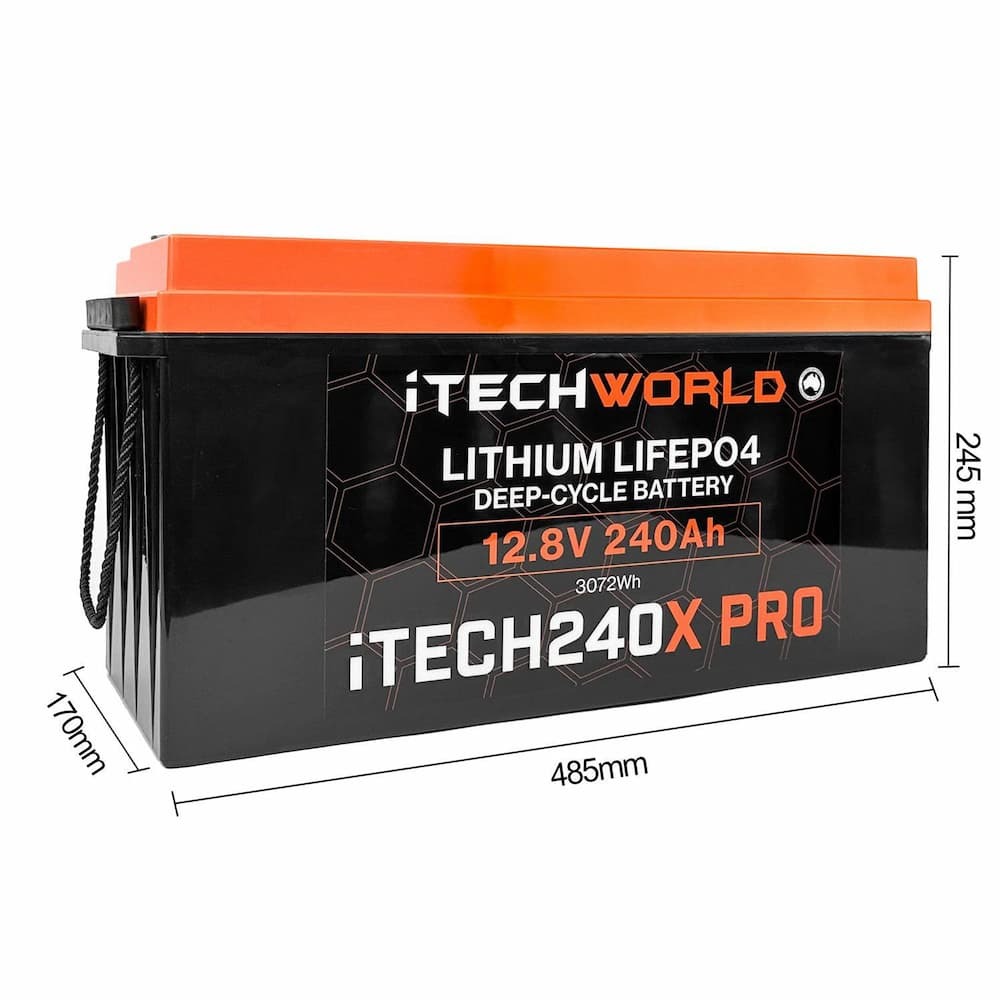

• Dimensions (LxWxH): 485x170x239mm (245mm including terminals)
• Weight: 23.6kg

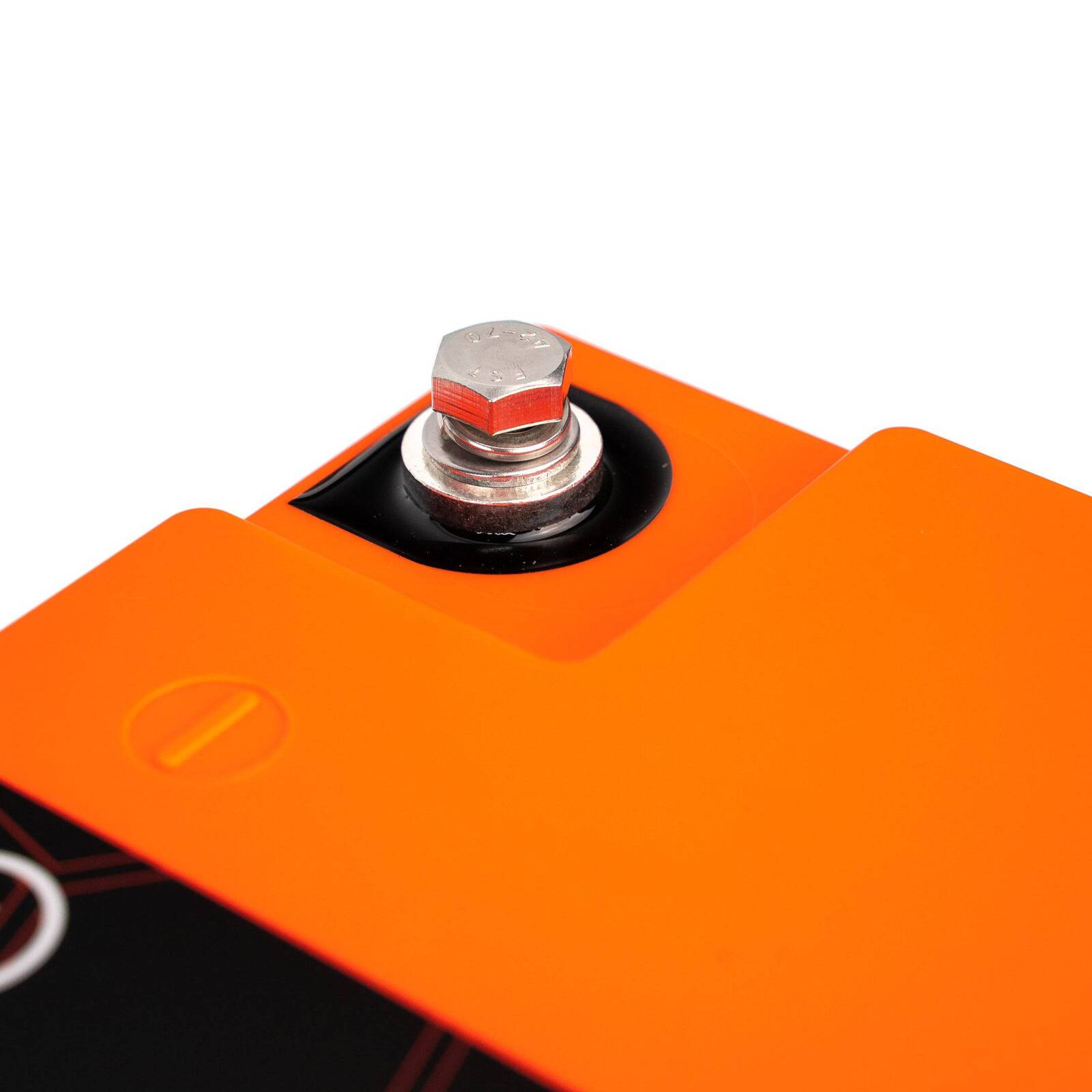

• Terminal Type: M8
• Case Material: ABS
• Certifications: UL Certified 1642, CE Certified, IP67 Rated, Rohs Certified, UN38.3 Certified, ISO 9001 Certified, ISO 1400 Certified
