Details

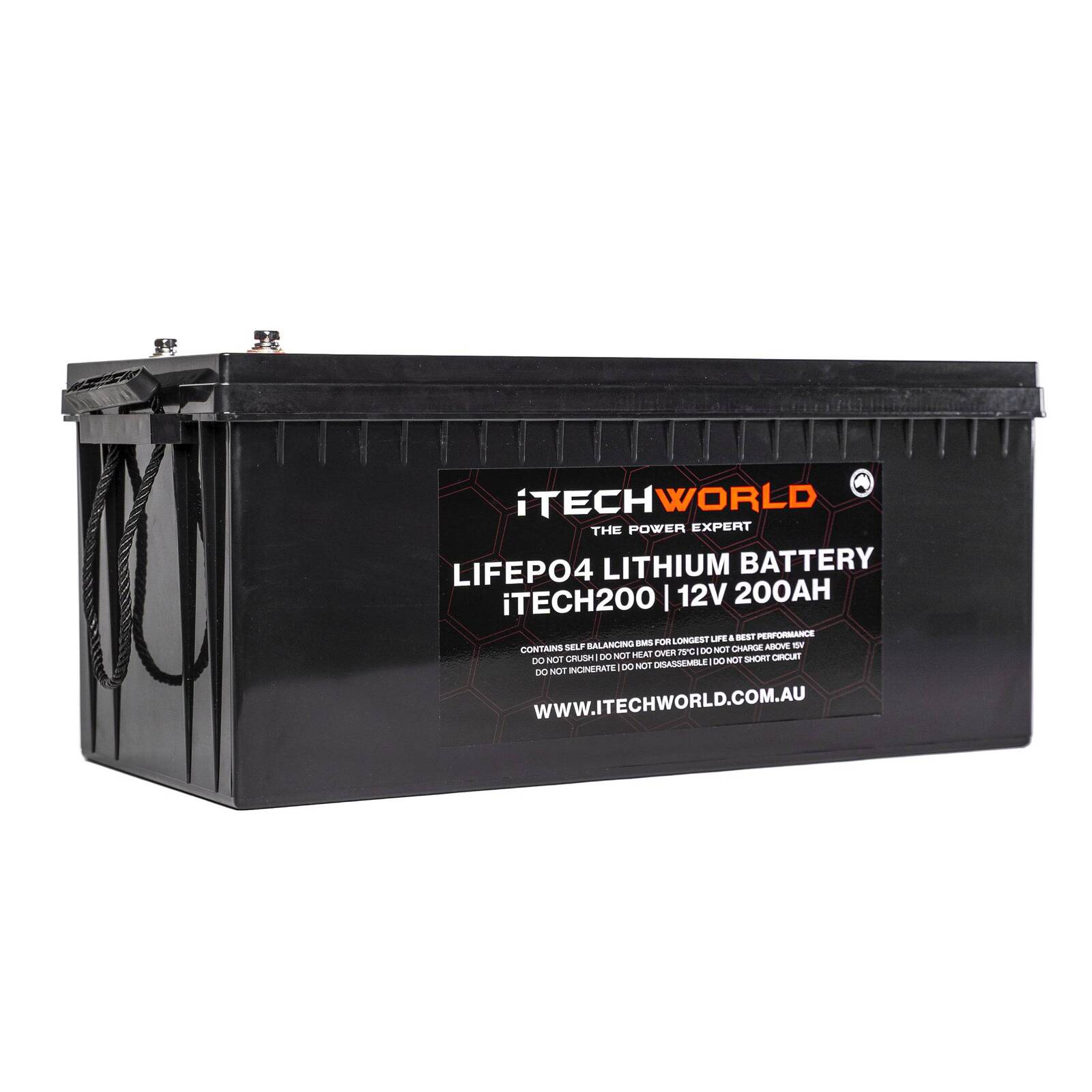

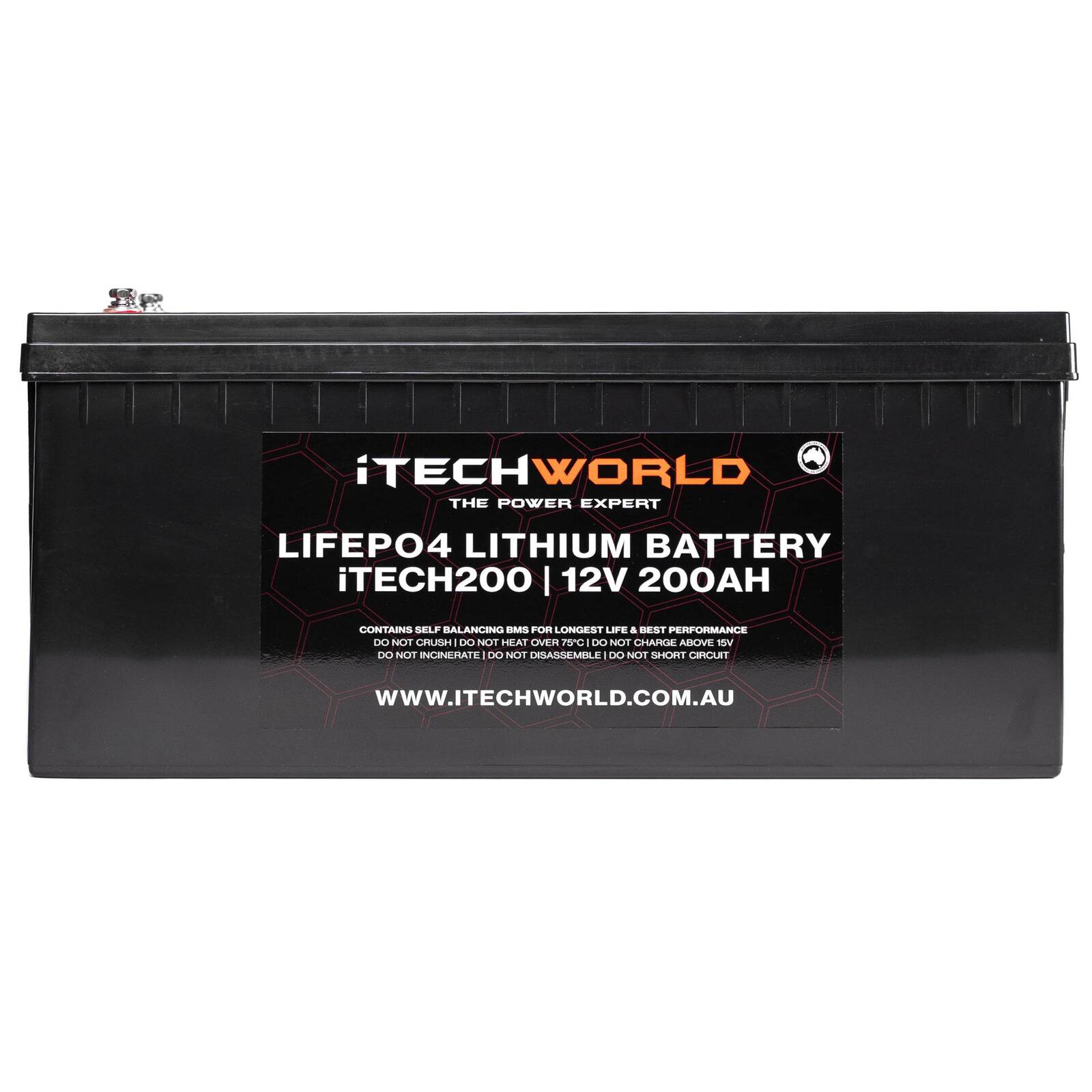

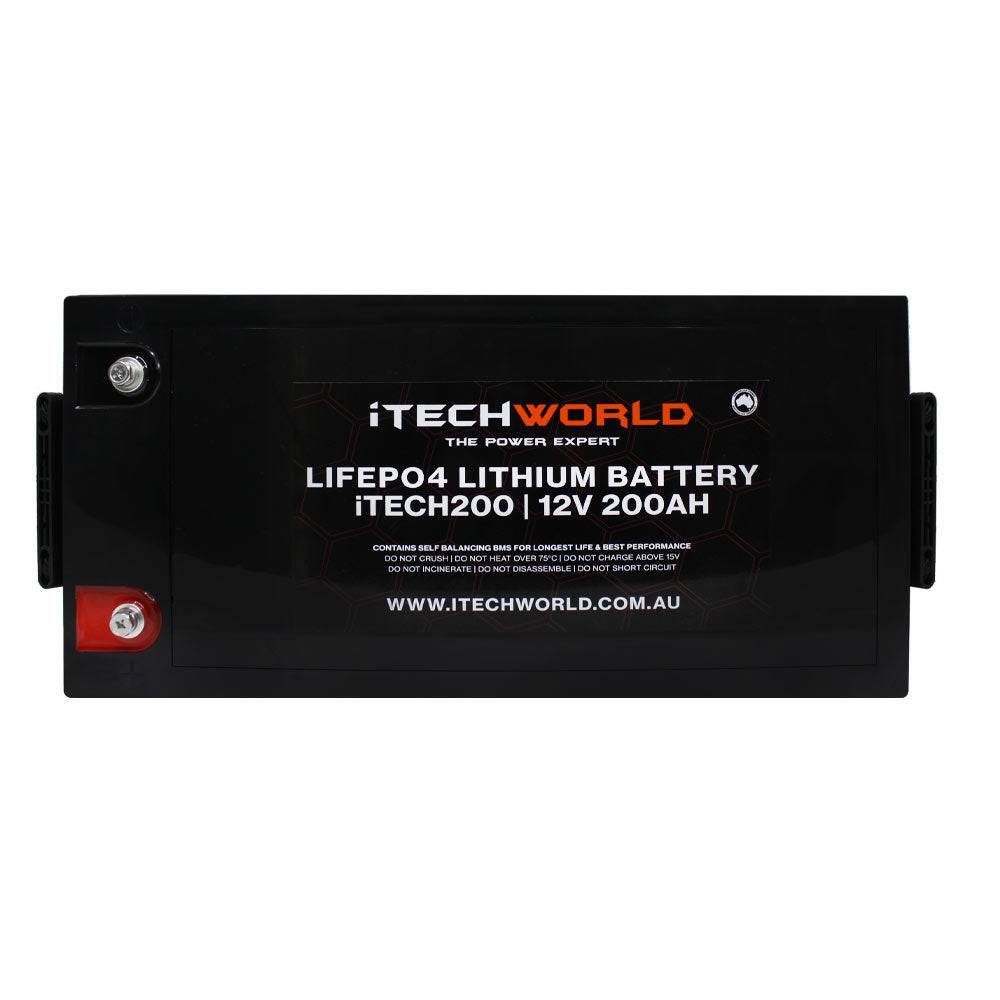

The iTECH200. A massive 200 Amps of high-performance usable power coupled with the Redback Lithium Operating System which ensures iTechworld's lithium battery range will outperform and outlast all others on the market. Designed specifically for use with inverters up to and including 3000W.

BMS/OPERATING SYSTEM

100% of the iTECH200's capacity is usable. The internal BMS allows 250A continuous discharge; other sub-standard lithium batteries have either no continuous discharge rating or a low continuous discharge rating of 50A - 100A. The iTECH200's internal BMS controls cell balancing, over and under-voltage protection, short circuit protection, thermal protection, and has over-discharge protection (safe mode).

CAPACITY

The iTECH200 is the equivalent to 400Ah in lead-acid batteries (based on the standard depth of discharge of the iTECH200 (100%) and AGM battery (50%).

WEIGHT

The iTECH200 weighs just 27kg. The equivalent lead-acid battery weighs 120+kg.

USE MOST CHARGERS

The iTECH200 deep cycle battery will charge up to 5x faster than a traditional lead-acid battery. The iTECH200 can charge from just about all existing chargers with no extensive modifications required to existing systems.

LIFESPAN

The iTECH200 can cycle up to 5000 times at 50% depth of discharge. AGM battery equivalents can cycle up to 500 times at a 50% depth of discharge. iTECH200 lithium battery systems have little to no self-discharge rate(≤2%). The battery pack can sit for long periods and will not go flat.

AUSTRALIAN DESIGNED AND DEVELOPED

Our lithium batteries are designed and developed in Australia for use with caravans, camper trailers, motor homes, 4WD, boats, yachts, trucks and everything in-between. The iTECH200 will operate flawlessly in extreme heat and will handle heavy vibrations usually associated with corrugated roads.

Features

• Heavy duty case
• Can be connected in parallel (up to 4)
• Can be connected in series (up to 4)
• High discharge current max 500A (5sec)

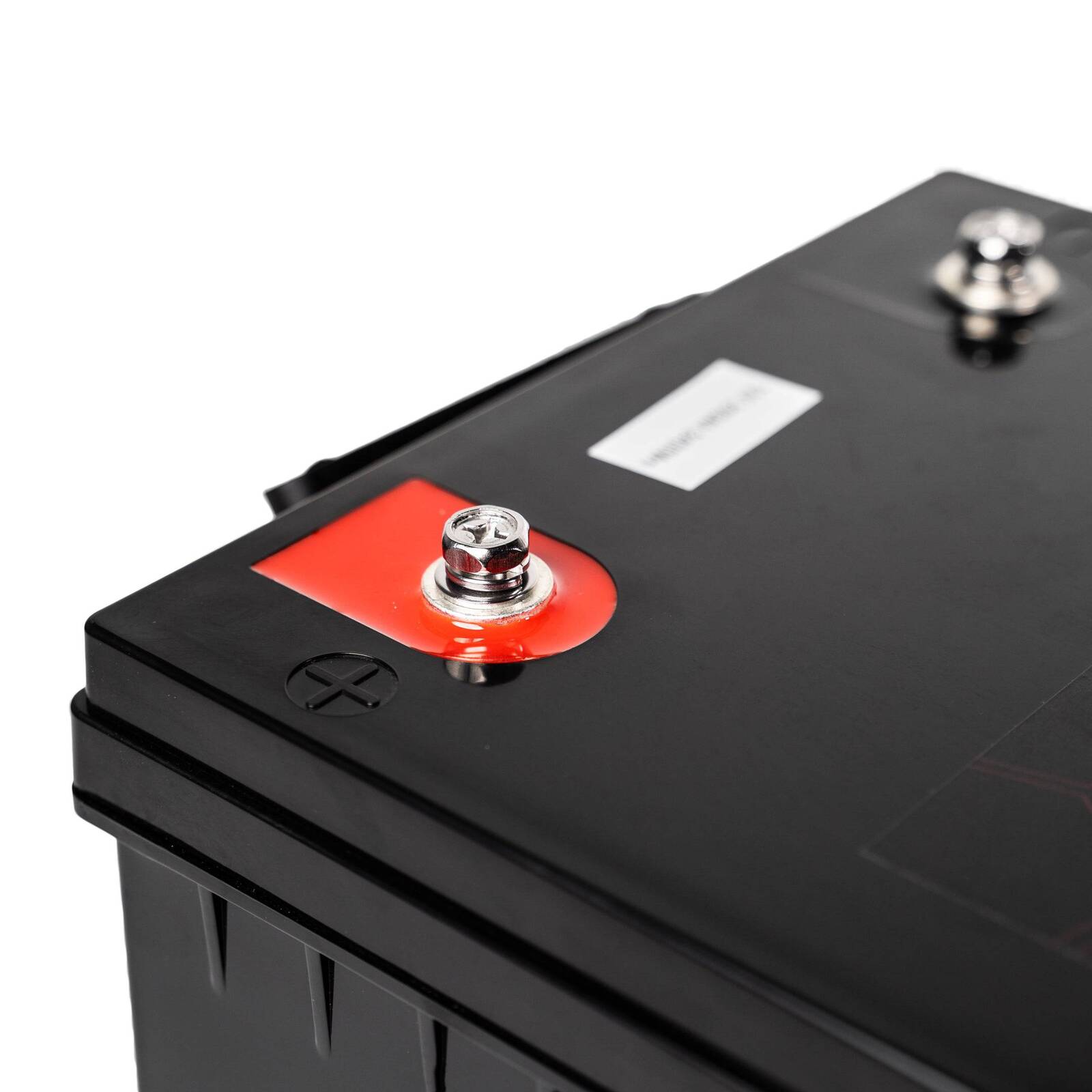

• Heavy-duty removable M8 Bolt Battery terminals
• Maintenance-free
• Lithium-ion LiFePO4
• Lifting handles fitted to ensure a secure hold when moving
• Internal battery management system
• Redback Lithium Operating System installed as standard.
• Built-in over-discharge protection.

Specifications

• Charging Voltage: 14.4 - 14.7V
• Standard discharge current: 250A
• Max discharge current: 500A (5 secs)
• Standard charge current: 1A - 100A
• Maximum charge current: 200A
• Output connector: M8 Stud
• Waterproof: IP65

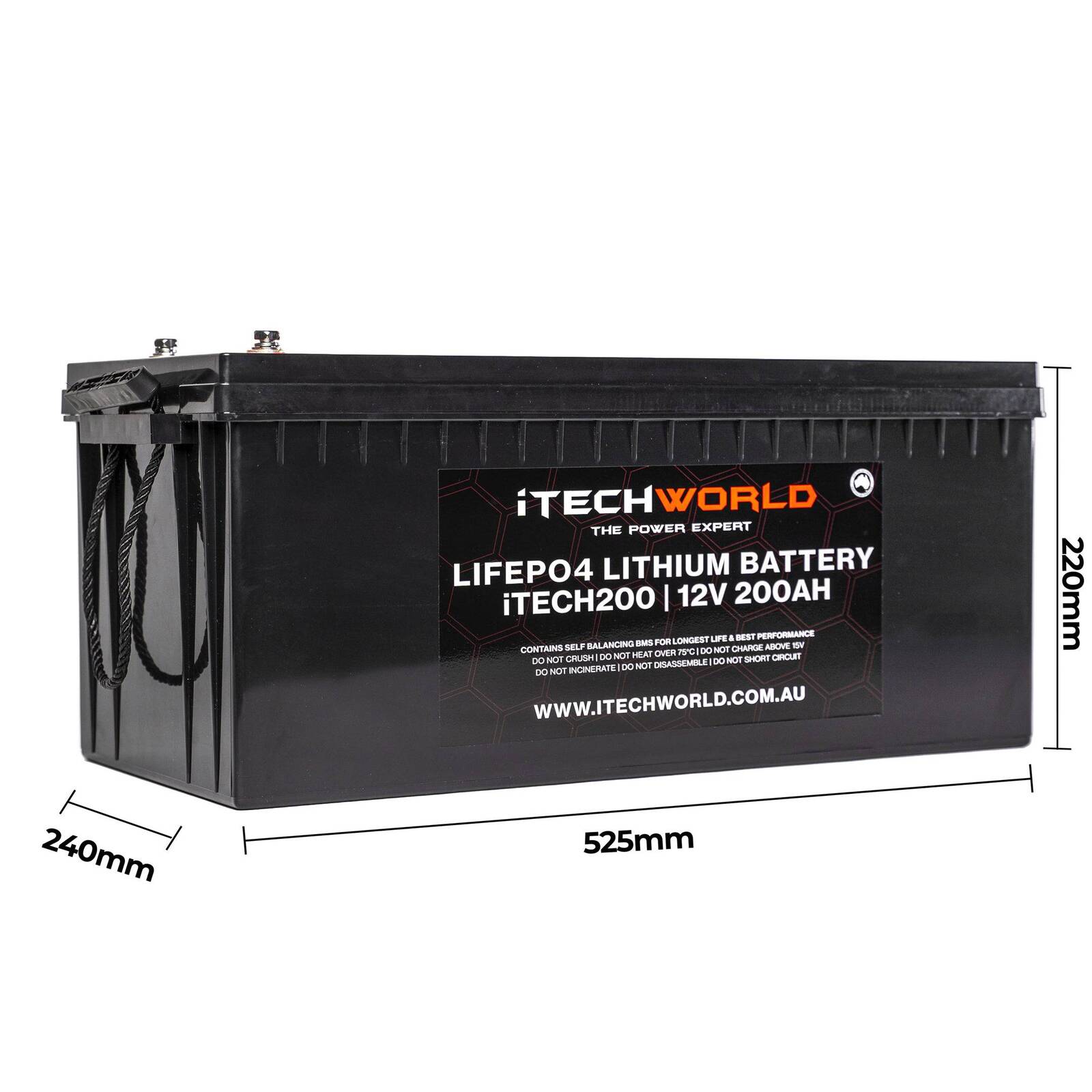

• Dimensions (LxWxH): 525x240x220mm
• Height: 235mm including terminals
• Optimal charge temp range: 0°C to +45°C
• Optimal discharge temp range: -20°C to +60°C
• Optimal storage temp: -20°C to +60°C
• Terminals: M8 Studs
• Weight: 25.4Kg

Included in the Box

• 1x Lithium Single Deep Cycle Battery iTECH200
• Pre-installed Redback Lithium Operating System
