Details

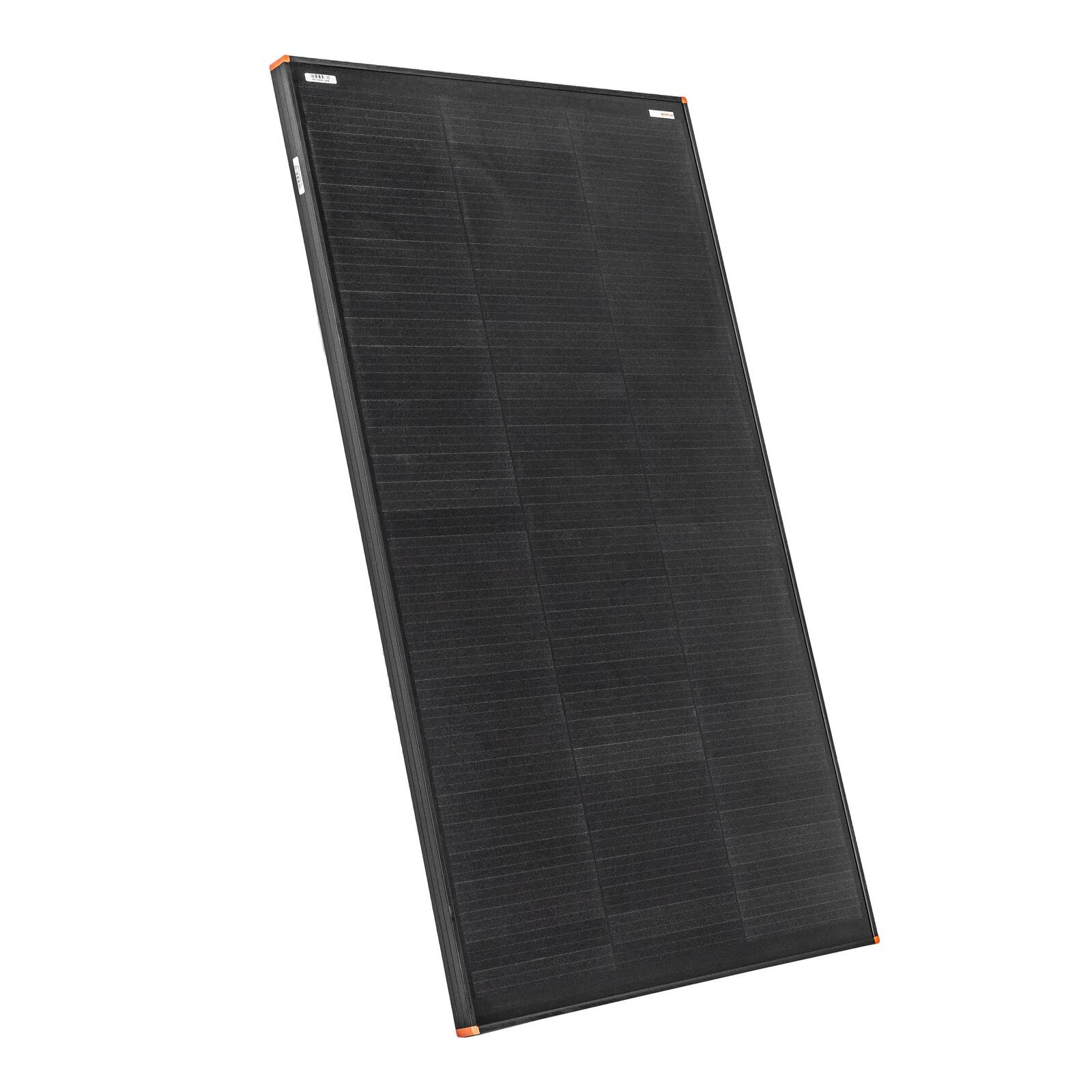

iTechWorld's all-new 22V 150W Hard Frame Solar Panels have proudly been designed and developed in Australia. Utilising Shingle Solar Cells, you can expect higher power per square meter, less energy loss due to shading and overall improved aesthetics. Crafted with precision and dedication, these solar panels are not just an energy solution but a testament to superior quality and innovation.

Australian Designed

Proudly conceptualised and developed right here in Australia, ensuring top-notch quality and understanding of local needs.

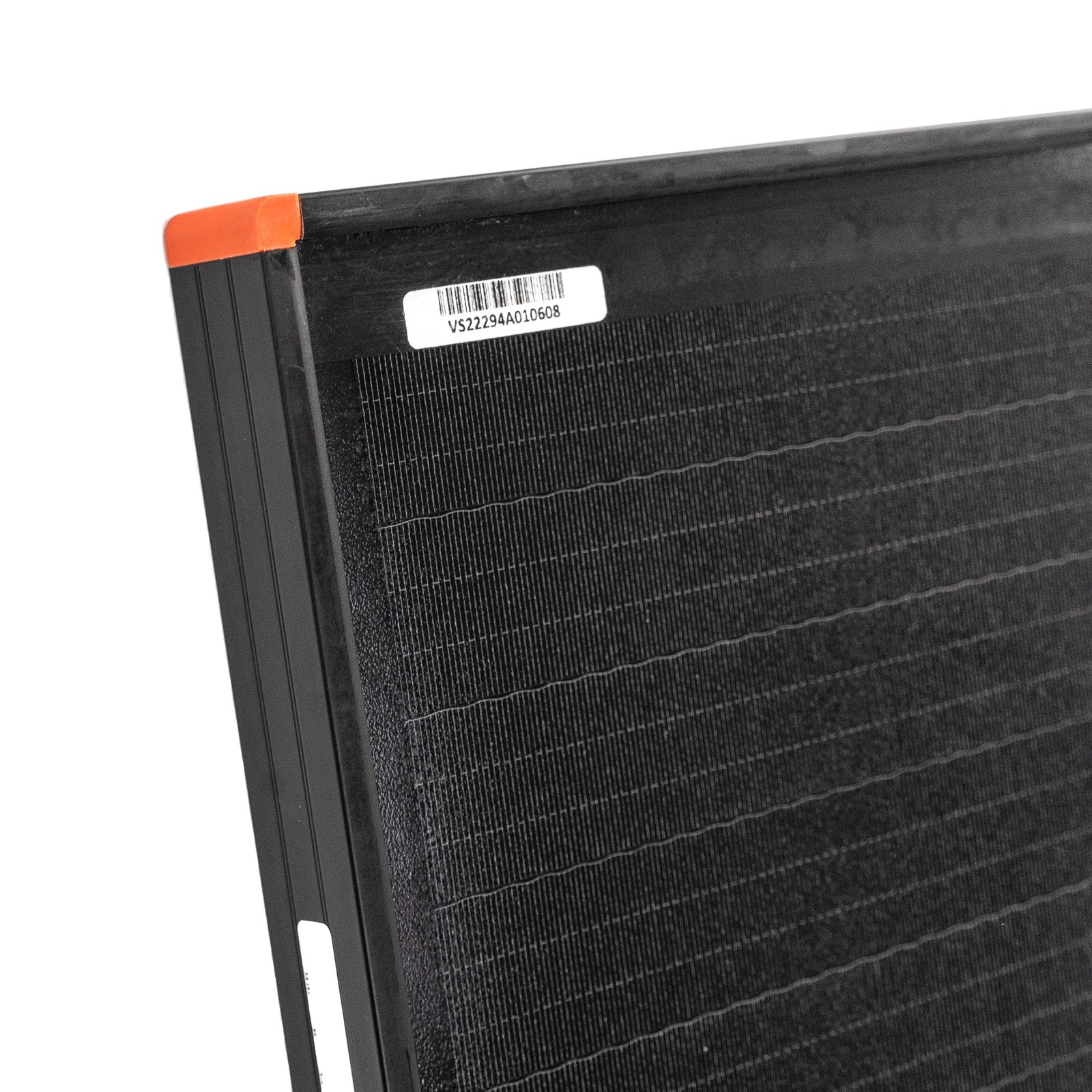

Shingle Solar Cells

The use of Shingle Solar Cells means you get more power per square metre. This advanced technology ensures minimal energy loss due to shading, maximising the efficiency of your panel.

Sleek Design

Beyond its functionality, the solar panel boasts an improved aesthetic design, seamlessly attaching to your caravan or 4WD.

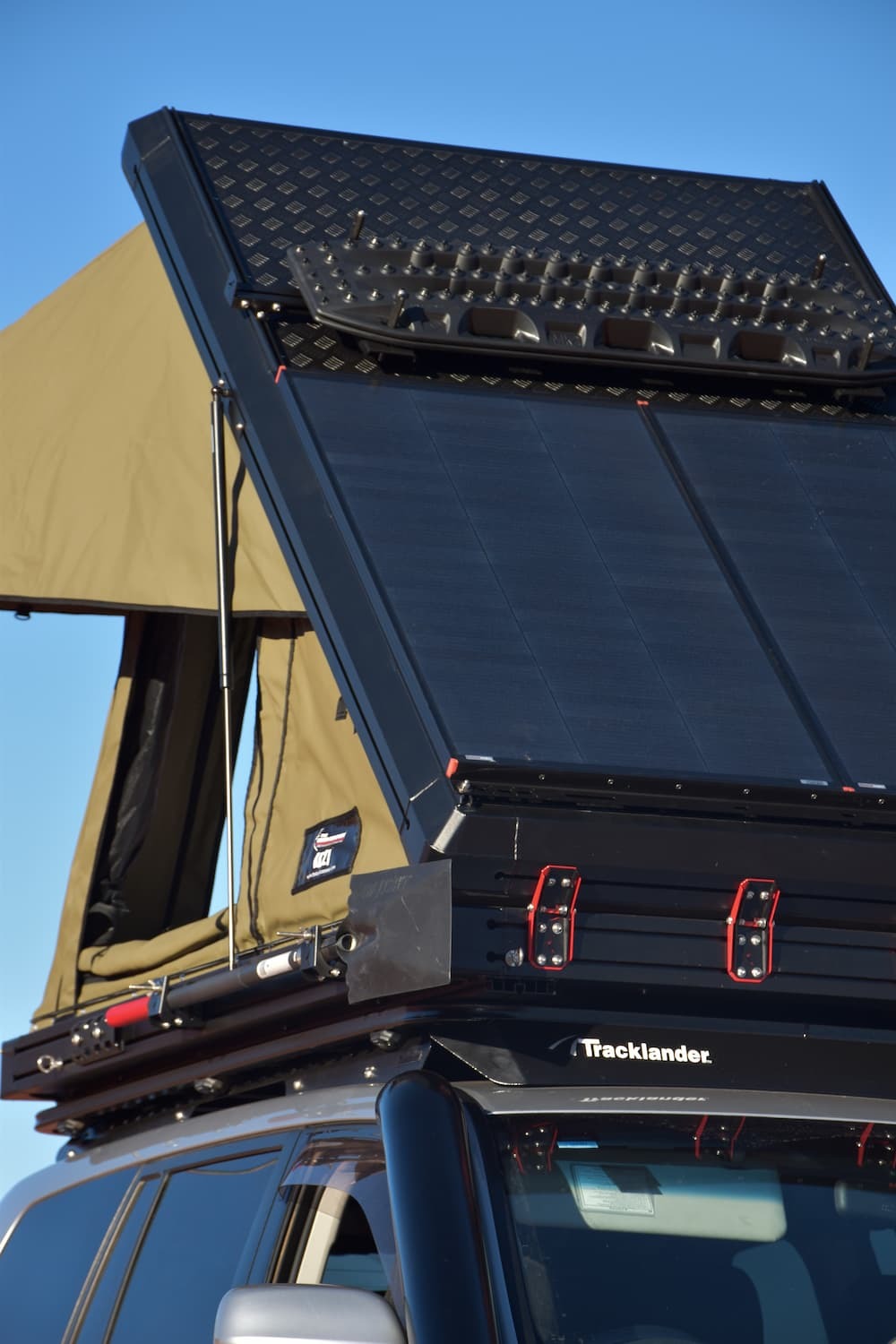

Ideal for 4WDs and Caravans

Whether you're hitting the road in your caravan or exploring off-beaten tracks in your 4WD, this solar panel is your reliable energy companion. Its design ensures optimal energy absorption, keeping your vehicles powered up during your adventures.

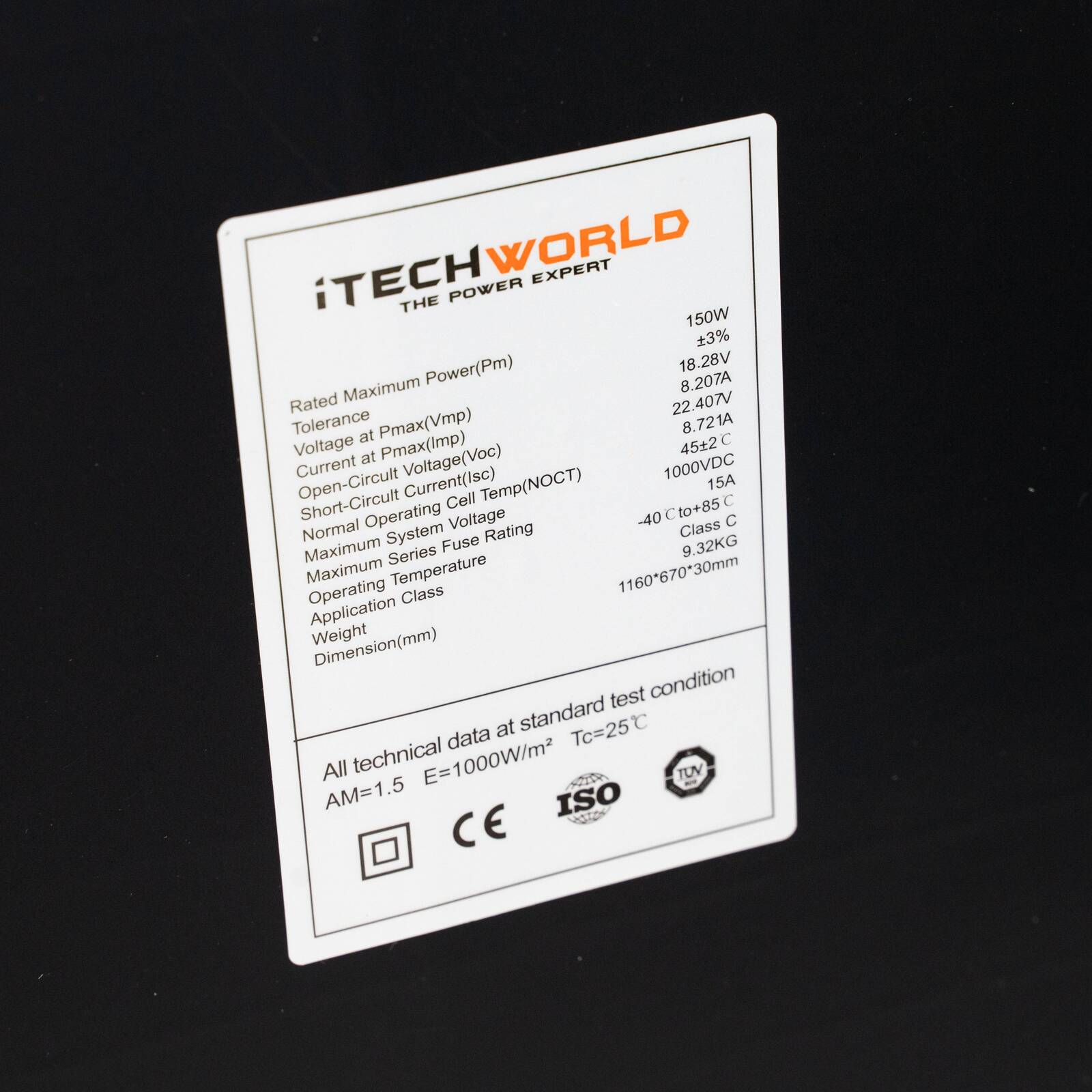

Specifications

• Rated Maximum Power (Pm): 150W
• Tolerance: ±3%
• Voltage at Pmax (Vmp): 18.28V
• Current at Pmax (Imp): 8.207A
• Open-Circuit Voltage (Voc): 22.407V
• Short-Circuit Current (Isc): 8.721A
• Normal Operating Cell Temp (NOCT): 45±2°C
• Maximum System Voltage: 1000VDC
• Maximum Series Fuse Rating: 15A
• Operating Temperature: -40°C to +85°C
• Weight: 9.32KG
• Dimensions (mm): 1160x670x30mm

*To help secure your solar panels, iTechWorld offer easy-to-use mounting brackets, sold separately.
