Details

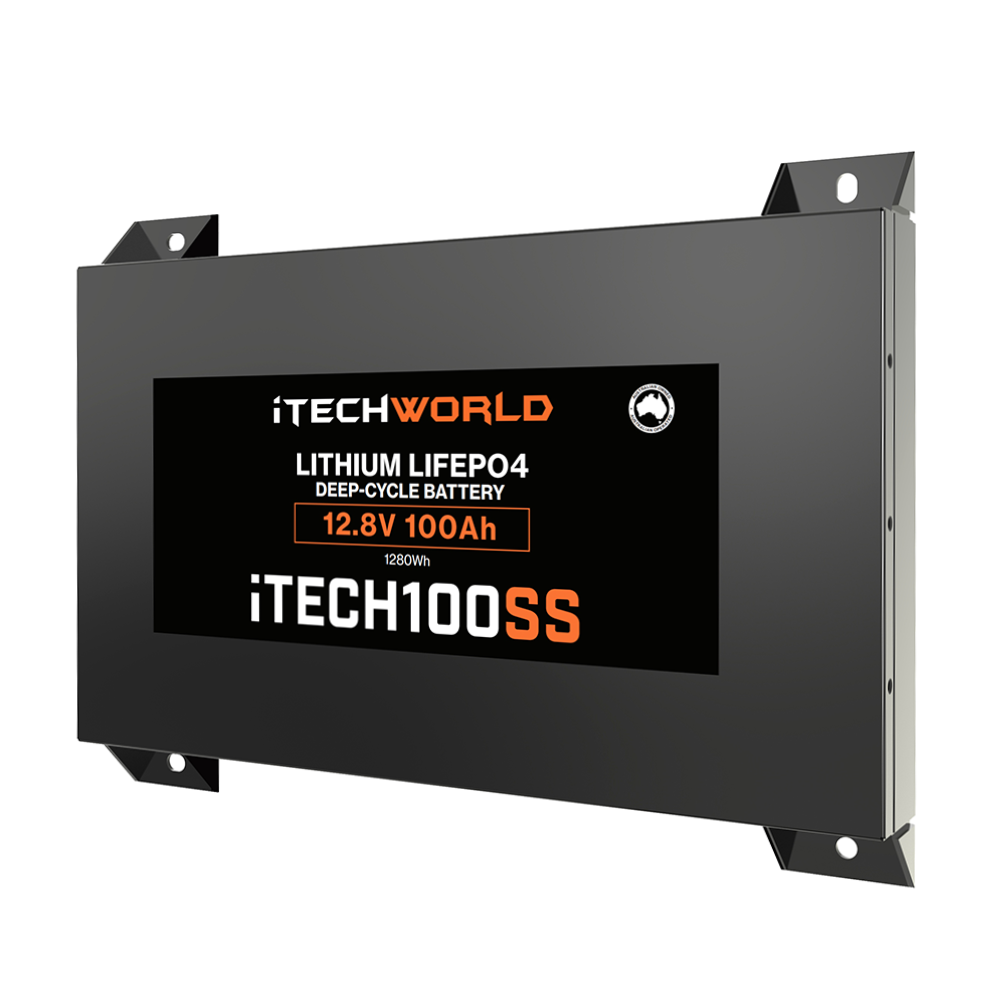

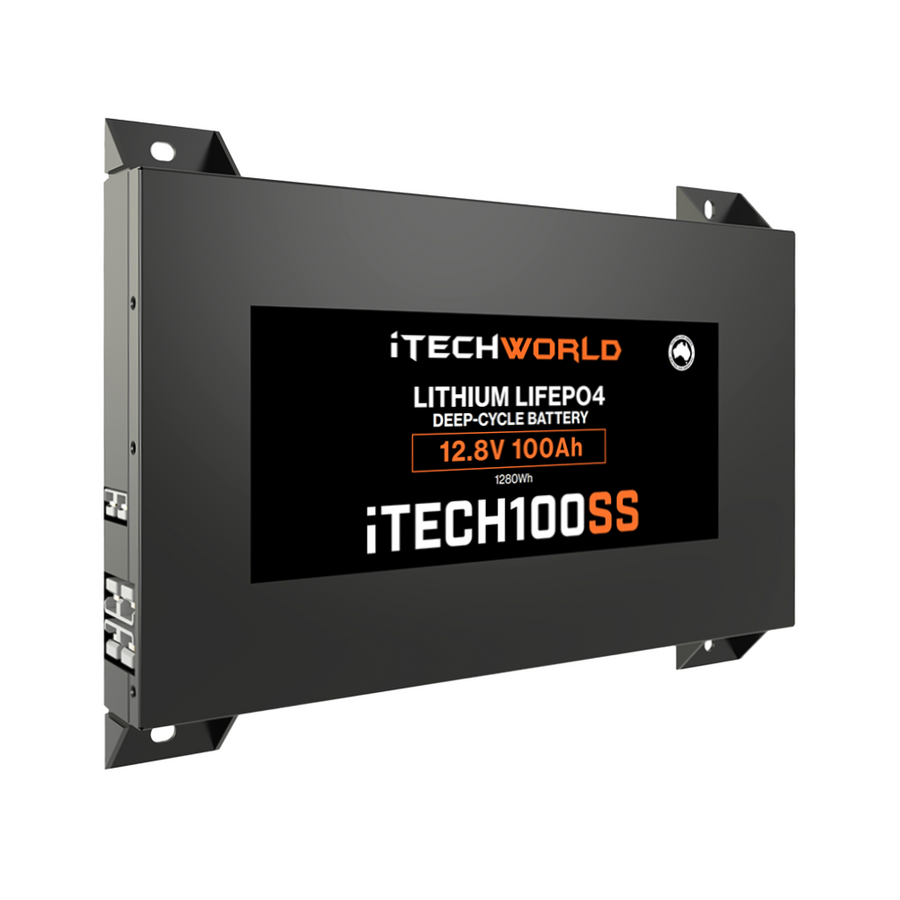

The all-new iTECH100SS 100Ah Super Slim Lithium Battery is small but packs a punch! Measuring only 487 x 55 x 290mm, the iTECH100SS has been designed to be the ultimate Super Slim battery for utes, 4WD's and canopies!

With a 100% useable capacity, the iTECH100SS features the latest in prismatic cell technology allowing its small form factor and lightweight nature. Weighing in at only 14.3KG, the iTECH100SS is the ideal lithium battery for those with small spaces but wanting maximum power.

Designed and developed in Australia, the iTECH100SS has been developed from the ground up to be the ultimate lithium battery for all canopy setups and Dual/Single Cab utes! Designed to be a true drop-in replacement for existing systems, the iTECH100SS is the ideal choice for those wanting to upgrade their current sleepy AGM or lead-acid systems to lightweight lithium technology. With the iTECH100SS, simply pull out your old AGM or lead-acid batteries and drop in the iTECH100SS Lithium Battery. It's really that simple!

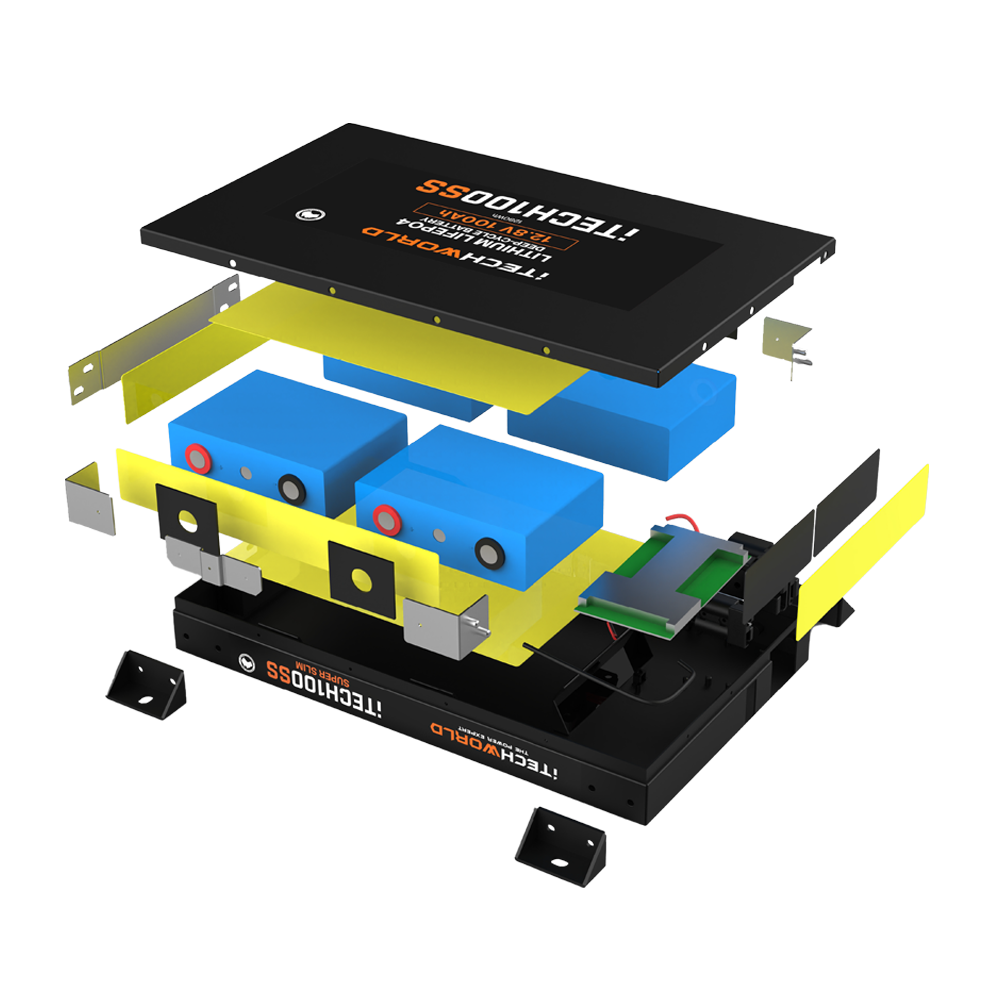

Utilising A-grade prismatic lithium LiFePO4 cells, the iTECH100SS offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.

Designed and developed in Australia, the new iTECH100SS Slimline Battery is suited to thrive in our harsh Australian conditions. The iTECH100SS includes a five-year Australian warranty with the confidence of an Australian company backing their products.

Specifications

• Nominal Voltage: 12.8V
• C20 Rating usable amps 10V: 100Ah
• Standard Discharge Current: 100A
• Max Discharge Current: 200A
• Standard Charge Current: 10A-50A
• Maximum Charge Current: 100A
• Short Circuit Protection: Yes
• Optimum Temperature Range: +5 to +60°C
• BMS Operational Temperature Range: -40 to 80°C
• Safety Protection Isolator: 80°C
• BMS Charge Cut Off Voltage: 15V
• Recommended Charge Voltage: 14.4V
• BMS Charge Cut Off Voltage: 15V
• BMS Low Voltage Cut Off: 8.5 - 9V
• Life Cycles 100%: 4000+
• Life Cycles 50%: 10000+
• Life Cycles 30%: 16000+

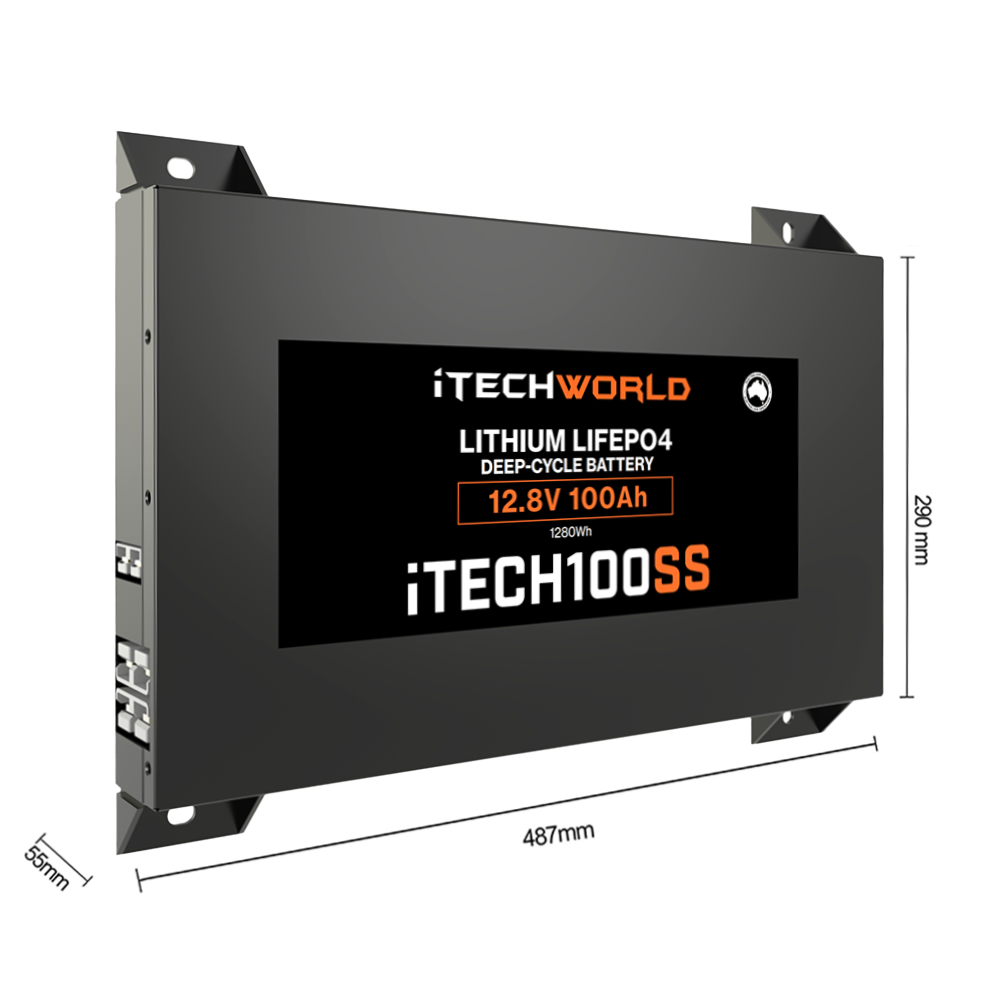

• Dimensions (LxWxH): 487x55x290mm (487x55x358mm with brackets)
• Weight: 14.3Kg

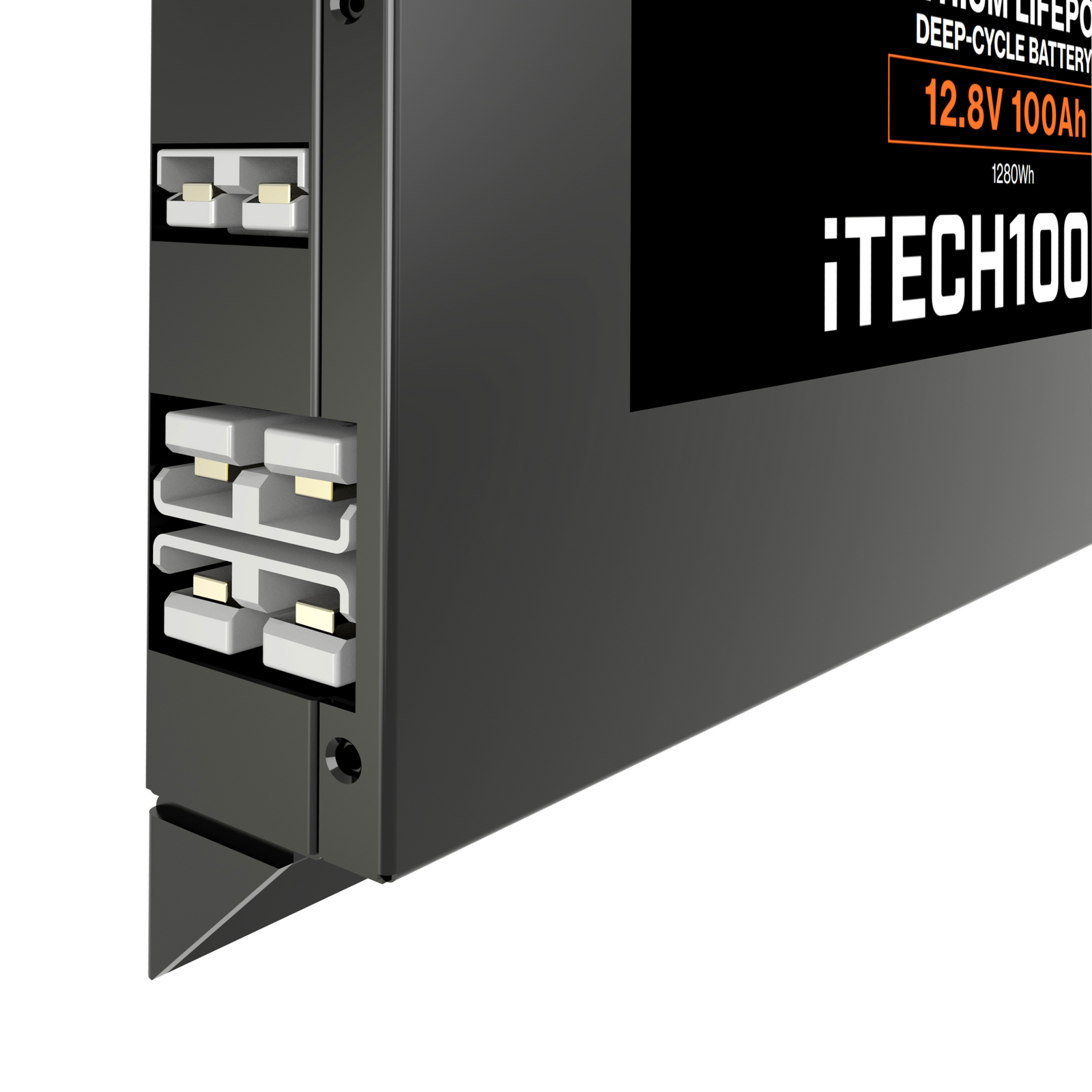

• Terminal Type: 120A Anderson Plug
• Case Material: Metal
