Details

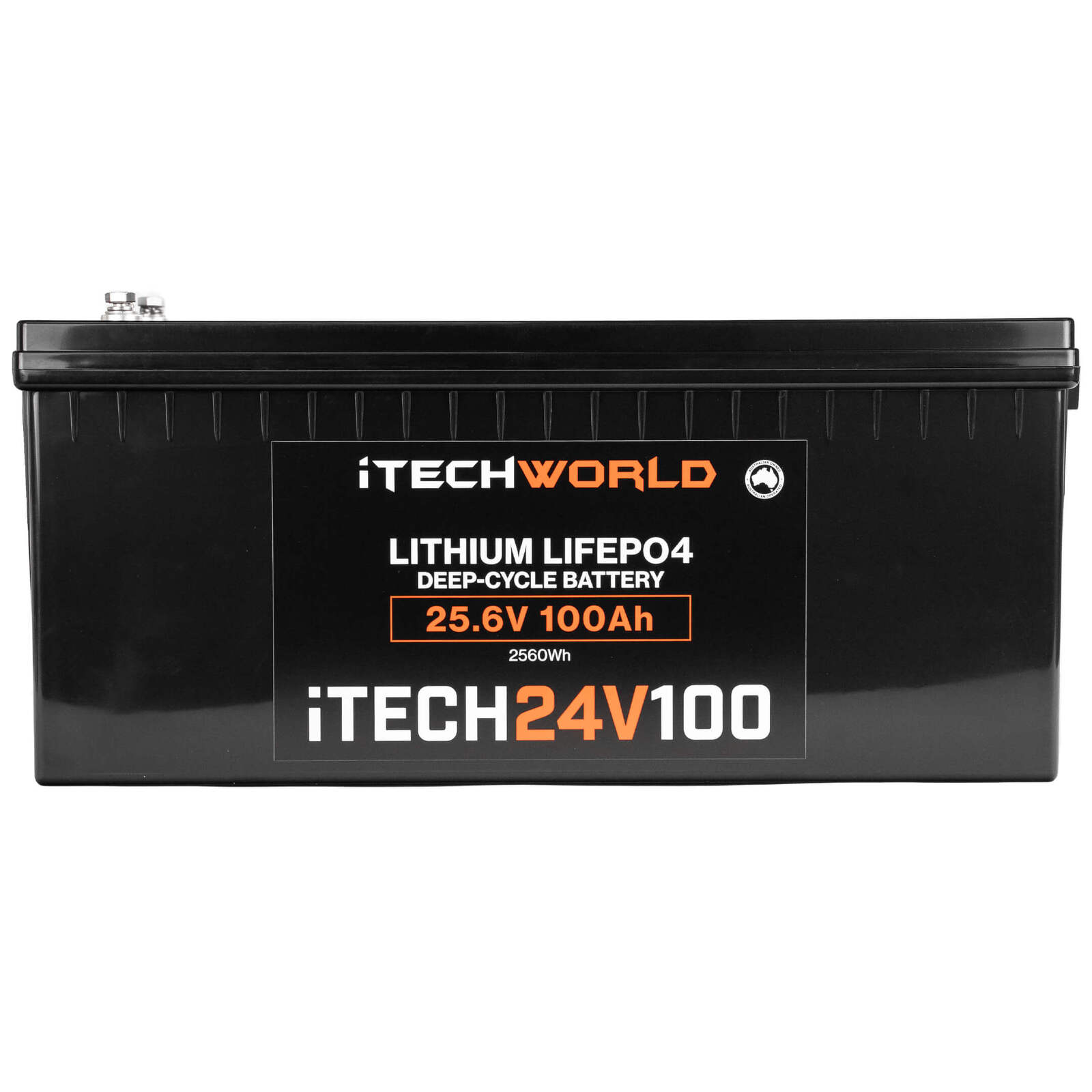

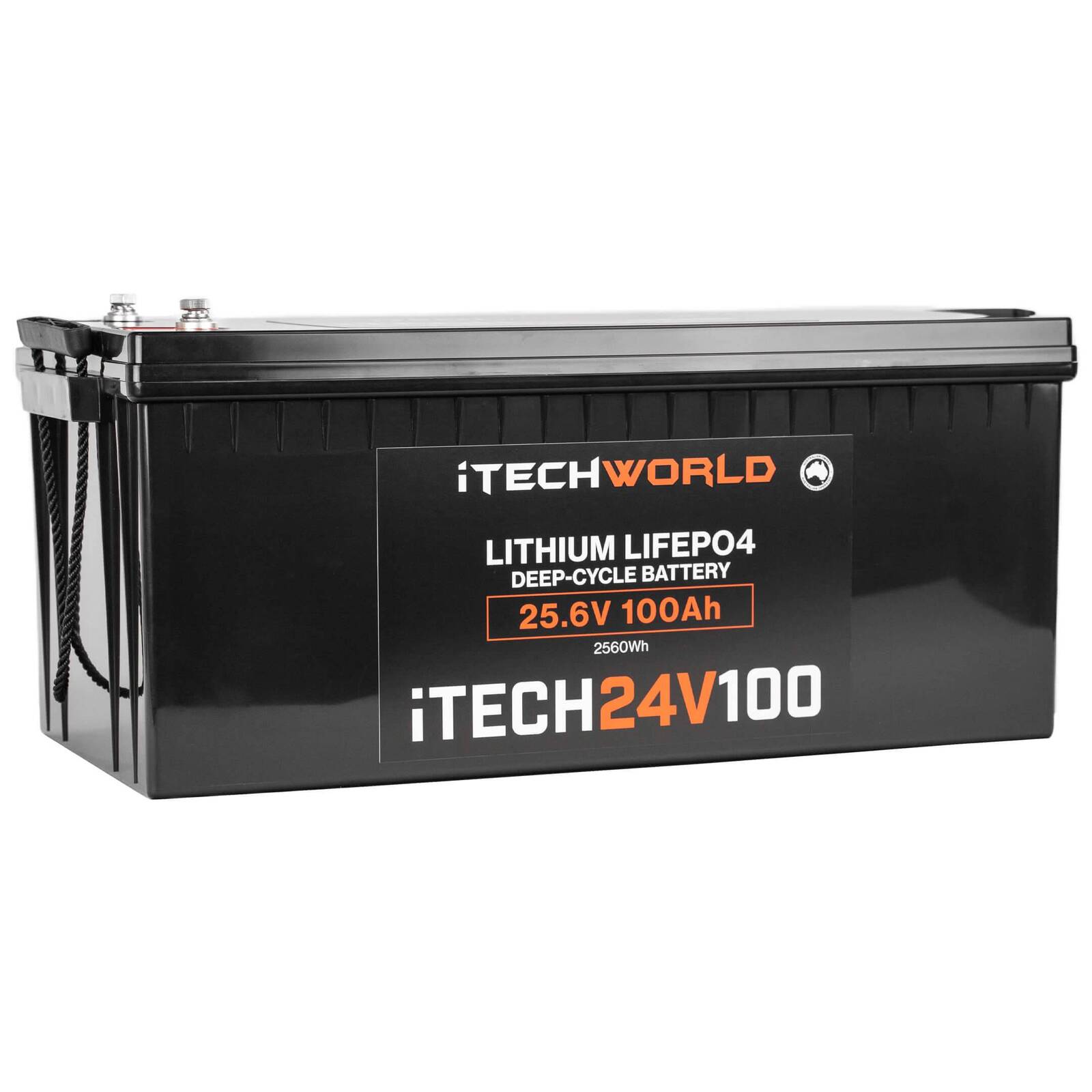

The iTECH24V100, is a massive 100 Amps at 24V of high-performance usable power coupled with the Redbac™? Lithium Operating System which ensures iTechworld's lithium battery range will outperform and outlast all others on the market.

BMS/OPERATING SYSTEM

100% of the iTECH24V100's capacity is usable. The internal BMS allows 100A continuous discharge. The iTECH24V100's internal BMS controls cell balancing, over and under-voltage protection, short circuit protection, thermal protection, and over-discharge protection (safe mode).

CAPACITY

The iTECH24V100 is equivalent to 200Ah in lead-acid 24V batteries (based on the standard depth of discharge of the iTECH24V100 (100%) and AGM battery (50%).

WEIGHT

The iTECH24V100 weighs just 27kg. The equivalent lead-acid battery weighs 120+kg.

USE MOST CHARGERS

The iTECH24V100 deep cycle battery will charge up to 5x faster than a traditional lead-acid battery. The iTECH24V100 can charge from just about all existing chargers with no extensive modifications required to existing systems.

LIFESPAN

The iTECH24V100 can cycle up to 5000 times at 50% depth of discharge. AGM battery equivalents can cycle up to 500 times at a 50% depth of discharge. iTECH24V100 lithium battery systems have little to no self-discharge rate(≤2%). The battery pack can sit for long periods and will not go flat.

AUSTRALIAN DESIGNED AND DEVELOPED

Our lithium batteries are designed and developed in Australia for use with caravans, camper trailers, motor homes, 4WD, boats, yachts, trucks and everything in-between. The iTECH24V100 will operate flawlessly in extreme heat and will handle heavy vibrations usually associated with corrugated roads.

Features

• 24V 100Ah Useable Capacity
• Heavy Duty Case
• Can be connected in parallel (up to 4)
• Can be connected in series (up to 2)
• High discharge current max 250A (5sec)

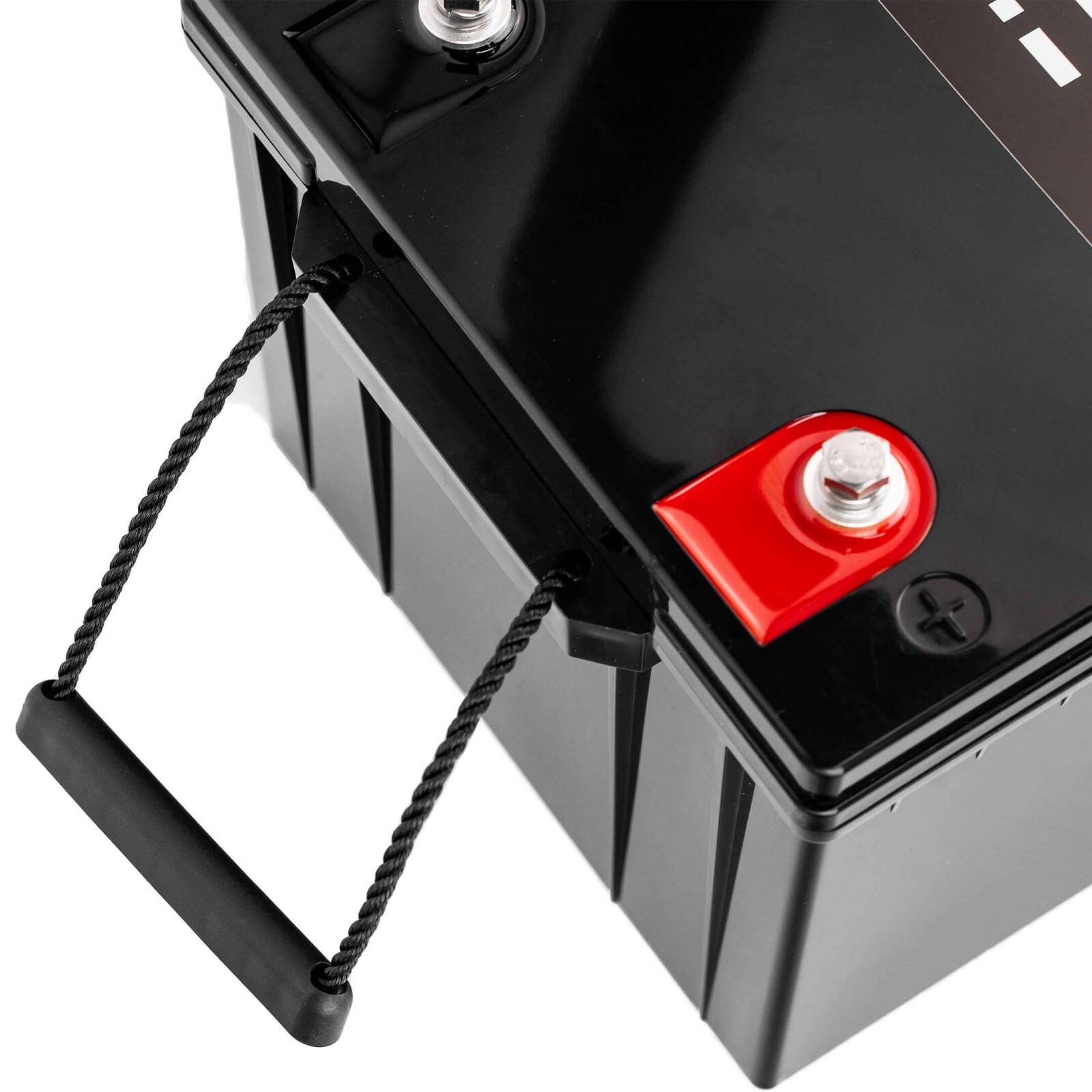

• Heavy-duty removable M8 Bolt Battery terminals
• Maintenance-free
• Lithium-ion LiFePO4

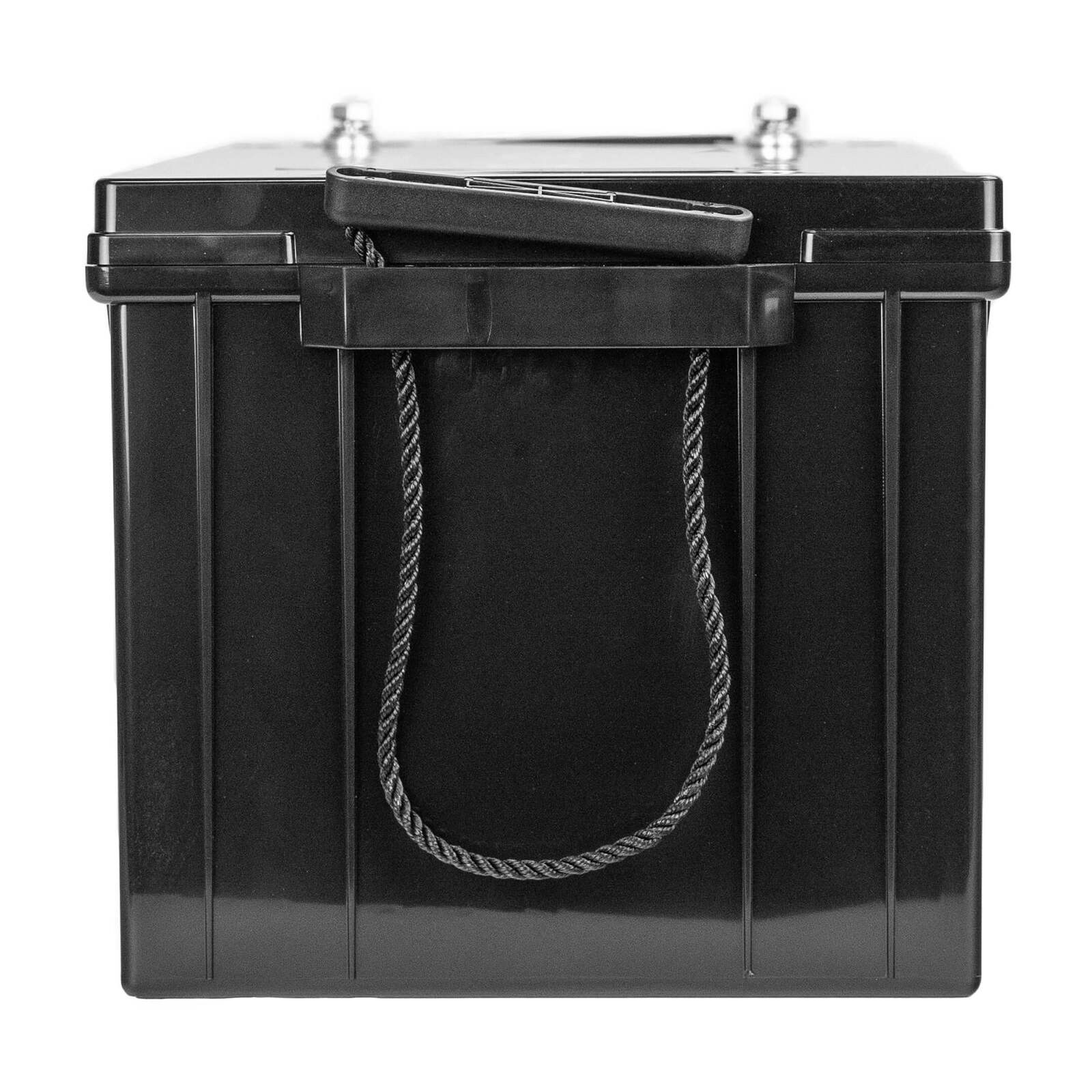

• Lifting handles fitted to ensure a secure hold when moving
• Internal battery management system
• Redback Lithium Operating System installed as standard.
• Built-in over-discharge protection.

Specifications

• Charging Voltage: 28.8 - 29.6V
• Standard discharge current: 100A
• Max discharge current: 250A (5 secs)
• Standard charge current: 1A - 50A
• Output connector: M8 Stud
• Waterproof: IP65
• Dimensions (LxWxH): 525x240x220mm
• Height: 235mm including terminals
• Optimal charge temp range: 0°C to +45°C
• Optimal discharge temp range: -20°C to +60°C
• Optimal storage temp: -20°C to +60°C
• Terminals: M8 Studs
• Weight: 25.4Kg

Included in the Kit

• 1x Lithium Single Deep Cycle Battery iTECH24V100
• Pre-installed Redback Lithium Operating System
