Details

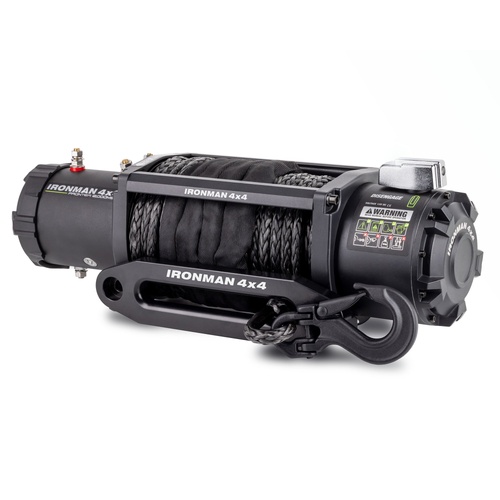

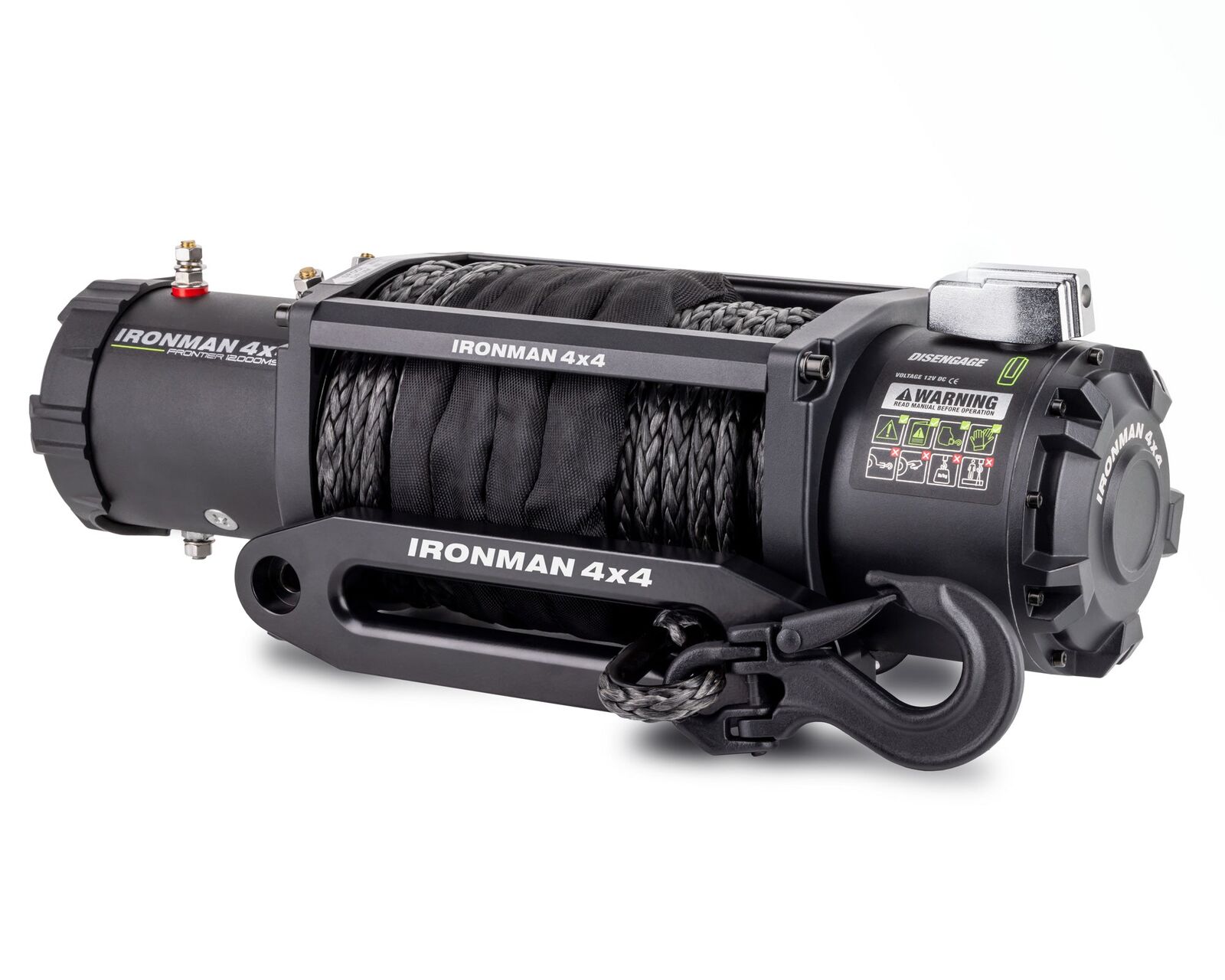

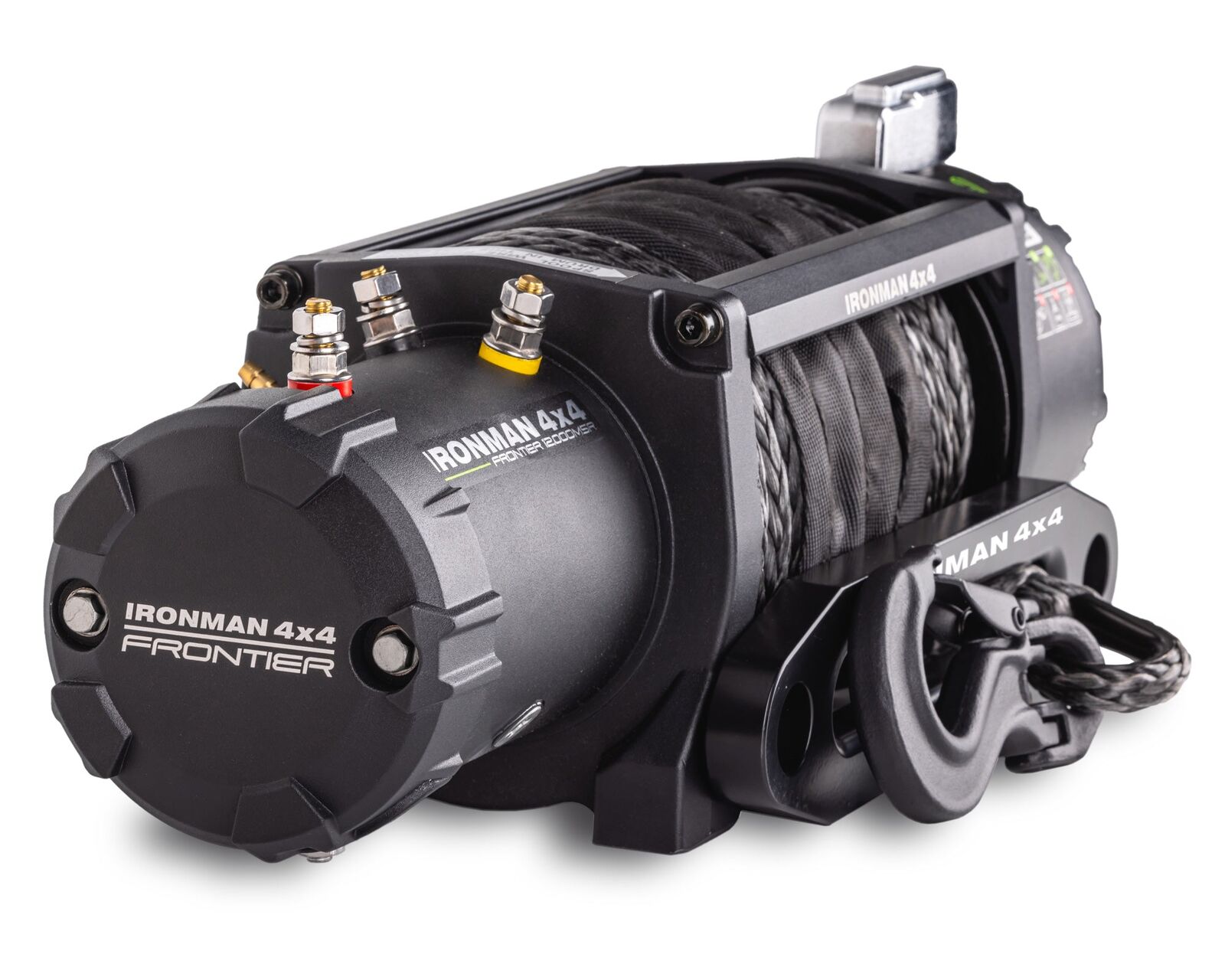

Get moving with the Frontier 9,500lb Winch, perfectly suited to vehicles weighing between 2,700 and 3,650kg. Built on more than 10 years of proven development from the legendary Monster winch range, the Frontier delivers dependable performance, durability, and serious pulling power when it matters most.

Built Tough & Ready for Anything

Designed for harsh conditions, the Frontier features a decade-proven mechanical design and an IP68 waterproof rating, allowing it to be fully submerged to 1 metre for up to 30 minutes. A built-in motor breather further enhances reliability and longevity in wet or dusty environments.

Powerful & Reliable Performance

Driven by a 6HP motor and supported by a 218:1 gear reduction, the Frontier winch delivers smooth, controlled pulling power. The auto cam lock in-brake system ensures secure load holding, while the strong motor handles demanding recoveries with ease.

Control & Convenience

The included wireless remote gives you the freedom to operate from a safe distance, with the option to plug in for a hard-wired connection when needed. The clutch design allows for quick engagement and disengagement, keeping operation simple and efficient.

Features

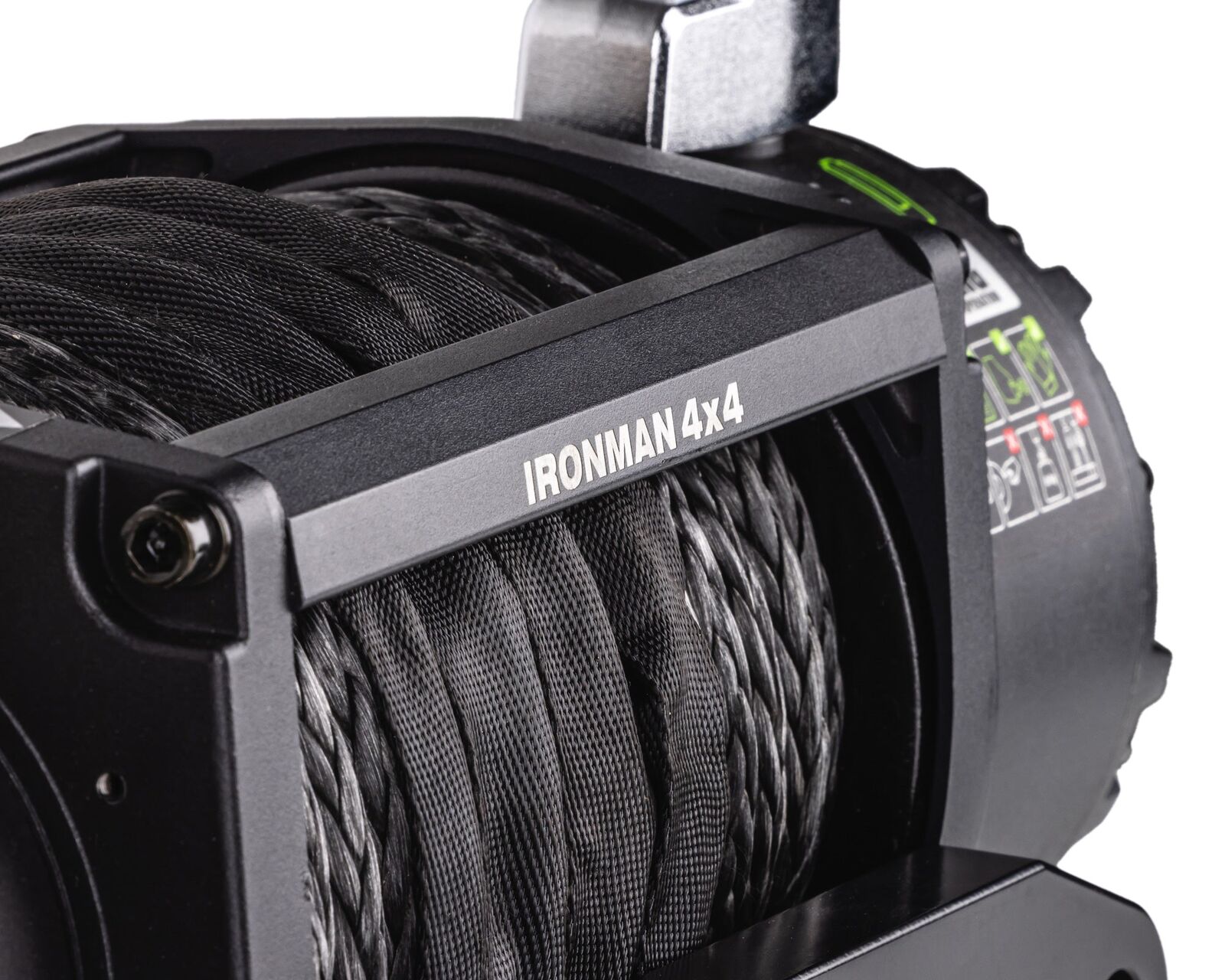

• Super-strong, low-maintenance wire rope
• IP68 waterproof and dustproof protection
• Built-in motor breather for added durability
• Wireless remote with plug-in option
• Auto cam lock in-brake system
• Proven mechanical design
• 5-year mechanical warranty

Technical Specifications

• Maximum Rating: 12,000lb
• Motor: 6HP
• Voltage: 12V
• Gear Ratio: 218:1
• Cable Material: Synthetic
• Cable Diameter: 8.3mm
• Cable Length: 26m
• Mounting Bolt Pattern: 25.4cm x 11.43cm
• Dimensions (L x W x H): 53.5cm x 18.2cm x 16cm
• Product Weight: 37.5kg

Electrical & Performance Data

• Current Draw: 75A (no load), up to 360A (max load)
• Line Speed:
  • No load: 34.56 ft/min
  • Full load: 7.38 ft/min

Inclusions

• Frontier 12,000lb Winch
• Wireless Remote
• Motor Breather



Please Note:

• Images shown are for illustration purposes only and may not represent the exact product.
• Additional accessories are not included unless otherwise stated.
• Additional hardware or wiring may be required. For further information, please contact our Customer Service Team or your local store.
• Items are supplied in a black finish and are not colour matched.
• Fitment services are available — please contact your local Altapac store for details.
