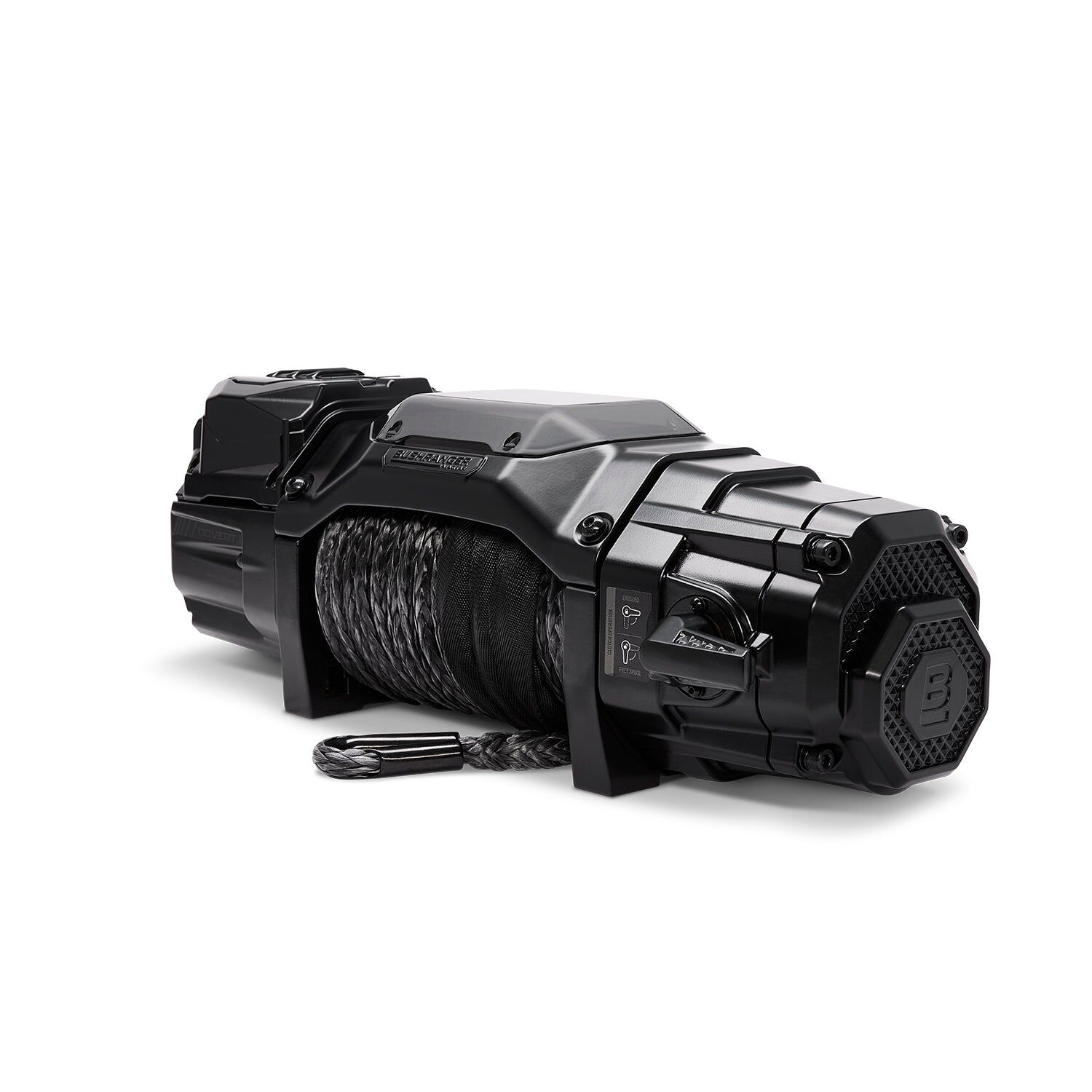

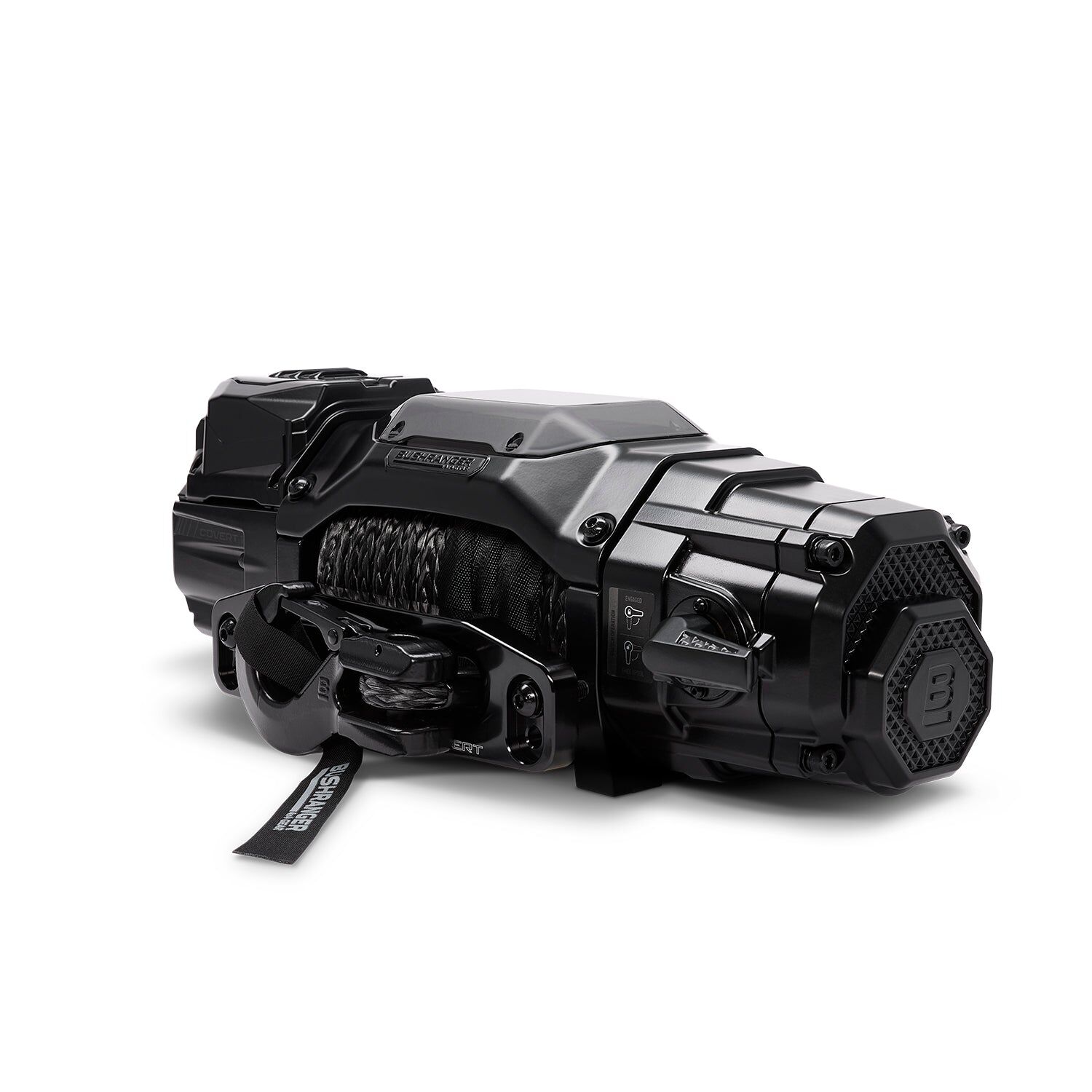

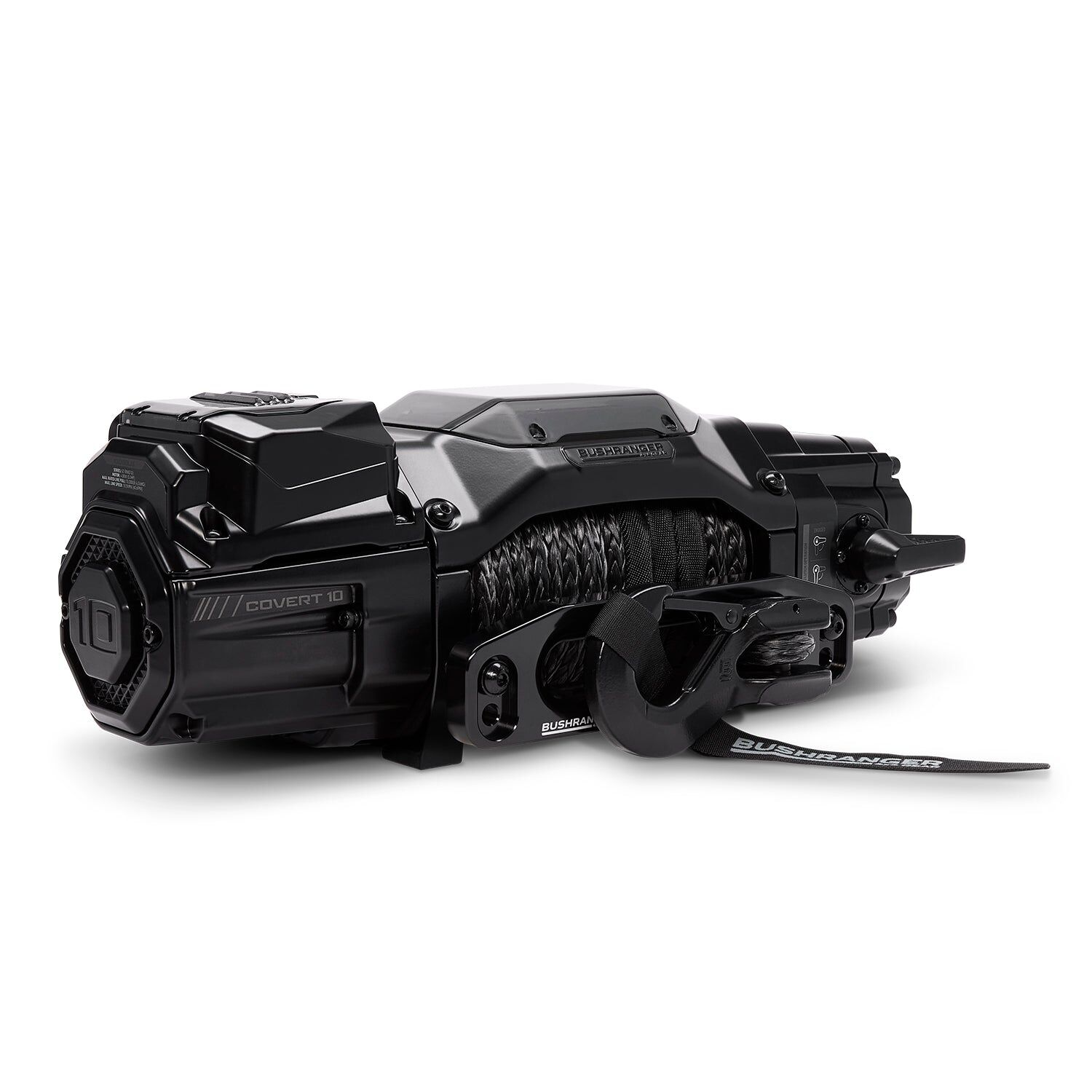

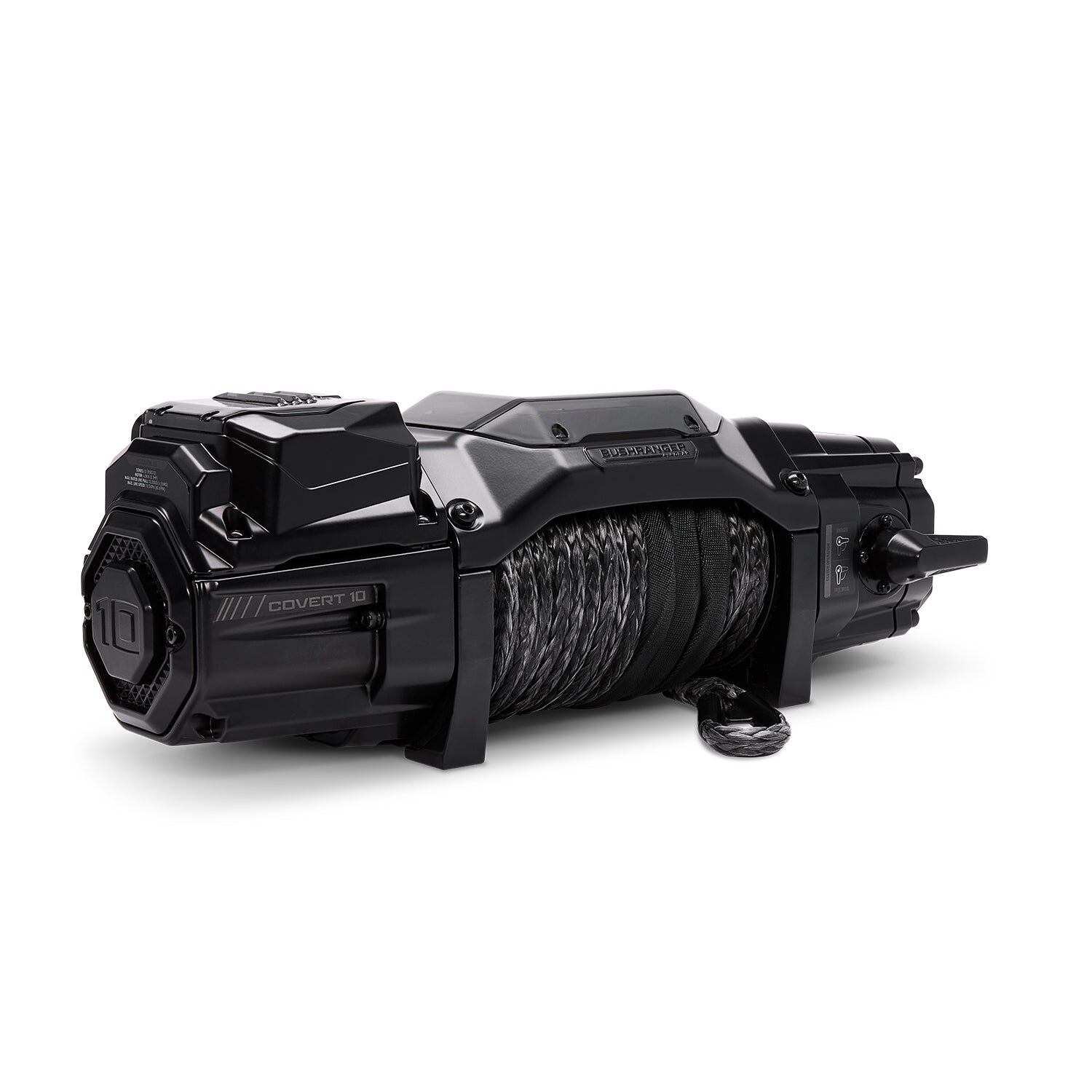

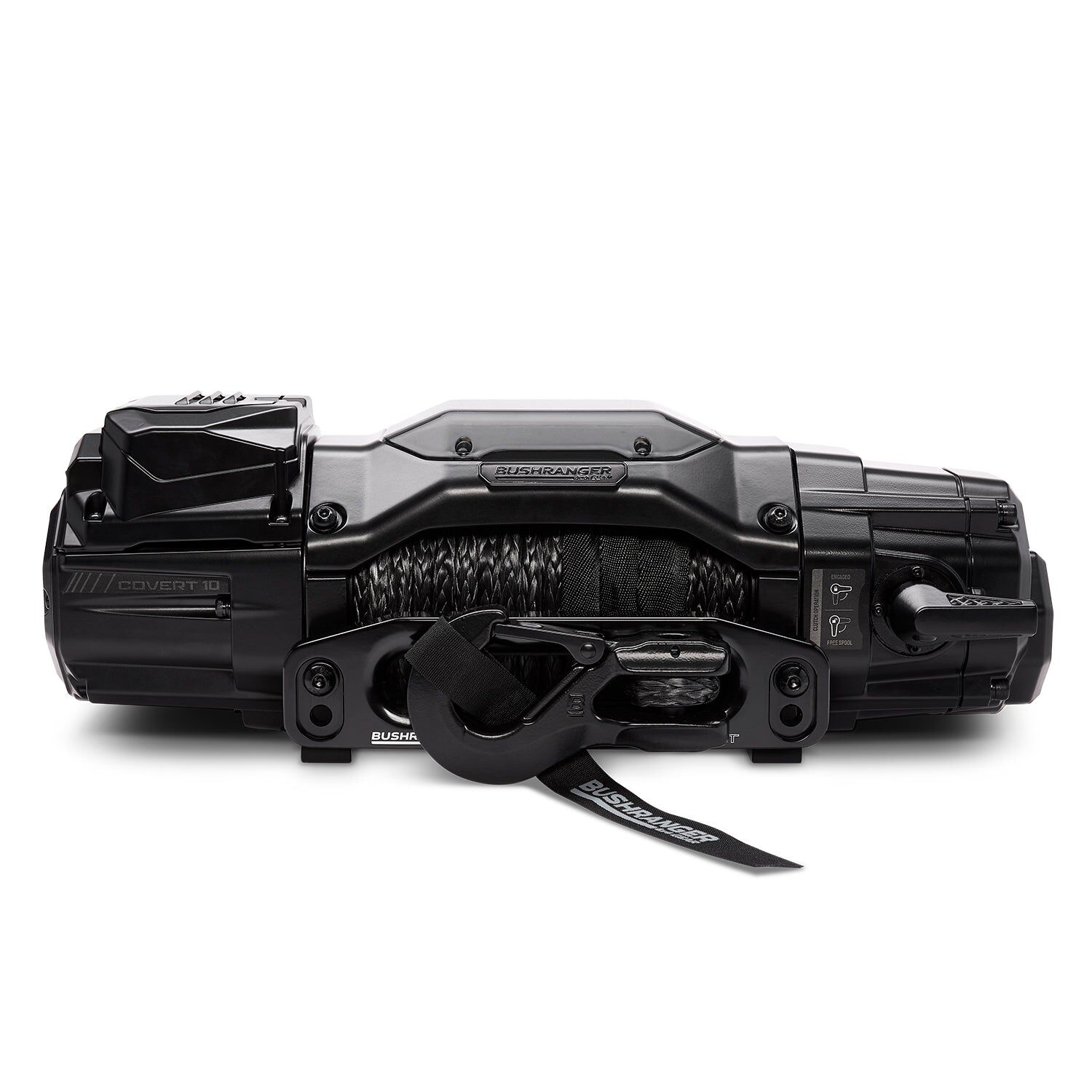

Bushranger 10,000LB Covert Winch (Synthetic Rope)

Details

The second-generation COVERT winch delivers advanced design, robust performance, and fast line speeds in a simple-to-fit package. Developed and tested in Australia, it features a unique built-in control unit, eliminating the need for an external control box for durable, unobtrusive installation.

Designed in Australia and built with top-tier components, the COVERT winch is engineered for optimum strength and resilience. It demonstrates proven reliability and durability even in the harshest environments. The compact, synergistic design delivers fast line speeds and lower current draw, with enhanced motor efficiency from its Albright Industries-built control unit, matched to a finely tuned motor and 4-stage gearbox.

The Bushranger COVERT winch revolutionises winch technology with its enhanced built-in control unit, ensuring compatibility with a wider range of modern vehicle bull bars. The design eliminates the need for a conventional control box, allowing an unobtrusive fitment that does not interfere with cooling system airflow or vehicle sensors. This provides a more versatile, covert look.

ENGINEERED & PROVEN IN AUSTRALIA

BUILT-IN MOTOR CONTROL UNIT

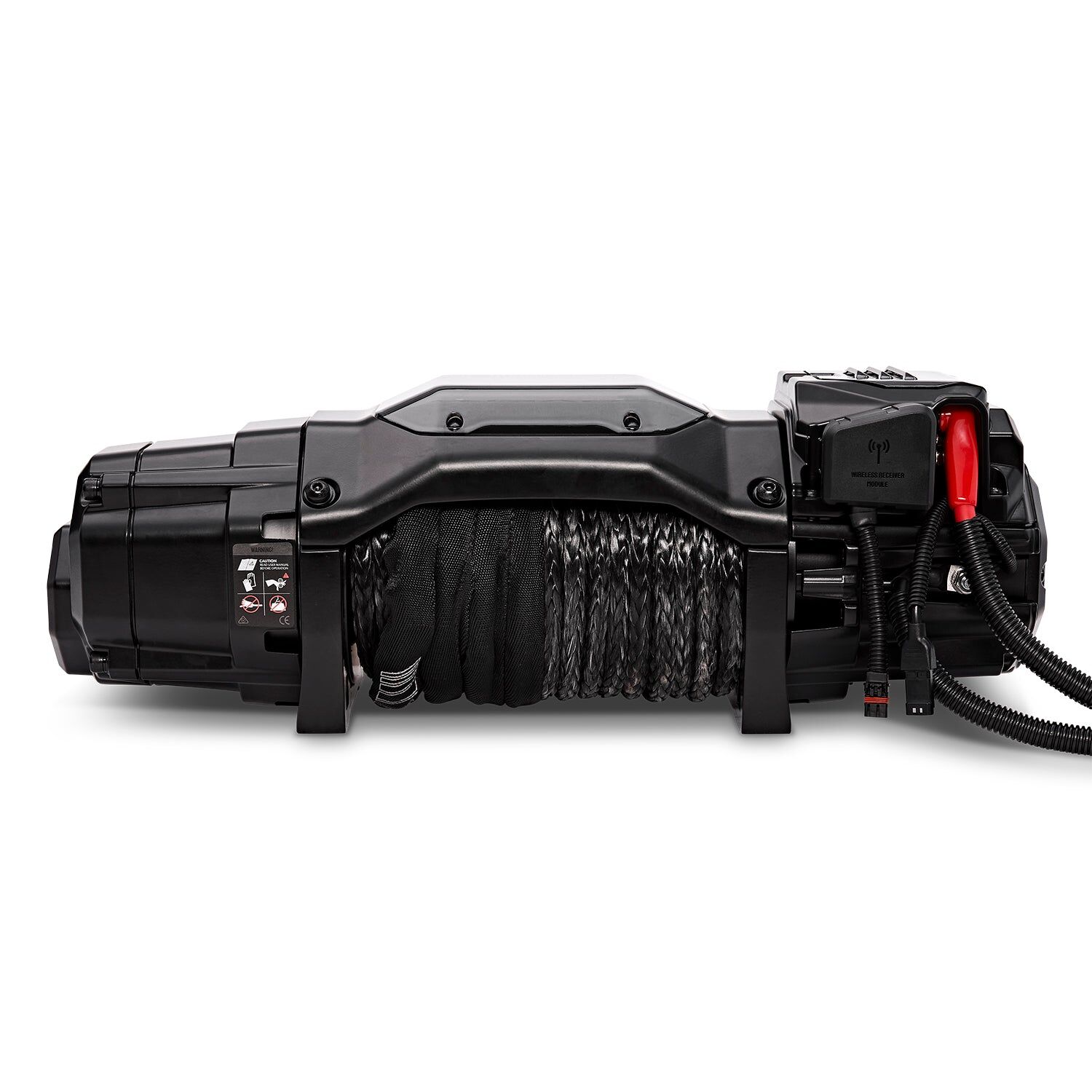

The integrated design includes a direct bus bar connection to an enhanced Albright contactor, offering built-in low-current fuse circuit protection, integrated wiring harness, secured wiring and upgraded connectors to deliver increased motor efficiency and durability.

TUNED 5.3HP 12V MOTOR

The purpose-built series-wound motor powers the 4-stage gearbox, resulting in faster line speeds at lower current draws.

4-STAGE GEARBOX

The 171:1 Ratio gearbox features hardened steel gearing for improved load distribution, maximum strength and durability.

ZERO DRAG BRAKING SYSTEM

The gearbox-mounted brake provides 100% load holding and the capacity for powered unspooling, under no load, without any damage to the winch.

EASY TURN CLUTCH HANDLE

The 90-degree turn handle is simple to operate, especially in tighter fitment locations.

ROBUST CONSTRUCTION: Lightweight aluminium alloy housings and a one-piece bridging plate are structurally designed and finished with a durable pretreated satin powder coat.

QUICK & EASY FITMENT

With multiple mounting options, the versatile COVERT winch is prewired and has preset clutch positioning to suit most common bull bars.

DUAL CONNECTION 2.4GHz WIRELESS CONTROL

Increased reliability with greater wireless range through a secure 2.4GHz wireless remote and resin-encapsulated IP68-rated receiver. Witness a stronger wireless signal with up to 40m range. Plus a 5m cable for a direct wired connection.

POWER ISOLATION SWITCH

Standard inclusion of a 500-amp isolation switch with multiple universal mounting brackets, stainless lanyard and dust cover.

HIGH SPEC POWDER COAT

Finished in premium-grade Akzo-Nobel Satin Black powder coat, which enables a high level of UV resistance and long-term durability.

MORE COVERT-NESS

Black zinc-nickel stainless fasteners, black-on-black graphics, a textured clutch handle, and endcap infills add subtle touches that enhance the aesthetic appeal.

Included in the Box:

• 10,000lb (4,536 kg) Bushranger COVERT Winch (Series V2)
• 28 metre x 10mm diameter Synthetic Rope
• Dual Connection 2.4GHz remote with replaceable battery
• Two position aluminium hawse fairlead
• Forged steel hook with pull tag
• Main power isolation switch with universal mounts
• Remotely mounted control plug with lead
