Thule
9027XT
Thule Apex XT Swing 4 Hitch Bike Rack
Swing-away hanging rack, 17kg bikes, 50mm towbar hitch
4 Bikes · 68kgLockableFolds when not in use
A four-bike hanging rack for bikes up to 17kg that fits a 50mm (2-inch) towbar hitch receiver. It swings away for clear access to the rear of the vehicle, folds when not in use and locks both bikes and rack.
Description
4 Bikes, Hitch mounted

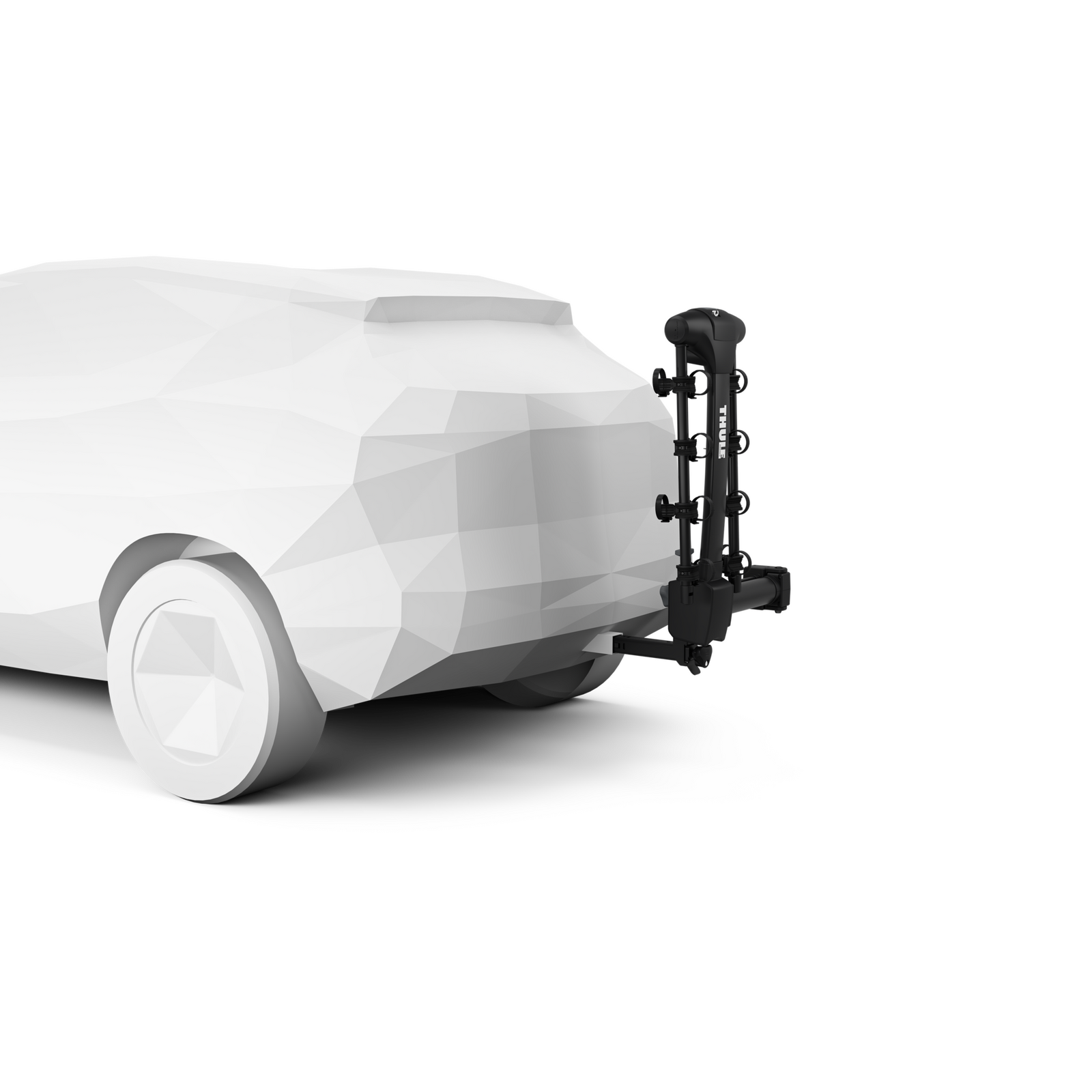

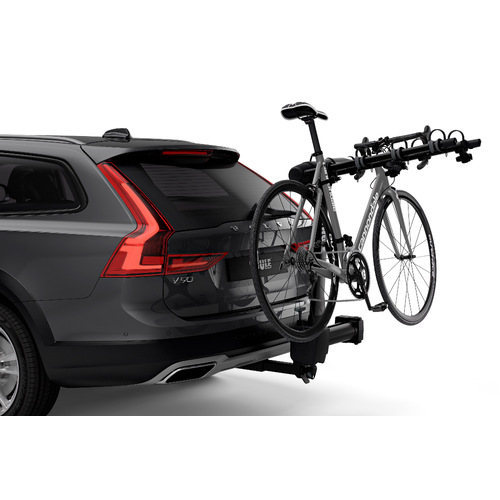

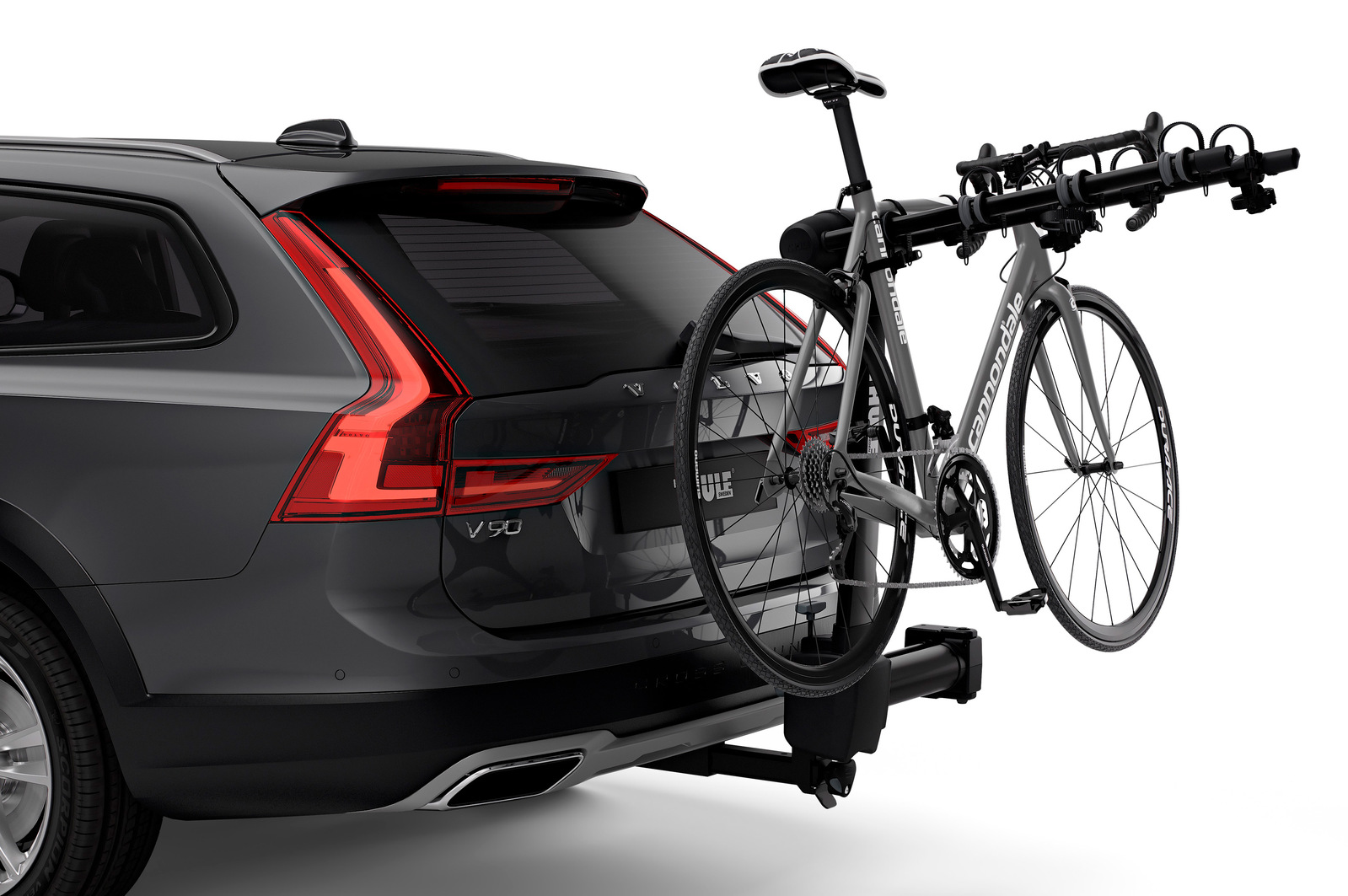

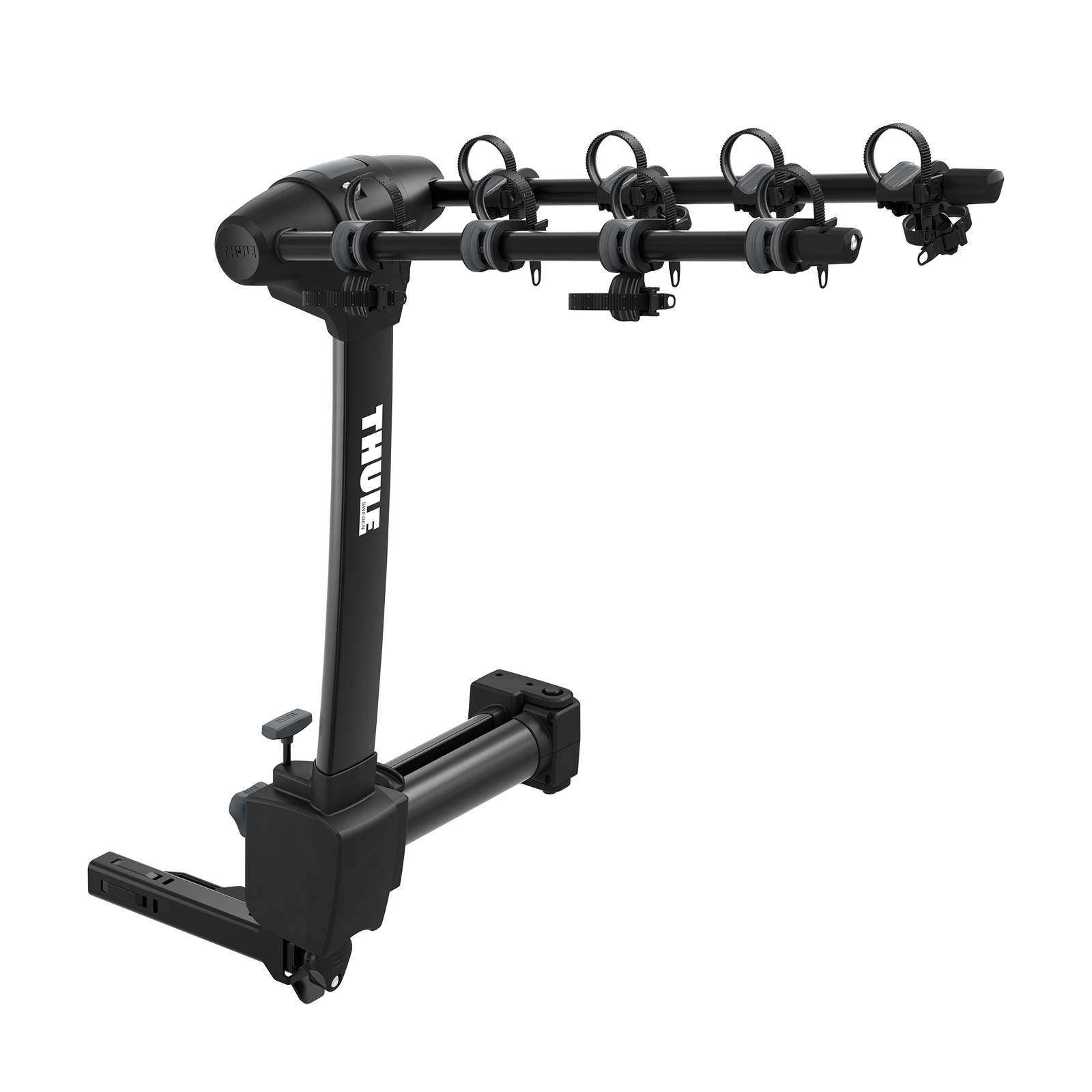

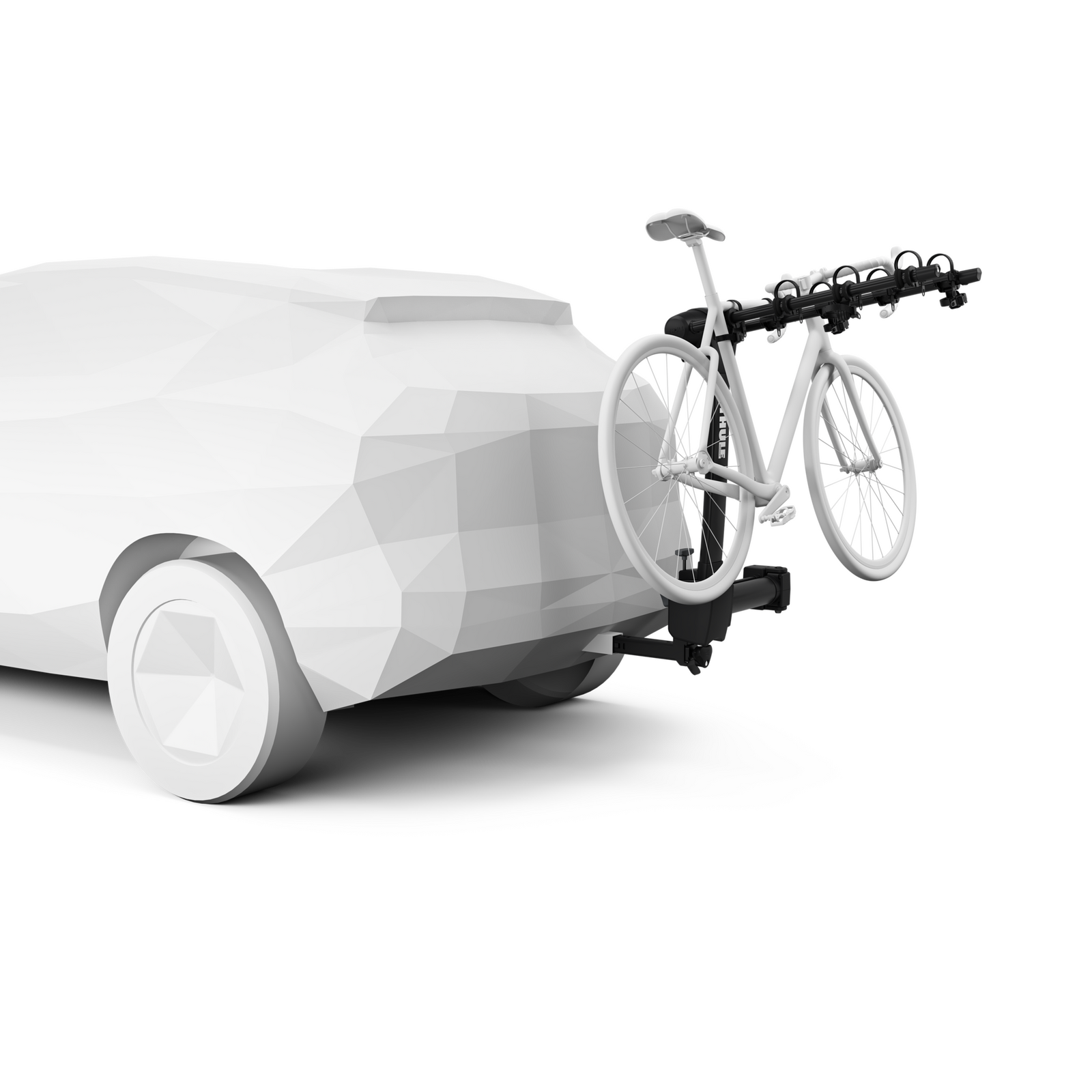

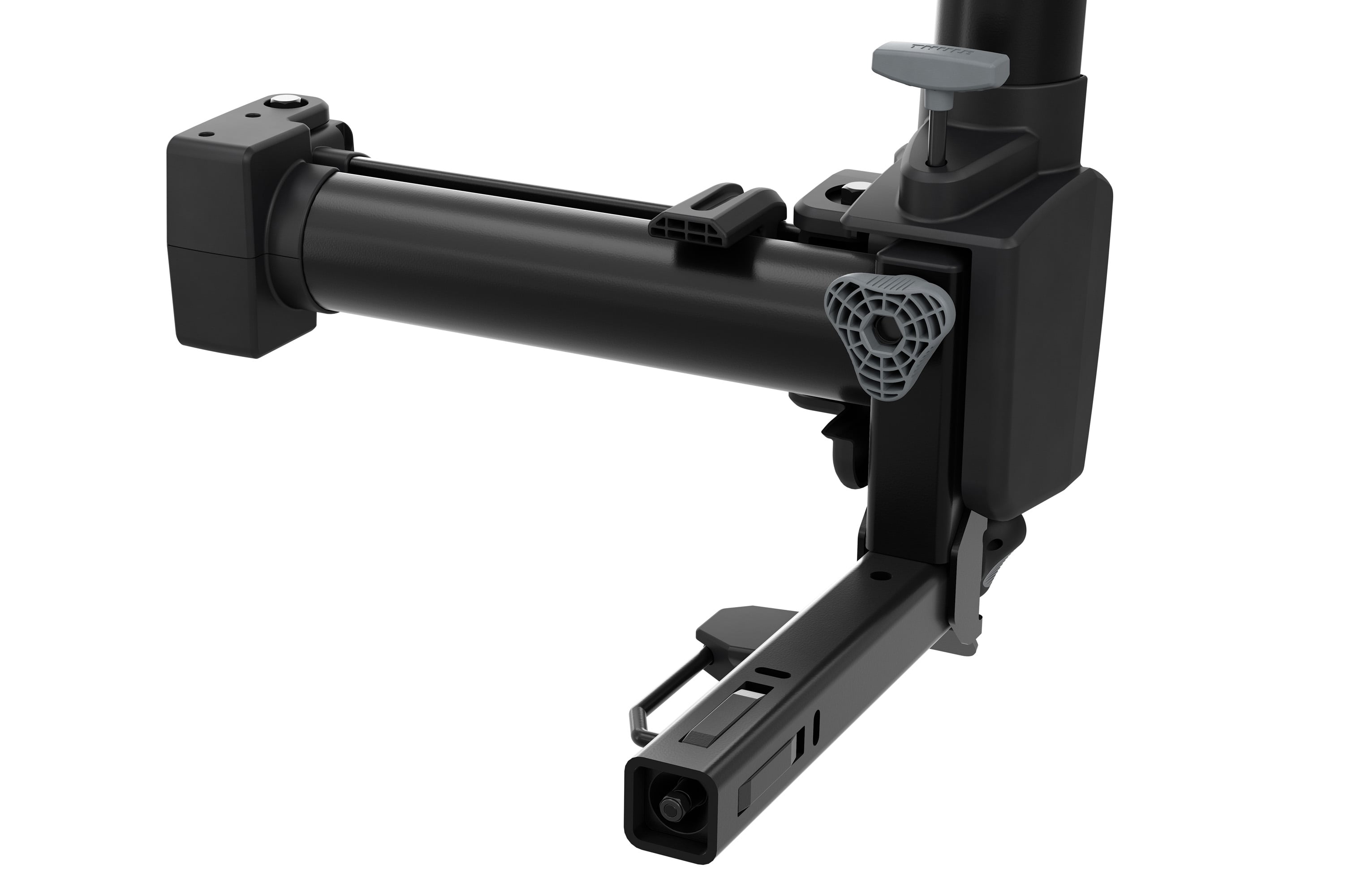

Apex XT Swing 4 hangs four bikes by the frame on fold-down arms, and the whole rack swings away from the vehicle with the bikes on, so you can open the boot. Each bike can weigh up to 17kg, with 68kg in total. It fits 2" (50mm) hitch receivers only, and the receiver must be at least 64mm deep. A cable lock for the bikes and a locking hitch pin are included.
Features
Superior bike stability and fit with integrated anti-sway that prevent bike to bike contact and 'disappears' when not needed

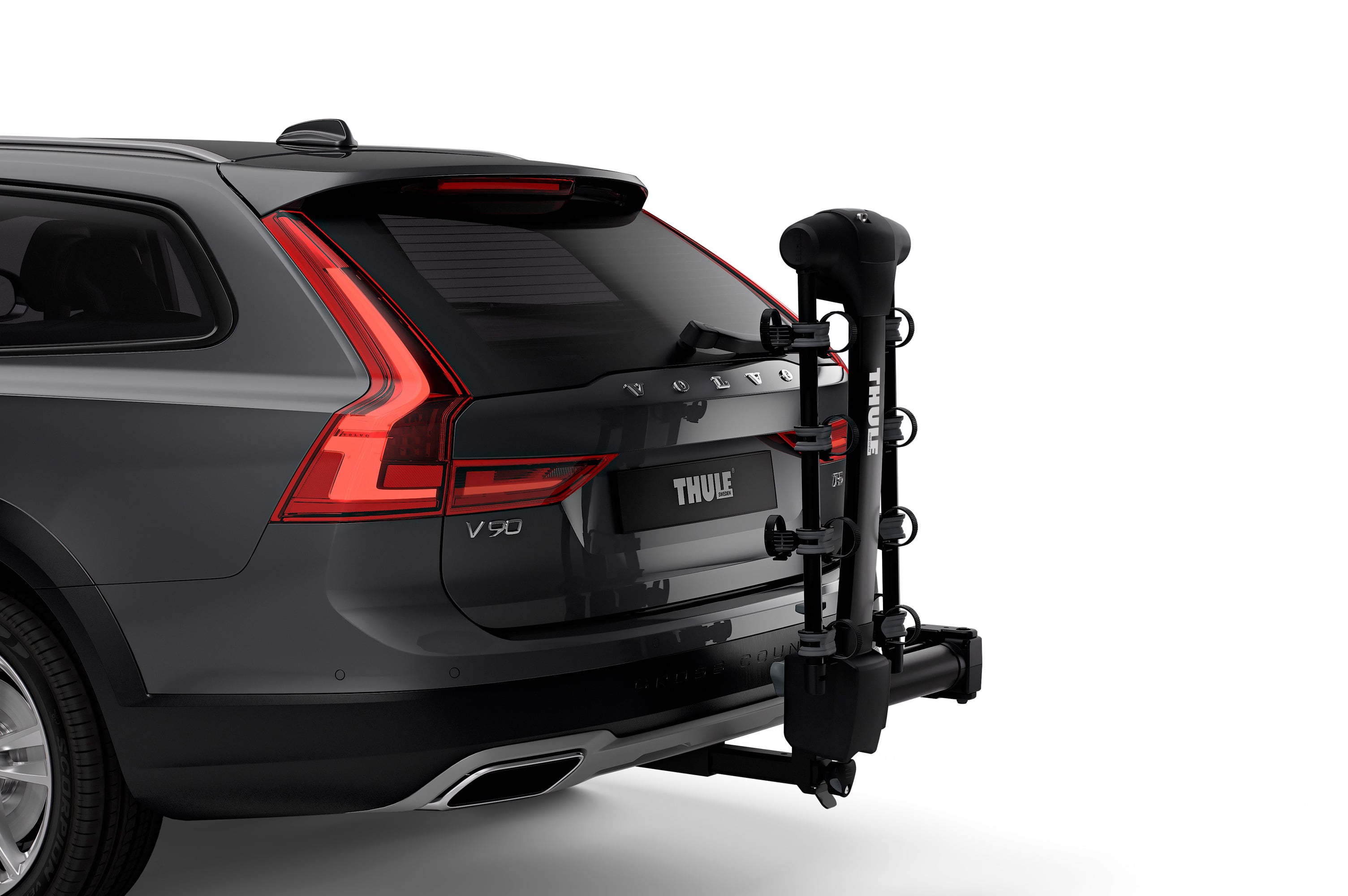

Easily fold down bike arms when rack is not in use

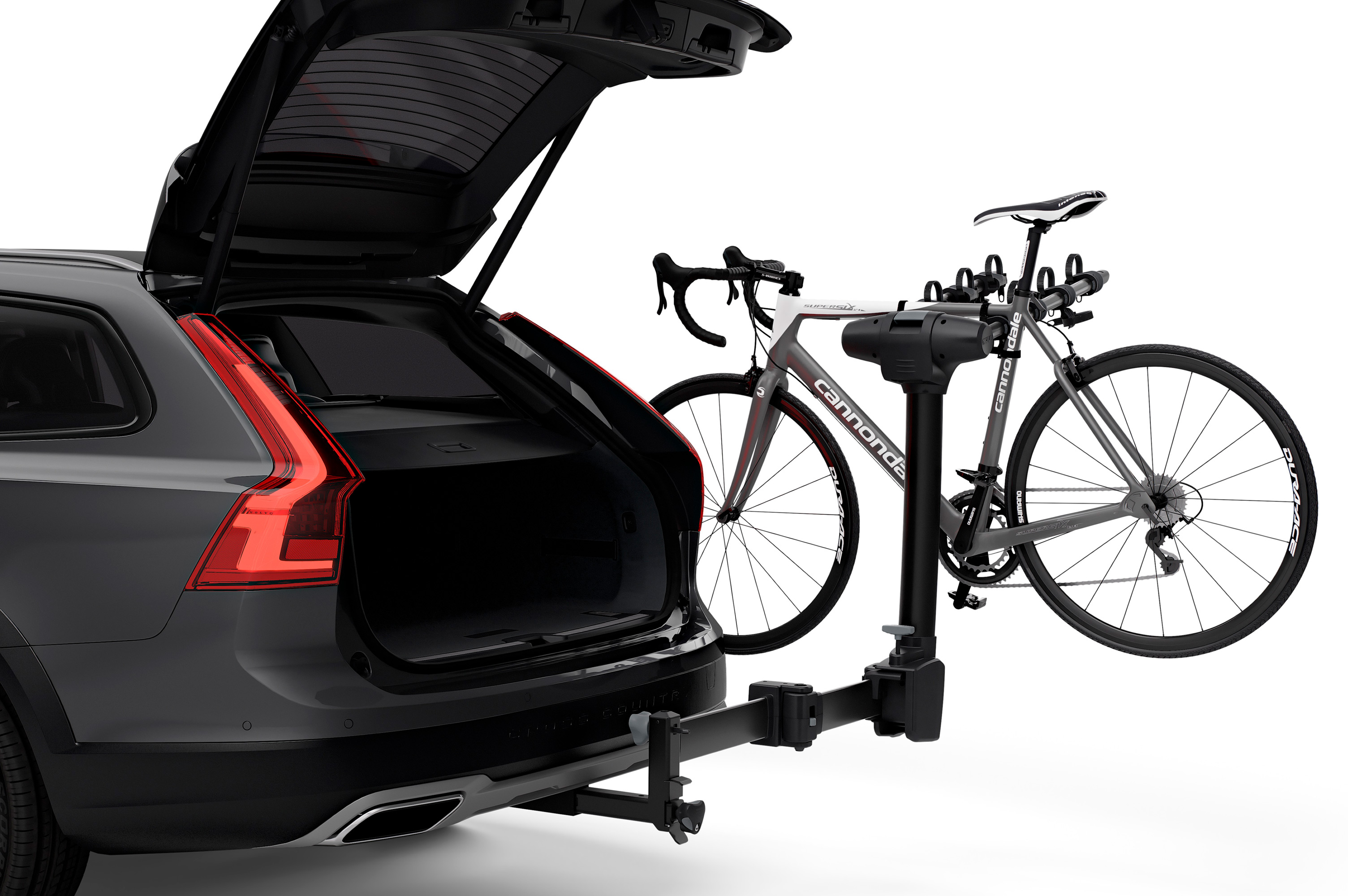

Convenient access to the rear of the vehicle, even with bikes attached, due to the patented swing-away design
Quick to install and easy to lock the rack to the vehicle due to the tool-free, SnugTite stinger (lock included)
- Superior bike stability and fit with integrated anti-sway that prevent bike to bike contact and 'disappears' when not needed
- Bikes are safe and secure during transport thanks to 7" of spacing between each bike
- Easily fold down bike arms when rack is not in use

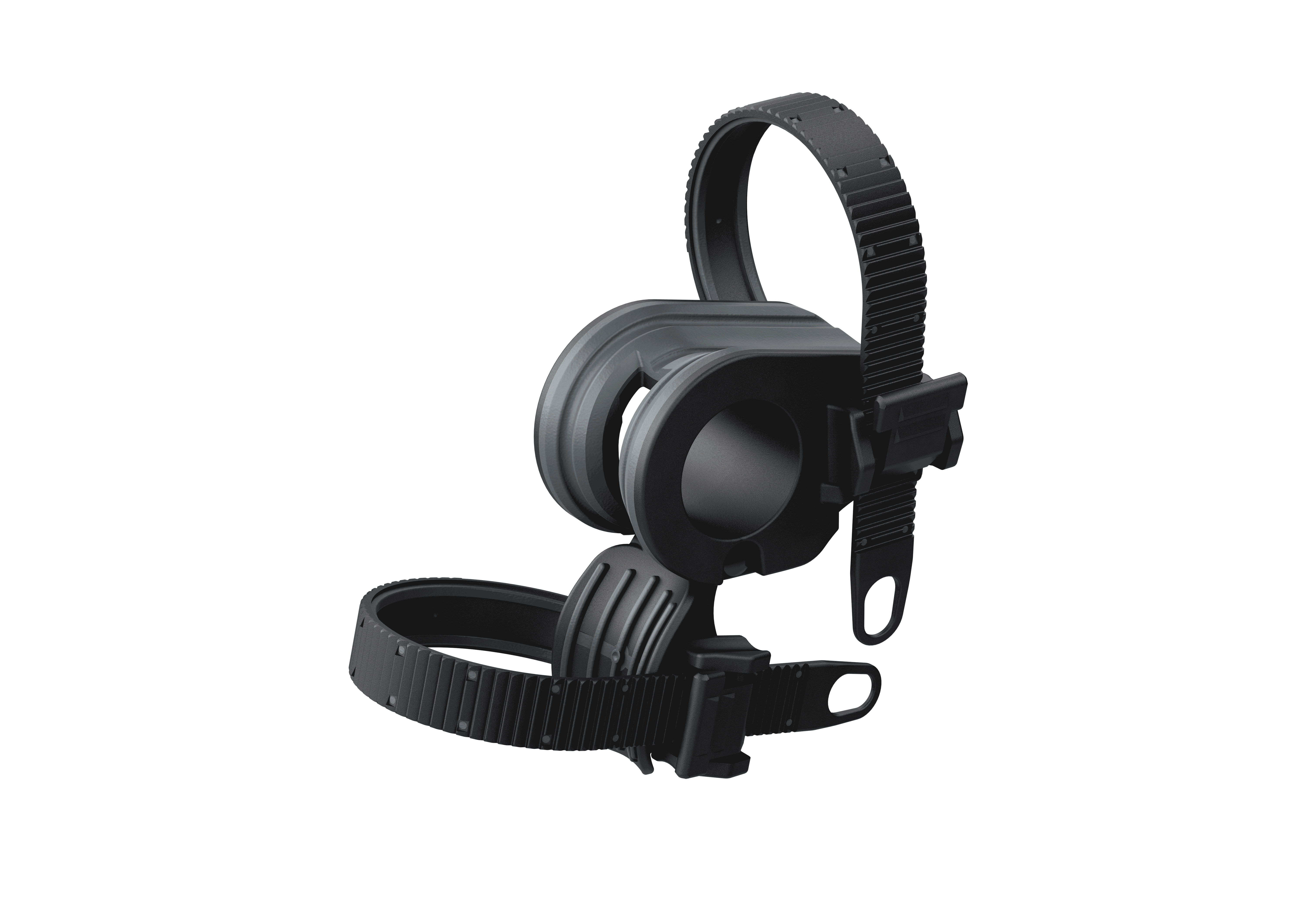

- Compact cradle design accommodates wide variety of bike sizes/frame styles
- Lock bikes to the rack using the integrated cable lock (lock included)
- Convenient access to the rear of the vehicle, even with bikes attached, due to the patented swing-away design
- Quickly attach bikes and easily secure them to the rack using the ratcheting cradle strap
- Quick to install and easy to lock the rack to the vehicle due to the tool-free, SnugTite stinger (lock included)
- Easily opens and closes with the pull of a pin
- We provide locks system that reduce the risk of theft but will not constitute a total guarantee against risk of bikes being stolen. For added bike safety we recommend to use Thule Cable lock, Thule Wheel Strap Locks (see accessories section) or any premium high-grade cable lock
- Off-road use. This product is intended for use on public and private roads, including off-roads such as gravel roads, forest service roads and access roads. Refer to definition in the safety instruction
Specifications
Fit & function
Vehicle mountHitch
Bike mountHanging Arms
Locks bike to rackYes
Locks rack to vehicleYes
Tilts for accessNo
Swing awayYes
Folds when not in useYes
Integrated lightsNo
Capacity
Bikes carried4 Bikes
Max weight per bike17kg
Max combined bike weight68kg
Product & shipping
BrandThule
SKU9027XT
Rack weight19kg
Shipping weight27.5kg
Carton (L×W×H)1.070m × 0.279m × 1.020m
Other
E-Bike RatedNo
Hitch Receiver Size50mm (2")
Frame ContactYes
Number Plate HolderNo
Warranty
2 years, plus 3 years extended with product registration (5 years total)
