Rola VBR5

Rola Vertical 5-Bike Hitch Bike Rack

Vertical rack for e-bikes up to 27kg, 50mm towbar hitch
5 Bikes · 135kg

A five-bike vertical rack for bikes and e-bikes up to 27kg each, 135kg in total, that fits a 50mm (2-inch) towbar hitch receiver. It takes 20 to 29-inch wheels without touching the frame, tilts for access when unloaded and has a number plate holder.

Rola Vertical 5-Bike Hitch Bike Rack
Description

5 Bikes, Hitch mounted

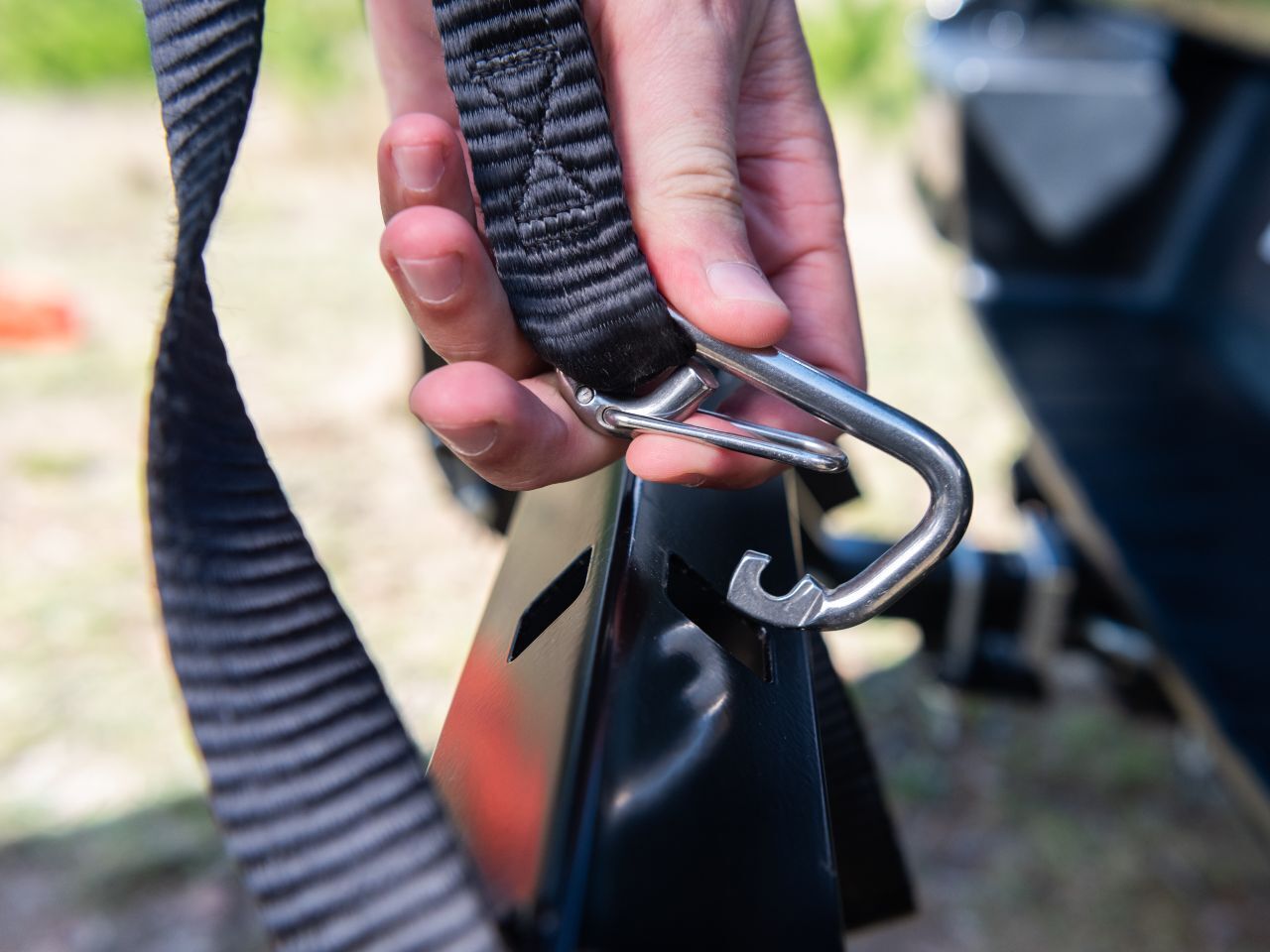

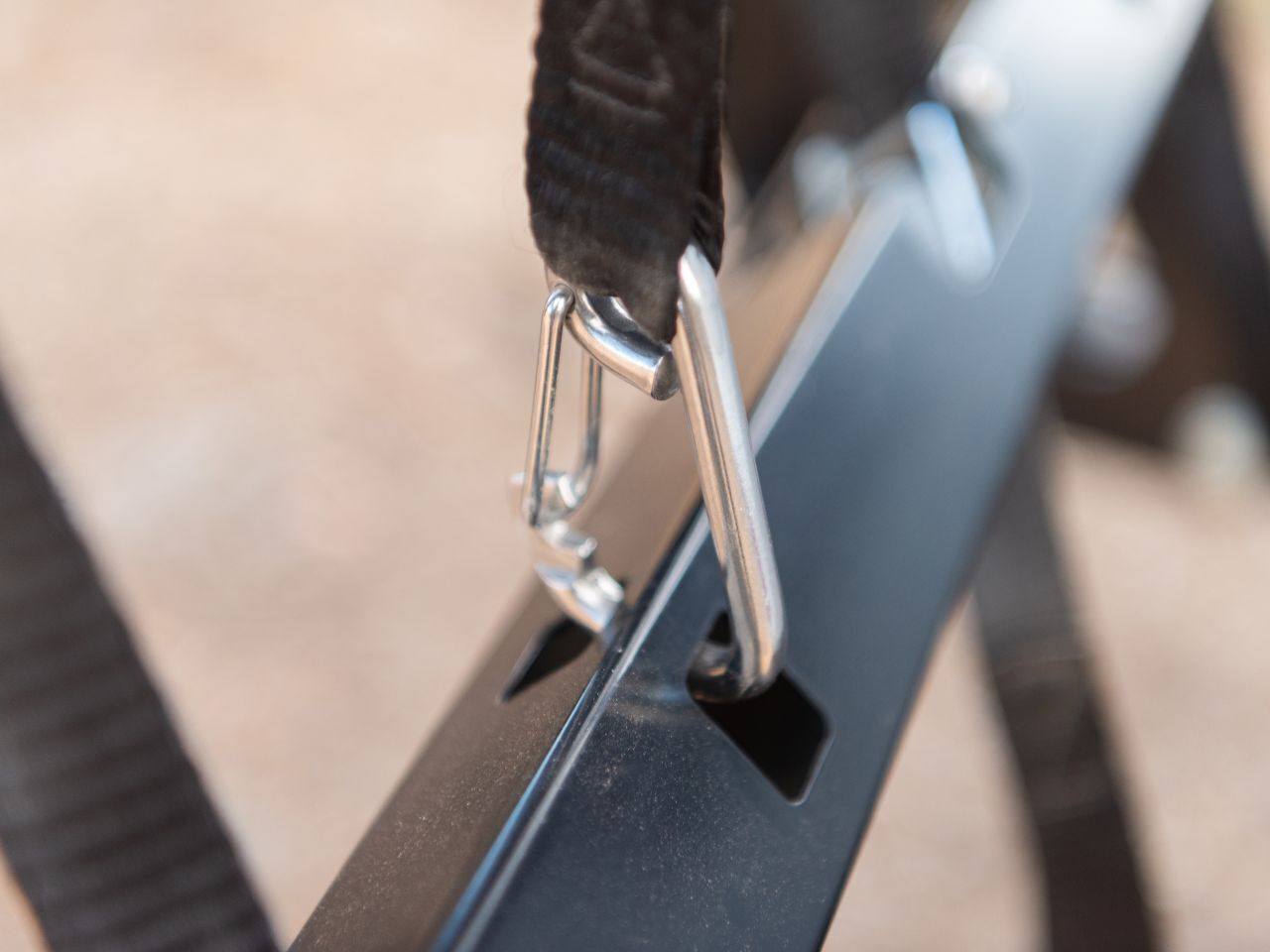

The Rola Vertical Bike Rack introduces a simple yet innovative securing system for your mountain bike, with an easy-to-use hook, and cambuckle strap. Just loop the strap over your rear wheel, hook it into the crossbar, pull the cambuckle strap and you’re ready to go.

Front wheel hoops are designed with anti-crush tubes and laser cut rebates preventing movement, damage or scratching. They also have extra clearance for your spokes and an angled slide to assist when loading the front wheel.

Not only will your bikes be safely secured, but the vertical bike rack is built to last. Designed using advanced computer software, and using Rola's unique, patented 2-stage e-coat and powder coat surface finish (MetalShield), the Rola VBR is built for the tough Australian conditions, preventing damage and rust beyond simple zinc plating and powder coating.

Fitting Instructions Brochure

Specifications

Fit & function

Vehicle mountHitch
Bike mountVertical
Locks bike to rackNo
Locks rack to vehicleNo
Tilts for accessYes, unloaded only
Swing awayNo
Folds when not in useNo
Integrated lightsNo

Capacity

Bikes carried5 Bikes
Max weight per bike27kg
Max combined bike weight135kg
Only carrying three bikes? The Vertical 3-Bike does the same job for less.
Rola Vertical 3-Bike Hitch Bike Rack

Product & shipping

BrandRola
SKUVBR5
Rack weight38kg

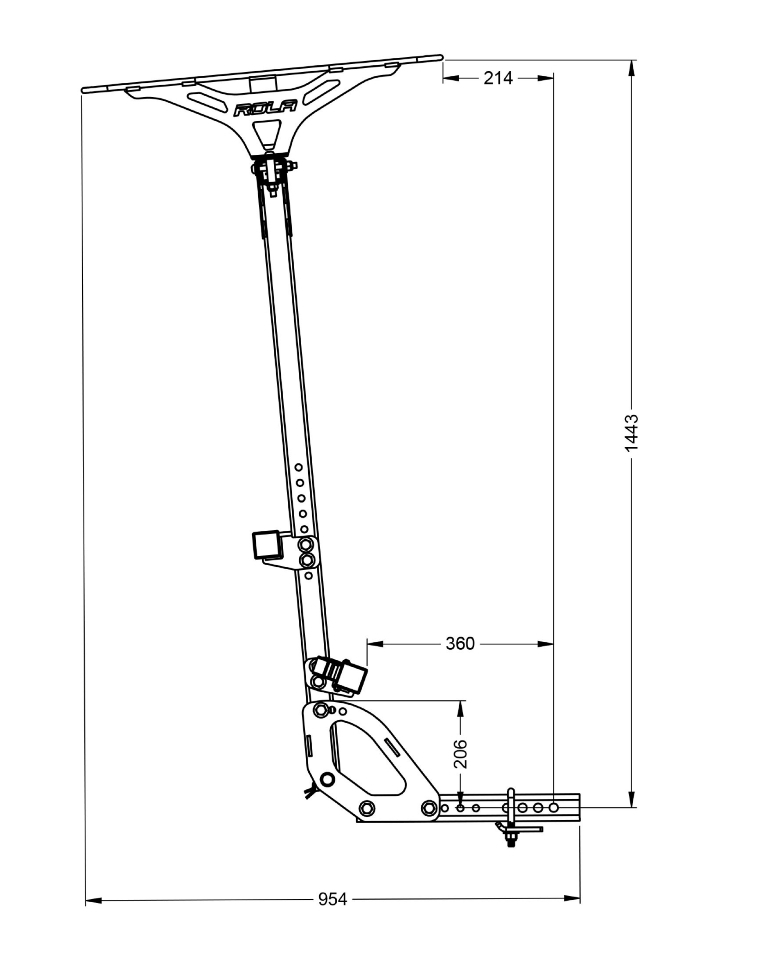

Assembled (L×W×H)1.900m × 0.470m × 0.220m

Other

E-Bike RatedYes
Frame ContactNo
Number Plate HolderYes
Wheel Sizes20"-29"

Accessories

Fitting available at Kotara, Maitland, Artarmon and Burwood

Our fitters set the strap tension, check the hooks against your panel and show you how to load it before you drive off.

Warranty

5 years
