Rhino-Rack
61018
Rhino-Rack Pioneer Thru Axle 1-Bike Roof Bike Rack
Fork mount that fits only a Rhino-Rack Pioneer Platform
1 Bike · 17kg

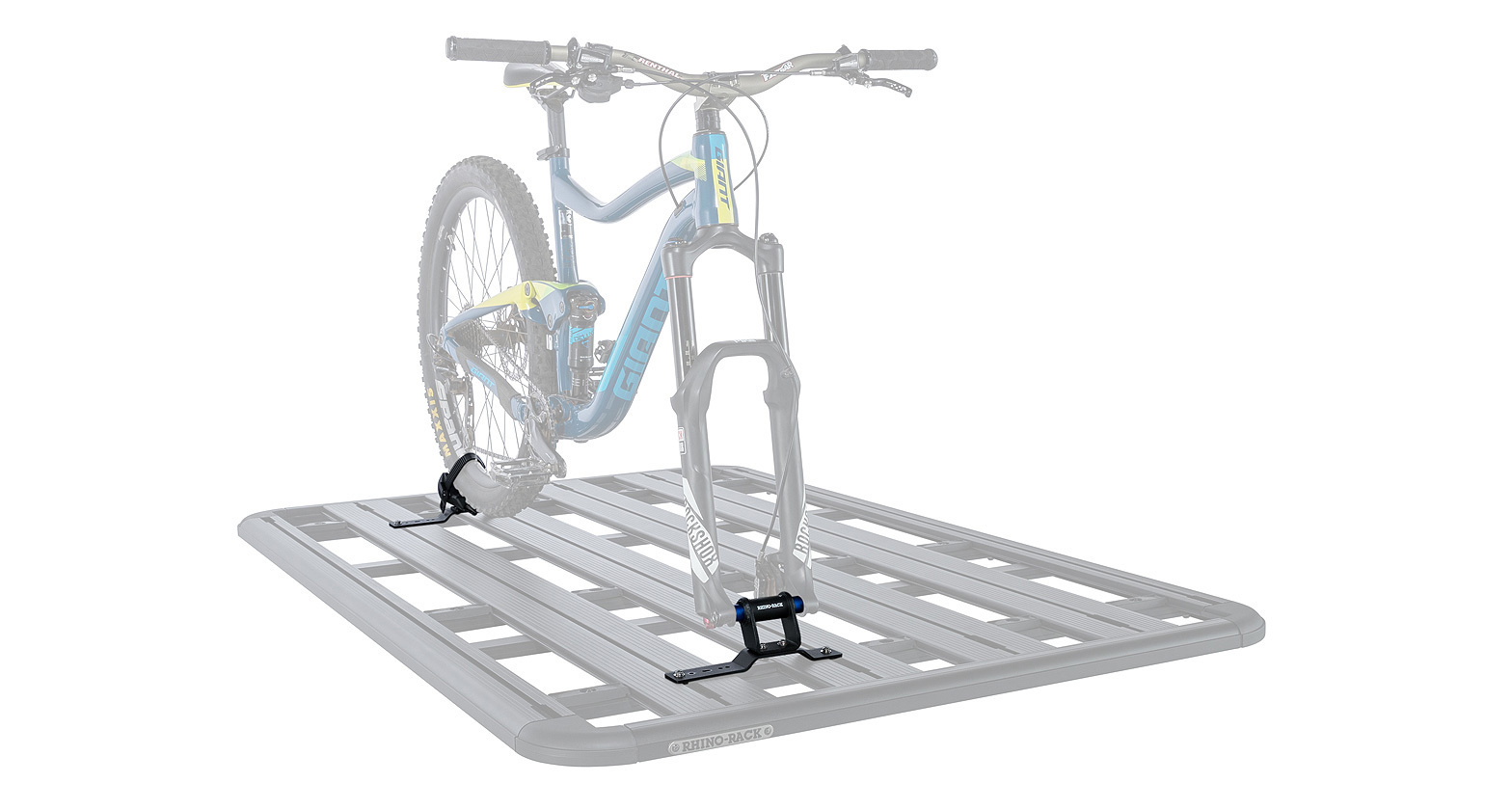

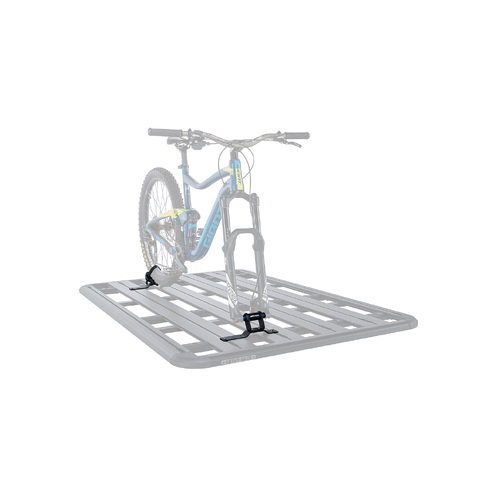

A fork-mount carrier that bolts to a Rhino-Rack Pioneer Platform, Tray or Tradie and holds one bike by its front axle and rear wheel, up to 17kg on road and 11kg off road.
Description
1 Bike, Roof mounted
The Pioneer Thru Axle Bike Carrier allows you to attach a thru axle bike directly to a Pioneer system. Designed for strength and durability, it firmly secures your bike whilst reducing any sway and rocking created when driving. Securely attach your bike directly to your Pioneer platform via the front axle and rear wheel brace. Perfectly suitable for modern mountain bikes and road bikes.
Features
- Easy and quick installation, using your existing thru axle or quick release skewer and rear wheel strap to secure the bike to the Pioneer
- 9mm x 100mm and 15mm x 110mm (Boost size) Multi-Axle Adaptors included, making it suitable for most bicycles with quick release wheels
- Includes the new patented Zwifloc channel nuts that allow the wheel mounts to be placed anywhere without moving other accessories. The Zwifloc nut simply drops into the channel, so there is no need to slide into position.

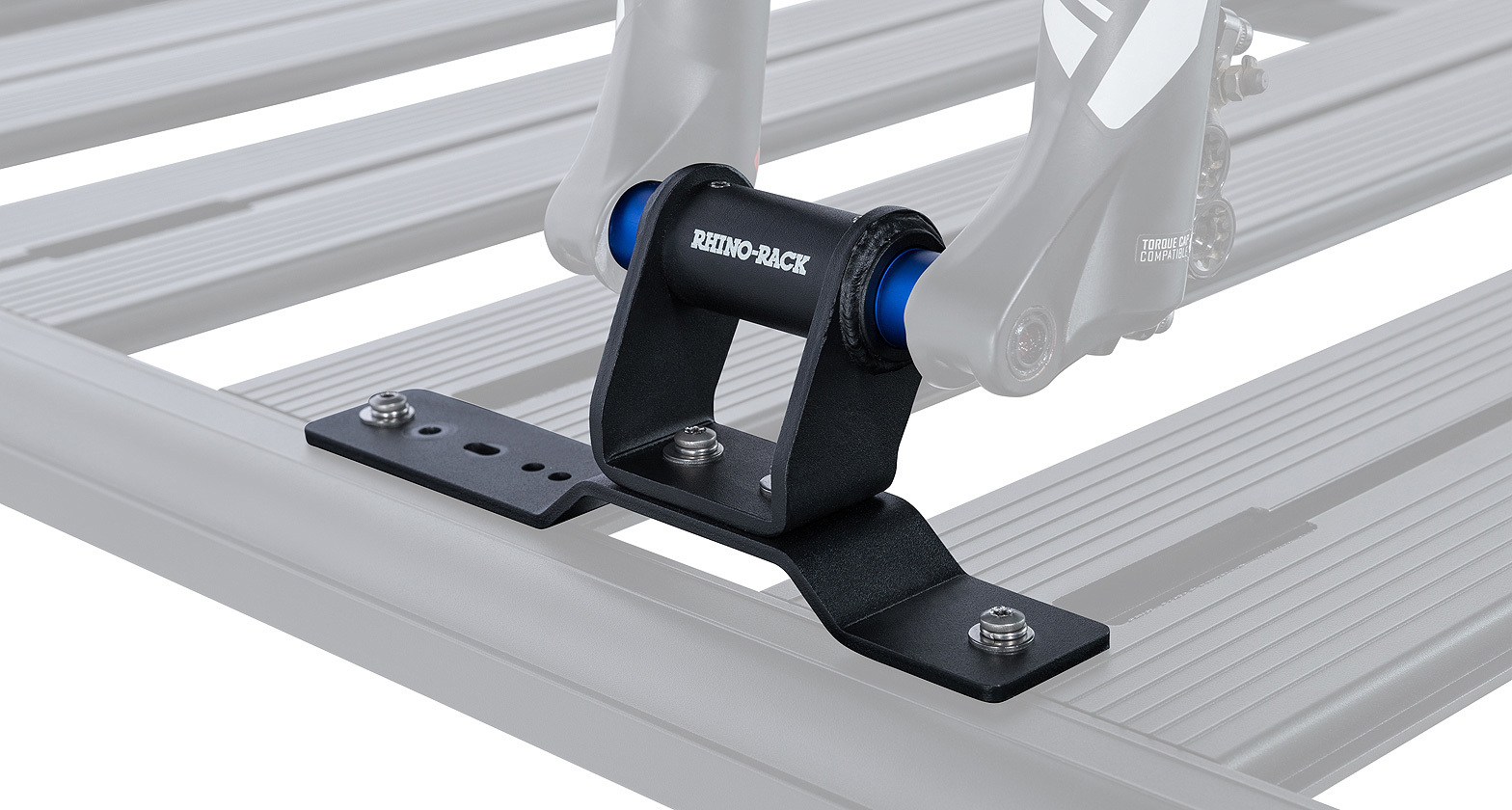

- A front wheel axle mount bracket, a rear wheel holder and all mounting hardware included.
- Compatible with all other Rhino-Rack Thru Axle inserts (view product compatibility for insert sizes)
- All fixings and tools included
- Quick and easy installation/removal
- The fork carrier can be rotated to prevent handlebars clashing
- Rear wheel carrier can be flipped to fit on smaller trays
- Rear wheel strap fits <3" wheel dimensions
- Front mount height: 95mm
- Rear mount height (without strap): 98mm
- Maximum on-road weight allowance: 17kg/37lbs
- Maximum off-roading weight allowance: 11kg/24lbs
- Not suitable for e-bikes, except lightweight SL e-bikes within the 17kg limit
Specifications
Fit & function
Vehicle mountRoof
Bike mountFork
Locks bike to rackNo
Locks rack to vehicleNo
Folds when not in useNo
Capacity
Bikes carried1 Bike
Max weight per bike17kg
Max combined bike weight17kg
Rather keep the front wheel on? The TomaHawk 1-Bike holds the bike by its wheels.
RockyMounts TomaHawk 1-Bike Roof Bike Rack
Product & shipping
BrandRhino-Rack
SKU61018
Model #61018
Shipping weight2.1kg
Carton (L×W×H)0.330m × 0.130m × 0.100m
Other
E-Bike RatedNo
Frame ContactNo
Max Tyre Width3" (76mm)
Fits Roof BarsRhino-Rack Pioneer Platform, Tray and Tradie (4- and 6-series)
Axle Compatibility9x100mm QR and 15x110mm Boost included, 12x100, 15x100 and 20x110mm with inserts sold separately
Max Weight Per Bike (Off-Road)11kg
Warranty
5 years (1 year on textile, lock and electrical parts, 3 years on steel parts)
