Kuat T222B

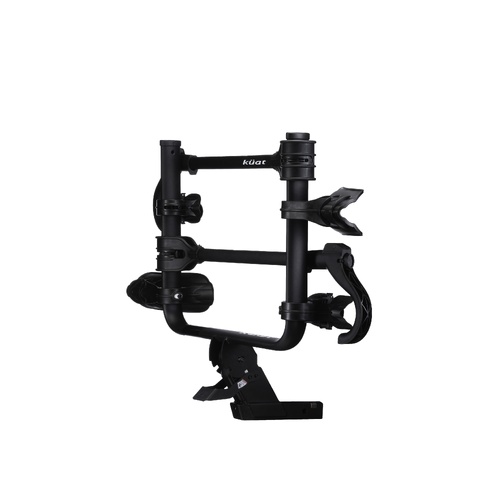

Kuat Transfer v2 2-Bike Hitch Bike Rack

Platform tray for e-bikes up to 27kg, 50mm towbar hitch
2 Bikes · 54kgLockableFolds when not in use

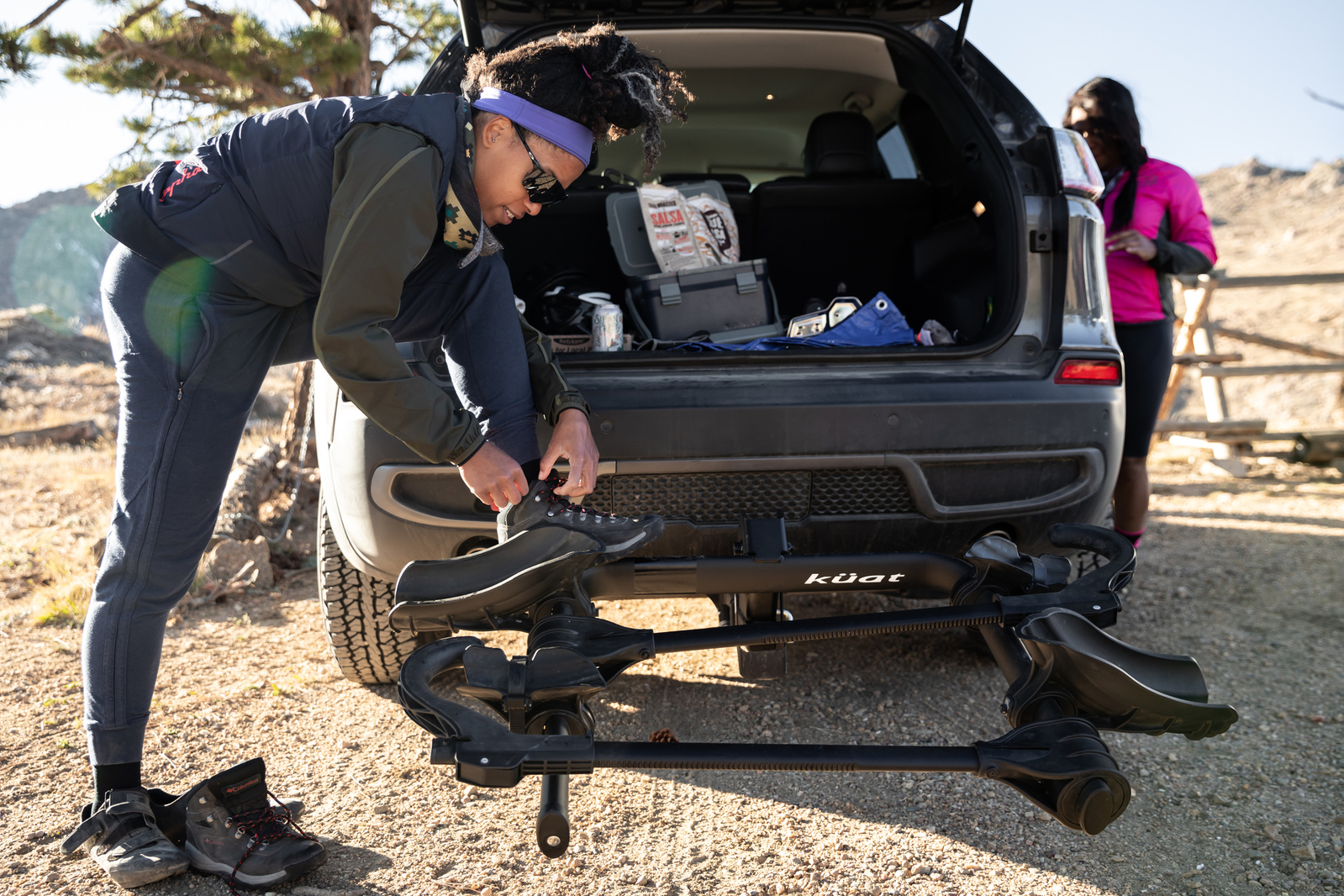

A two-bike platform rack for bikes and e-bikes up to 27kg each that fits a 50mm (2-inch) towbar hitch receiver. A cable lock is included, it tilts with the bikes loaded and folds when not in use, and an add-on takes it to three bikes.

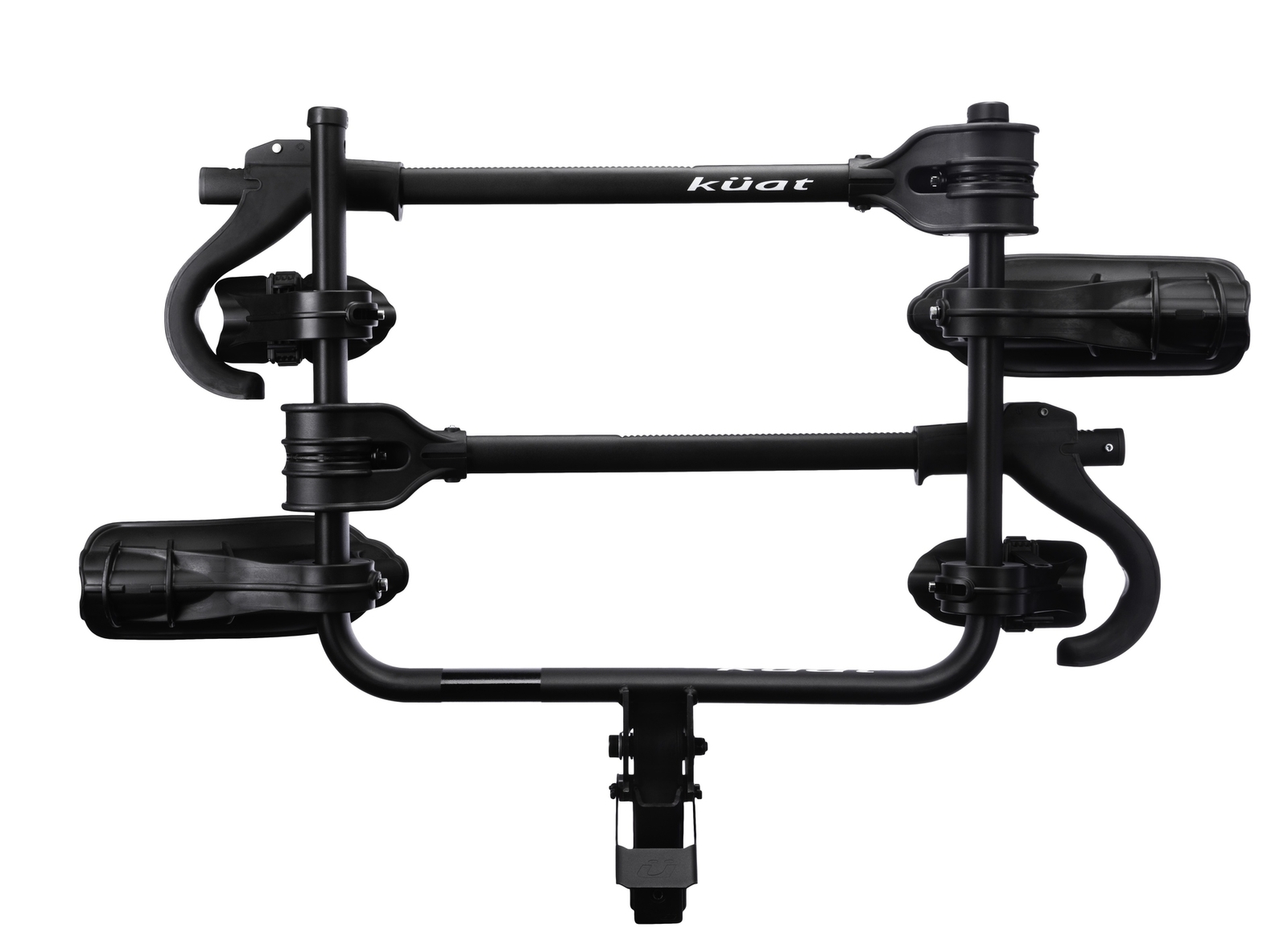

Kuat Transfer v2 2-Bike Hitch Bike Rack
Description

2 Bikes, Hitch mounted

The Kuat Transfer V2 Bike Carrier is designed to be stronger and more versatile than ever, providing cyclists with a reliable and secure solution for transporting their bikes. This enhanced version builds upon the solid steel construction of the original, incorporating new features that improve stability, security, and adaptability, making it an excellent choice for both single and multi-rider configurations at an accessible price point.

Flatlock Hitch Cam for 2"

The new Flatlock hitch cam ensures enhanced stability while towing, reducing wobble and movement to keep your bikes securely in place.

Semi-Integrated Cable Lock

Upgraded with a semi-integrated cable lock, the Transfer V2 offers increased security, giving you peace of mind when leaving your bike unattended.

Tamper-Resistant Hitch Security

The carrier features tamper-resistant hitch security to protect against theft and unauthorized removal.

Robust Hitch Design: With a more robust hitch design, the Transfer V2 offers superior stability, ensuring your bikes remain safe and secure during transit.

Wheelbase and Tire Compatibility

The carrier holds bikes with wheelbases up to 127cm and accommodates wheels from 18" to 32". It also supports tires up to 5" wide with the accessory strap, making it ideal for fat bikes.

Durability: Constructed with automotive-grade hardware that can withstand 750 hours of salt spray, the Transfer V2 is built to endure harsh conditions and regular use.

Dedicated 2” Hitch Version

The two-bike configuration can be directly mounted on campers, recreational vehicles, or trailers with chassis-mounted receivers only, providing flexibility for various transport needs.

Fitting Instructions Dimensions

Features

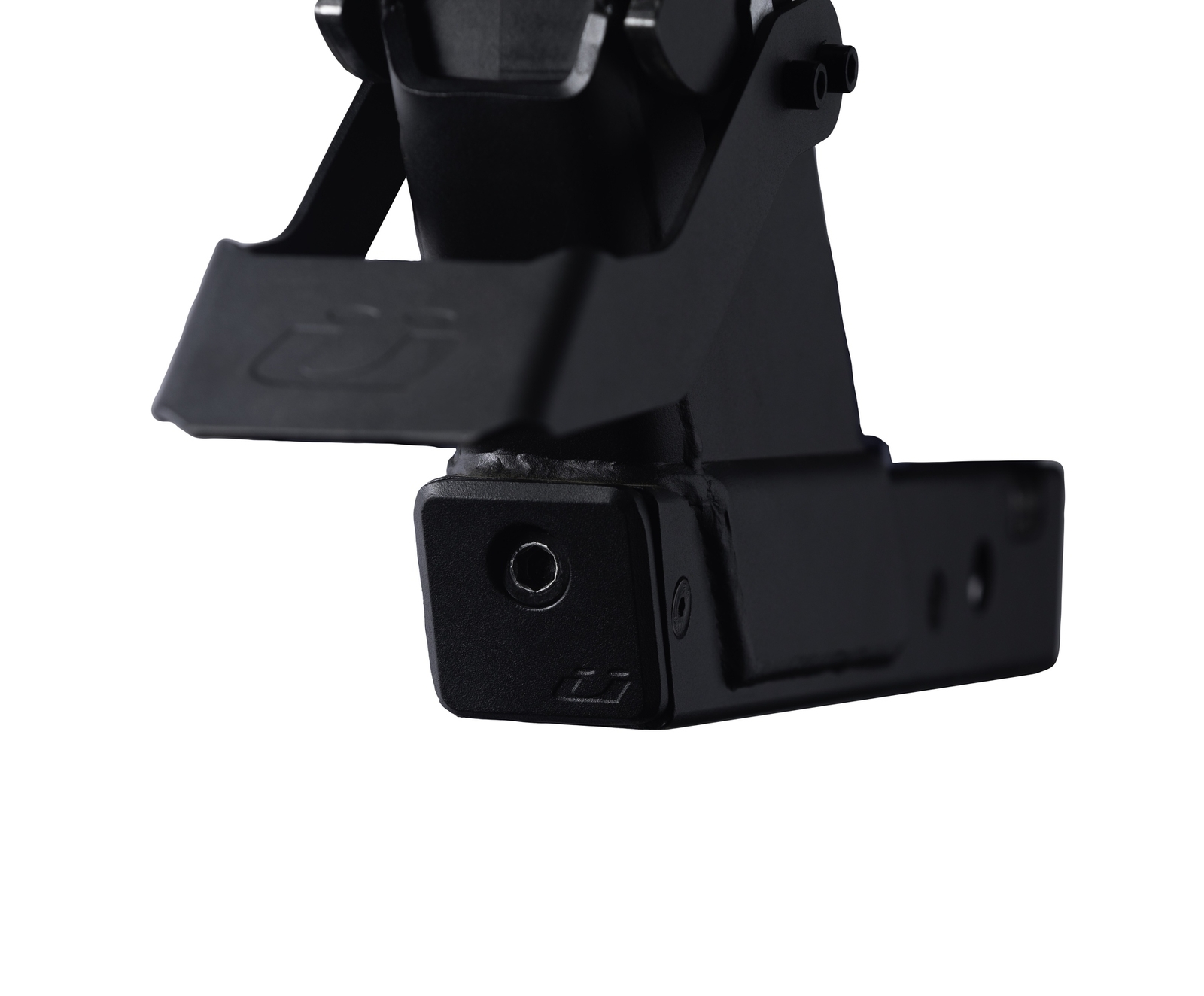

FlatLock Hitch Cam

FlatLock Hitch Cam

The patented cam tightens the rack inside the 50mm receiver so it doesn't wobble. Its tamper-resistant bolt is tightened with the supplied 8mm security Allen key.
Cable Lock Included

Cable Lock Included

A cable runs through the bike, back through its own loop and plugs into the lock port on the tray arm.

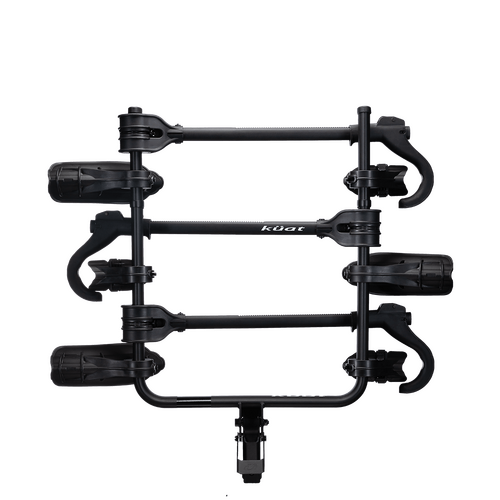

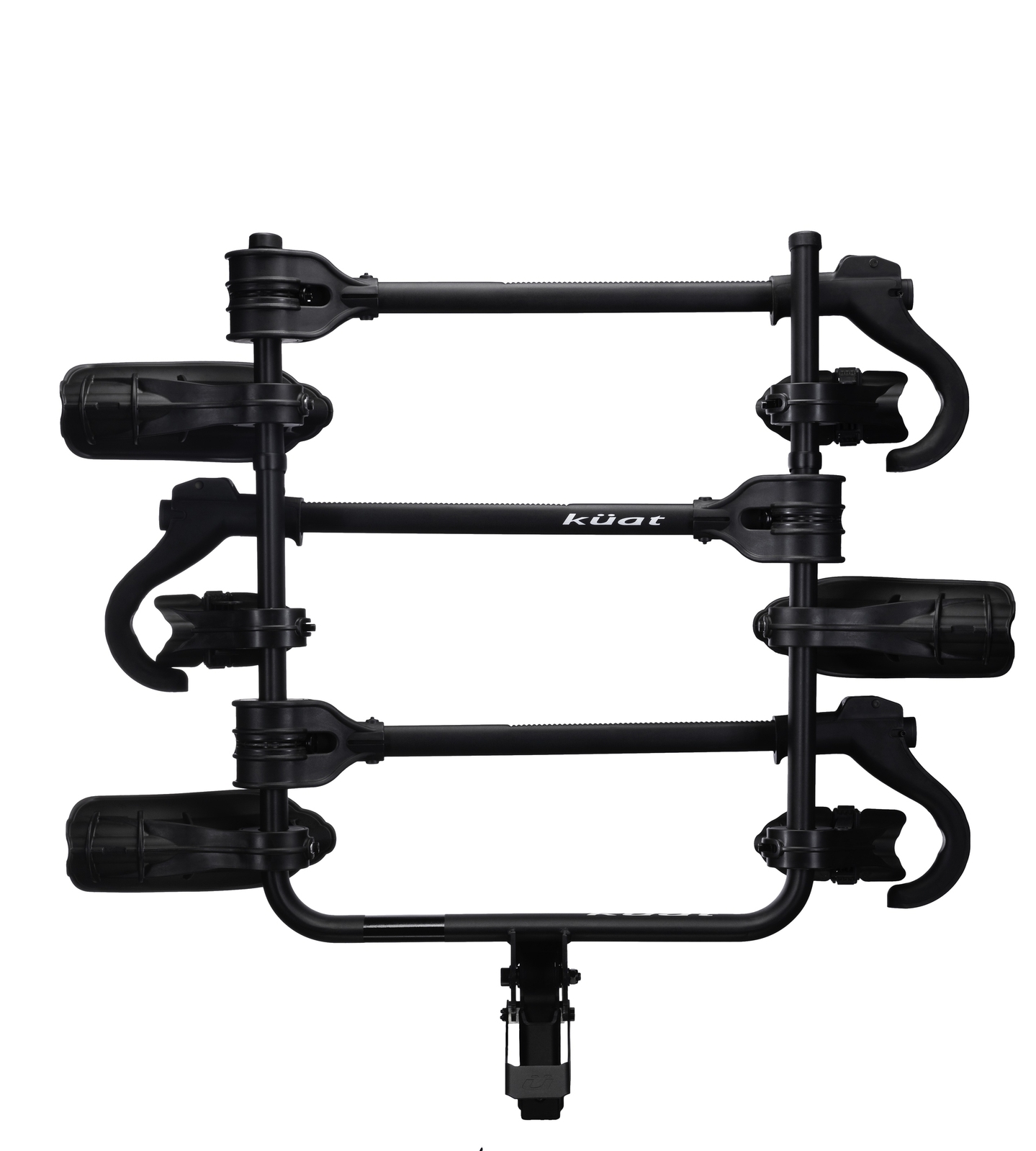

Add a Third Bike

Add a Third Bike

The Transfer v2 1-Bike Add-On bolts on to make this a three-bike rack. With it fitted, every bike is limited to 18.1kg and the rack is no longer approved for RVs.

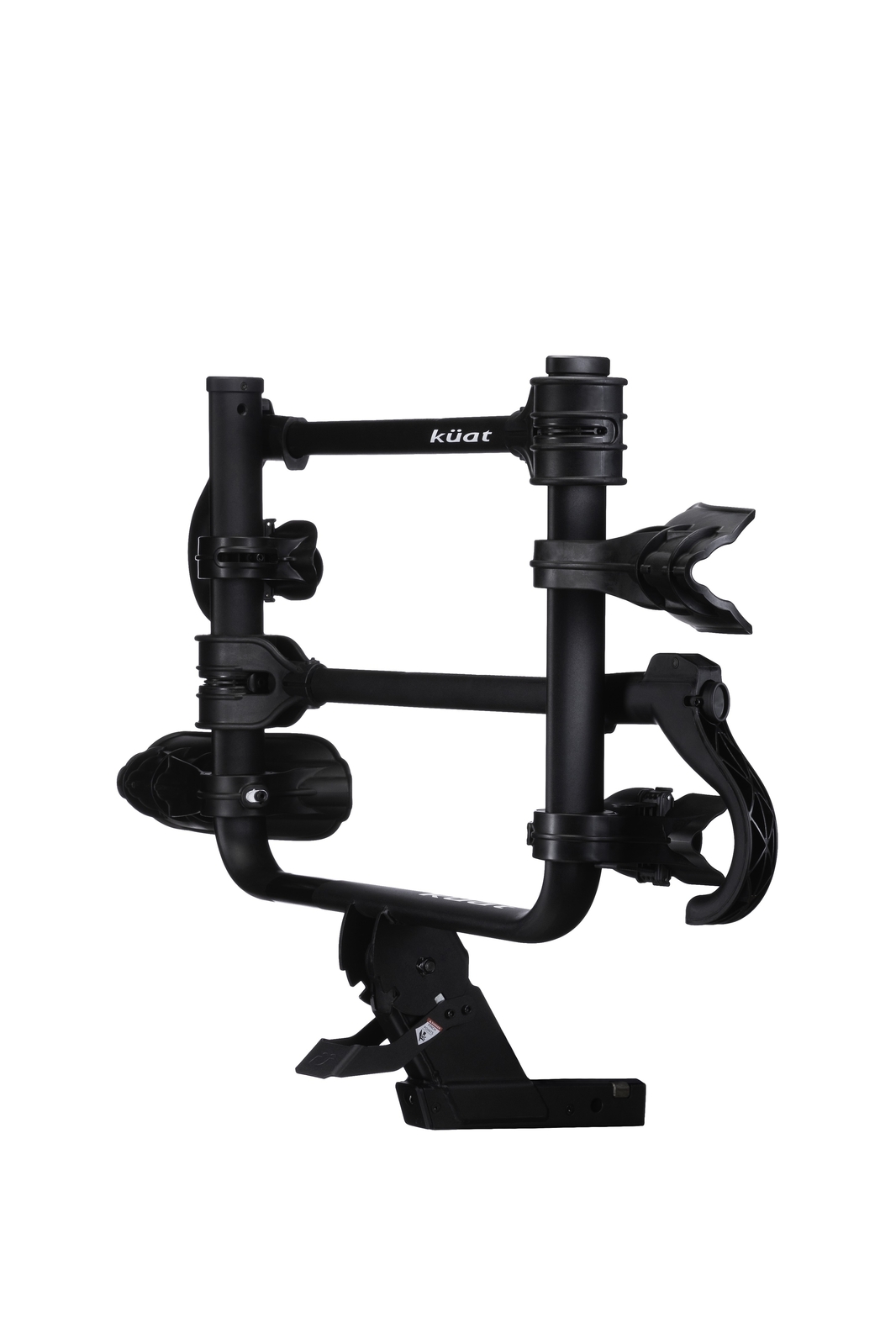

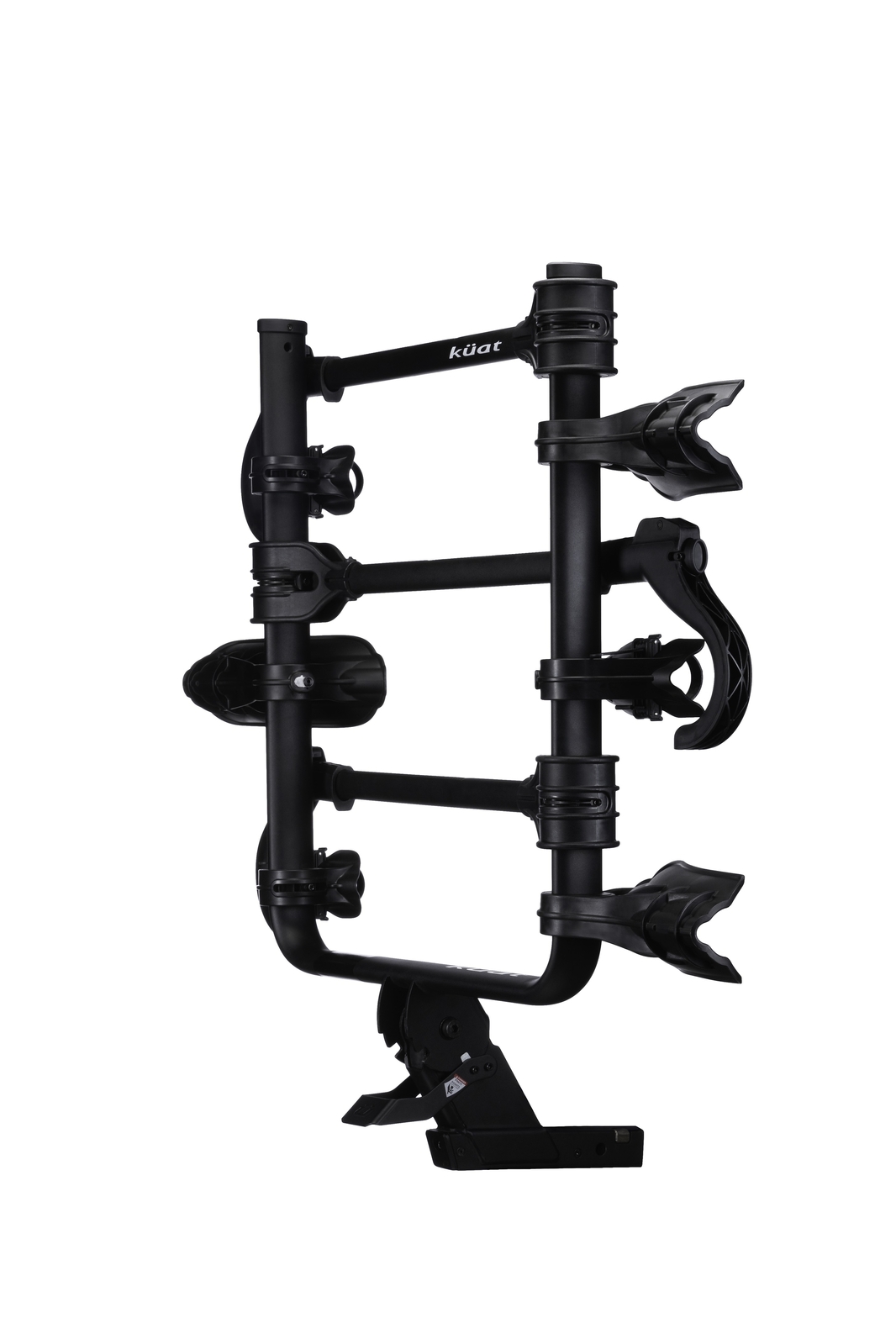

Folds With a Foot Lever

Folds With a Foot Lever

Lift the safety latch and press the foot lever to fold the rack up when it's not in use, or lower it again.
  • Tyre hook arms clamp the front wheel and a ratchet strap holds the rear, so nothing touches the frame.
  • The rear tyre cradle slides to fit the bike, and its strap adjusts from either side for a tighter hold on small wheels.
  • The front tyre cradle's bolt tabs reverse to change the bike's pitch or stop two bikes touching.
  • Steel construction with automotive-grade hardware.
  • Comes with a standard hitch pin and cotter pin. A locking hitch pin is sold separately.

Specifications

Fit & function

Vehicle mountHitch
Bike mountPlatform Tray
Locks bike to rackYes
Locks rack to vehicleSold Separately
Tilts for accessYes, with bikes loaded
Swing awayNo
Folds when not in useYes
Integrated lightsNo

Capacity

Bikes carried2 Bikes
Max weight per bike27kg
Max combined bike weight54kg

Product & shipping

BrandKuat
SKUT222B
Rack weight16.8kg
Assembled (L×W×H)0.178m × 0.787m × 0.806m

Other

Expands To3 Bikes
Max Wheelbase1270mm
Max Tyre Width5" (127mm)
Wheel Sizes18"-32"
Number Plate HolderNo
Frame ContactNo
Hitch Receiver Size50mm (2")
E-Bike RatedYes
