Kuat PPA1B

Kuat Piston Pro 1-Bike Add-On

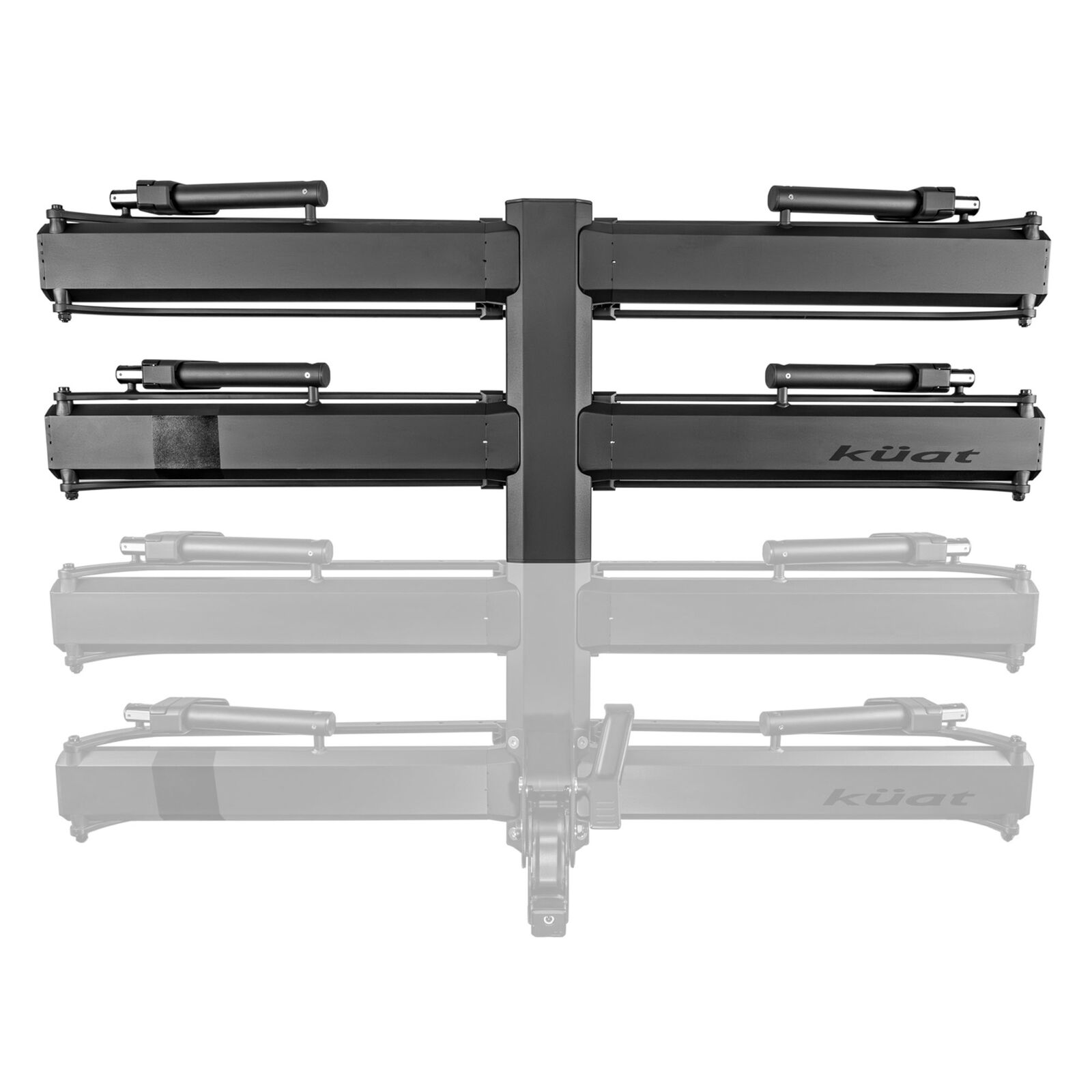

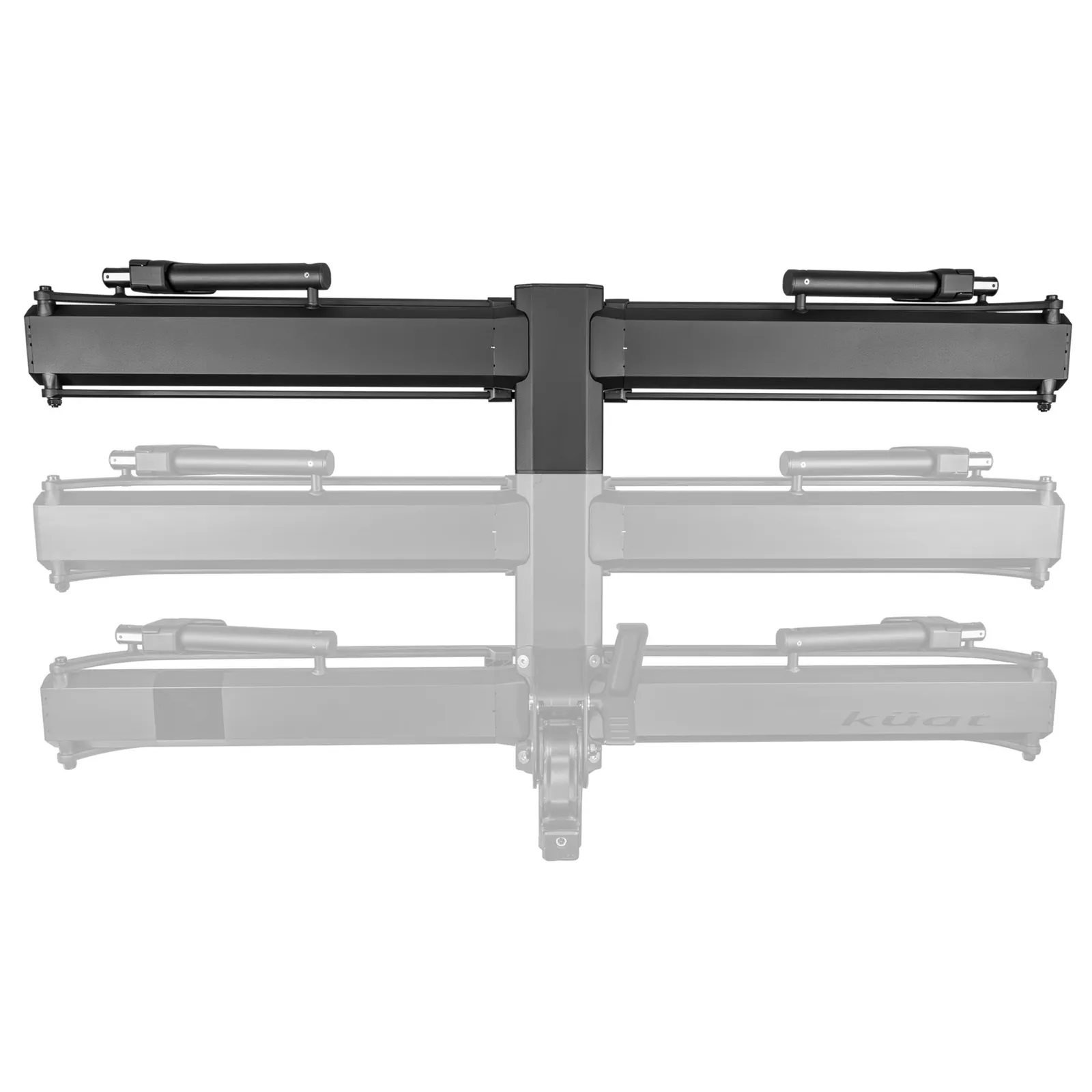

Adds a third tray to a Piston Pro
1 Bike · 22.6kgLockable

Adds a third tray to a 2" Küat Piston Pro hitch rack, for bikes and e-bikes up to 22.6kg each. Like the base rack, its arms hold the tyres, not the frame.

Kuat Piston Pro 1-Bike Add-On
Description

1 Bike, Hitch mounted

The Kuat Piston Pro Add-On is the perfect solution for expanding the capacity of your Piston Pro bike carrier, providing quick and convenient changes from 2 to 3 bikes or up to a maximum capacity of 4 bikes. Designed with versatility and ease of use in mind, these add-ons allow you to adapt your bike carrier to accommodate additional bikes as needed, ensuring you have the flexibility to transport all your gear on your cycling adventures.

1-Bike and 2-Bike Add-On Options

Choose between a 1-bike add-on for quick change from 2 to 3 bikes or a 2-bike add-on for quick change from 2 to 4 bikes, depending on your specific transportation needs.

Quick Change Capability

With the Piston Pro Add-Ons, you can easily switch between carrying 2, 3, or 4 bikes, providing flexibility for different group sizes or bike configurations.

Weight Capacity

The 1-bike add-on holds up to 22.6 kg per tray, while the 2-bike add-on holds up to 18.1 kg per tray, ensuring sturdy support for your bikes during transit.

Compatibility

The add-ons are compatible with the 2” Piston™ Pro bike carrier, allowing for seamless integration and easy installation.

Pivot Swing-Away

Küat limits its racks to three bikes on a Pivot swing-away, so the 1-Bike Add-On can be used on one and the 2-Bike Add-On cannot. A four-bike Piston Pro weighs 49.4kg before bikes, and four 18.1kg bikes take it past the Pivot v2's 113.4kg load limit.

Maximum Compatibility

With wheelbases up to 1346 mm and tires as large as 5 inches, the add-ons are compatible with a wide range of bike sizes and styles.

Single Add-On Usage

Note that only one add-on can be used at a time, allowing you to tailor the capacity of your bike carrier to your specific needs while maintaining stability and balance.

User Guide Dimensions

Features

OneTap Arms

OneTap Arms

The add-on trays have the same OneTap arms as the Piston Pro. Tap a lever and the arms open on their own, then close onto the tyres.
FastFit Wheel Chocks

FastFit Wheel Chocks

Squeeze the tabs and slide the chocks to suit 18" to 32" wheels. It takes seconds and no tools.
Foot Pedal Pivot

Foot Pedal Pivot

With the add-on fitted, the base rack's foot pedal still folds the whole rack up and down.
  • Fits the 2" Piston Pro only. The Piston Pro X has its own add-ons
  • The 22.6kg limit applies to every tray, the base rack's two included
  • Rack weighs 39kg as a three-bike setup
  • Semi-integrated 12mm cable lock and two keys come with the add-on
  • EasyClip tabs hang each tray on the centre beam while you bolt it on
  • Tyre arms fold below the tray, to hook on the Piston e-bike ramp or unload one bike without unloading the next
  • All-metal construction with stainless steel hardware
  • Unbolts to return the rack to two bikes

Specifications

Fit & function

Vehicle mountHitch
Bike mountPlatform Tray
Locks bike to rackYes
Integrated lightsNo

Capacity

Bikes carried1 Bike
Max weight per bike22.6kg
Max combined bike weight22.6kg

Product & shipping

BrandKuat
SKUPPA1B
Rack weight10.9kg

Other

Expands To3 Bikes
Max Wheelbase1346mm
Max Tyre Width5" (127mm)
Wheel Sizes18"-32"
Number Plate HolderNo
Frame ContactNo
Hitch Receiver Size50mm (2")
E-Bike RatedYes
FinishSandy Black
