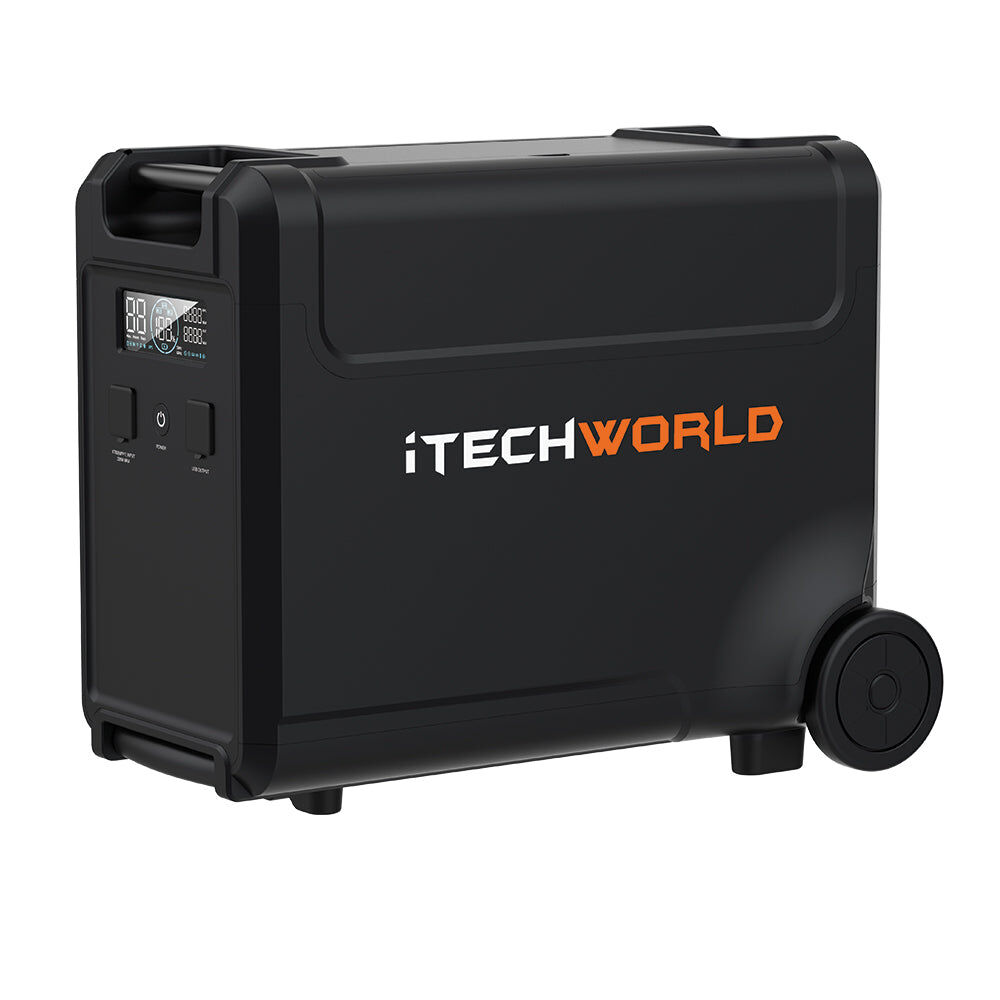

iTechWorld ITW-EB3840

iTechWorld Portable Lithium Power Station Expansion Pack for PS3600

Available for Backorder
Genuine Australian Stock
Installation Available

Resources

User Guide

Description Features Specifications Reviews

Details

Introducing the EB3840 Expansion Battery. Designed for home backup, up to two of the EB3840 (300Ah each) connected with the PS3600 PRO, you can seamlessly increase the power storage capacity of your power station up to 11,520Wh (900Ah), which ensures complete off-grid living is attainable.

As standard in the iTechworld Power Station range, the EB3840 Expansion Battery features the safest lithium technologies available including over-charge, over-discharge, over-current, over-load, short-circuit, and over-temperature protection.

*PS3600 sold separately

Features

Included in the Box

1 x EB3840 Expansion Battery
1 x Car Charger
1 x Parallel Cable
1 x 50A Anderson to XT60 Adapter
1 x Cable Storage Bag

Dimensions & Weight

Size (LxWxH): 550 x 321 x 484mm
Weight: 36.5kg

Battery & Performance

Battery Type: LiFePO4
Cycle Life: >4000 cycles
Single Cell Rated Voltage: 3.2V
Single Cell Rated Capacity: 20Ah
Battery Pack Rated Voltage: 48V
Battery Pack Output Voltage: 40V - 54V
Battery Pack Rated Capacity: 3840Wh
Maximum Parallel Capacity: 11,520Wh

Input & Output

XT60 Input: 11.5V-50V, 200W maximum
USB Quick Charge 3.0 Output: 18W
USB-C Output: 100W
Car Charging Output: 12V/10A
Power Off Current: <500μA

Environmental Conditions

Operating Temperature: -10°C to 40°C
Environment Humidity: ≤90%RH

Specifications

SKU	ITW-EB3840
Brand	iTechWorld
