SKU: 73X12-P
$50.00
Details

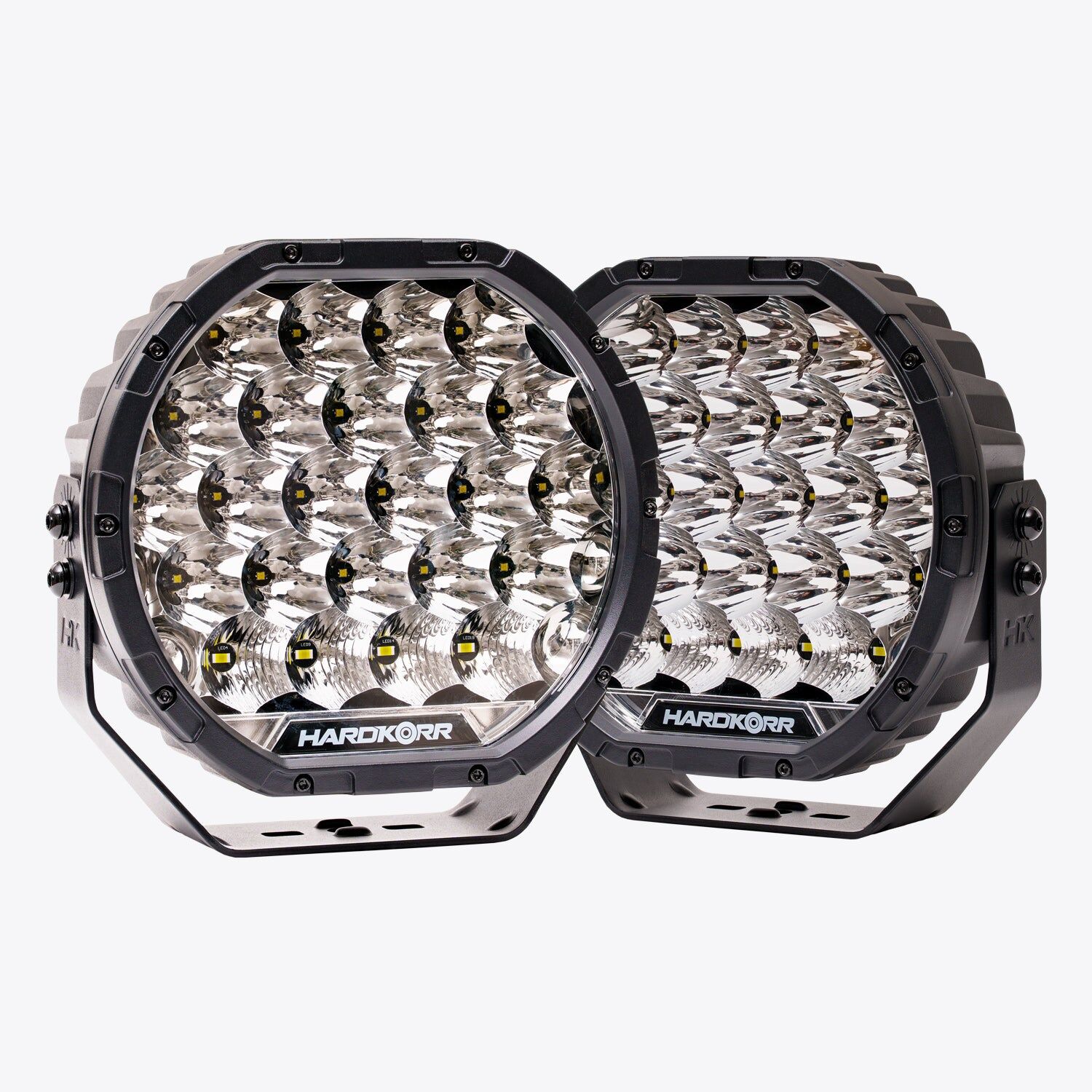

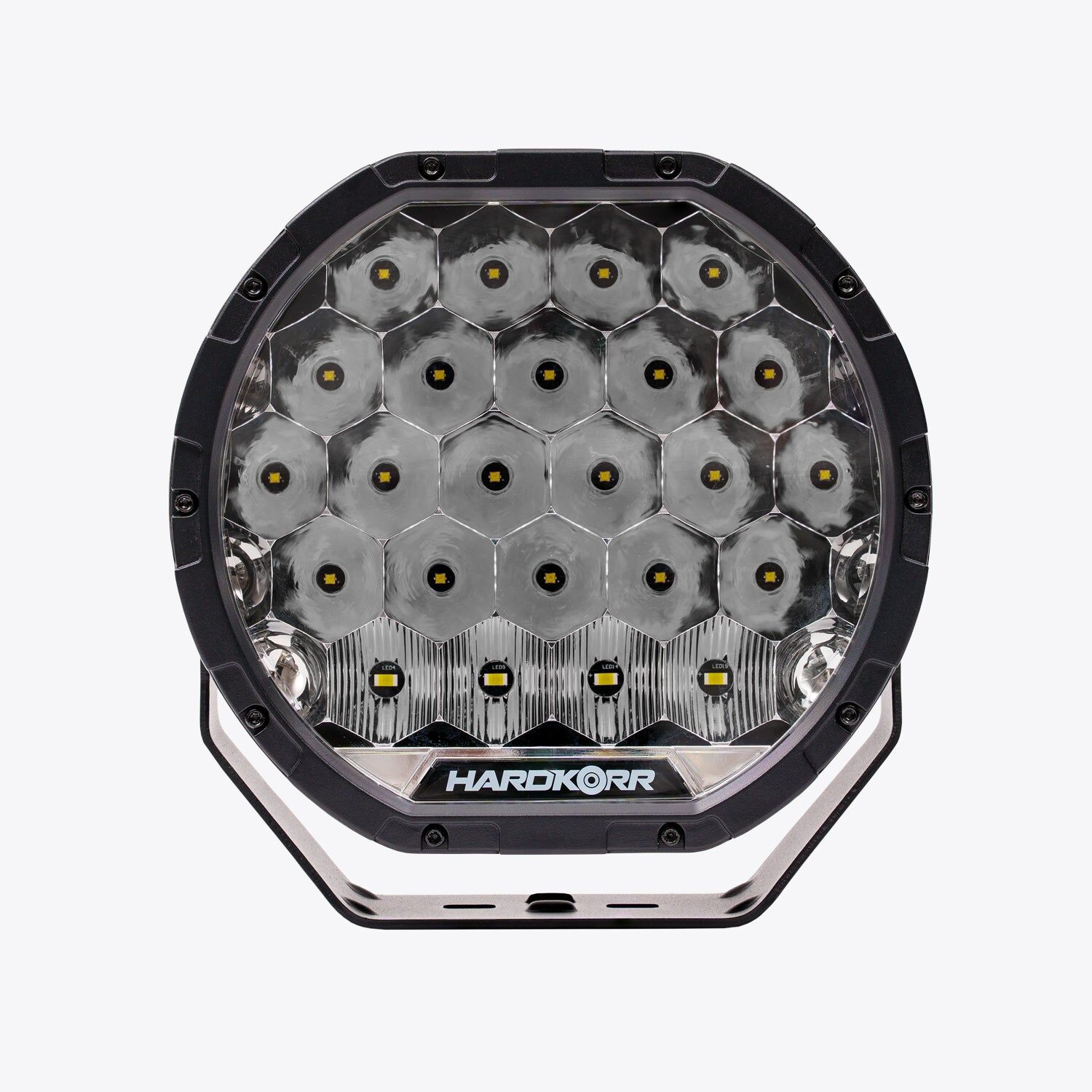

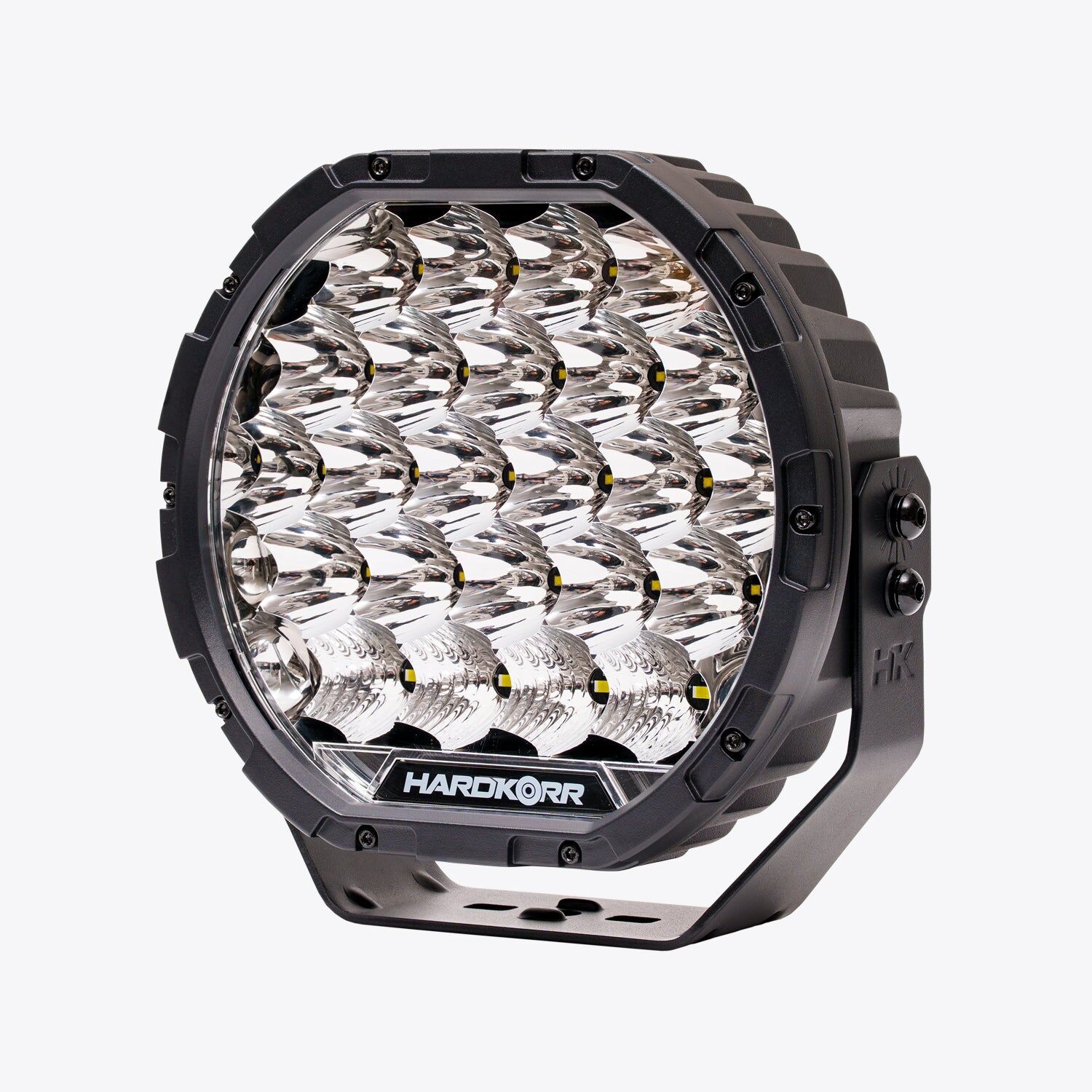

The XD Series 9” LED Driving Lights are built to deliver serious light output without the premium price tag. Designed to throw usable light up to 1500 metres down the road, they give you the distance you need for high-speed highway driving and remote night runs where visibility matters most.
With a wide 75° beam angle, the XD Series doesn’t just punch light straight ahead. It spreads illumination comfortably across both sides of the road, helping you spot hazards, wildlife, and track edges earlier, without harsh hotspots or wasted glare.
Running at a balanced 5700K colour temperature, these lights provide a clean, natural light that’s easy on the eyes and reduces fatigue on long night drives. The result is clearer contrast, better depth perception, and less reflection off road signs and dust.
Built for Australian conditions and designed for real-world touring and off-road use, the XD Series combines robust construction with a practical beam pattern that works where it counts. From outback tracks to long coastal highways, these lights put the light where you actually need it.
No gimmicks. No unnecessary extras. Just solid performance you can rely on when the sun goes down.
Features
- Exceptional output with up to 26,800 raw lumens (23,140 effective) for maximum nighttime visibility
- Outstanding long-range performance with 1 lux reaching up to 1,500m
- High-intensity beam delivering 1,140,000 candela for superior distance penetration
- Premium OSRAM and LUMINUS LED combination for enhanced brightness and efficiency
- Wide 75° beam angle provides excellent forward and peripheral illumination

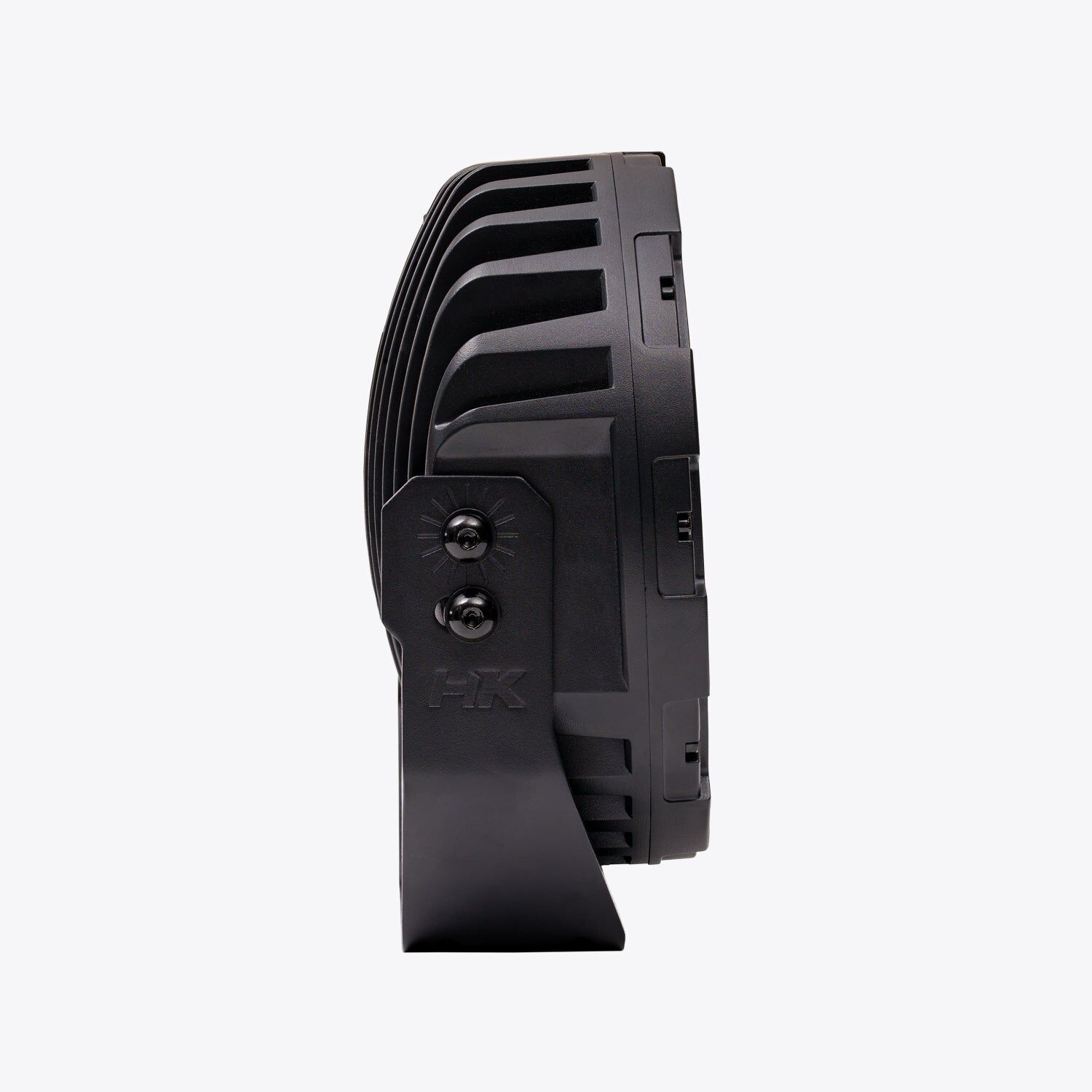

- Robust die-cast aluminium housing paired with a heavy-duty 3.4mm mounting bracket
- UV-coated polycarbonate lens for superior impact resistance and long-term clarity
- IP68 / IP69K rated for complete protection against dust, water, and harsh environments
- Efficient 140W power output with optimised current draw for 12V and 24V systems
- Crisp 5700K colour temperature for improved contrast and reduced driver fatigue
- Compact yet solid design with balanced dimensions for versatile mounting

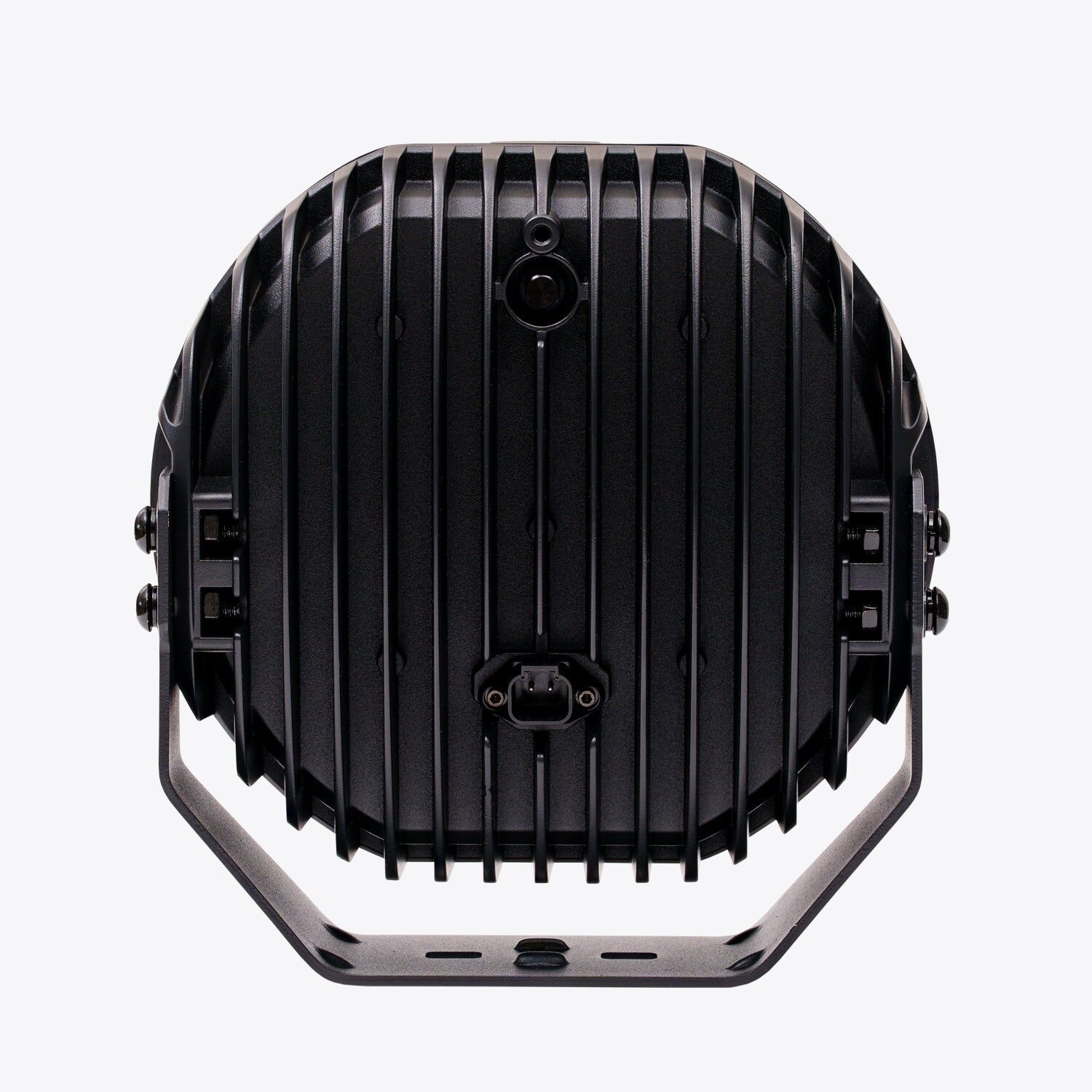

- Reliable Deutsch DT connector for secure, weatherproof electrical connection
- Built to handle extreme temperatures from -40°C to 80°C
- Includes mounting hardware and protective covers for easy installation and added durability
- Certified to EMC, CE, and RoHS standards for quality and compliance
Specifications
- Housing material: Powder-coated die-cast aluminium
- Bracket material: Powder-coated 3.4mm iron bracket
- Lens material: UV-coated polycarbonate
- Size: 229 (L) x 230 (H) x 97 (D) mm
- Weight: 2.6kg (each)
- Raw lumens (pair): 26,800lm
- Effective lumens (pair): 23,140lm
- 1-lux distance: 1,500m
- Beam angle: 75°
- Peak intensity: 1,140,000cd
- CRI: 70
- Colour temperature: 5,700K
- LED chips: 20x OSRAM, 4x LUMINUS
- Operating voltage: 10–30V DC
- Current draw: 11.67A @ 12V / 5.83A @ 24V
- Wattage: 140W
- Operating temperature: -40°C – 80°C
- Ingress protection: IP68 / 9K
- Connector: 2-Pin Deutsch DT Connector
- Certifications: EMC-CISPR 15, IP68/69K, CE-ROHS
Package Contents:
- 2x XD-Series Driving Lights

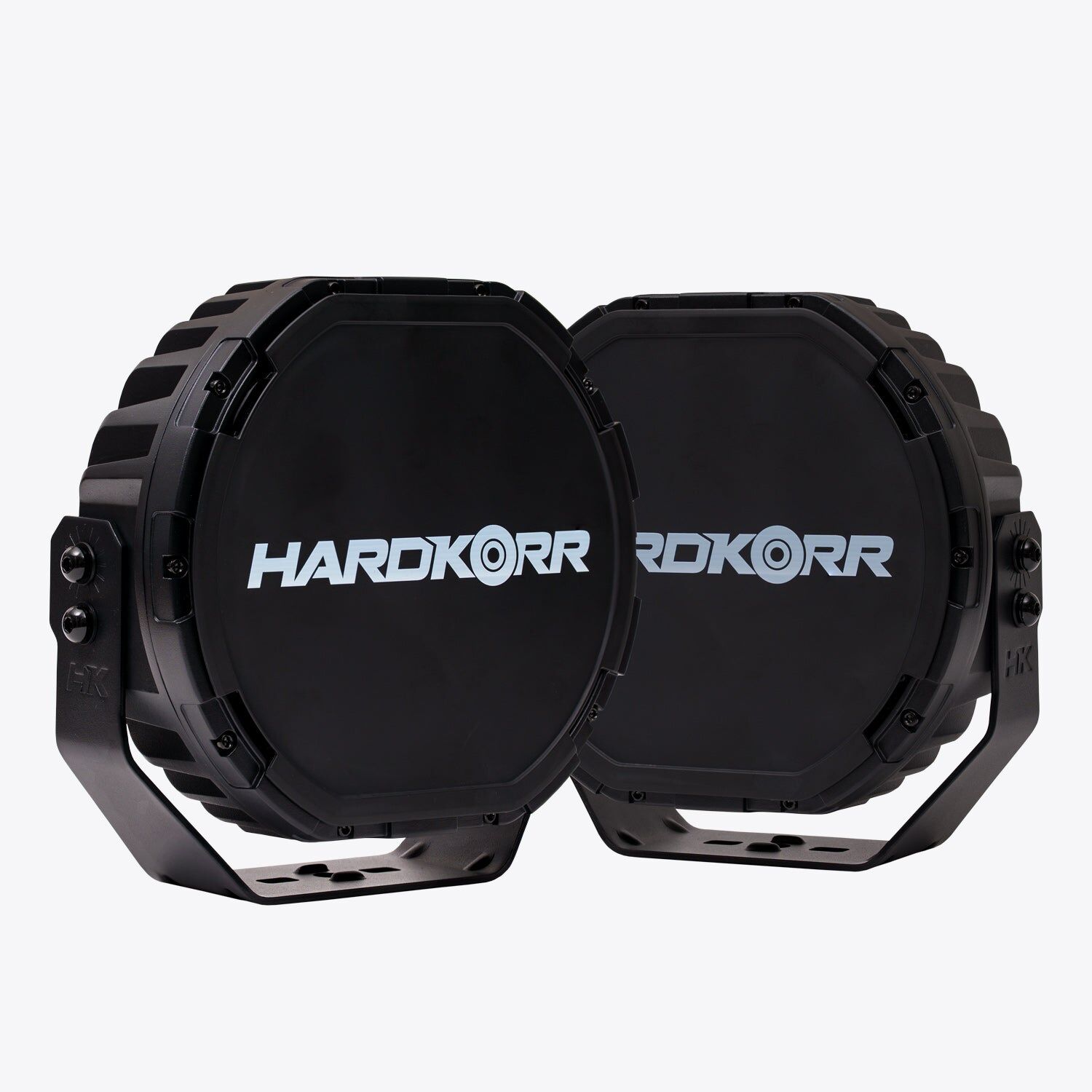

- 2x Black lens covers
- 6x Stainless steel bolts
- 6x Washers
- 6x Nuts
- 2x Rubber mounting pads
- Documentation: Warranty card
Specifications
| SKU | DLXD-9P |
|---|---|
| Brand | HardKorr |
