SKU: 73X12-P
$50.00
Details
The XD Series Driving Lights deliver an ideal balance of performance, build quality, and value, making them a smart upgrade for drivers who want serious visibility without paying premium-brand prices just for the logo.
With an impressive beam distance of up to 1200 metres, the XD Series projects usable light far down the road, giving you more time to react to hazards at highway speeds or when driving in remote areas. The carefully engineered 75° beam angle doesn’t just throw light forward, it floods the road edges as well, improving peripheral visibility and helping you spot wildlife, obstacles, and terrain changes before they become a problem.
Designed for real-world driving conditions, the XD Series focuses on putting light exactly where it’s needed, reducing wasted glare while maintaining a wide, comfortable spread that’s easy on the eyes during long night drives. Whether you’re touring, commuting on unlit roads, or heading off-grid, these lights give you the confidence to keep moving after the sun goes down.\
Reliable, powerful, and built to perform when it matters most, the XD Series proves that great driving lights don’t have to come with a premium price tag.
Features
- High-output performance with 20,400 raw lumens (pair) and 18,112 effective lumens
- Long-distance visibility with an impressive 1 lux at 1,200m
- Powerful beam with 680,000 candela peak intensity
- Optimised light spread via a 75° beam angle

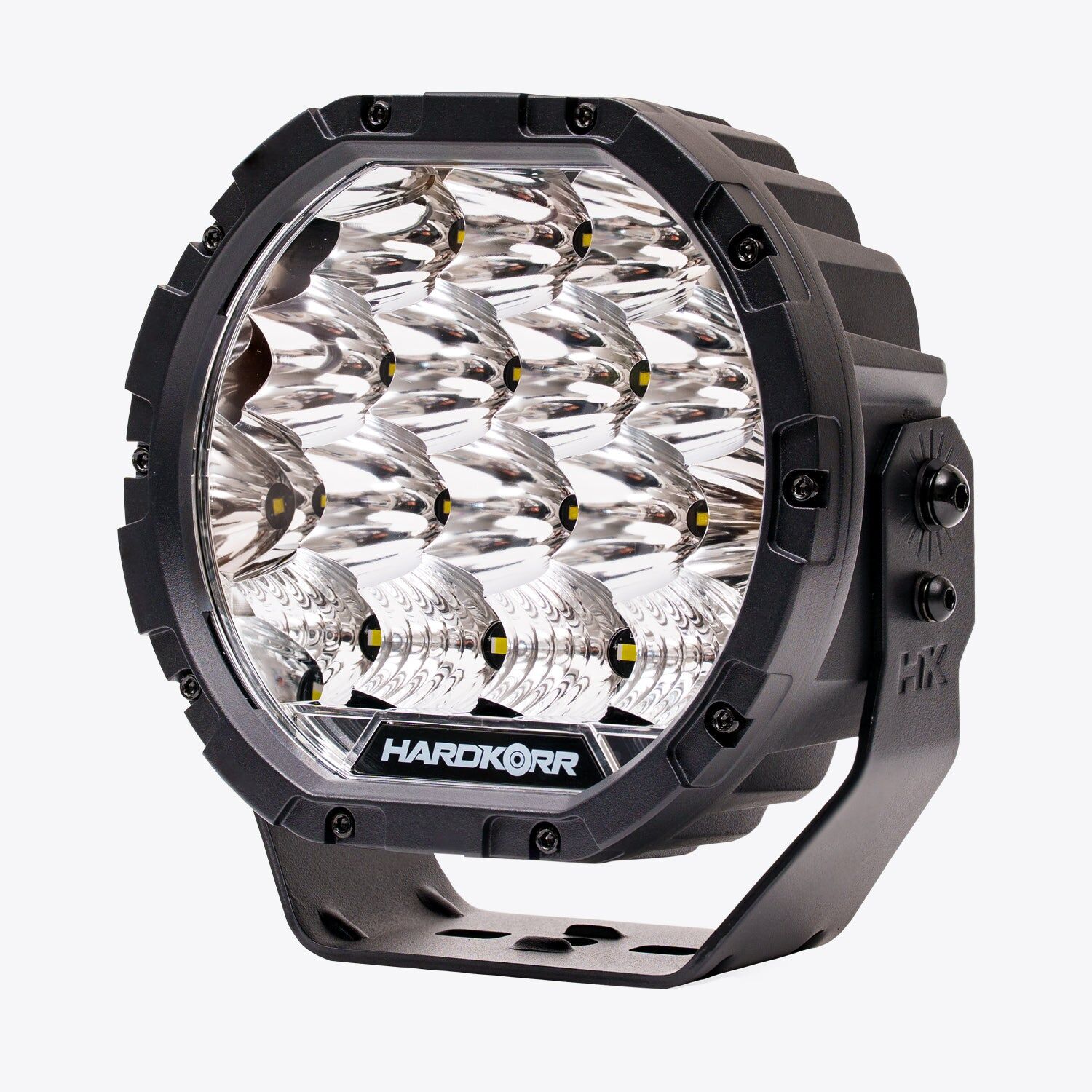

- Premium LED configuration featuring 12x OSRAM + 4x LUMINUS LEDs
- Durable powder-coated die-cast aluminium housing for maximum strength

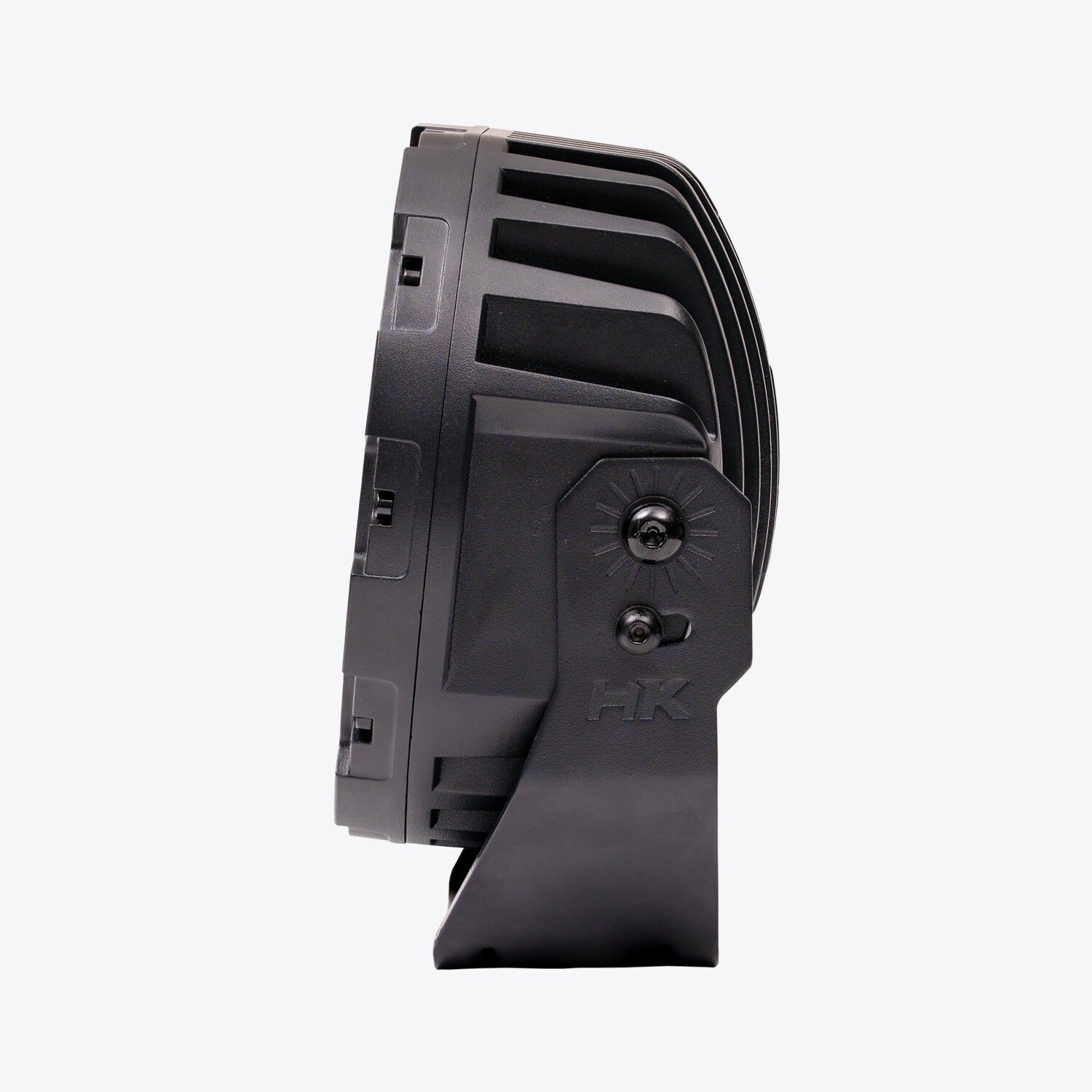

- Heavy-duty 3.4mm powder-coated iron bracket for secure mounting
- Impact-resistant UV-coated polycarbonate lens
- Efficient power draw at 103W total output
- Wide voltage compatibility 10–30V DC
- Extreme weather performance with -40°C to 80°C operating range
- Fully sealed with IP68 / IP69K rating for dust and water protection

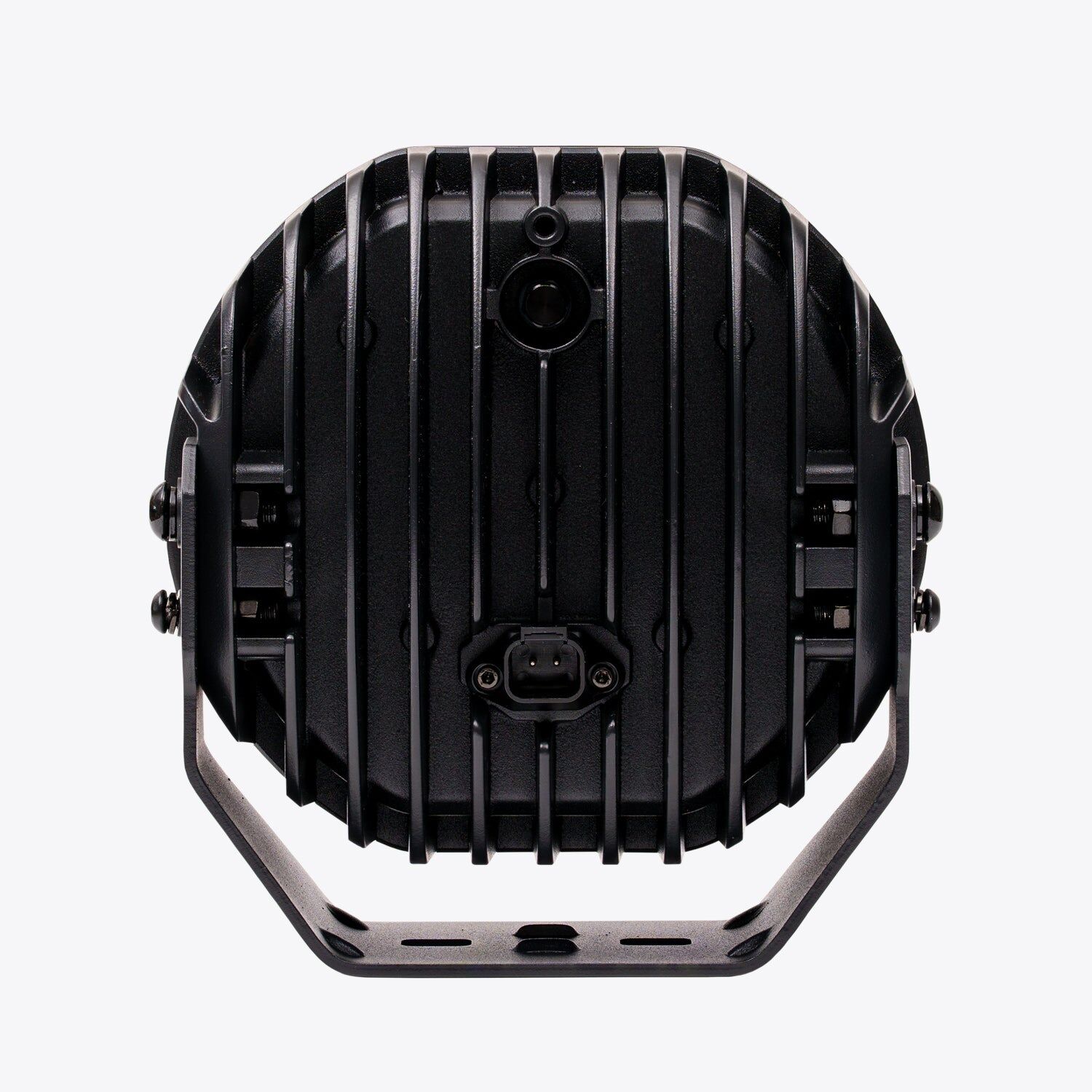

- Reliable connection via 2-Pin Deutsch DT connector
- Certified to EMC-CISPR 15, CE & RoHS standards
Specifications
- Housing Material: Powder-coated die-cast aluminium
- Bracket Material: Powder-coated 3.4mm iron bracket
- Lens Material: UV-coated polycarbonate
- Size: 178 (L) x 184 (H) x 95 (D) mm
- Weight: 1.8kg (each)
- Raw Lumens: 20,400lm (pair)
- Effective Lumens: 18,112lm (pair)
- 1 Lux Rating: 1,200m
- Beam Angle: 75°
- Peak Intensity: 680,000cd
- CRI: 70
- Colour Temperature: 5,700K
- LED Chips: 12x OSRAM, 4x LUMINUS
- Operating Voltage: 10–30V DC
- Current Draw: 8.62A @ 12V / 4.31A @ 24V
- Wattage: 103W
- Operating Temperature: -40°C – 80°C
- Ingress Protection: IP68 / IP69K
- Connector: 2-Pin Deutsch DT Connector
- Certifications: EMC-CISPR 15, IP68/69K, CE-ROHS

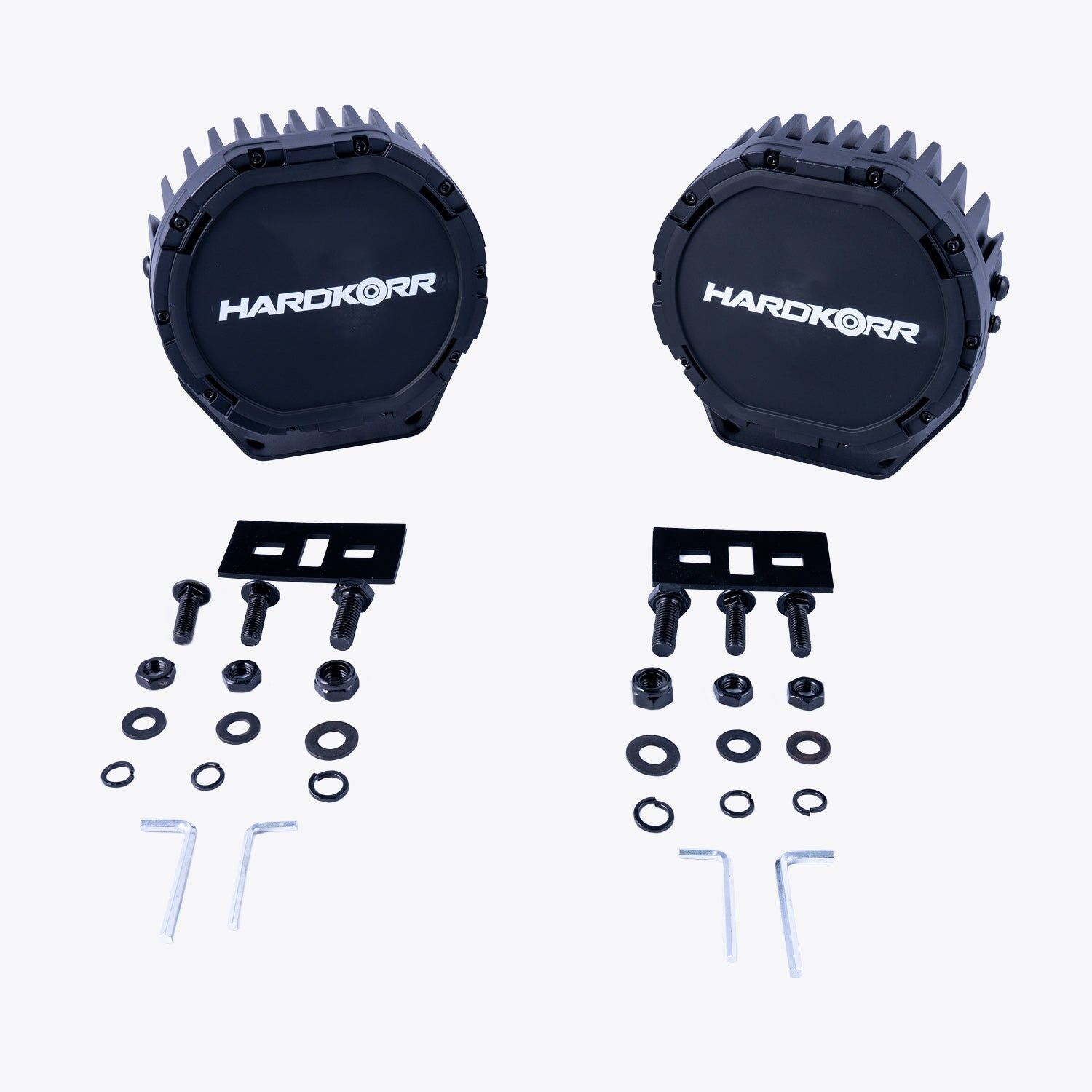

Package Contents

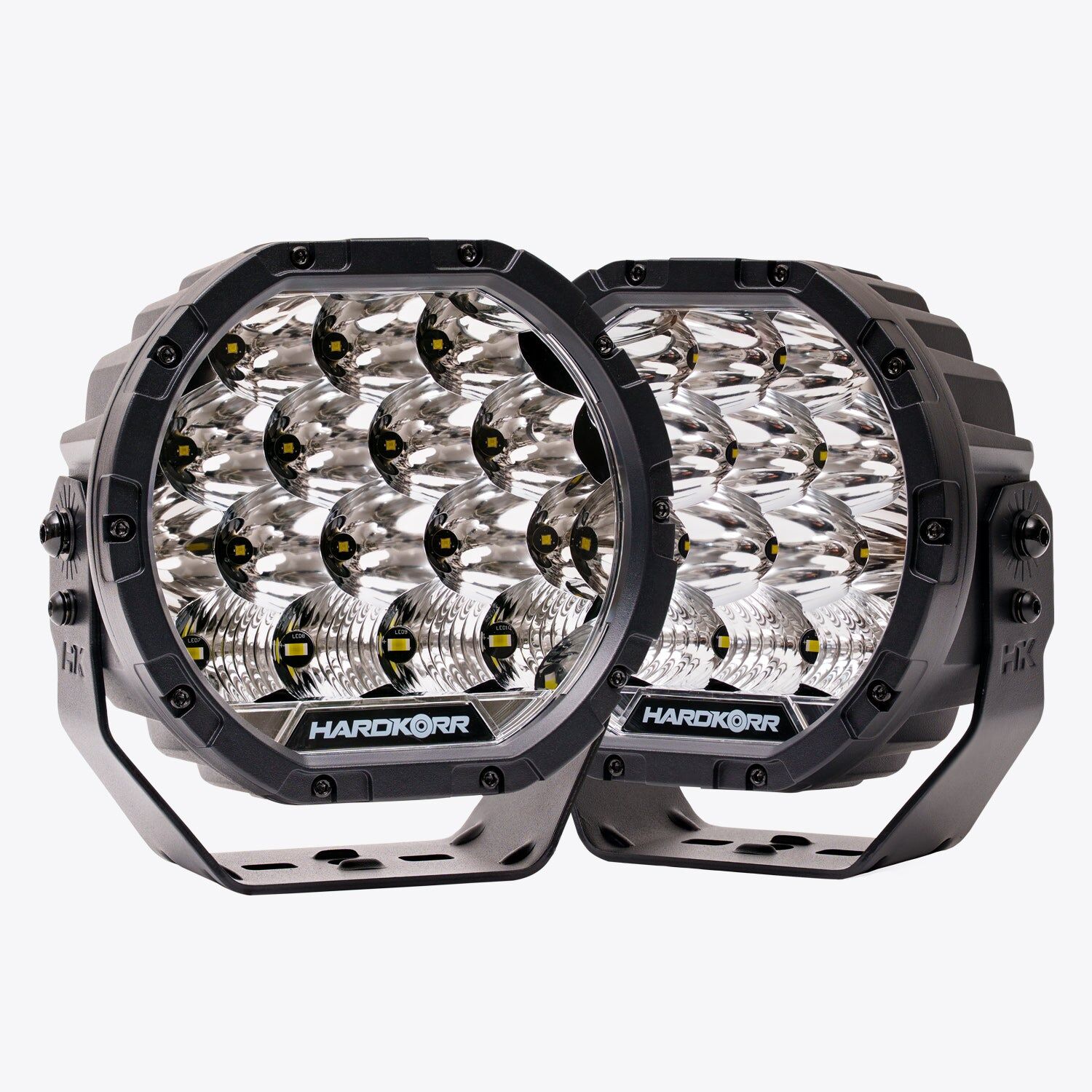

- 2x XD-Series Driving Lights

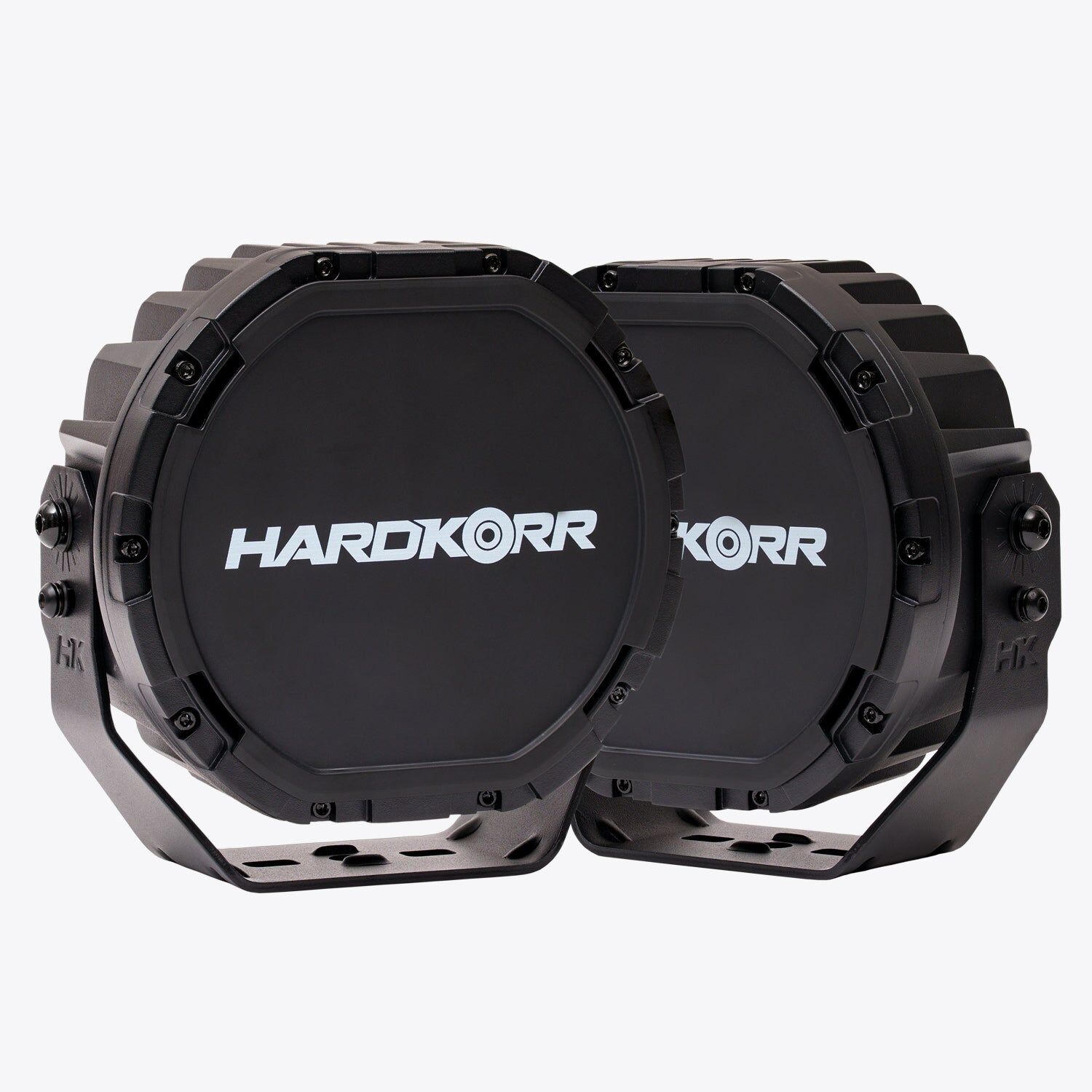

- 2x Black lens covers
- 6x Stainless steel bolts
- 6x Washers
- 6x Nuts
- 2x Rubber mounting pads
- Warranty card
Specifications
| SKU | DLXD-7P |
|---|---|
| Brand | HardKorr |
